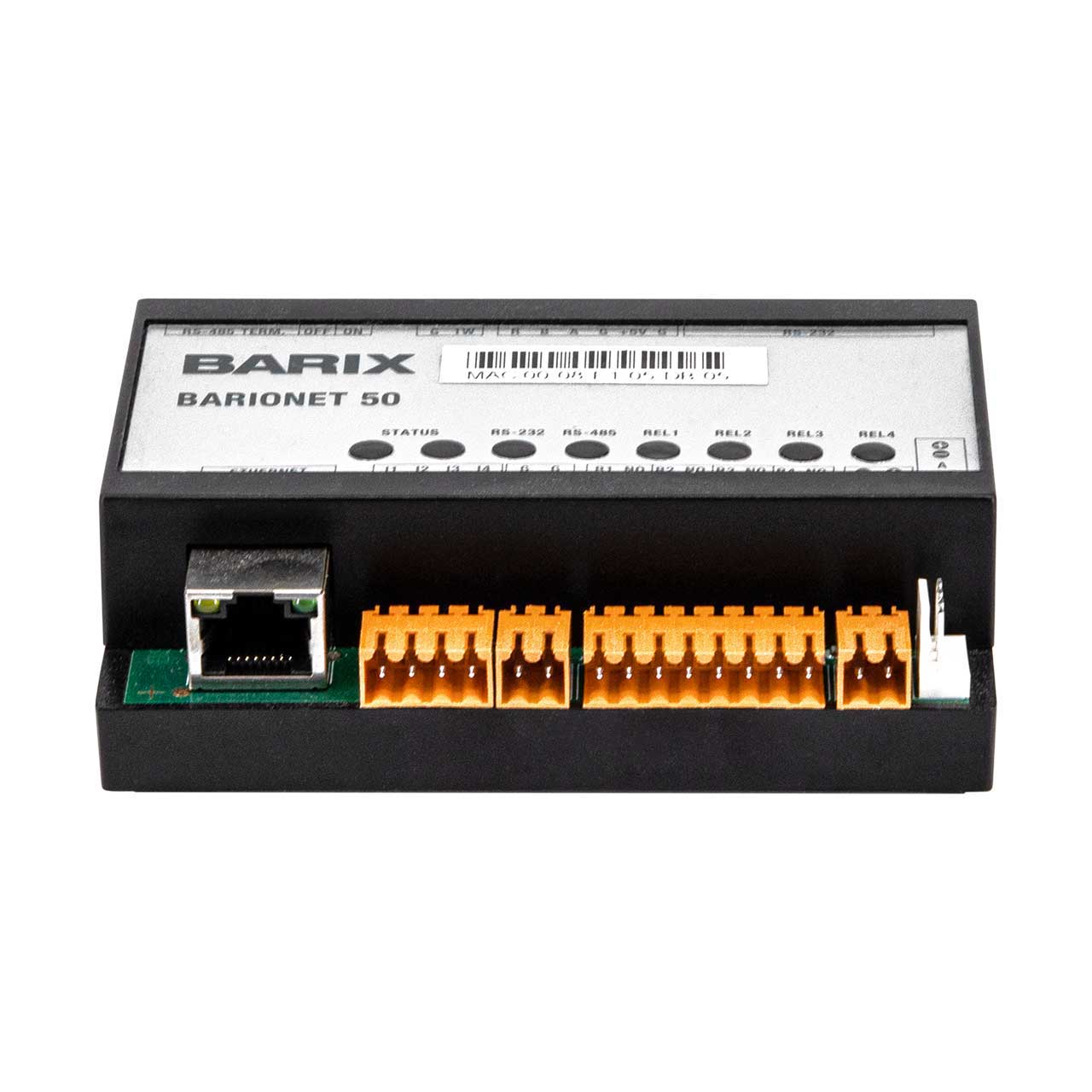

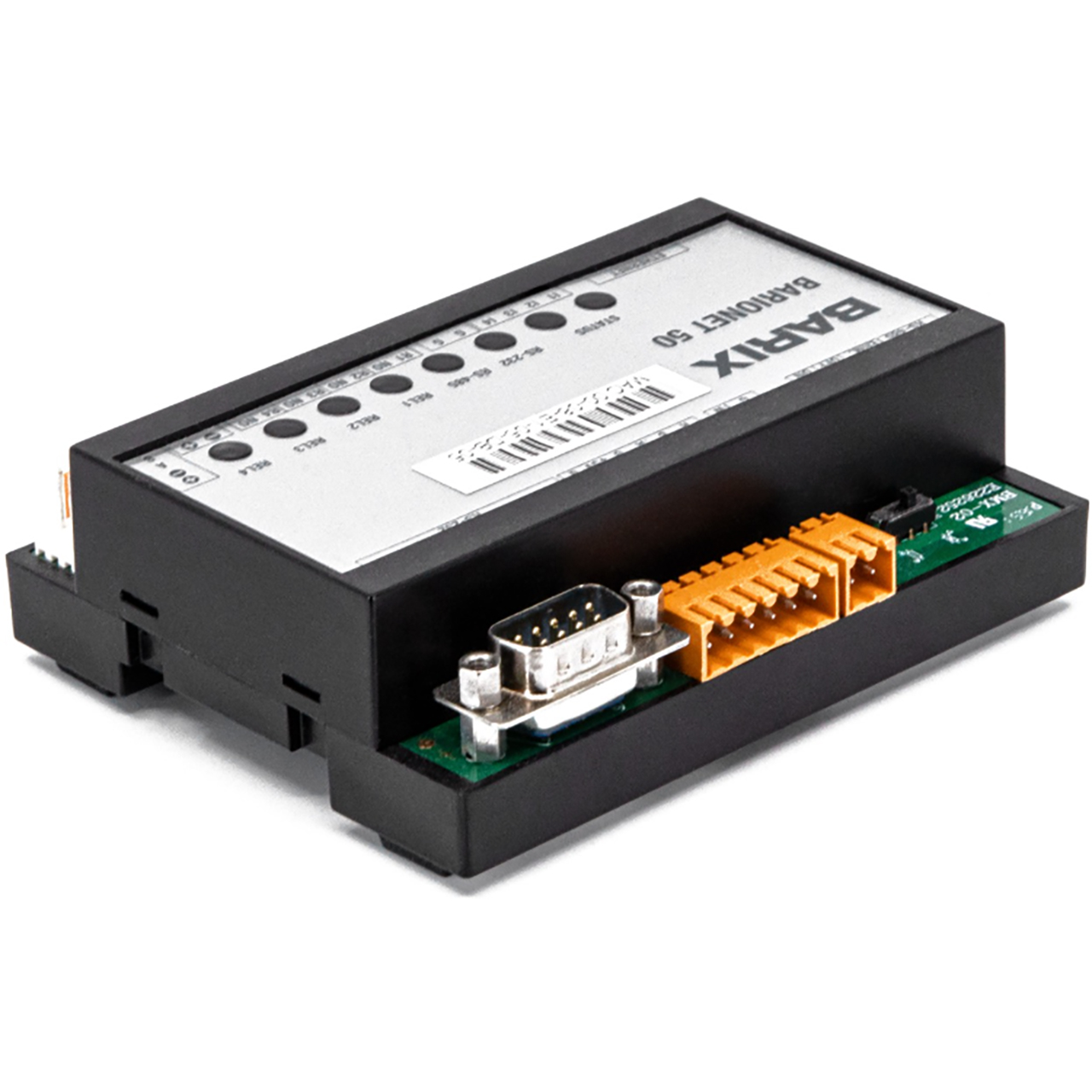

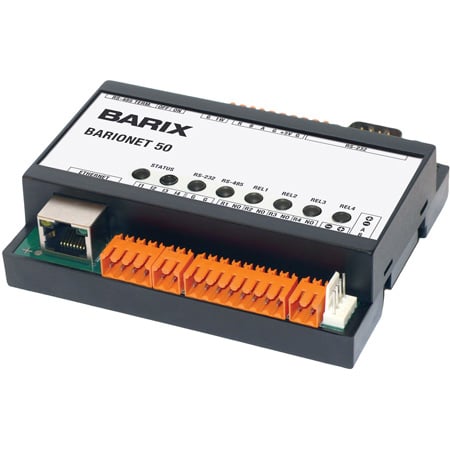

Barix Barionet 50 IP Automation Controller & Programmable I/O Device Server

ITEM #: BARIX-BAR-50 MFG #: 2008.9091

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$260.00

Availability: In Stock
iAvailability Description Popup


    2008.9091 - Overview

    The Barionet from Barix is a family of programmable network-enabled automation controllers for interfacing a wide variety of devices and systems to IP-based networks in home and industrial automation applications. With the Barix Barionet 50, most devices can be network enabled for monitoring and control via a web browser as well as other standards-based automation systems, such as SNMP and Modbus.

    The Barix Barionet 50 provides a variety of standard hardware and software interfaces as well as general-purpose inputs and outputs for control and monitoring applications. Two Barionet models are currently available, the Barionet 100 (the original) and the Barix Barionet 50. The two models differ primarily in the number of inputs and outputs provided.

    Universal, programmable I/O device server with web server, Modbus/TCP and SNMP support. Serial ports, digital I/O and Dallas 1-wire support.

    The Barix Barionet 50 is a direct replacement for the Aiphone RY-IP44 Input/Output Network Adaptor for use with IX Series, IS-IP Series, and IPW-1A network intercom systems. It is an IP adaptor with 4 relay outputs and 4 contact inputs. Relay outputs on the RY-IP44 can be programmed to trigger when a station is calling, while in communication, or while calling and communicating. Relay outputs can also be programmed for door release. The RY-IP44 relays can be used in place of a station's built-in relay.

    Please Note: The Barionet is powered by a standalone 9-30 VDC power supply, like the BARIX-BAR50PS. (sold separately)

    • Features:

      • IP Automation Controller
      • 4 relay outputs
      • 4 dry contact inputs
      • RS-485 serial interface
      • 10/100 Mb auto-sensing Ethernet port
      • Integrated web server
      • RS-232 serial interface
      • Dallas Semiconductor 1-wire interface with built-in support for temperature sensors.
      • Support for Modbus/TCP, SNMP, CGI, HTTP and other standard protocols.
      • Barix proprietary dynamic tags for creating custom web pages to display status information.
      • Programmability via BASIC-like Barix Control Language (BCL).
      • Support for control of external Modbus devices via BCL code
      • Relay Output (4x24V, 0.5A)
      • Contact Closure Input (4)
      • RS-232 Serial Port (1)
      • RS-485 Serial Port (1)
      • Supply Voltage (9-30V) Powered by hardwire to terminal block, no separate power supply included

    • Specifications:

      • I/O Interfaces
      • On detachable screw terminal blocks:
      • 4 relay outputs (30 VDC, 0.5 A)
      • 4 digital inputs (dry contacts)
      • Dallas 1-Wirer interface

        Serial Interfaces
      • RS-232 (DSub-9 male, 5-wire RXD, T XD, RTS, CTS,
      • GND), RS-485 on detachable screw terminal block as well as on 4 pin extension connector, both with serial speeds from 300 bps to 230 kbps (asynchronous)

        Network Interface
      • RJ45 10/100 Mbit Ethernet (Autodetect)
      • Supported protocols: TCP/IP, UDP, ICMP, IGMP, AutoIP, IPzatorT, DHCP, CGI, HTTP web server for control, status and configuration.

        API
      • Modbus/TCP, SNMP, CGI, UDP/TCP based ASCII protocol

        Misc
      • 8 LED status indicators
      • Extension connector (4 pin: power and RS-485)
      • Power input: 9.30 VDC, 4 Watt max.

        Case
      • High quality plastic, 135 g,, DIN-rail mount.
      • 4.13" x 3.34" x 1.25", 105 mm x 85 mm x 31 mm
      • MTBF
      • Min. 800 000h acc. to MIL217F at 25°C ambient temperature

    • Item Includes:

      • Barionet 50, Quick install guide

    • Tags

      :

      • #AiPhone RY-IP44

    • GTIN:

      7640113550912
