Neutrik NKOB16M4-XP-0-0.5 opticalCON HYBRID MED Breakout Cable with 2 Duplex LCs/MM/OM4 - 1.64 Feet/0.5m

ITEM #: NKOB16M4-XP-0-05 MFG #: NKOB16M4-XP-0-05

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$174.95

Our Price:

$157.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

NKOB16M4-XP-0-05 - Overview

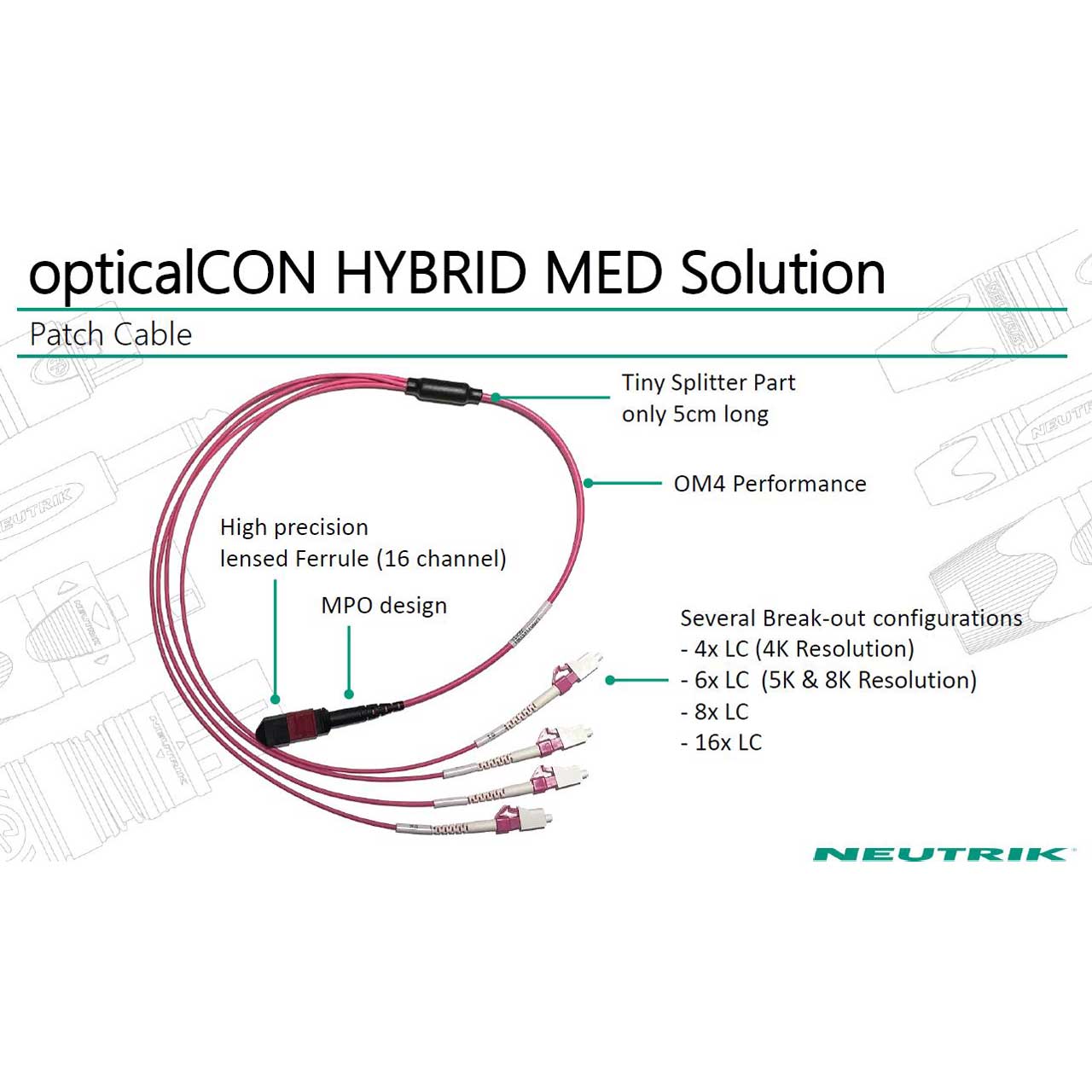

The Neutrik NKOB16M4-XP-0-0.5 is an opticalCON HYBRID MED Breakout Cable with 2 Duplex LCs (MM/OM4), 1.5 Foot (0.5m) without Copper Wiring designed for the healthcare industry. This high performance lensed MTP® breakout cable for permanent and temporary installations for indoor healthcare applications. Standard premium grade A LC's (multimode OM4) guarantee low insertion loss values and high performance.

opticalCON HYBRID MED is more robust, reliable and easier to maintain than any other common hybrid systems. With new technology based on fiber lenses, Neutrik's opticalCON HYBRID MED achieves an extremely robust signal with minimal loss. The optical connection is exceptionally well protected against dirt and dust by its lenses and an additional sealing cover.

  • Features:

    • Used in operating theaters and with mobile medical devices to transmit high resolution pics and videos
    • Ruggedized and dirt protected hybrid connection system
    • Available in standardized length (3m, 5m, 8m and 10m) and packaged versions
    • Excellent dust and dirt protection
    • Easy to maintain and nurse-proof design with glove protection
    • Shielded system with EMI protection design
    • Suitable for indoor healthcare applications
    • 10,000 Mating Cycles
    • Lensed High performance
    • MTP® ferrule
    • Standard split length: 30 cm
    • LC breakout connectors available with 4x, 6x, 8x and 16x
    • Corning ClearCurve® OM4 performance cable


  • Specifications:

    • Measurement of attenuation before, during and after flexing cycles. Test procedure according to IEC 61300-2-44 in combination with IEC 61300-3-4.
    • Test cycles: 20,000
    • Mass of weight: 10 N
    • Flexing angle: ± 90 °C
    • Flexing speed: ca. 37 cycles/min
    • Light source: Kingfisher KI2824
    • Power meter: Kingfisher KI2600-GE
    • Launching cables: NKOB16M4-XP-0-1
    • Wavelength: 850 nm
    • Test cable: NKO16M-XP-0-5
    • Result: Change in attenuation over all < 0.30 dB. No mechanical cable damage at 20,000 cycles visible.

      Product Skus
    • Title (4xLC): NKOB16M4-XP-0-*
    • Title (6xLC): NKOB16M6-XP-0-*
    • Title (8xLC): NKOB16M8-XP-0-*
    • Title (16xLC): NKOB16M-XP-0-*
    • Gender: Monolithic

      Mechanical
    • Lifetime (typ.): 10,000 mating cycles
    • Locking device: Push/Pull
    • Mounting direction: Front mounting
    • Connection Type: LC/MTP
    • Fiber End Face: MPO, UPC
    • Fiber Mode: Multimode
    • Fiber Type: OM4
    • Field of use: Patch
    • Mounting: Cable
    • Environmental
    • Temperature range: -10°C to +70°C

      Optical
    • Insertion loss: Typ. 0.65 dB per connection / Max. 0.9 dB per connection
    • Return loss: Typ. 28 dB per connection / Min. 25 dB per connection


  • Item Includes:

    • 1x NKOB16M4-XP-0-0.5 opticalCON HYBRID MED Breakout Cable with 2 Duplex LCs/MM/OM4 - 1.64 Feet/0.5m


  • Warranty:

    • 2 YEARS
