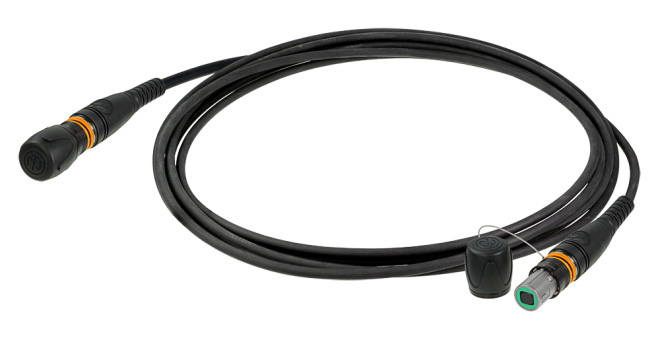

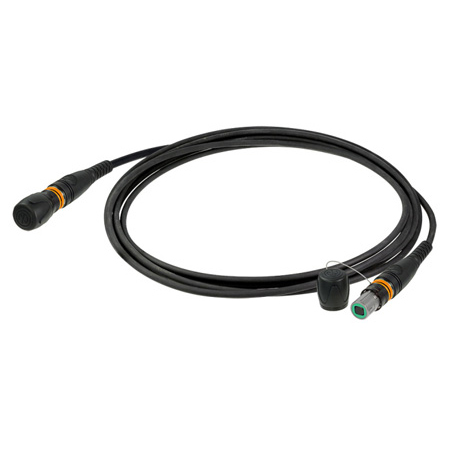

Neutrik NKOYPS-23-A-0-10 10 meter opticalCON Duo Singlemode Powersplit Cable

ITEM #: NKOYPS-23-A-0-10 MFG #: NKOYPS-23-A-0-10

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.


Items similar to the NKOYPS-23-A-0-10

NKOYPS-23-A-0-10 - Overview

Assembled, rugged and lightweight 12-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in single (APC) and multi mode (PC).

The opticalCON MTP cable connector accommodates 12 optical fibers (multimode PC or single mode APC) based on conventional and proven MTP connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

  • Features:

    • Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
    • Rugged 12-channel fiber optic connection system
    • For Point-to-Point multichannel routing
    • Innovative spherical shutter guarantees low maintenance
    • Dust and water resistant according to IP65 in mated condition
  • Specifications:

    • Mechanical
    • Cable retention: 500 N
    • Insertion force: < 45 N
    • Withdrawal force: < 45 N
    • Lifetime: 2500 mating cycles
    • Locking device: Push-Pull

    • Boot: Rubber (EPDM)
    • Bushing: Zinc diecast (ZnAl4Cu1)
    • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black chromium
    • Strain relief: Brass (CuZn39Pb3) + PU, Ni

    • Temperature range: -40°C to +75 °C

    • Insertion loss: < 0.9 dB
    • Optical connector: MTP ELITE female
    • Optical wiring: Method A

      Mobile cable
    • Color: black, matte
    • Core diameter: Singlemode 9 µm, Multimode 50 µm OM3
    • Cladding diameter: 125 µm
    • Comment: PUR
    • Minimal bending radius: 8.2 cm
    • Number of fibers: 12
    • Cable retention: Aramid yarn
    • Weigth: 103 kg/km
    • Overall diameter: 8.2 mm
