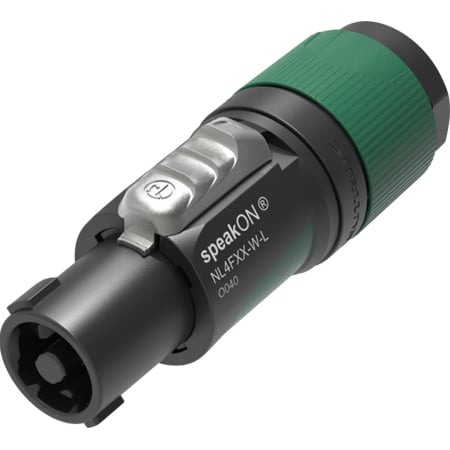

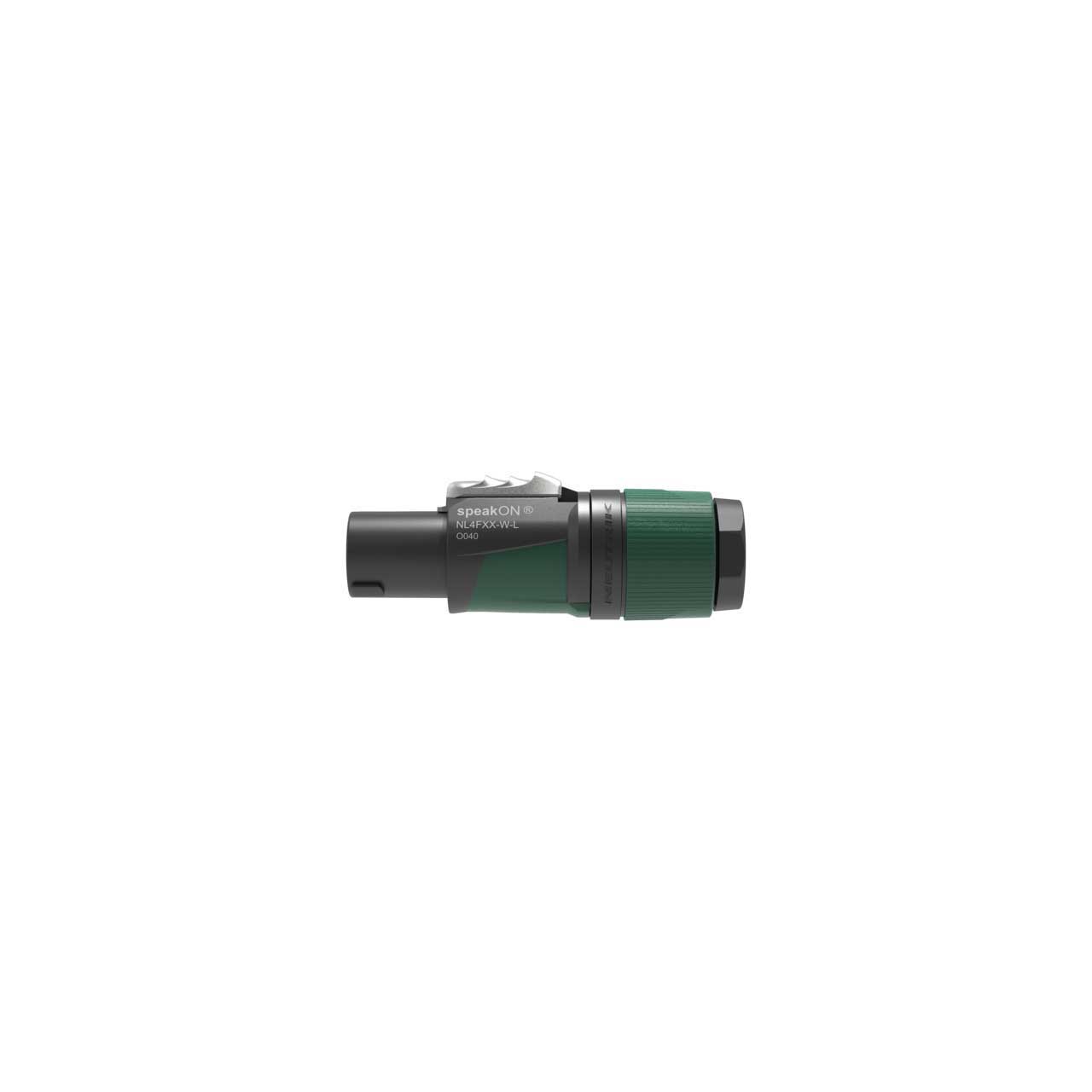

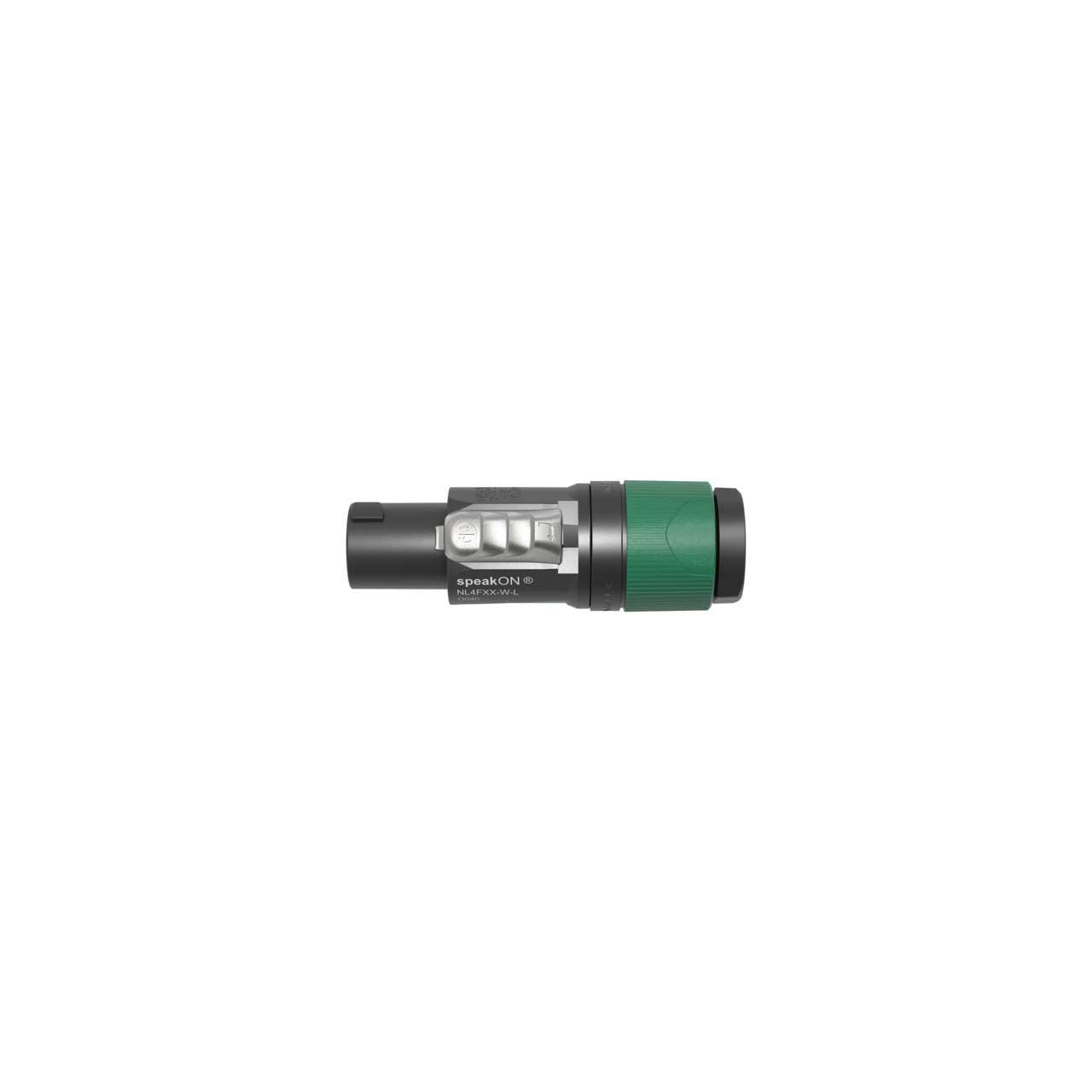

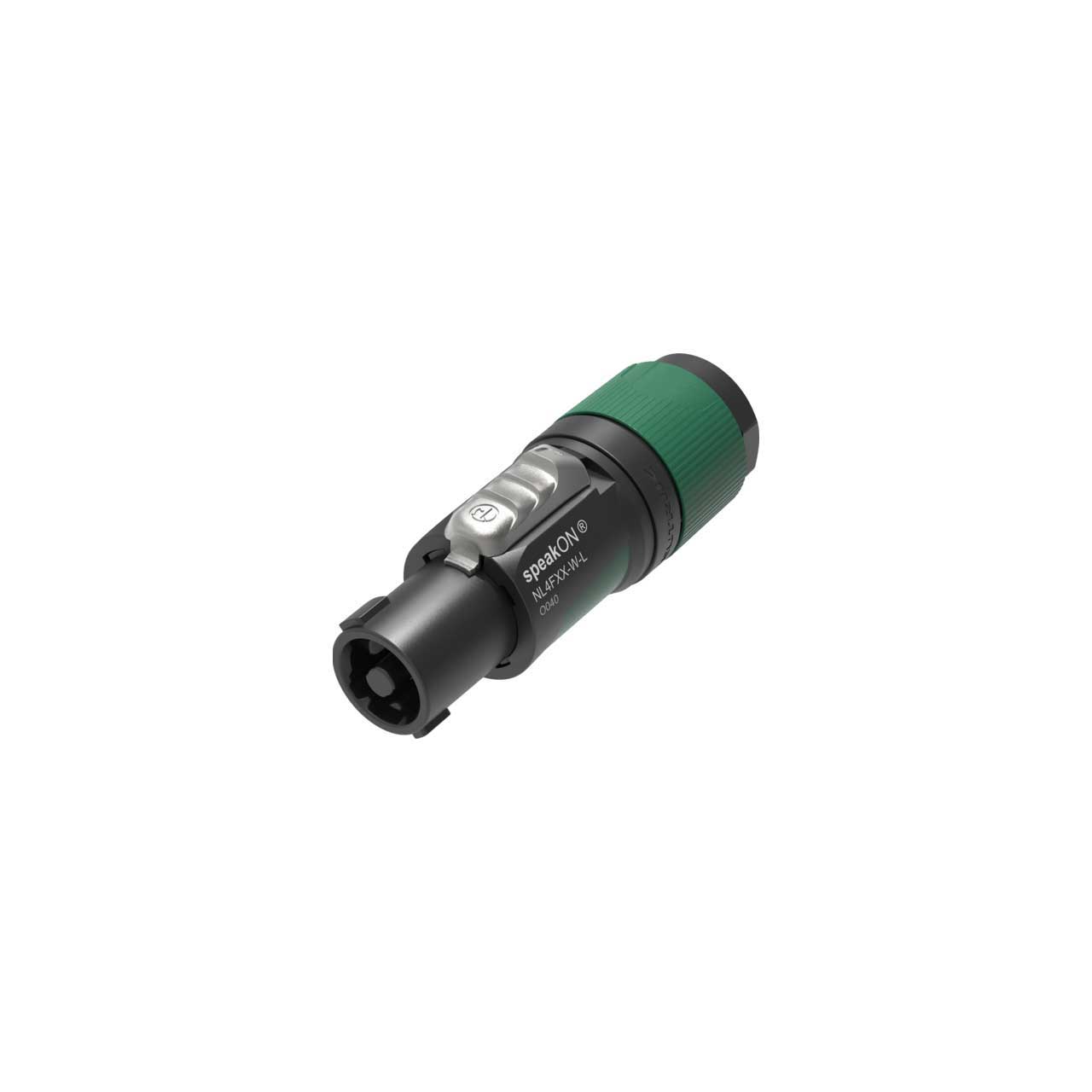

Neutrik NL4FXX-W-L speakON XX Series 4 Pole Cable End - Green - Large Chuck for Cable 10-16mm - Each

ITEM #: NL4FXX-W-L MFG #: NL4FXX-W-L

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$6.57

Our Price:

$5.45

Availability: In Stock
iAvailability Description Popup


    NL4FXX-W-L - Overview

    Neutrik NL4FXX-W-L 4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 10 to 16 mm

    speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.

    Attention: This product is strictly not intended for use as an AC or DC power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT

    • Features:

      • Up to 37 A rms current rating
      • Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
      • IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
      • Superior NEUTRIK quality standard, extremely robust and reliable
      • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
      • Easy and reliable twist lock system
      • Ergonomic design with slip-proof two-component molded housing
      • Improved kink protection by two-component bushing

    • Specifications:

      • Electrical
      • Contact resistance: ≤ 2 mΩ
      • Dielectric strength: 2.8 kVac
      • Insulation resistance: > 10 GΩ (initially)
      • Number of electrical contacts: 4
      • Rating Europe: IEC 61984: 37 A 250 V AC
      • Rating USA: UL1977: 35 A 250 V AC
      • Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
        Attention: This product is strictly not intended for use as an AC or DC power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT

        Mechanical
      • Cable O.D.: 10 - 16 mm
      • Lifetime: typically 5’000 mating cycles
      • Wiresize (mm²): 1.5 - 4 mm²
      • Wiresize (AWG): 17 - 11 AWG
      • Locking device: Twist lock
      • Termination: screw type terminals

        Material
      • Contact plating: Ag
      • Contacts: Copper Alloy
      • Insert: Polyamide (PA6.6)
      • Locking element: Zinc diecast
      • Shell: Polyamide (PA6) / TPE
      • Strain relief: Polyketone
      • Bushing: Polypropylene / TPE

        Environmental
      • Temperature range: -33 °C to +80 °C
      • Protection class: IP20
      • Flammability acc. to UL94: V-0

    • Item Includes:

      • 1x Neutrik NL4FXX-W-L speakON XX Series 4 Pole Cable End - Green - Large Chuck for Cable 10-16mm - Each
