Neutrik NL4MPRXX Receptacle speakON XX Series 4 Pole - Round Flange - Tab Terminals for NLFASTON/Soldering

ITEM #: NL4MPRXX MFG #: NL4MPRXX

free ship

List Price:

$3.58

Our Price:

$3.07

Availability: In Stock
iAvailability Description Popup


    NL4MPRXX - Overview

    The Neutrik NL4MPRXX connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

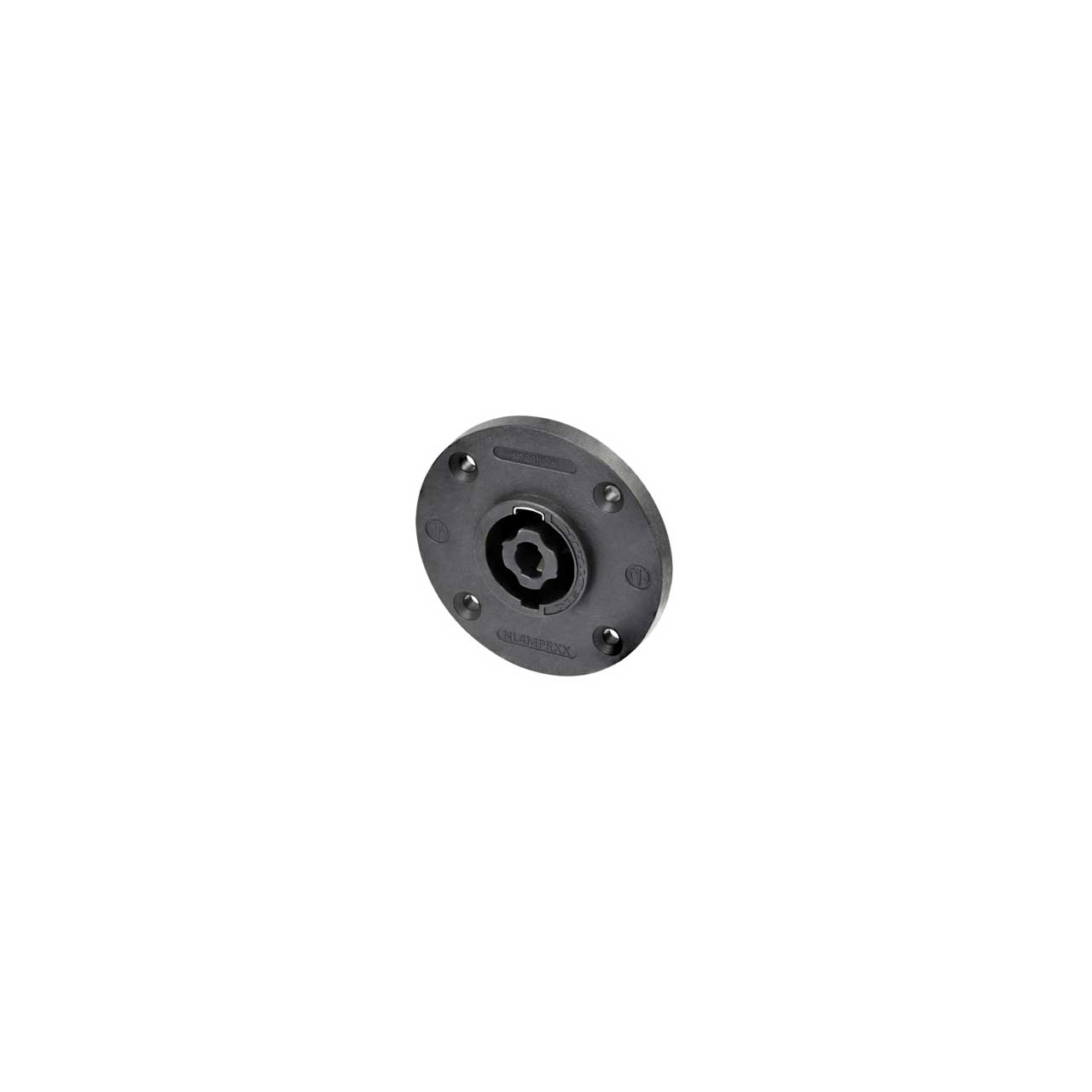

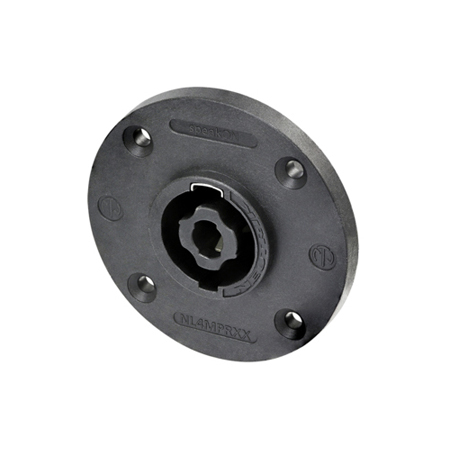

    4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.

    The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

    Attention: speakON is NOT to be used as an AC mains or power supply connector!

    • Features:

      • IEC 61984 certified > IEC 62368-1 compliant
      • Glass reinforced V-0 materials make it extremely robust and dependable
      • Precise keyway for secure mating
      • Accurate twist lock latching system
      • Metal insert in locking area
      • Airtight design - optimized for speaker applications

    • Specifications:

      • Gender: male
      • Contact resistance: ≤ 2 mΩ
      • Dielectric strength: 2.8 kVac
      • Insulation resistance: >0.1 GΩ (after dampheat)
      • Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
      • Rated voltage: 250 V ac
      • Attention: speakON is NOT to be used as an AC mains or power supply connector!
      • Lifetime: > 5000 mating cycles
      • Termination: 3/16" flat tabs (e.g. NLFASTON)
      • Locking device: Quick Lock
      • Chassis shape: round G-size flange
      • Layout: four thru holes
      • Contact plating: Ag
      • Locking element: Stainless Steel
      • Shell: Polyamide (PA 6.6)
      • Contacts: Copper Alloy
      • Flammability: UL94 V-0
      • Temperature range: -30 °C to +80 °C

    • Item Includes:

      • 1x Neutrik NL4MPRXX Receptacle speakON XX Series 4 Pole - Round Flange - Tab Terminals for NLFASTON/Soldering
