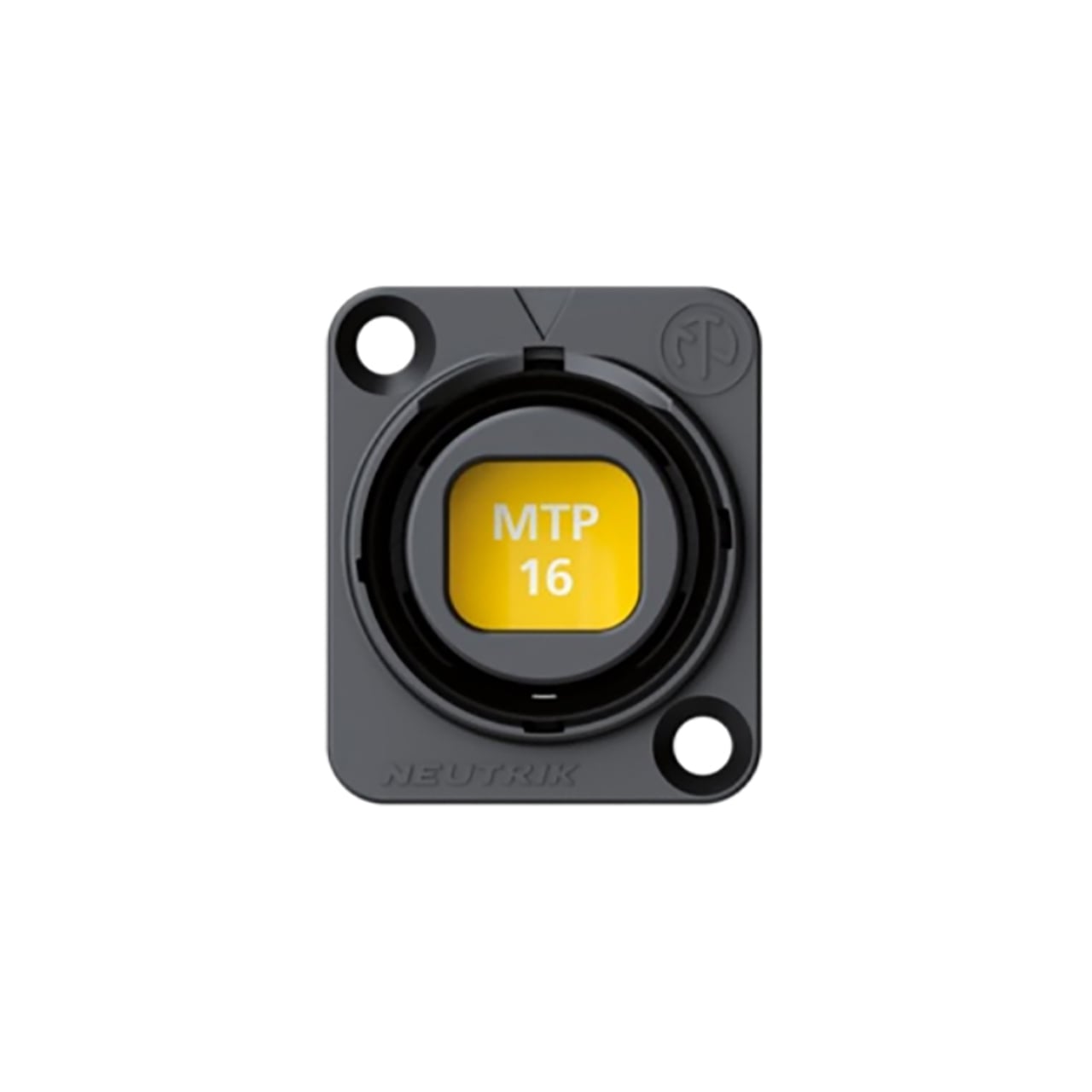

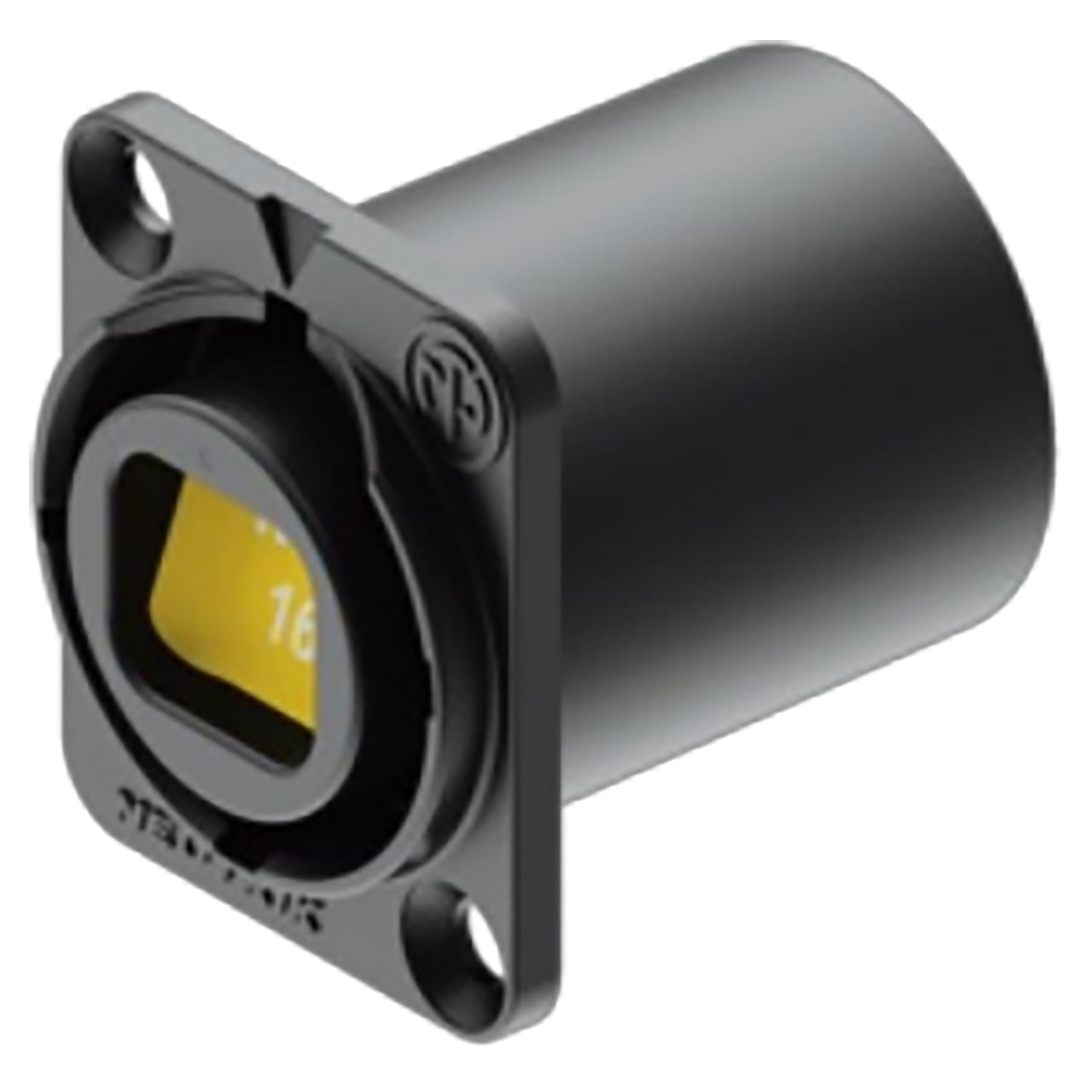

NEUTRIK NO16FDW-A opticalCON MTP IP65 Ruggedized Dirt-Protected 16-Channel Fiber Optic Chassis Fitting - Black - Each

NO16FDW-A - Overview

Ruggedized and dirt-protected 16-channel fiber optic connection system!

• Features:

  • For point-to-point multichannel routing
  • Laser protective metal shutter seals dust proof with two-component rubber gasket
  • IP65 ingress protection in mated condition with SCDP-*
  • Accommodates standard MTPr ELITE MALE with 20 N springforce connectors on the rear for simple installation


• Specifications:

  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime (typ.): 2,500 mating cycles
  • Locking Force: 1,000 N
  • Locking Device: Push-Pull
  • Mounting Direction: Front mounting
  • Chassis Shape: D
  • Temperature Range: -40°F - 167°F (-40°C - 75°C)
  • Protection Class: IP65 in mated condition in combination with SCDP-*
  • Insertion Loss: < 0.9dB/connection


• Item Includes:

  • 1x NEUTRIK NO16FDW-A opticalCON MTP IP65 Ruggedized Dirt-Protected 16-Channel Fiber Optic Chassis Fitting - Black - Each
