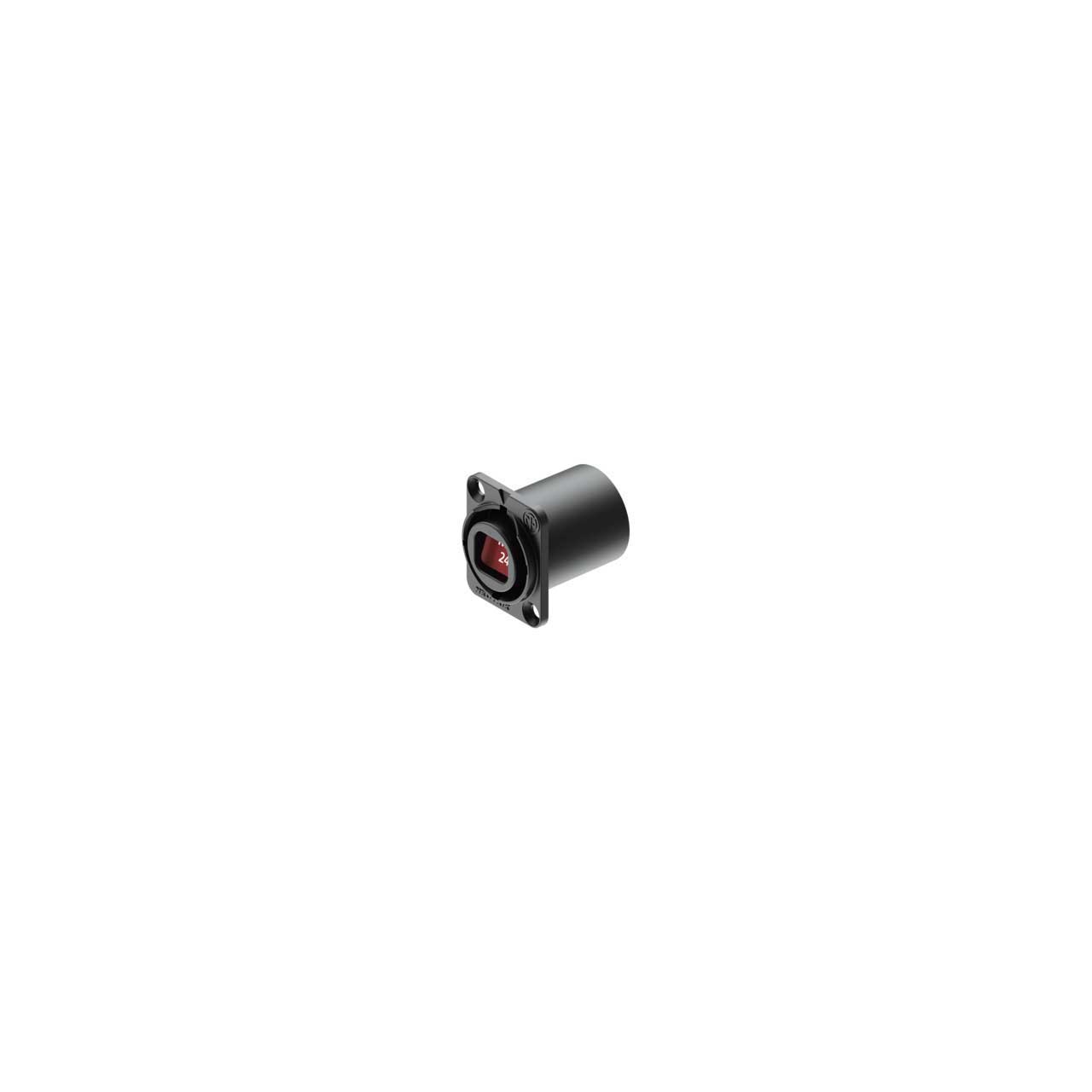

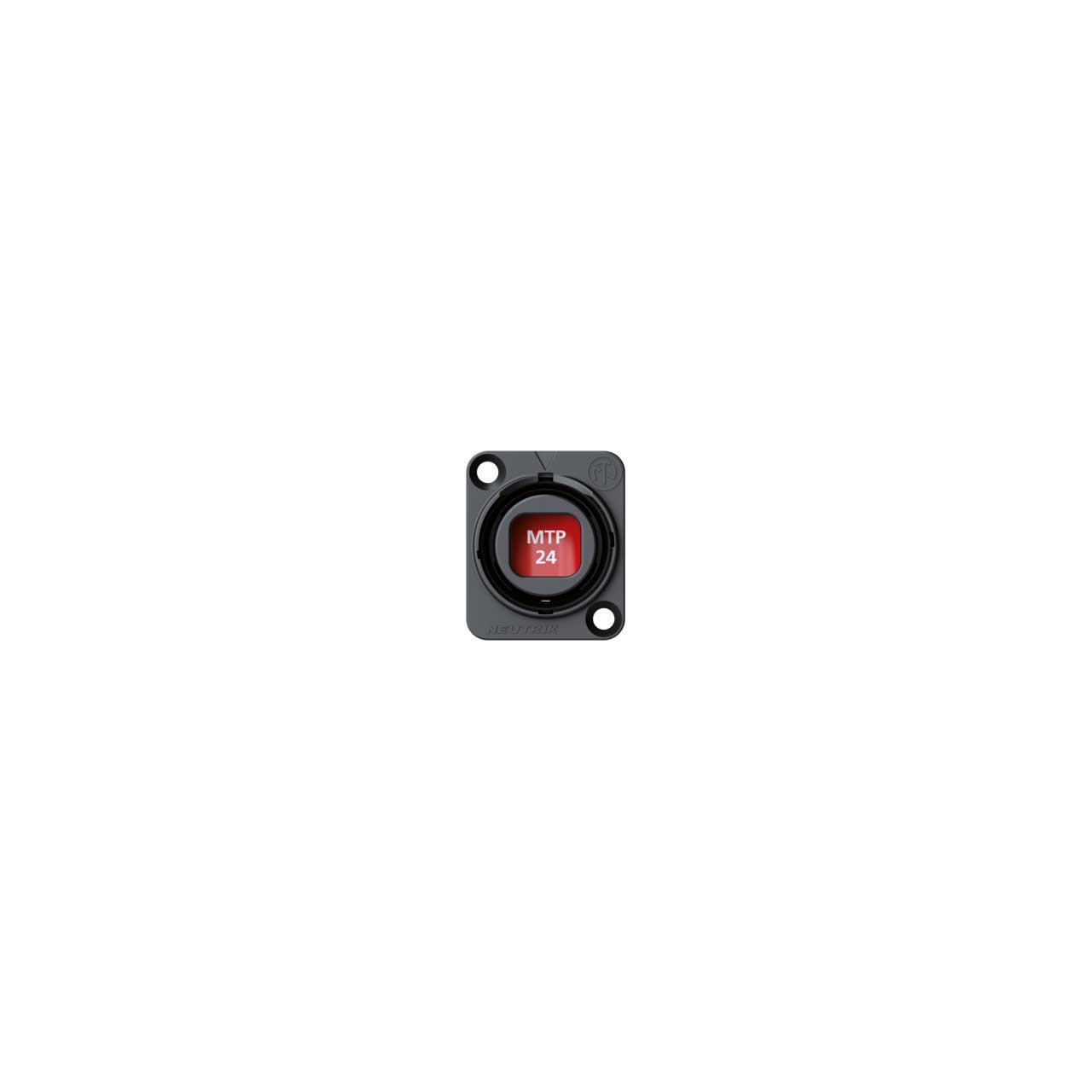

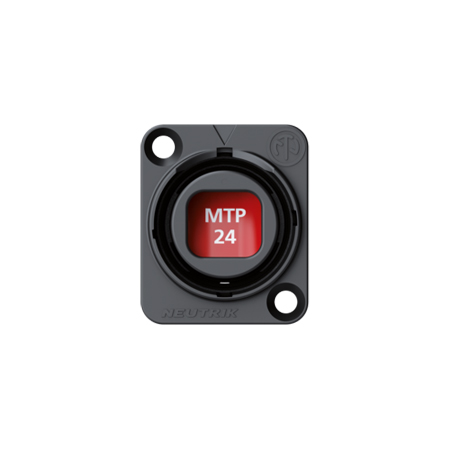

Neutrik NO24FDW-A opticalCON MTP 24-Channel Fiber Optic Chassis Connector - Black

Name: Neutrik NO24FDW-A opticalCON MTP 24-Channel Fiber Optic Chassis Connector - Black
Brand: Neutrik Americas
SKU: NO24FDW-A
Price: 191.83 USD
Availability: InStock

ITEM #: NO24FDW-A MFG #: NO24FDW-A

Neutrik Americas

List Price:

$223.80

Our Price:

$191.83

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

NO24FDW-A - Overview

The rear compatibility of the Neutrik NO24FDW-A opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance.

Features:
- Ruggedized and dirt-protected 24-channel fiber optic connection system
- For point-to-point multichannel routing
- Laser protective metal shutter seals dust proof with two-component rubber gasket
- IP65 ingress protection in mated condition with SCDP-*
- Accommodates standard MTPr ELITE MALE with 20 N springforce connectors on the rear for simple installation
Specifications:
- Insertion force: < 45 N
- Withdrawal force: < 45 N
- Lifetime: > 2'500 mating cycles
- Locking force: 1'000 N
- Wiresize:
- Locking device: Push-Pull
- Mounting direction: Front mounting
- Chassis shape: D
- Flammability: UL 94 V-0
- Temperature range: -40 °C to +75 °C
- Insertion loss: < 0.9 dB / connection
