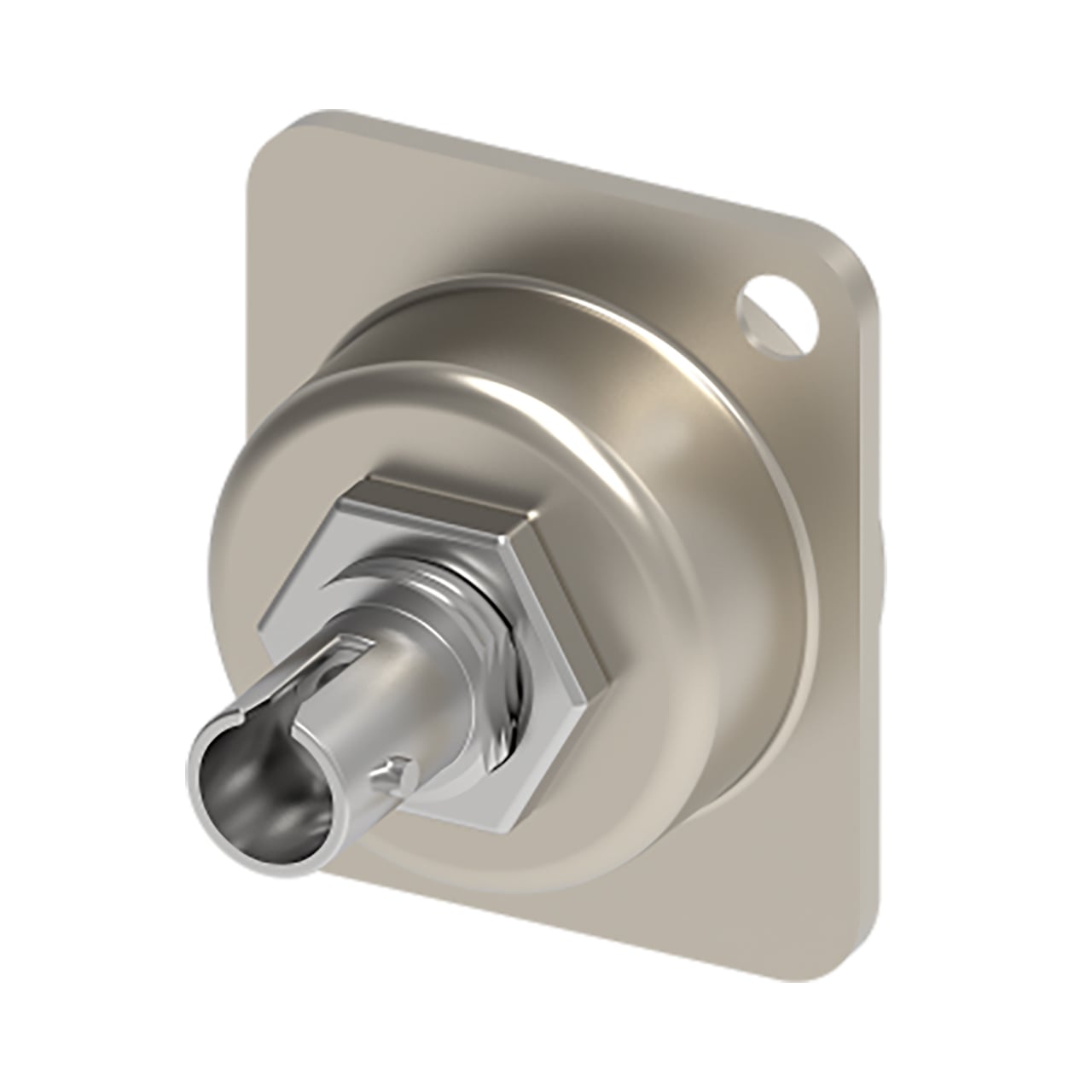

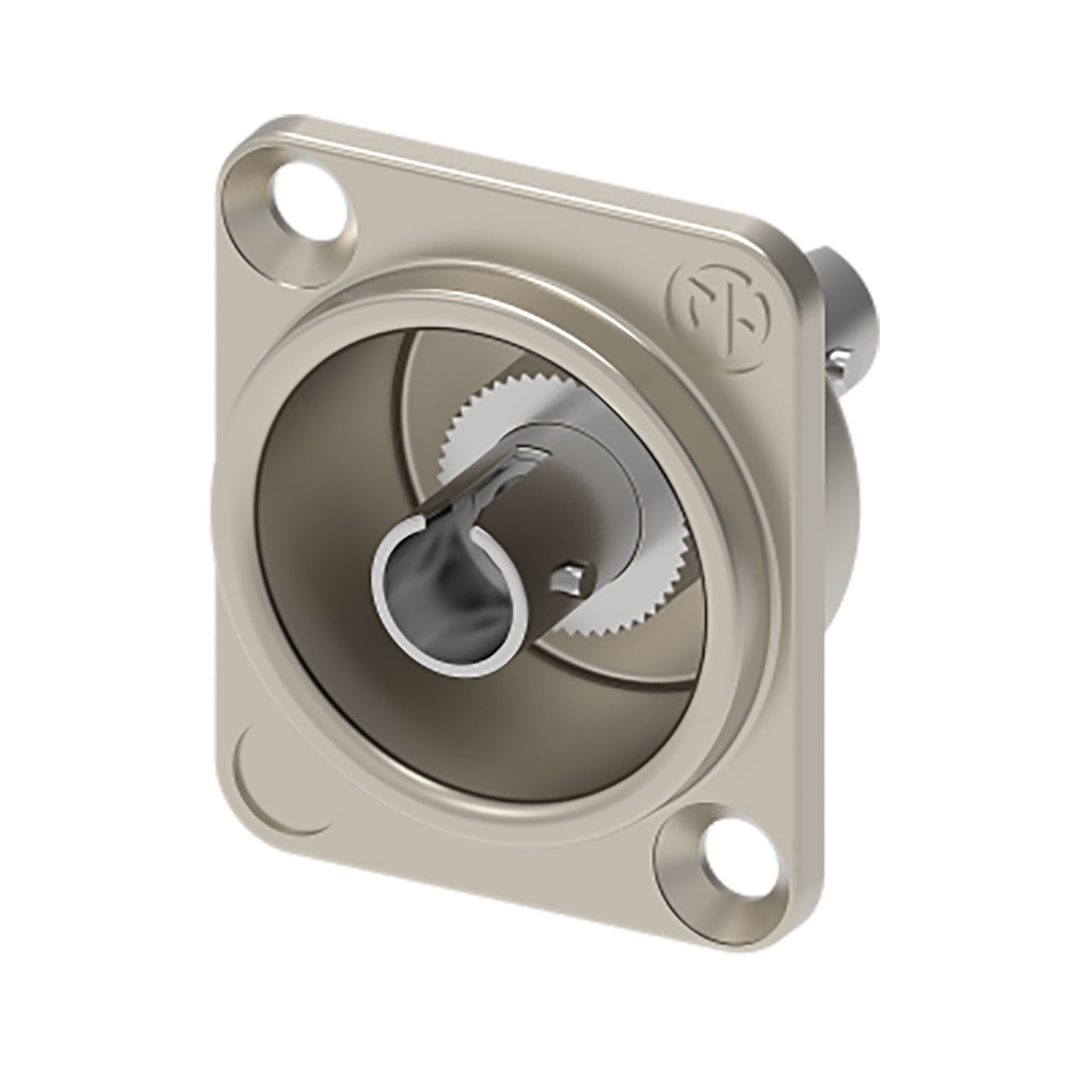

NEUTRIK NO1-FD-ST ST Simplex D-Series Fiber Feedthrough Receptacle - Singlemode / Multimode - Nickel

NO1-FD-ST - Overview

• Features:

  • Standard D-Series Compatibility: Seamless integration into existing panels and systems.
  • ST Feedthrough Design: Easy extension of fiber connections.
  • Robust Construction: Designed for professional environments.
  • Versatile Use: Ideal for installations requiring simple and reliable fiber patching.


• Specifications:

  Mechanical
  • Withdrawal Force: 2N to 6N
  • Lifetime (typ.): 5000 mating cycles (acc. to IEC61300-2-2)
  • Locking: Bayonet Coupling (standard ST interface)
  • Mounting Direction: Front mounting
  • Chassis Shape: D

    Material
  • Insert/Adapter: Zinc-alloy
  • Housing: Zinc diecast (ZnAl4Cu1)
  • Housing Planting: Nickel-plated
  • Alignment Sleeve: Zr02(ceramic)

    Environmental
  • Temperature Range: -40°F - 176°F (-40°C - 80°C)

    Optical
  • Optical Connector: ST simplex

    Standards
  • Interface: IEC 61754-2
  • Performance: IEC 61753-1, Category B
  • Test: IEC 61300-2-1
  • RoHS: Compliant
