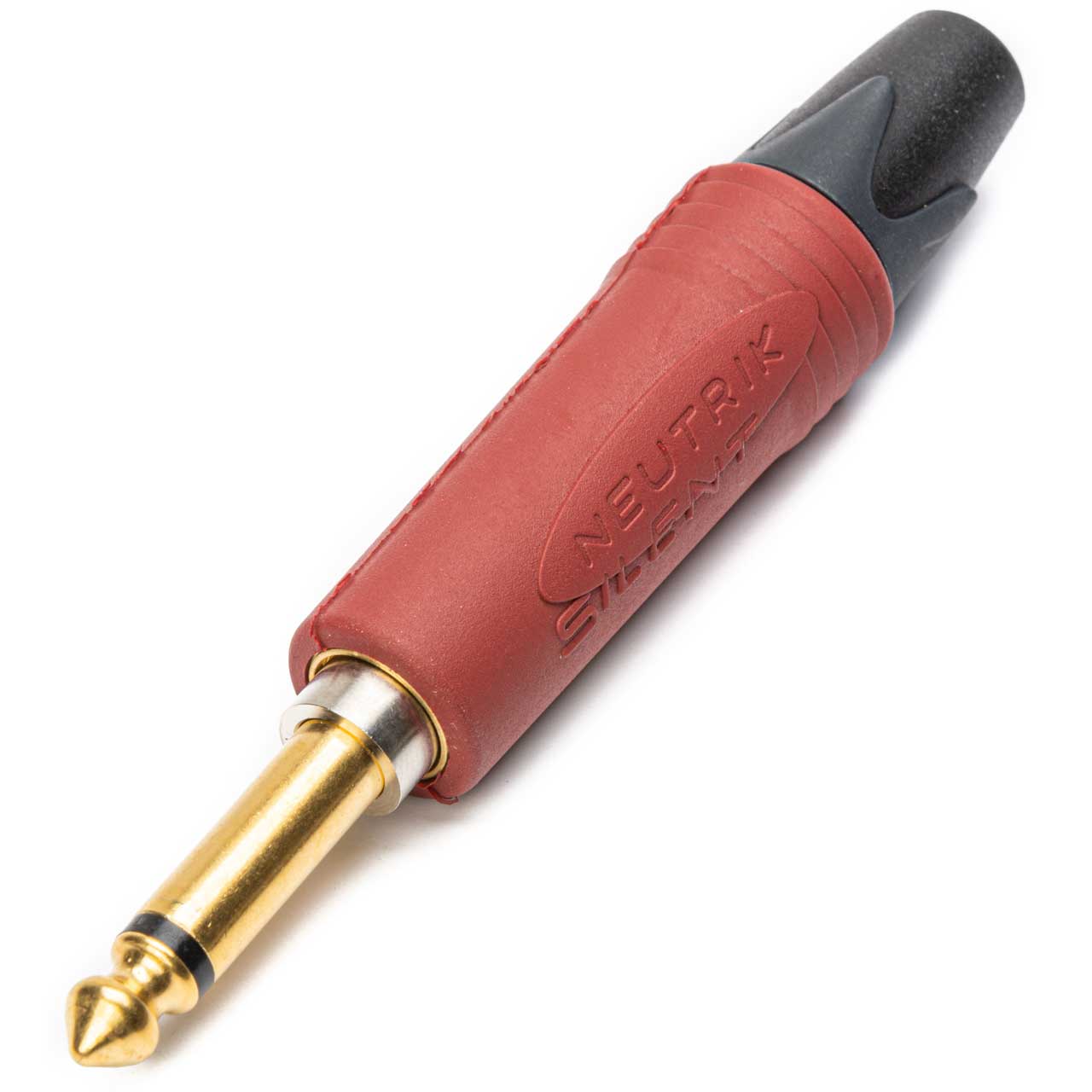

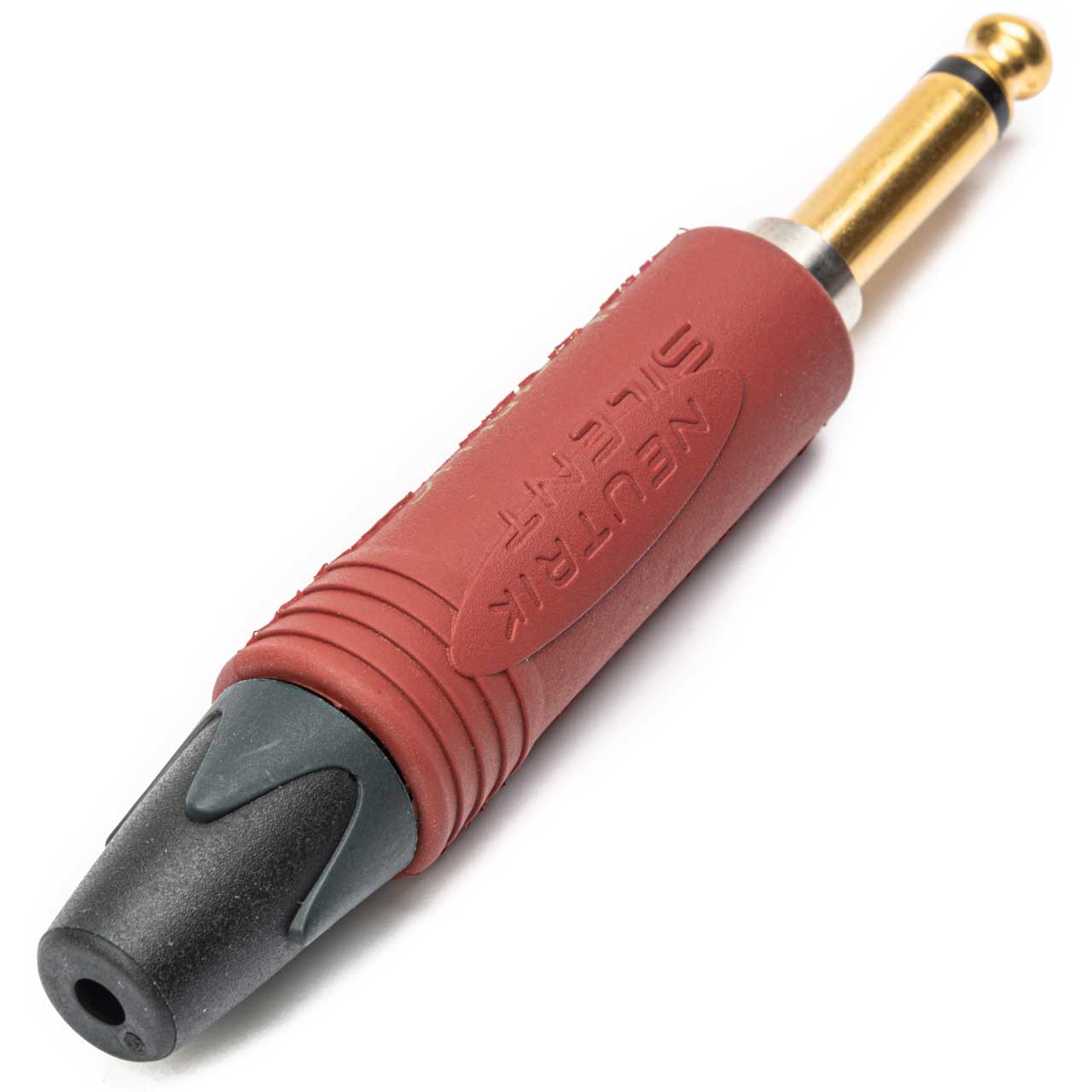

Neutrik NP2X-AU-SILENT 1/4 Inch TS Phone Plug - Gold with Ground Lift
  • Neutrik NP2X-AU-SILENT 1/4 Inch TS Phone Plug - Gold with Ground Lift
  • Neutrik NP2X-AU-SILENT 1/4 Inch TS Phone Plug - Gold with Ground Lift

Questions? Ask a Markertek Expert:
800-522-2025 Email

Neutrik NP2X-AU-SILENT 1/4 Inch TS Phone Plug - Gold with Ground Lift

Manufacturer: Neutrik USA Inc

Item #: NP2X-AU-SILENT   •   MFG #: NP2X-AU-SILENT



List Price:$10.77
Our Price:$8.10
Quantity Pricing

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch. Special version of 2 pole plug with integrated switch which automatically mutes (shorts) a guitar cable to avoid annoying pops and squeals when hot swapping guitars. The integrated silent switch is based on the REED technology and guarantees a lifetime beyond 10'000 mating cycles.


    • Features

      • Hermetically sealed and magnetically operated switch
      • No wear, constant contact resistance
      • No corrosion or pollution of switch, durable and long-lasting
      • Lifetime beyond 10'000 mating cycles

    • Specifications

      • Connector Type: Plug
      • Gender: Male
      • Contact resistance: depends on mating connector mΩ
      • Dielectric strength: 1 kVdc
      • Insulation resistance: > 2 GΩ (initial)
      • Insulation resistance: ≥ 1 GΩ (after damp heat test)
      • Rated current per contact: depends on mating connector A
      • Rated voltage: 50 V
      • Cable O.D.: 4 - 7 mm
      • Lifetime: > 1000 mating cycles
      • Wire size: 1 mm²
      • Wire size :18 AWG
      • Wiring: Solder contacts
      • Bushing: Polyacetal (POM) + PU
      • Contact: plating 0.2 µm Au
      • Contacts: Brass (CuZn39Pb3)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Shell; Brass (CuZn39Pb3)
      • Shell: Rubber overlay (EPDM)
      • Strain relief; Polyacetal (POM)
      • Standard compliance: IEC 60603-11 / EIA RS-453
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -20 °C to +65 °C

    • GTIN:

      7613187004131
