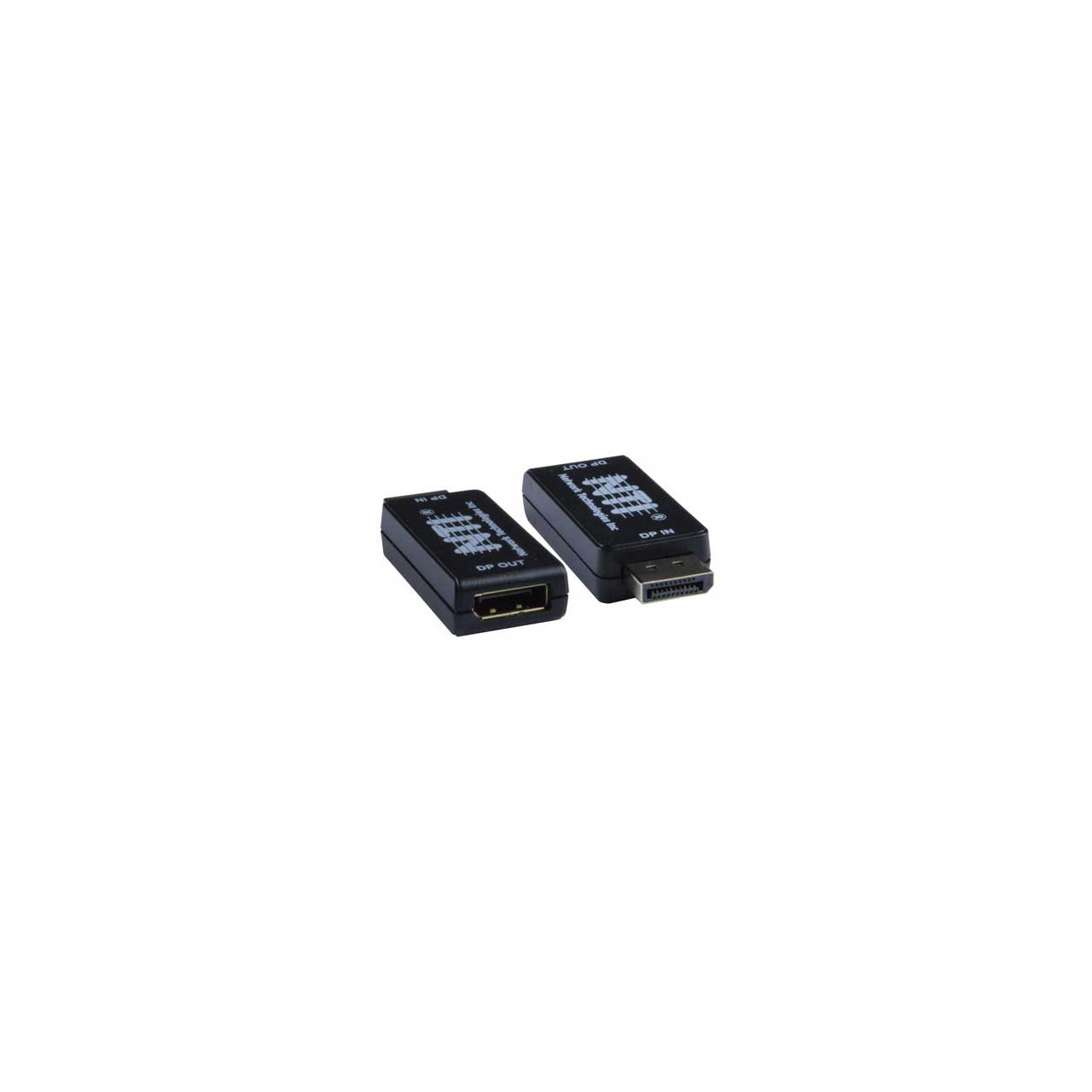

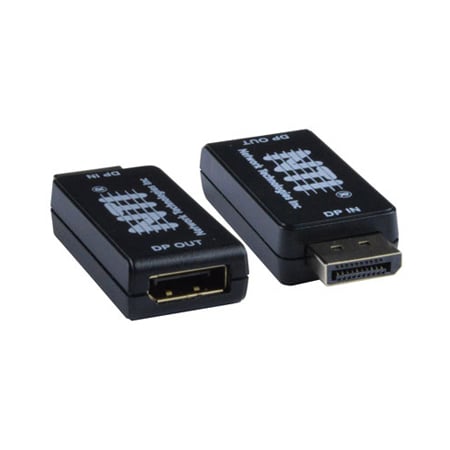

NTI DP-HP-MNTR-SRC DisplayPort Hotplug Maintainer

ITEM #: NTI-DP-HPMNTRSRC MFG #: DP-HP-MNTR-SRC

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$150.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DP-HP-MNTR-SRC - Overview

    NTI DP-HP-MNTR-SRC DisplayPort Hotplug Maintainer manages communication between a DisplayPort source device (e.g., computer) and sink device (e.g., monitor) with the purpose of maintaining the screen settings in the event of the sink device being disconnected. One application of this device is to resolve screen resetting issues when employing a DisplayPort KVM to actively switch between two sources and a single sink. By installing the DP-HP-MNTR-SRC in series with the source and KVM, the source will see a constantly connected sink and will therefore maintain the screen setting when the KVM user selects the other channel.

    • Features:

      • Maintains hotplug signal between source & display
      • Resolves screen resetting issues when using a DP switch
      • Headless operation
      • Video pass-through
      • Emulates a DisplayPort display (sink device) by providing Hot Plug Detect (HPD) signal to the DisplayPort source device.
      • Designed for use with KVM/video switches
      • Supports all source and display resolutions, including Ultra-HD 8K (7680x4320) @30Hz, 4Kx2K (4096x2160 and 3840x2160) @60Hz, 2560x1600 (WQXGA), 2560x1440p (WQHD), and HDTV 1080p @120Hz.
      • DisplayPort features supported: DisplayPort v1.4, Multi-Stream Transport (MST), 10-bit Deep Color, RGB, YCC 4:4:4, YCC 4:2:2, LPCM, HDR, High-bandwidth HBR3, Bandwidth up to 8.1Gbps per channel (32.4Gbps total)
      • Supports headless and video pass-through operations.
      • Compact design for easy installation and operation.
      • No power supply - powered by video source.

    • Specifications:

      • Connectors
      • One male DisplayPort connector for source.
      • One female DisplayPort connector for display.

        Resolutions
      • Supports all source and display resolutions, including Ultra-HD 8K (7680x4320) @30Hz, 4Kx2K (4096x2160 and 3840x2160) @60Hz, 2560x1600 (WQXGA), 2560x1440p (WQHD), and HDTV 1080p @120Hz.
      • The Hotplug Maintainer is completely transparent.

        Power
      • Powered by video source.

        Dimensions
      • WxDxH: 1x2.45x0.5 in (25.4x62.23x12.7 mm).

        Environmental
      • Operating temperature: 32 to 104°F (0 to 40°C).
      • Storage temperature: -22 to 140°F (-30 to 60°C).
      • Operating/storage relative humidity: 5 to 90% non-condensing RH.

        Regulatory Approvals
      • CE, RoHS
      • TAA compliant

        Cables
      • One 1-foot DisplayPort male-to-female cable included.
      • Use the extension cable in tight spaces or where connectors are too close together.

    • Item Includes:

      • 1x NTI DP-HP-MNTR-SRC DisplayPort Hotplug Maintainer
      • 1x 1-foot DisplayPort male-to-female cable

    • Warranty:

      • Two years
