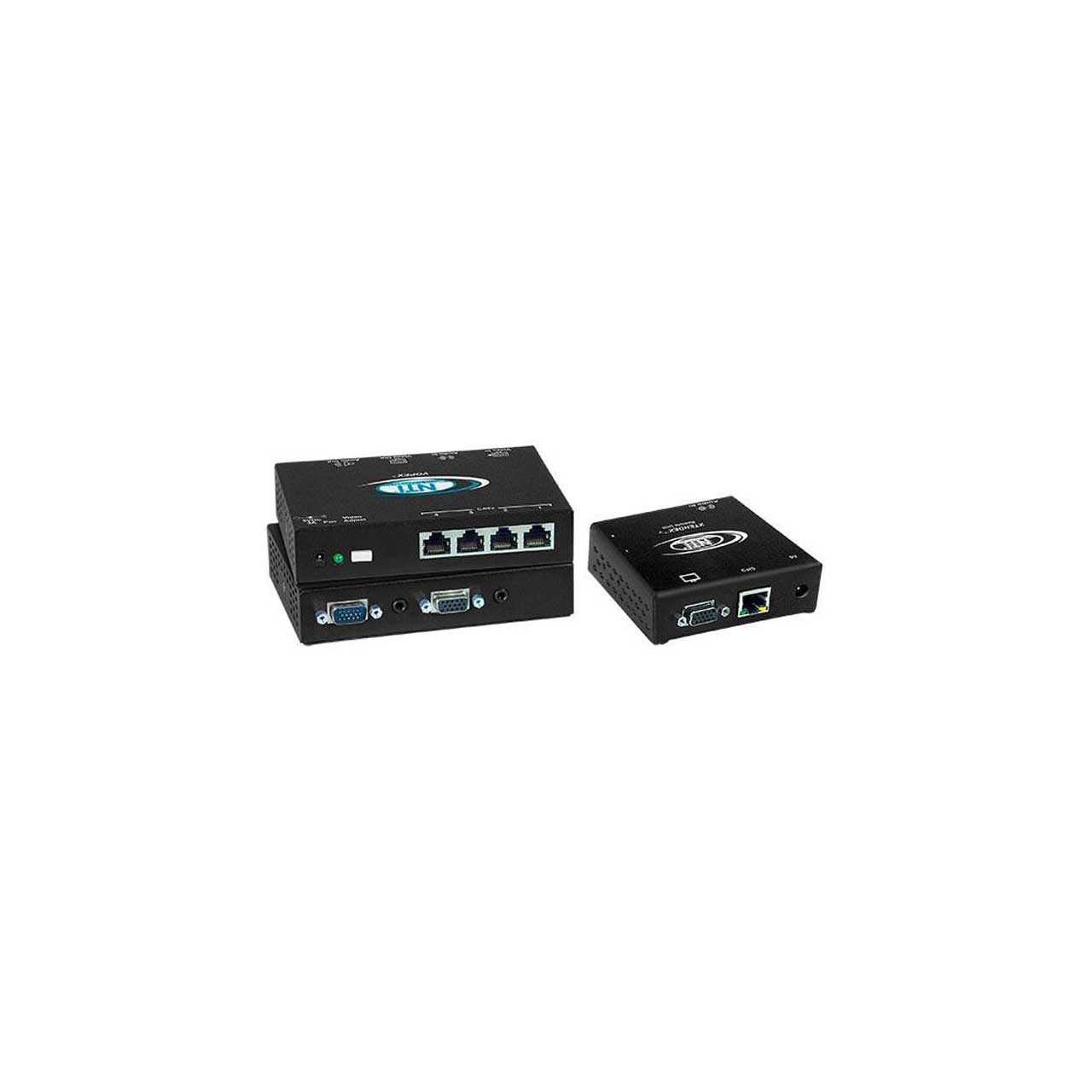

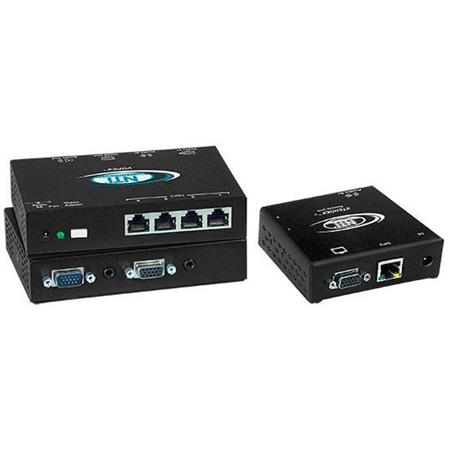

NTI VOPEX-C5VA-8C VGA Splitter/Extender with Audio via CATx to 600 Feet - 8-Port

ITEM #: NTI-VOPEXC5VA8C MFG #: VOPEX-C5VA-8C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Network Technologies Inc
Free Shipping with $49 Minimum Order

List Price:

$590.00

Our Price:

$548.70

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VOPEX-C5VA-8C - Overview

The NTI VOPEX-C5VA-8C 8-Port VGA Video Splitter/Extender simultaneously broadcasts Ýhigh-resolution video from one computer to 4, 8, or 16 remote monitors located up to 600 feet away using CAT5/5e/6 cable. Optional audio functionality using self-powered stereo speakers enhances presentations.

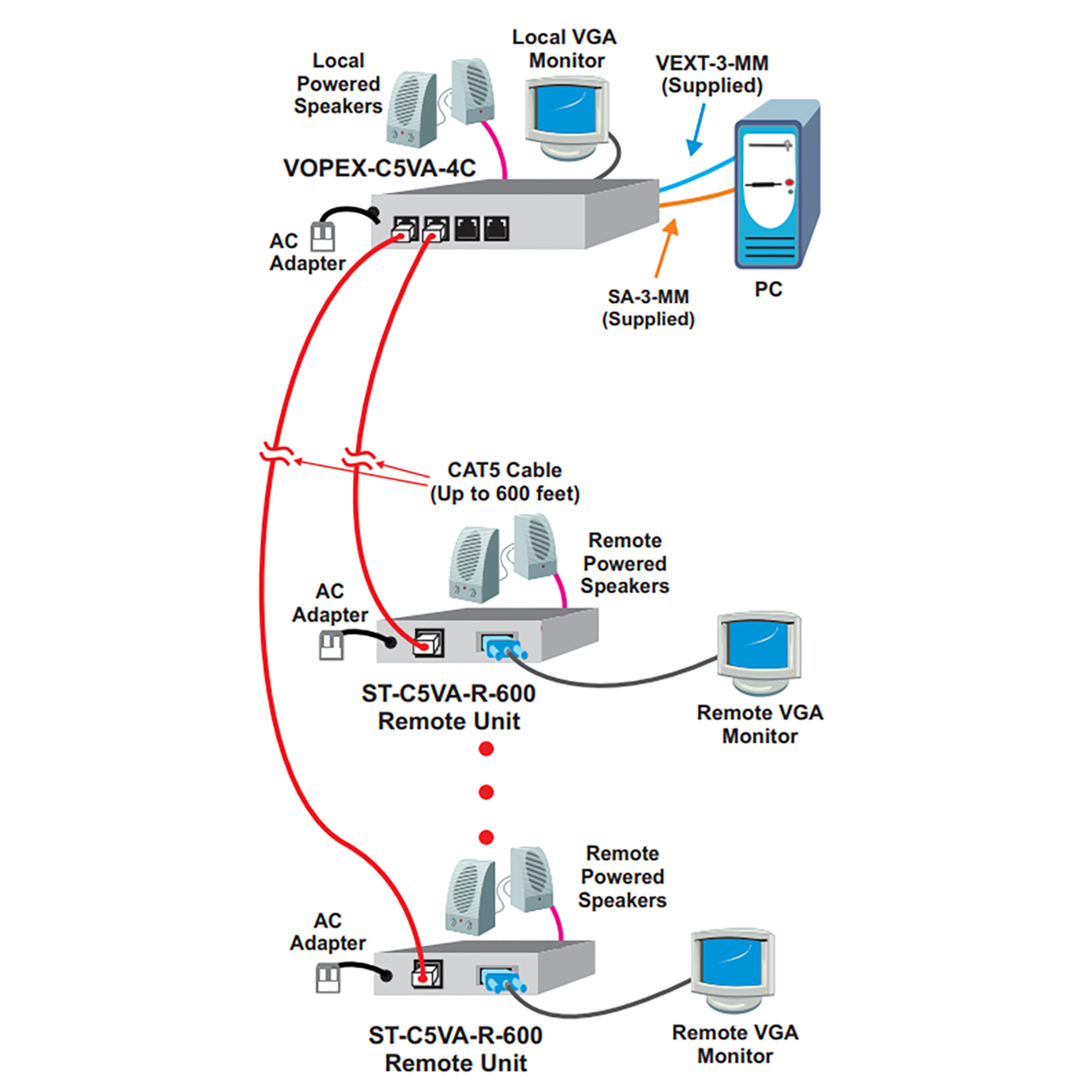

The VOPEX VGA video splitter/extender system has two components: the VOPEX-C5V-xC VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX ST-C5V-R-600 or ST-C5VA-R-600 remote unit for each remote monitor. The units are interconnected by CAT5/5e/6 cable.

Please Note! The XTENDEX ST-C5V-R-600 OR ST-C5VA-R-600 remote units are sold separately and required to complete this system.

  • Features:

    • Supports resolutions up to 1920x1440
    • Optional audio can be broadcast to self-powered stereo speakers at the local unit and each remote location
    • Easily expandable. Add remote units as you add monitors
    • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2
    • High quality rugged steel construction with durable powder coat finish
    • Available in optional rackmount enclosure
    • Ideal for digital signage, movie theater lobbies, point of purchase displays, conference centers, airports, and other applications that require multiple displays


  • Specifications:

      Local Unit
    • Video Input/Output
    • Input frequency ranges: Horizontal: 15 to 130 kHz; Vertical: 30 to 150 Hz
    • Input impedance: 75 Ohms
    • Maximum input levels: 1.45 p-p
    • Output impedance: 75 Ohms.
    • Maximum output level: 1.45Vp-p

      Optional Audio
    • Frequency response: 20 Hz to 20 kHz, ±1dB
    • Signal-to-Noise Ratio (SNR): 76 dBA
    • Total Harmonic Distortion and Noise (THD+N): 0.017%
    • Stereo Crosstalk: -70 dB
    • Input impedance: 10k Ohms
    • Line level output; supports multimedia speakers
    • Maximum I/O levels for audio: 3.1 Vp-p (line level)

      Environmental
    • Operating temperature: 32 to 100°F
    • Storage temperature: -20 to 140°F
    • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH

      Remote Unit
    • Video Output
    • Output impedance: 75 Ohms
    • Maximum output level for video: 1.45Vp-p

      Optional Audio
    • Frequency response: 20 Hz to 20 kHz, ±1dB
    • Signal-to-Noise Ratio (SNR): 76 dBA
    • Total Harmonic Distortion and Noise (THD+N): 0.017%
    • Stereo crosstalk: -70 dB
    • Maximum output levels: 3.1Vp-p (line level)

      Environmental
    • Operating temperature: 32 to 100°F
    • Storage temperature: -20 to 140°F
    • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH


  • Item Includes:

    • 1x NTI VOPEX-C5VA-8C VGA Splitter/Extender
      **Required ST-C5V-R-600 or ST-C5VA-R-600 remote units are sold separately
