Gefen EXT-DVI-1CAT5-SR DVI ELR Lite Extender over one CAT5

ITEM #: GEF-DVI-1CAT5-SR MFG #: EXT-DVI-1CAT5-SR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$668.85

Our Price:

$446.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    EXT-DVI-1CAT5-SR - Overview

    The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen's ELR Lite implementation of HDBaseTr LiteT technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.

    • Features:

      • Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
      • Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
      • Supports resolutions up to 1920 x 1200 (WUXGA)
      • EDID management for rapid integration of source and display
      • HDCP compliant
      • Locking power supplies
      • Surface-mountable

    • Specifications:

      • Maximum Pixel Clock: 165 MHz

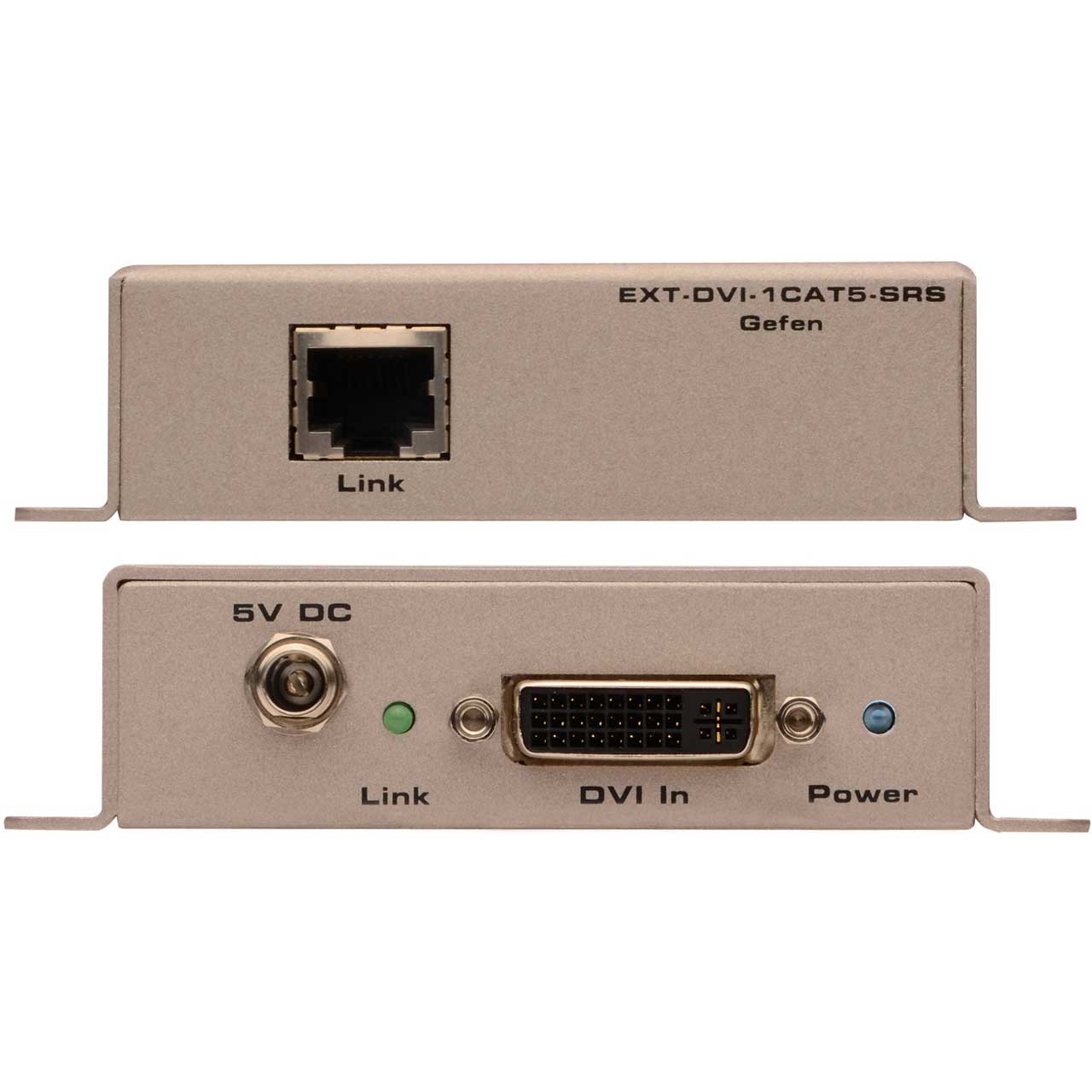

      • Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)

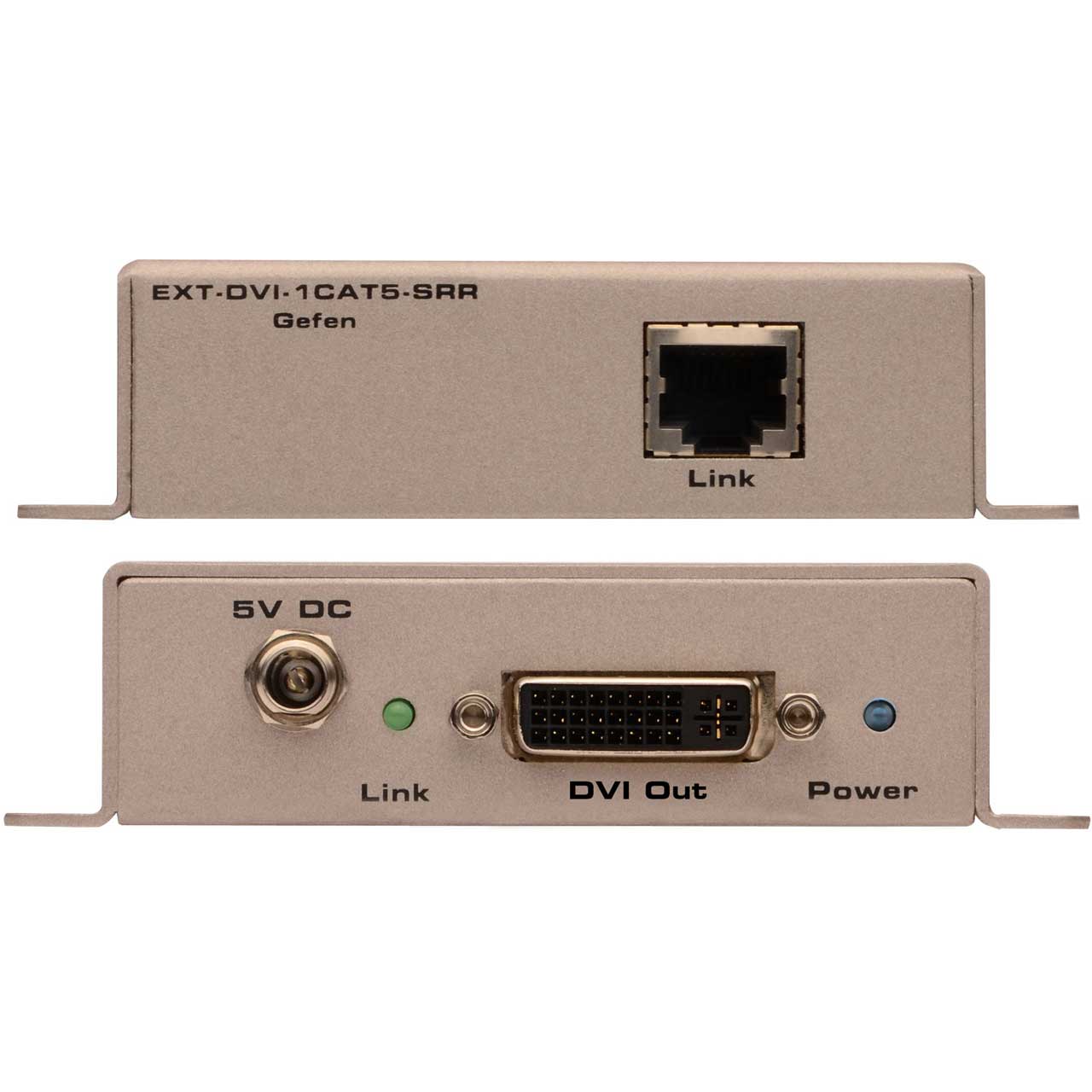

      • Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)
      • Link Connector (Sender / Receiver): (1) RJ-45

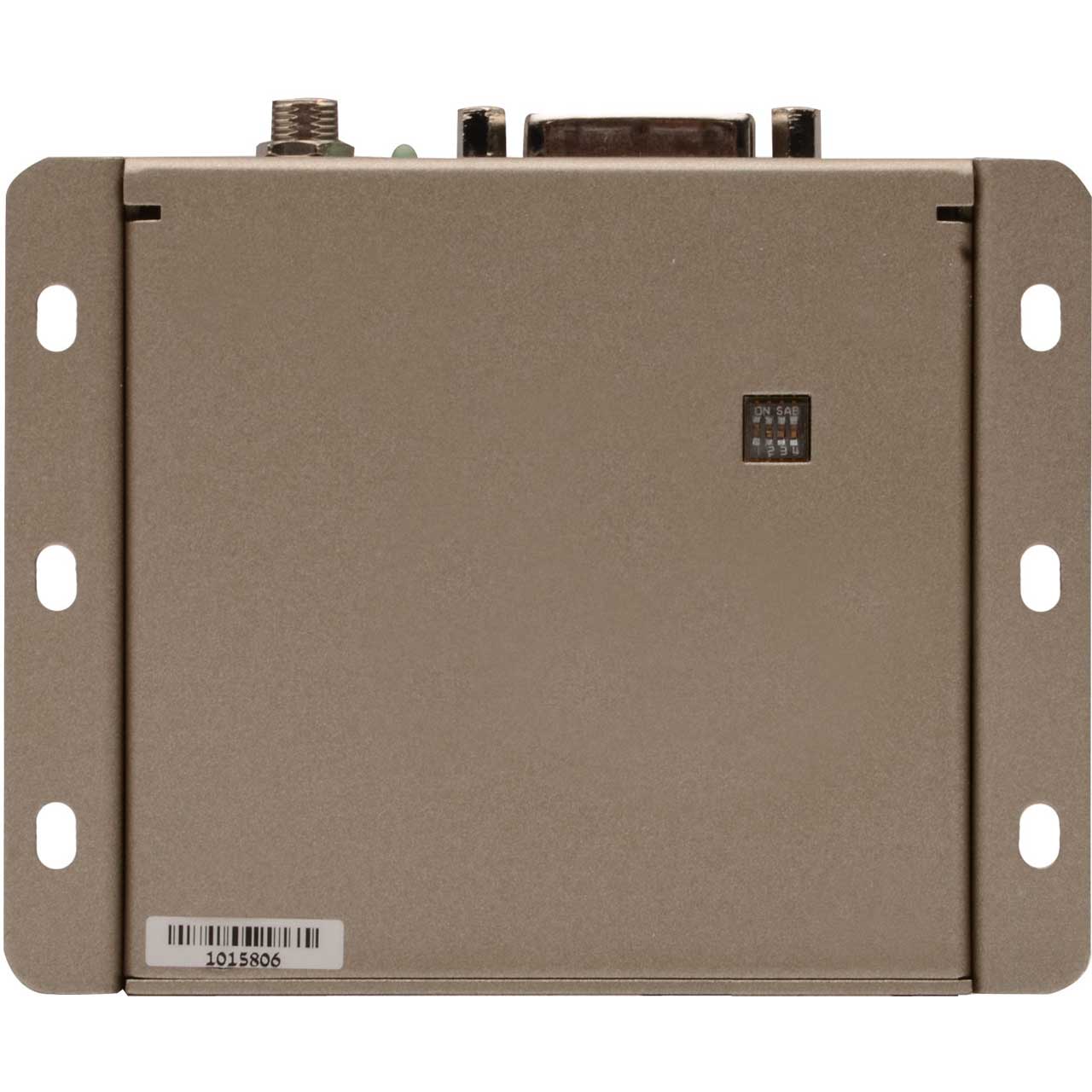

      • Internal/External EDID Selector (Sender): (1) DIP switch
      • HPD Pass-Through Selector (Sender): (1) DIP switch
      • HDCP Pass-Through Selector (Sender): (1) DIP switch
      • Power Indicator (Sender/Receiver): (1) LED, blue
      • Link Indicator (Sender/Receiver): (1) LED, green
      • Power Supply (Sender / Receiver): 5V DC, Locking
      • Power Consumption (Sender/Receiver): 10 W per unit (max.)
      • Operating Temperature: 0 to +45°C
      • Operating Humidity:0 to 90% RH, non-condensing
      • Dimensions (W x H x D): 4.3" x 1" x 3.4" (110mm x 26mm x 86mm)
      • Shipping Weight: 3 lbs (1.4 kg)

    • Item Includes:

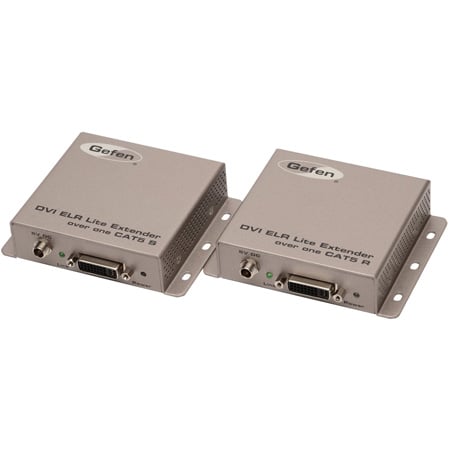

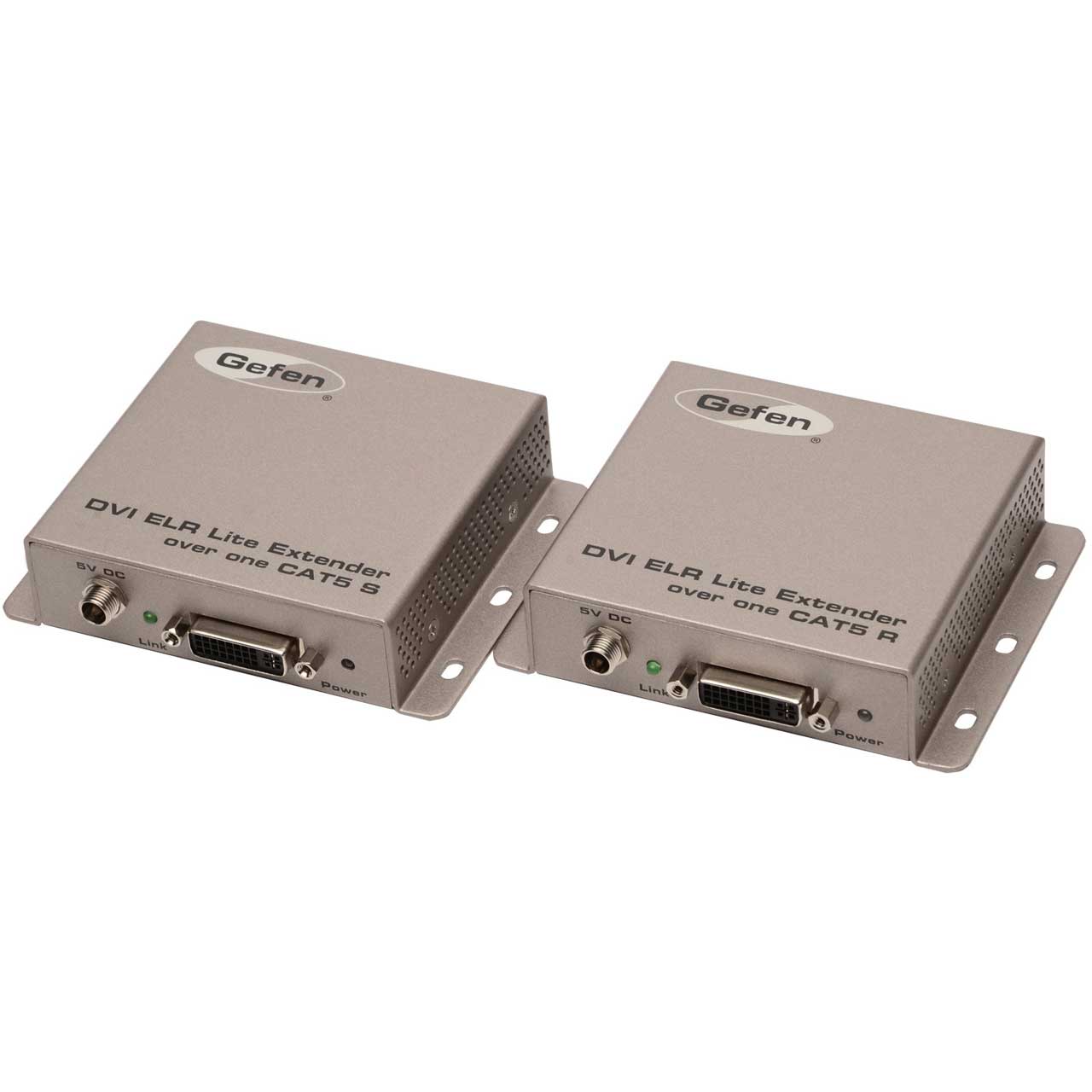

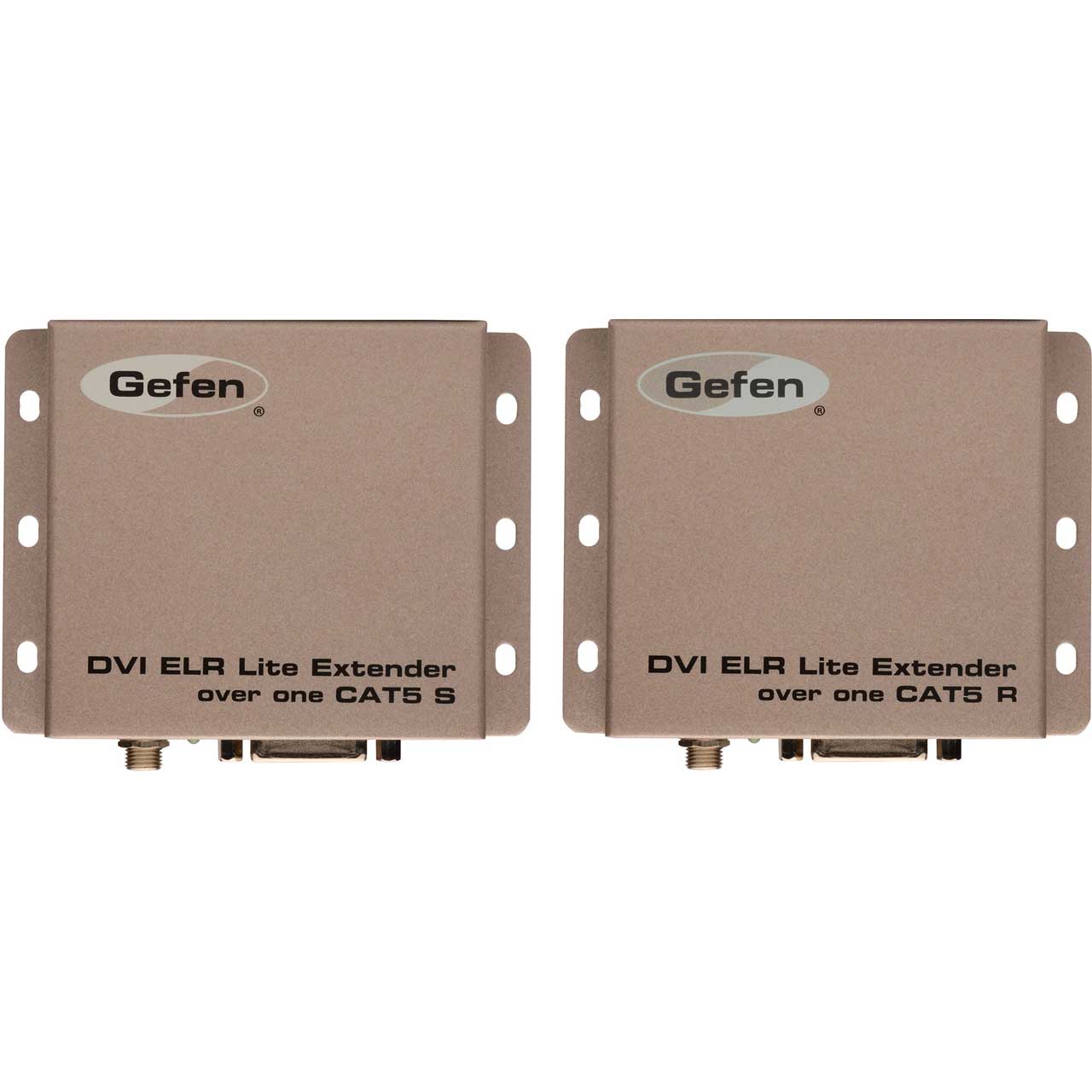

      • (1) DVI ELR Lite Extender over one CAT5 - Sender Unit (EXT-DVI-1CAT5-SRS)
      • (1) DVI ELR Lite Extender over one CAT5 - Receiver Unit (EXT-DVI-1CAT5-SRR)
      • (1) 6 ft. Dual Link DVI Copper Cable (CAB-DVIC-DLN-06MM)
      • (2) 5V DC Locking Power Supplies (EXT-PS526AIP-LP)
      • (1) Quick-Start Guide (QSG-DVI-1CAT5-SR)

    • GTIN:

      0845344038759
