Rean NYS323 DIN Male Cable Connector 7-Pole Silver Plated Contacts

ITEM #: NYS323 MFG #: NYS323

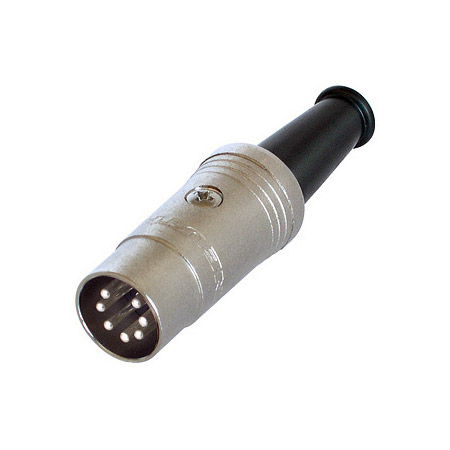

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NYS323

NYS323 - Overview

Rean NYS323 DIN Male Cable Connector; 7-Pole; Silver Plated Contacts

  • Features:

    • Contact resistance < 10 m Ohm
    • Dielectric strength 0,5 kVdc
    • Rated current per contact depends on mated connector A
    • Cable O.D. < 5 mm
    • Wire size 26 AWG
    • Bushing PVC
    • Contact plating 2 µ Ag
    • Contacts Brass (CuZn39Pb3)
    • Insert Polyamide (PA 6 30 % GR)
    • Shell Zinc diecast (ZnAl4Cu1), gal Ni plated
    • Strain relief CRIMP type zn plated
    • Solderability Complies with IEC 68-2-20
    • Temperature range -20 °C to +70 °C
