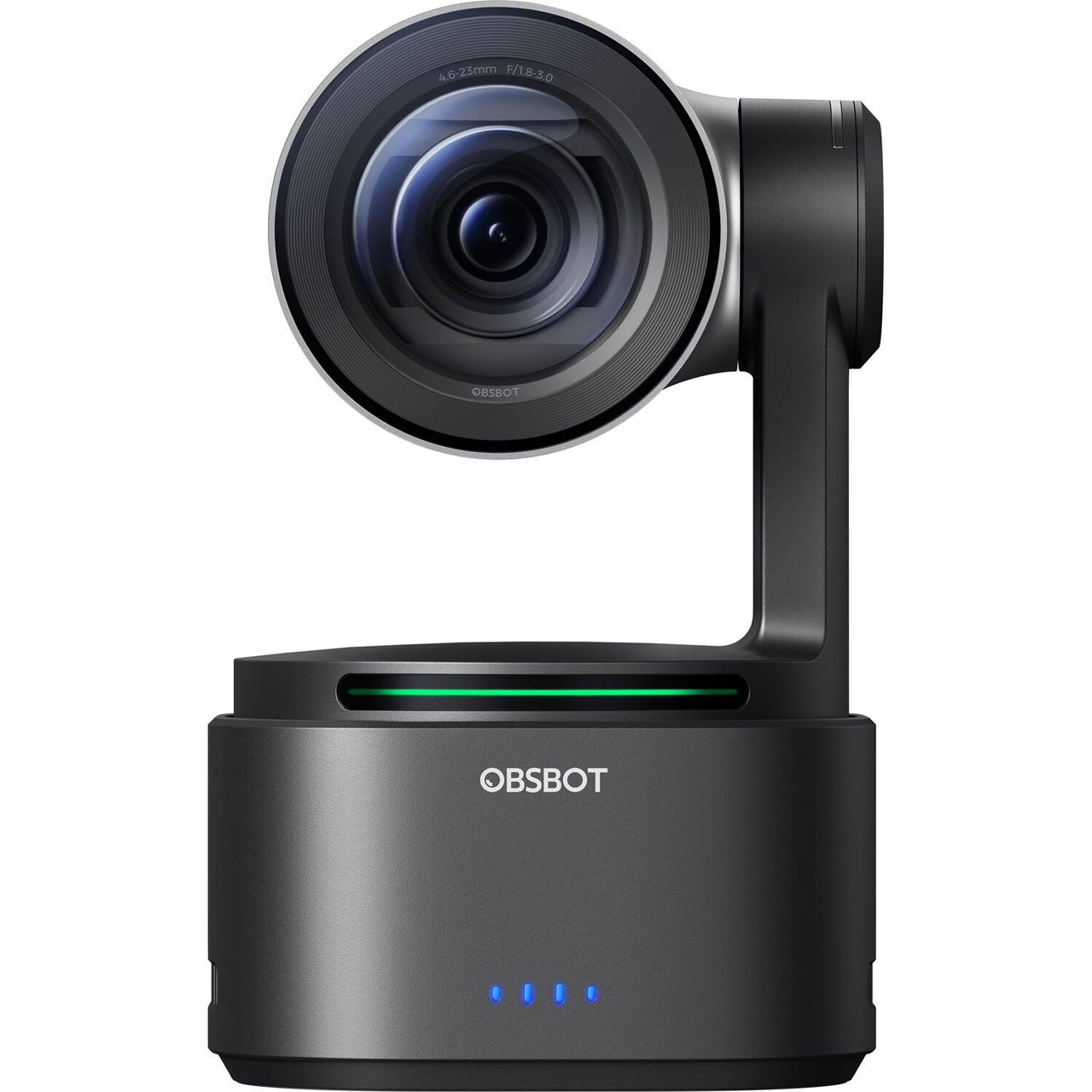

OBSBOT TAIL 2 Power Up Combo AI-Powered PTZR 4K Live Production Camera Up to 4k@60fps - 12x Optical Zoom

ITEM #: OBS-TAIL2PWRUPCO MFG #: OBSBOT-C.B.1.00061

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,784.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


OBSBOT-C.B.1.00061 - Overview

Revolutionize live production with OBSBOT Tail 2's innovative PTZR lens design, offering seamless transitions between landscape and portrait modes. Experience unparalleled image quality through an advanced 12-piece optics system, featuring a premium 1/1.5'' CMOS sensor and versatile 12x Hybrid Zoom. Powered by next-generation AI Tracking 2.0, capture subjects with remarkable precision at extended distances.

Next-Generation AI for Professional Virtual Production
With AI Tracking integrated into Tail 2, your virtual production process becomes more hands-free, giving you greater freedom to move around without the limitations of traditional fixed camera positions. You can realize more complex actions in your imaginative world with the combination of AI Tracking 2.0 and FreeD protocol support.

OBSBOT NDI License Key
Add NDI|HX3 functionality to your Tail Air PTZ camera with this NDI License Key for Tail Air from OBSBOT. The license key allows you to transmit video and control signals over Ethernet. Support for resolutions up to 1080p60 with latency as low as 100 ms is made possible by the NDI|HX3 protocol, and the license key also enables support for NDI|HX2.

OBSBOT Smart Remote Controller with USB Charging Cable
Take full control of your Tail 2 PTZ camera using Bluetooth connectivity with this Smart Remote Controller from OBSBOT. Designed with a built-in gyroscope that allows you to control the camera's gimbal by simply moving your wrists, the remote allows you to switch from controlling up to three Tail 2 cameras. A USB-C to USB-A charging cable is included.

OBSBOT Foldable Lightweight Tripod
This foldable tripod helps you set your camera at the proper height for livestreaming or recording. The tripod has a 9.4 to 56.7" working height range that can be adjusted using the five leg sections and flip locks

  • Features:

    • AI Tracking 2.0
    • World's First PTZR Camera: Hands-Free 90° Rotation
    • High Resolution up to 4K @ 60fps & 1080P @ 120fps
    • Accurate Focus
    • HDR Performance
    • Steady, Versatile, PTZR Design
    • Smooth 3-Axis Stabilization
    • Professional Live Production & Virtual Integration Setup
    • 12 Optical Lenses & 1/1.5" CMOS
    • 5x Optical Zoom & 12x Hybrid Zoom

  • Specifications:

      Size & Weight
    • Dimensions: 11.3" x 7.8" x 7.5"
    • Weight: 5.23lbs

      Camera
    • Image Sensor: 1/1.5" CMOS
    • Pixel Size: 2.0µm x 2.0µm
    • Effective Pixels: 50 million
    • Effective Pixel Resolution: 8192x6144
    • Lens System: 12x Optical Lenses
    • Zoom Range:
      - 5x Optical
      - 12x Hybrid
    • Aperture: f/1.8 - f/3.0
    • Focus:
      - Auto
      - Manual
    • Effective Focal Length: 4.6mm - 23mm
    • Equivalent Focal Length: 22mm - 110mm
    • Field of View:
      - W (1x) FOV (D): 89°; FOV (H): 81°
      - T (5x) FOV (D): 21°; FOV (H): 18°
    • ISO Range:100-6400
    • Exposure Value: ±3EV
    • Electronic Shutter Speed: 1/8000s
    • White Balance: 2000K - 10000K
    • Gyroscope: 6-axis Gyroscope
    • Photo Resolution: 4K, 1080P, 720P
    • Max Video Storage Bitrate: H264:160Mbps, H265:160Mbps
    • Supported File System: FAT32 exFAT (exFAT supports segmented video storage only)
    • Video Format: MJPEG, H264, H265

      Resolution & Frame Rate
    • Recording:
      - 4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps
      - 1080p: 1920*1080@120/60/59.94/50/48/30/29.97/25/23.98 fps
      - 720p: 1280*720@120/60/59.94/50/48/30/29.97/25/23.98 fps
    • HDMI:
      - 4K: 3840*2160@60/59.94/50/30/29.97/25/24 fps
      - 1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps
      - 1080p: 1920*1080i@60/59.94/50 fps
      - 720p: 1280*720@60/50 fps
    • SDI:
      - 1080p: 1920*1080@60/59.94/50/30/29.97/25/24 fps
    • NDI/RTSP/SRT:
      - 4K: 3840*2160@60/59.94/50/48/30/29.97/25/23.98 fps
      - 1080p: 1920*1080@60/59.94/50/48/30/29.97/25/23.98 fps
      - 720p: 1280*720@60/59.94/50/48/30/29.97/25/23.98 fps

      3-Axis Gimbal
    • Gimbal Installation: Non-removable
    • Controllable Range:
      - Pan: ±160°
      - Tilt: -60° - 32°
      - Roll: -120° - 120°
    • Mechanical Range:
      - Pan: ±175°
      - Tilt: ±90°
      - Roll:-135° - 135°
    • Max Controllable Speed: 120°/s
    • Angle Jitter: ±0.003°

      Wi-Fi
    • Standard: Wi-Fi 6
    • Operating Frequency: 2.4G/5.8GHz
    • Signal Range: 2.4G 140m , 5.8G 80m

      Bluetooth
    • Protocol: BLE 5.4
    • Operation Frequency Range: 2.400GHz - 2.4835GHz
    • Transmitter Power (EIRP): < 14dBm

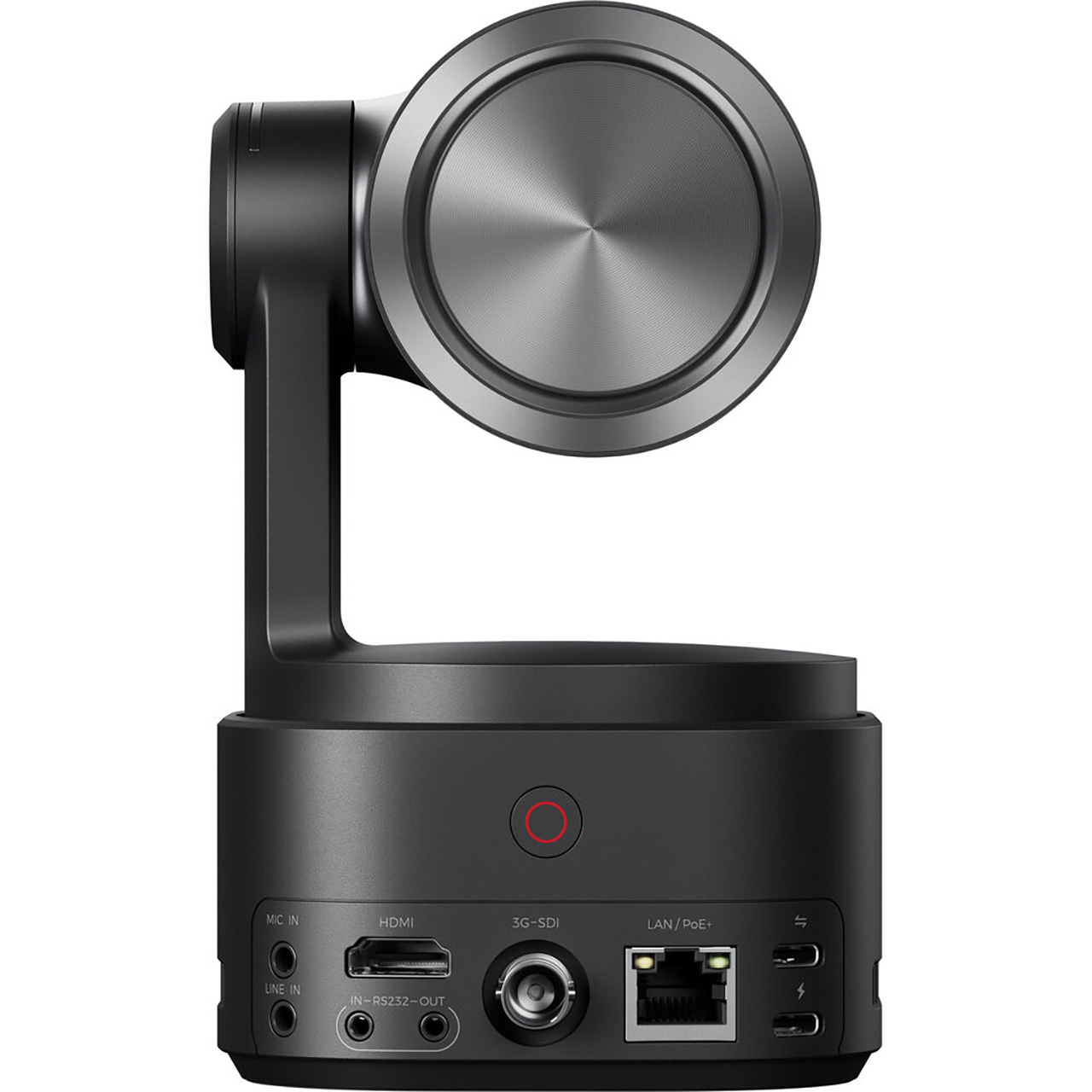

      I/O Interface
    • Power Input:
      - USB-C: Default 5V/2A, supports USB PD3.0 fast charging
      - Maximum input voltage 20V, maximum input current 2A (Recommended to use a charger that supports USB PD3.0)
      - PoE+: IEEE 802.3 af/at, maximum supported input power 30W
    • Video Interface:
      - 1x HDMI 2.0
      - 1x 3G-SDI
      - 1x USB-C 3.0
    • Network Interface: 1x RJ45 10/100/1000Mbps Ethernet port (with PoE+)
    • Audio Interface:
      - 1x MIC IN (3.5mm audio)
      - 1x LINE IN (3.5mm audio)
    • Control Interface:
      - 1x 2.5mm RS232 input, Protocol: VISCA/Pelco-D/Pelco-P
      - 1x 2.5mm RS232 output, Protocol: VISCA/Pelco-D/Pelco-P
      - 1x USB-C 3.0, Protocol: UVC

      Battery
    • Type: Li-po
    • Capacity: 5000mAh
    • Energy: 38Wh
    • Voltage: 7.6V
    • Charging Time: 150 mins (when off)

    • Memory Card Type: MicroSD (Max: 1TB)

      Operating Environment
    • Camera Working Temperature: 14°F- 104°F
    • Battery Charging Temperature: 14°F - 104°F
    • Battery Operating Temperature: 14°F - 104°F

      OBSBOT Tail Air Remote
    • Compatibility: OBSBOT Tail Air PTZ Camera
    • USB I/O: 1x USB-C (Charging Only) Female Input
    • Wireless: Bluetooth

      Wireless Mic
    • Transmission Type: 2.4GHz
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20Hz - 20KHz (±3dB)
    • Distortion: <0.1%
    • Sampling Rates: 48kHz
    • Bit Depth: 16Bit
    • Signal-to-Noise Ratio: 75dB or more
    • Sensitivity: -42dB±3dB (1dB=1V/Pa@1kHz)
    • Operating Distance: 20m (without obstacle)

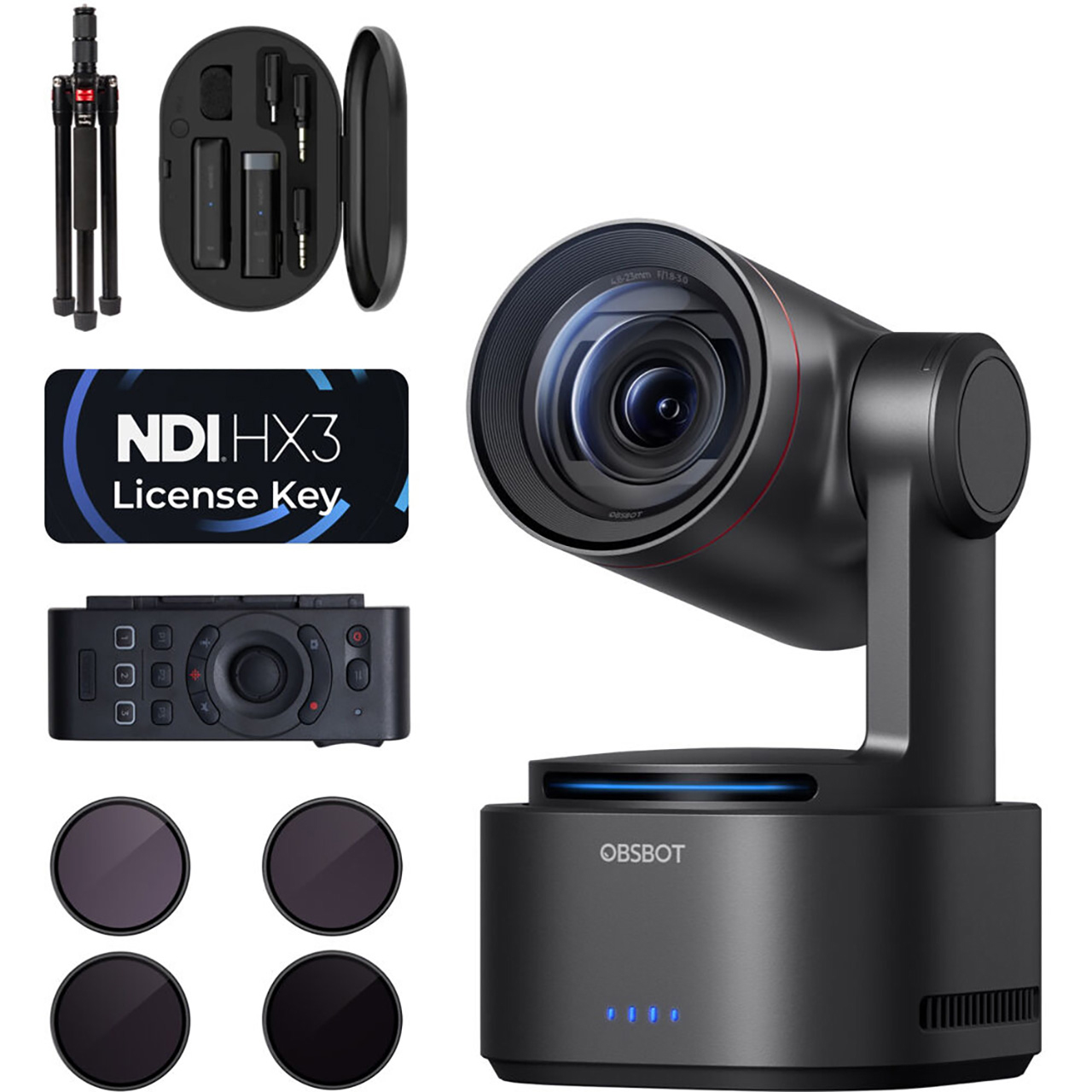

  • Item Includes:

    • 1x Tail 2
    • 1x USB-C 3.0 Cable
    • 1x USB-C to USB-A 3.0 Adapter
    • 1x USB-C Power Cable
    • 2x 2.5mm Male to RS232 MD8 Female Serial Cable
    • 1x NDI License Key
    • 1x Tail Air Smart Remote Controller
    • 1x Foldable Lightweight Tripod
    • 1x Wireless Mic
    • 1x Tail 2 ND Filters Set

  • Warranty:

    • 1-Year Limited
