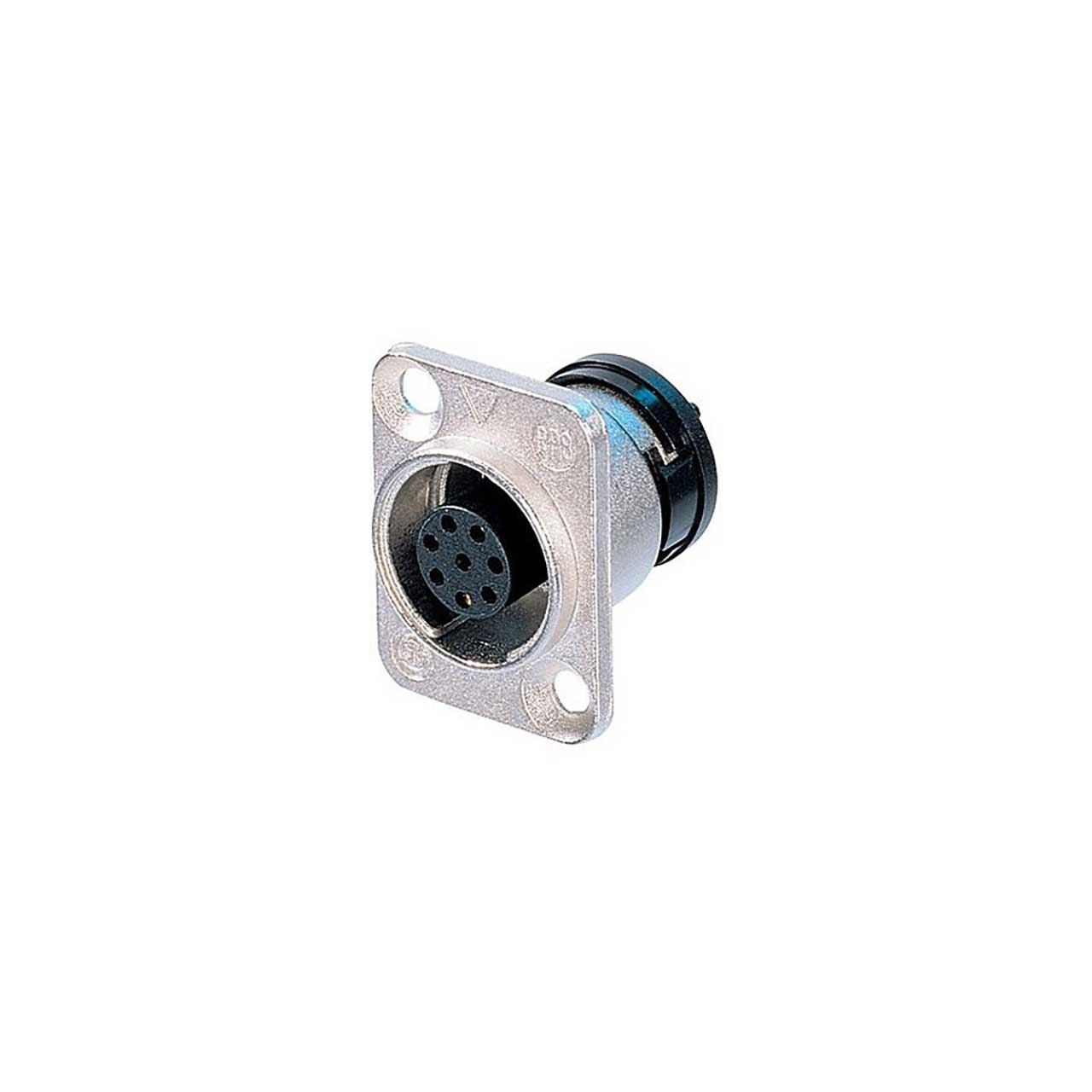

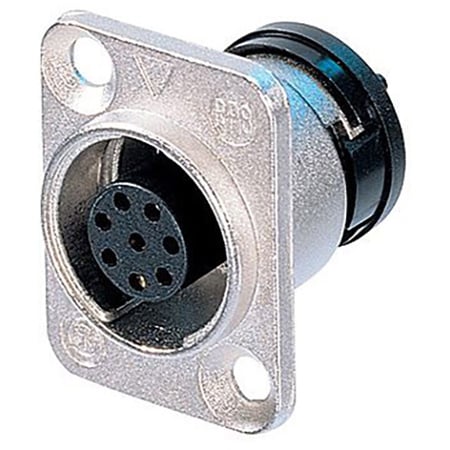

NEUTRIK ORP8F-Ni 8 Pole Female Chassis neutriCON Connector - Solder Contacts Nickel Housing

ORP8F-NI - Overview

• Features:

  • Contact configuration can be selected from 1 to 8 contacts.
  • Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts.
  • Precise and robust all metal housing.
  • Push-pull self-locking system.


• Specifications:

  • Connection Type: neutriCON
  • Gender: Female

    Electrical
  • Contact Resistance: ≤ 5mΩ
  • Dielectric Strength: 1,5kV DC
  • Insulation Resistance: > 0.5GΩ (after damp heat test IEC 68-2-30)
  • Rated Current per Contact: 7.5A
  • Rated Voltage: < 50V

    Mechanical
  • Cable Retention: > 50 N
  • Insertion Force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: 1mm²
  • Wiresize: 18 AWG
  • Wiring: Solder contacts
  • Locking Device: Push-Pull
  • Mounting Direction: Front mounting

    Material
  • Contact Plating: 0.3µm Au hard alloy over 2µm Ni
  • Contacts: Brass (CuZn35Pb2)
  • Insert: PBTP 15 % GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel

    Environmental
  • Flammability: UL 94 HB
  • Protection Class: IP 5X
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• GTIN:
