Osprey 4K-SCD NG Talon 4K Desktop Decoder with Genlock and Enhanced Security - HDBNC

96-02047 - Overview

Enhanced and secure HTTPS (SSL) web-based management

• Features:

  • Remote Firmware Upgrade from Web
  • Network Time Protocol
  • JSON REST API for software integration
  • Password Protected
  • SEI Embedded CEA-708 closed captions
  • SMPTE 2038 Support
  • Fanless Operation
  • Locking Power Jack

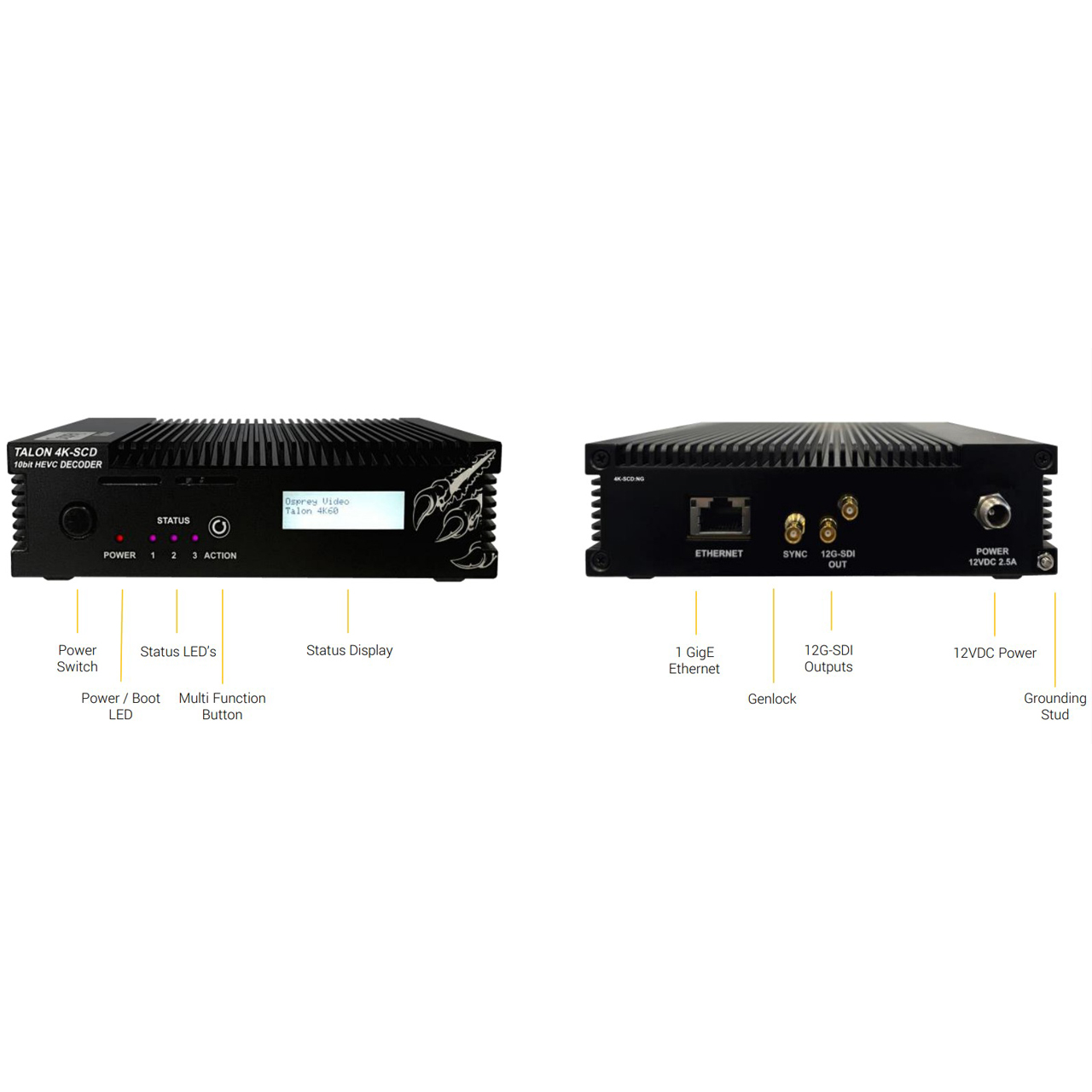

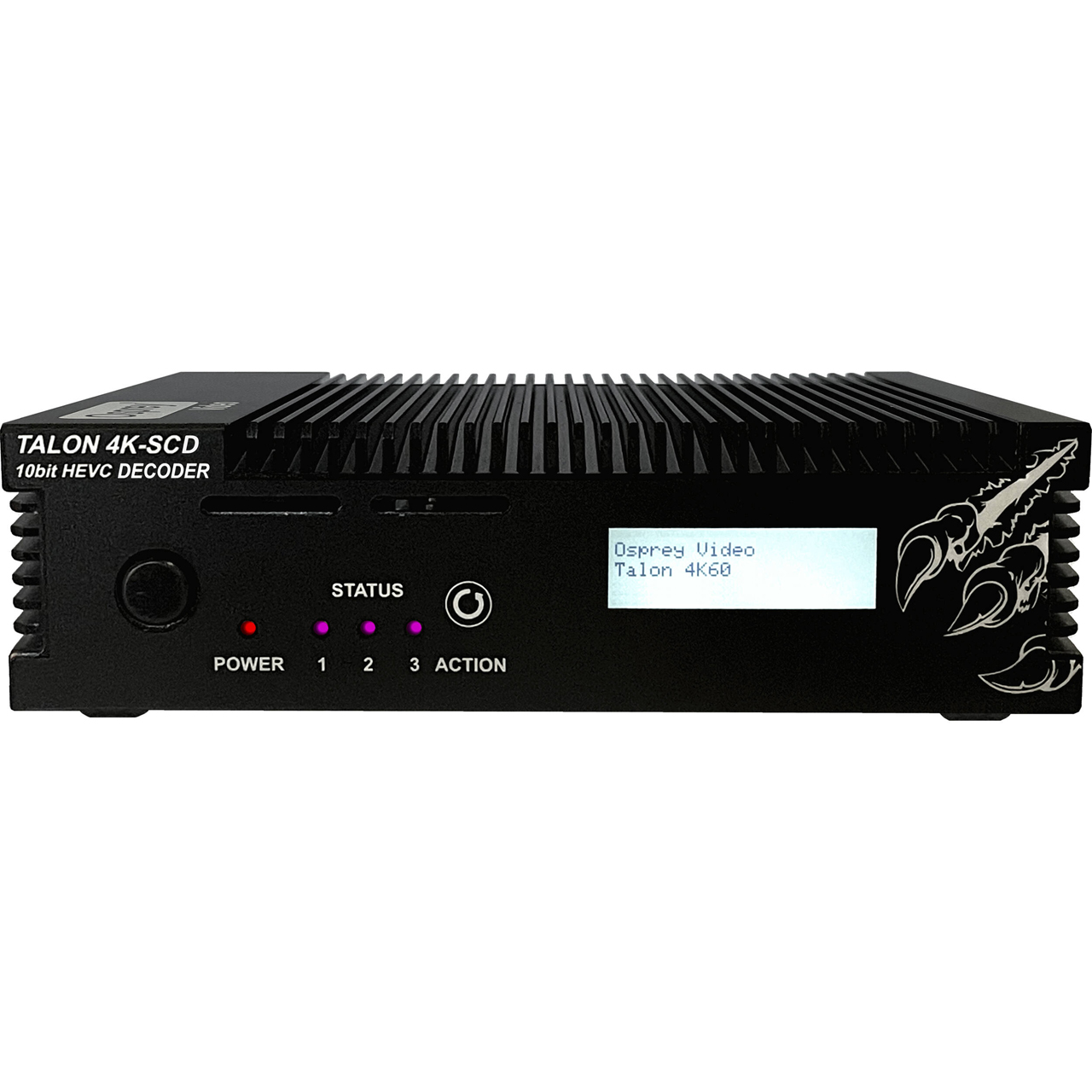

  • Status Display and LED's
  • Customizable notice and consent banner
  • Secure HTTPS (SSL) web-based management
  • Open VPN Client
  • Whitelist/Firewall for Management IP Access
  • In-band KLV support


• Specifications:

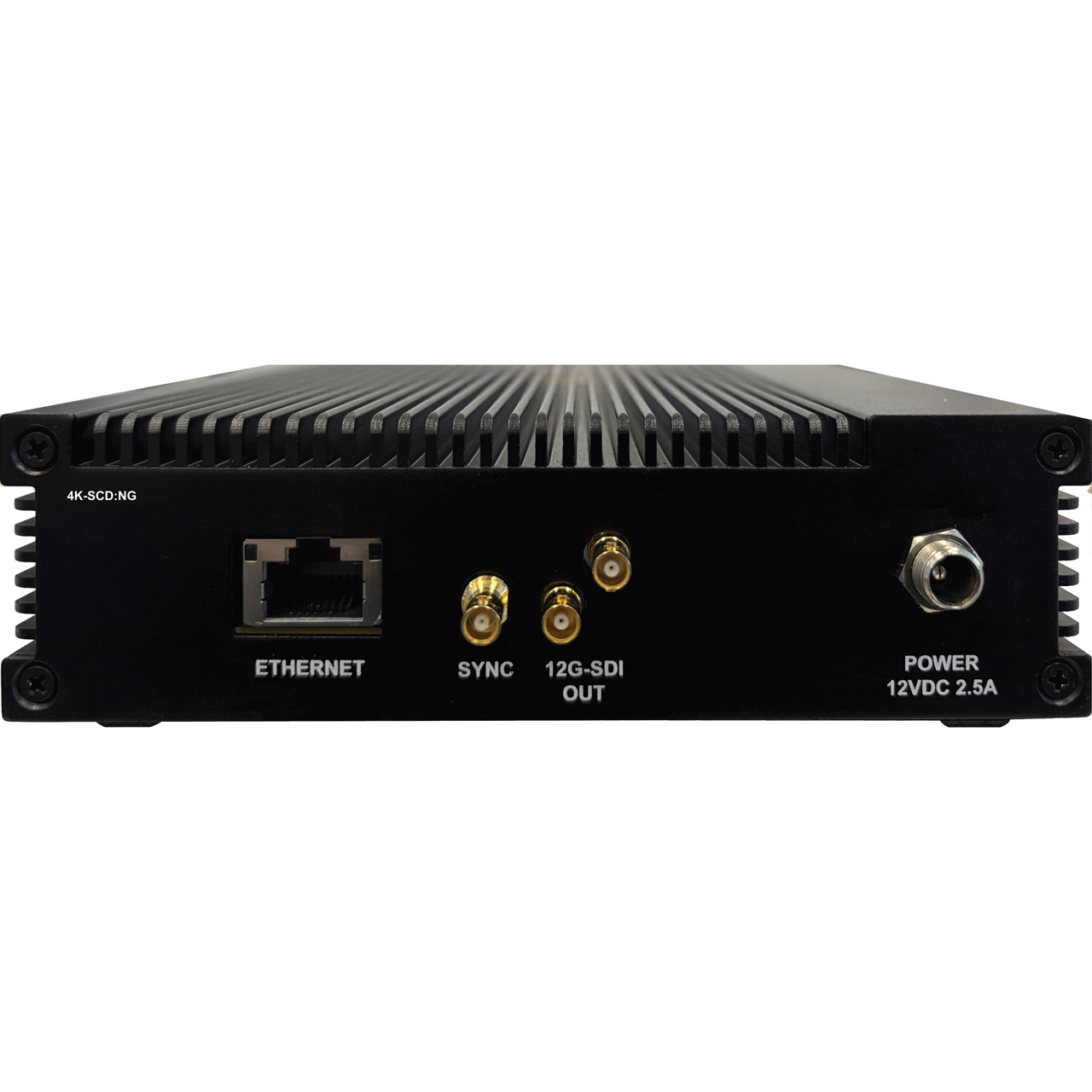

  • Video Outputs: 2x 12G-SDI (parallel HD-BNC)
  • Audio Outputs: Embedded SDI 8Ch of audio (4 stereo pairs)
  • Video Output Resolution: Up to 4096 x 2160 (UHD) 60fps will automatically match input resolution
  • Video Formats (up to 4096x2160p60): 720p50, 59.94, 60, 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60, UHD 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, DCI 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • Color Depth: Up to 10-bit 4:2:2
  • Genlock: Blackburst, Tri-Level
  • Input Streams: UDP, RTP, SRT, Zixi, Number of Input Channels - 1
  • Supported Video Input Compression: H.264 (AVC), H.265 (HEVC)
  • Supported Audio Input Compression: AAC-LC
  • Supported Input Audio Sample Rate: 48kHz, Audio Bitrate 64Kbps to 512Kbps
  • Dimensions: 5.5" x 6.2" x 1.5"
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Power: 12V, 18W max


• Item Includes:

  • Talon Decoder
  • Locking 12VDC/36W Power Supply
  • Mounting Brackets


• GTIN:

  8500103561504
