Pathway Connectivity PWPP HH P1 XLR5F Pathport Hand Held 1-Port XLR 5-Pin Female

ITEM #: P6182 MFG #: PWPP HH P1 XLR5F

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the P6182

PWPP HH P1 XLR5F - Overview

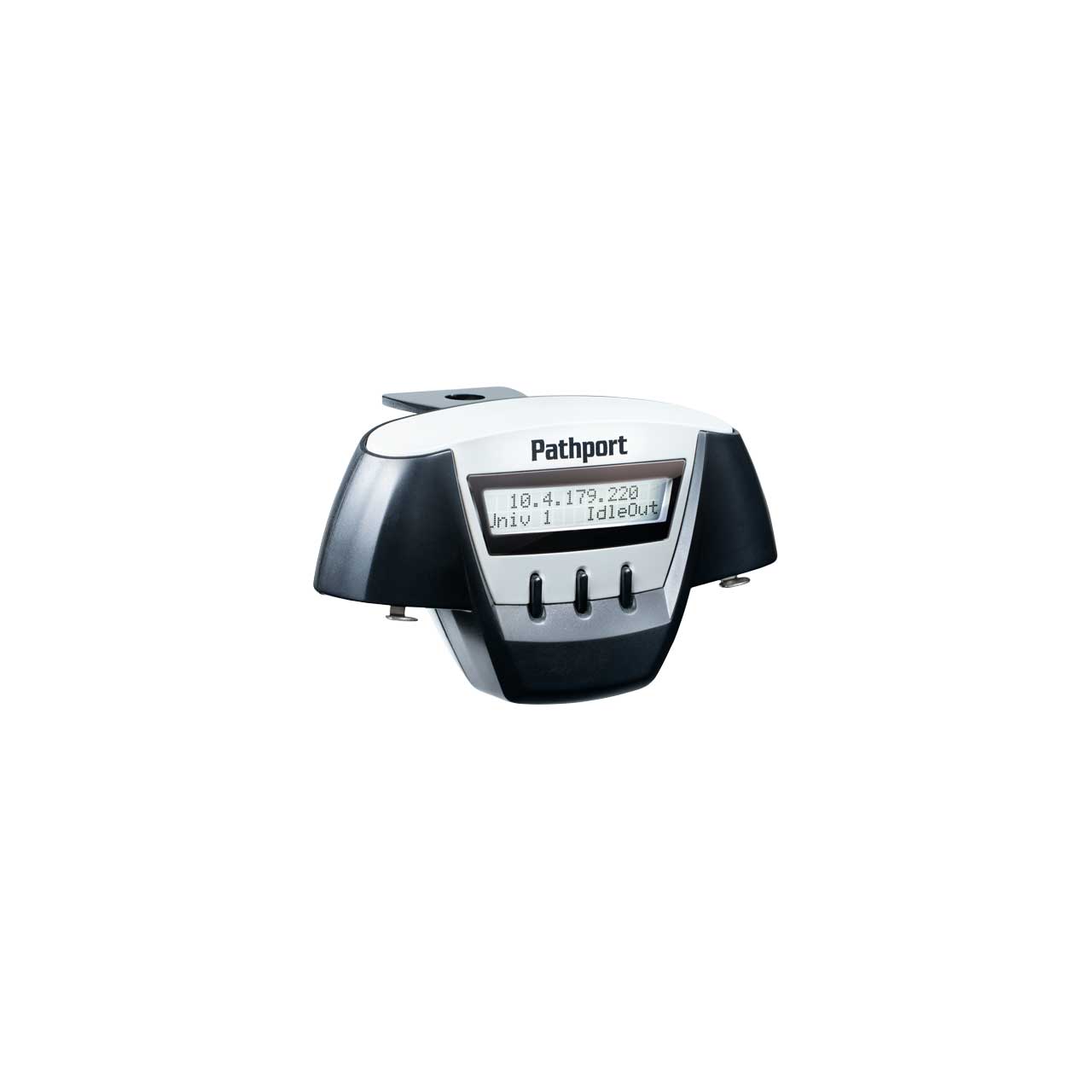

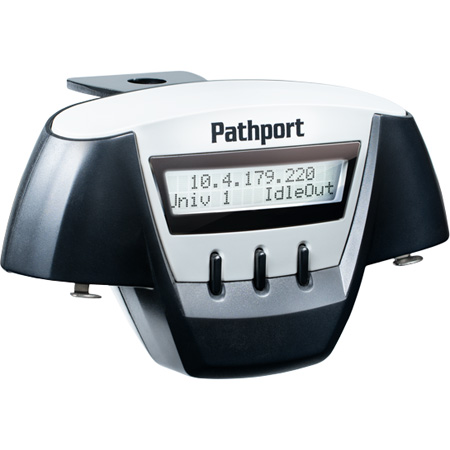

The Pathway Connectivity P6182 Pathport Touring Edition 1-Port Gateway is designed specifically for the tour and rental markets, the rugged, truss-mountable Touring Edition is fully configurable without need of a computer or a network connection.

  • Features:

    • One configurable DMX512 port
    • DMX merging or prioritizing on a universe or channel-by-channel basis, from up to 64000 source universes
    • E1.20 RDM compliant as controller or proxy
    • Manage up to 256 RDM responders
    • LCD screen reports configuration settings and operations status
    • Field or bench configurable without external power or a network connection
    • Normal operation uses Power-over-Ethernet
    • Ethercon connector for network wiring
    • IP 54 weather-rating
    • Adjustable mounting bracket
    • Supports all major Ethernet protocols: ETC Net2 (output only), Strand ShowNet, Pathport, E1.31 Streaming ACN (sACN), Art-Net


  • Specifications:

    • Power-over-Ethernet: Class 1 device - 4W maximum
    • Operating Conditions: -10 to +50°C, 5-95% relative humidity, non-condensing, IP54 Outdoor rating


  • Item Includes:

    • 1x Pathway Connectivity P6182 Pathport Touring Edition 1-Port Gateway
