City Theatrical 5902 Multiverse Node 900MHz/2.4GHz Wireless DMX Transceiver - Licensed for use in North America Only

ITEM #: CTYTH-5902 MFG #: 5902

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$614.14

Our Price:

$522.02

Availability: In Stock
iAvailability Description Popup


    5902 - Overview

    Each City Theatrical Multiverse Node 5902 is a transceiver. As a single universe transmitter, it functions in a similar plug and play manner to the Multiverse® SHoW Baby® and legacy SHoW DMX SHoW Baby® products, and also has a full user interface, with four buttons and a backlit LCD display. As a receiver, the Multiverse Node is the primary single universe standalone receiver in the Multiverse system, and can be part of a larger multi-universe setup.

    Multiverse Node models include:

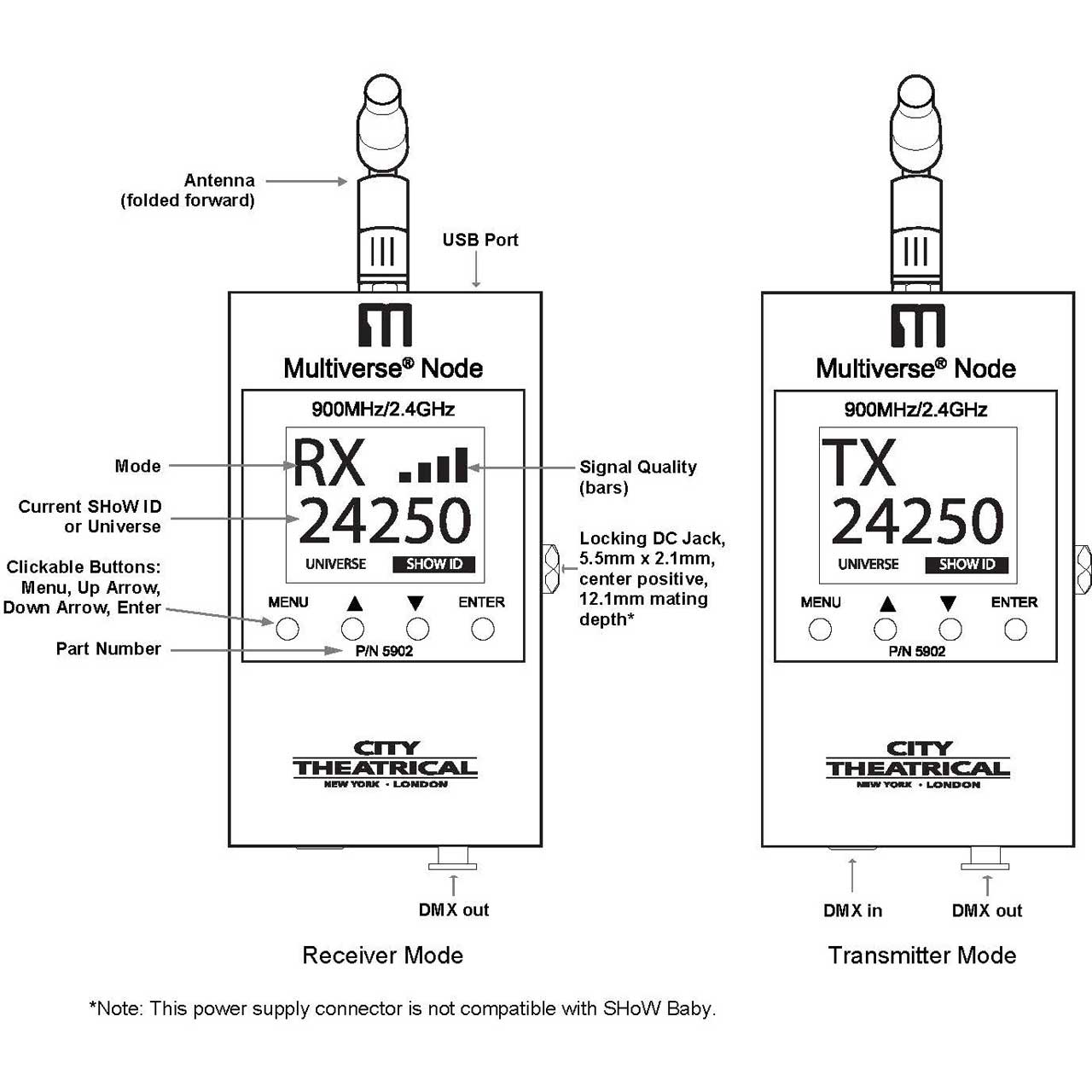

    The Multiverse Node 900MHz/2.4GHz (P/N 5902), which is licensed for use in North America only. It contains two built-in radios, 2.4GHz and 900MHz, which allow the user to select which single universe to transmit, and which radio band to use via the SHoW ID. This model is shown in the diagram below.

    The Multiverse Node 2.4GHz (P/N 5903) contains a 2.4GHz radio and can be used worldwide.

    • Features:

      • Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
      • Compatible with all Multiverse and SHoW DMX Neo products
      • User can select a single universe to receive
      • A very simple user interface to set SHoW ID and universe
      • RDM proxy and responder functions
      • DMX 5-pin in and out/thru ports
      • Rugged cast aluminum enclosure
      • Antenna: Omni Broadband 900MHz/2.4GHz, 2dBi/4dBi (P/N 5902); Omni Broadband 2.4GHz, 4dBI (P/N 5903)
      • Auto-selection of transmit or receive mode
      • Firmware updateable via USB port
      • CL2 power supply with locking connector
      • Built-in auto select DMX512 termination
      • Selectable display timeout and brightness level

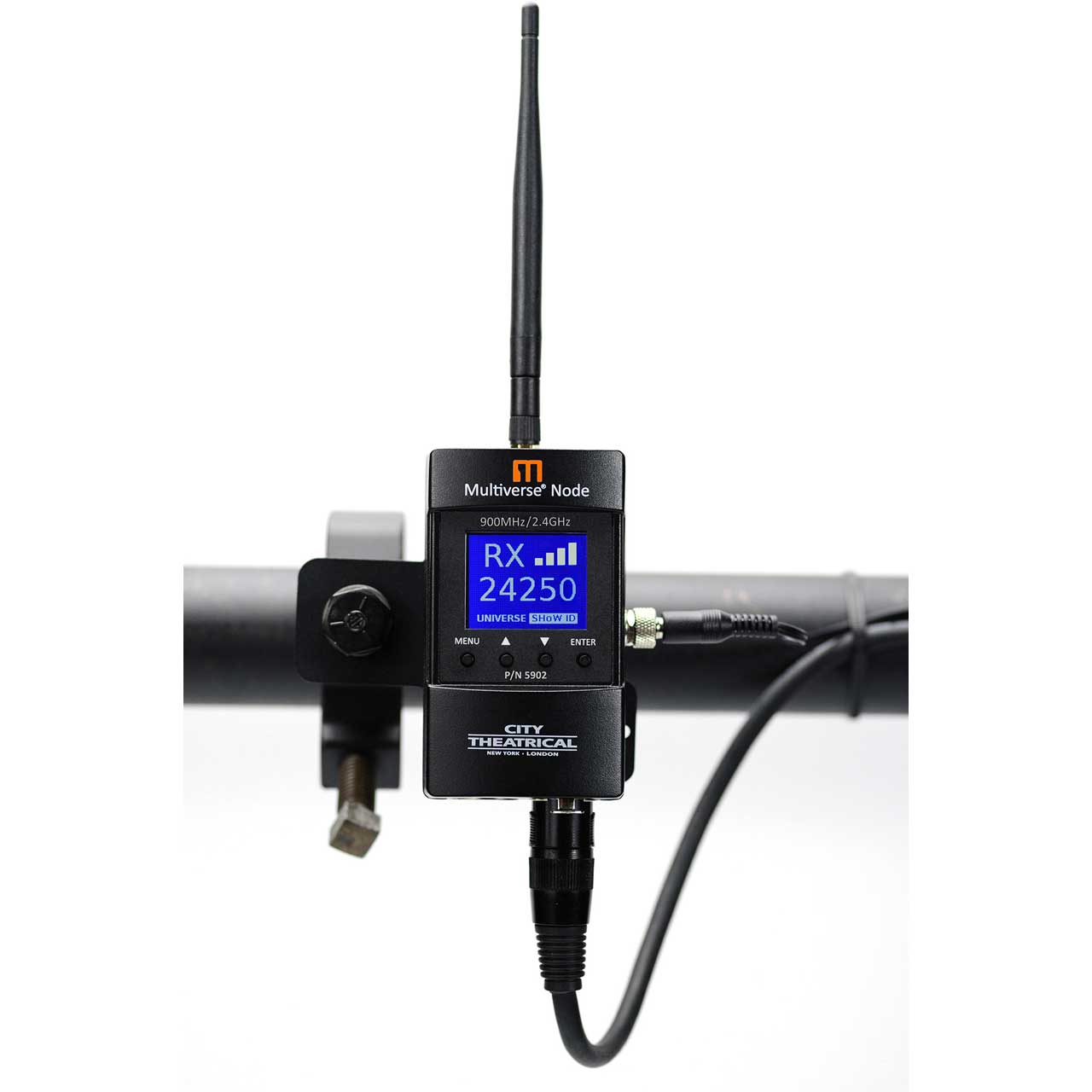

      • A hanging bracket for hanging from pipe or truss

    • Specifications:

      • Physical Specifications
      • Length: 4.05" (102.8mm)
      • Width: 2.36" (60mm)
      • Height: 1.44" (36.47mm)
      • Weight: 0.4Lbs (0.4kg)
      • Construction: Die Cast Aluminum, Black
      • Frequency Range: 2400 - 2480 MHz; 902 - 928 MHz

        Connection Specifications
      • Locking DC Jack, 5.5mm x 2.1mm barrel, center positive, 12.1mm mating depth (this power supply connector is not compatible with SHoW Baby)
      • 5-Pin XLR DMX512 in and out/thru ports
      • RP-SMA female antenna connector
      • USB Type-A port

        Functionality

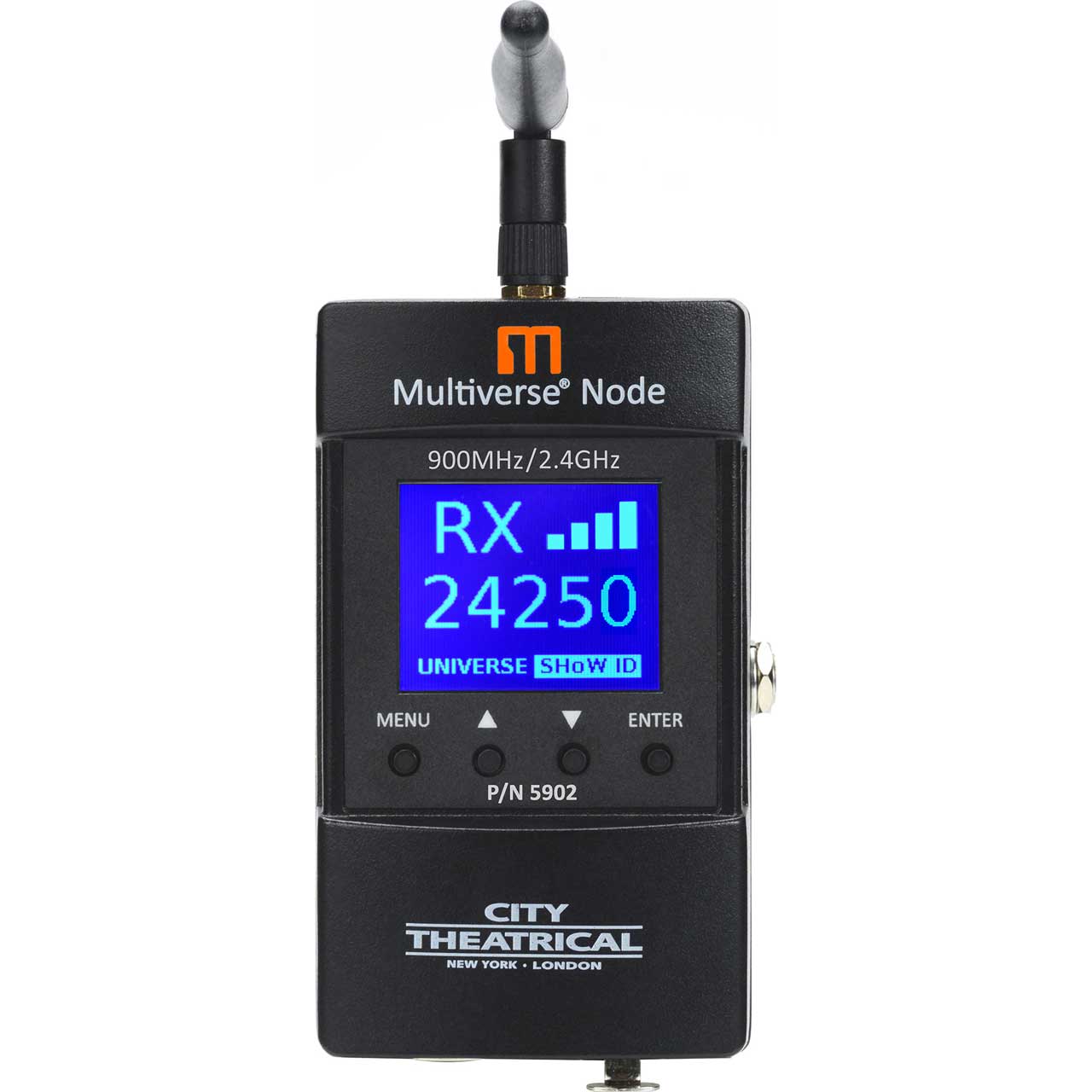

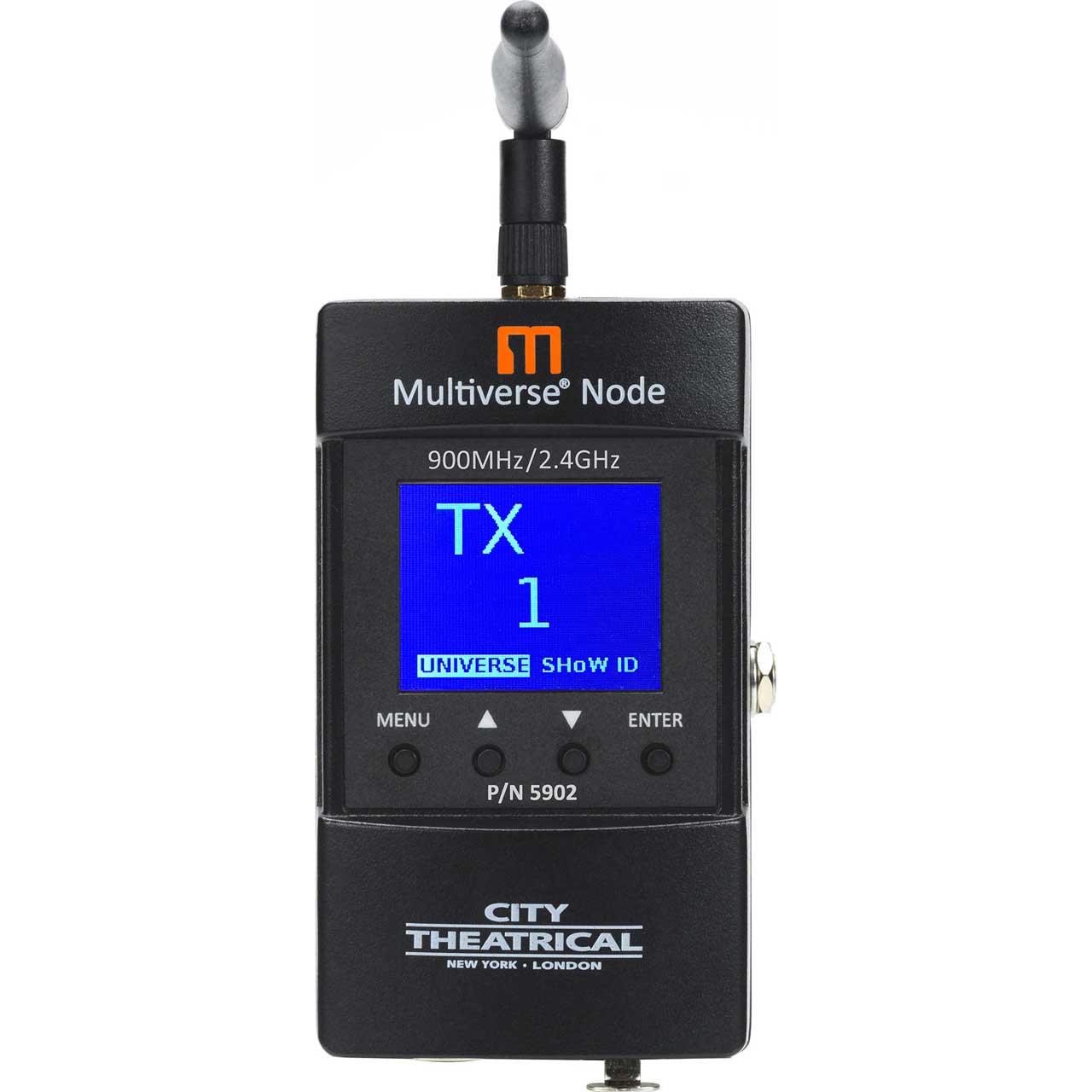

      • User Interface: 4 Button/Backlit LCD display
      • RDM Features: RDM Proxy, RDM Responder

        Power
      • Input Power: 5-30VDC, 0.6W
      • Max Draw: 45mA max draw at 12V
      • AC Adapter Voltage: 100VAC to 240VAC 50/60Hz

        Radio Technology
      • Latency: 4 ms average
      • RF Sensitivity: -95dBm
      • Loss of Data Behavior: Output stops
      • Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
      • Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
      • DMX Burst Modes: Auto Dynamic
      • Show IDs: 307 (North America)

      • Other Product Information
      • Use Environment: Indoor
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -40° to 185°F (-40° to 85°C)
      • IP Rating: IP50
      • Compliance: FCC, IC
