PAG PAGlink PL96T 14.8V Time Battery Rechargeable V-Mount Li-Ion
  • PAG PAGlink PL96T 14.8V Time Battery Rechargeable V-Mount Li-Ion
  • PAG PAGlink PL96T 14.8V Time Battery Rechargeable V-Mount Li-Ion
  • PAG PAGlink PL96T 14.8V Time Battery Rechargeable V-Mount Li-Ion

Questions? Ask a Markertek Expert:
800-522-2025 Email

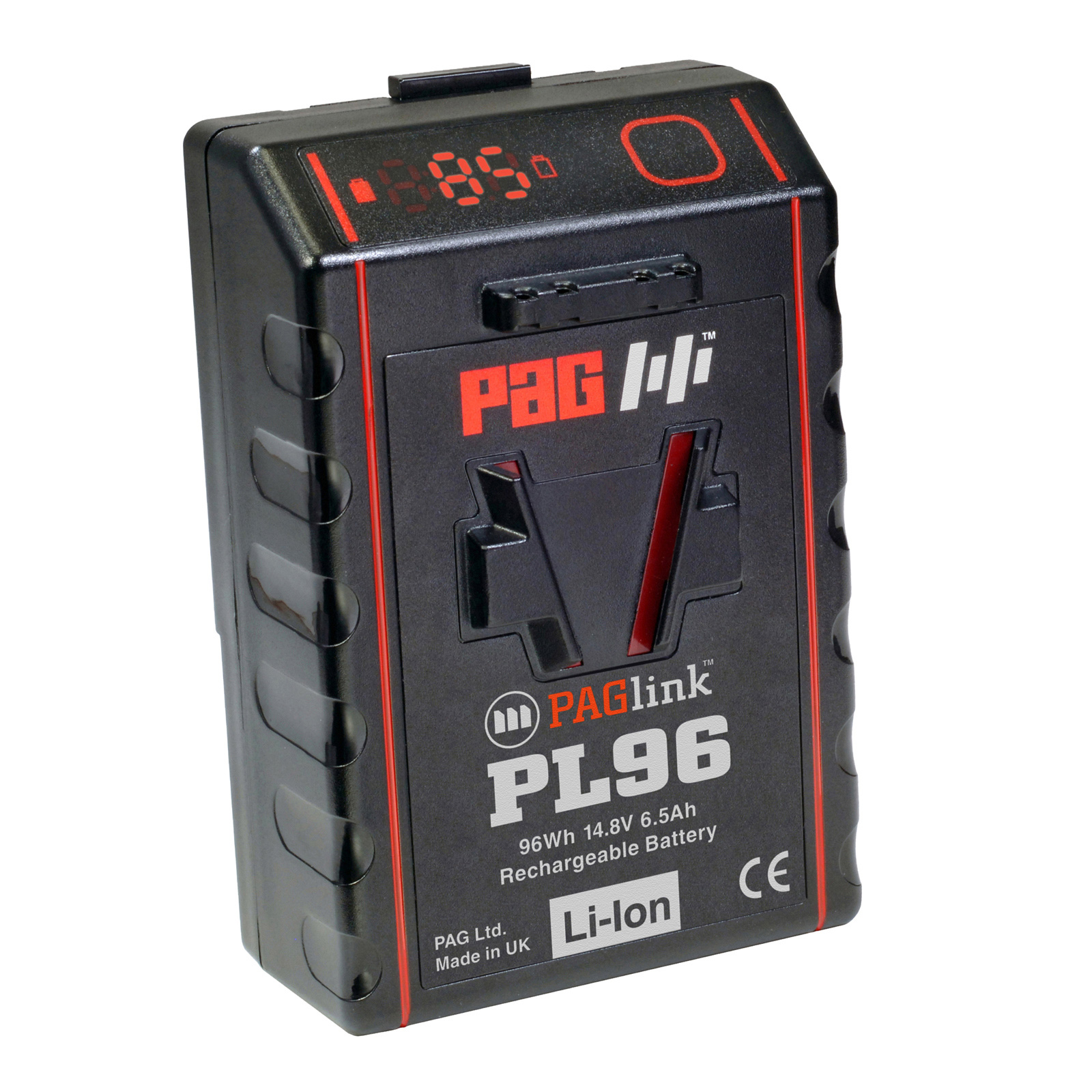

PAG PAGlink PL96T 14.8V Time Battery Rechargeable V-Mount Li-Ion

Item #: PAG-9304   •   MFG #: 9304



List Price:$695.00
Our Price:$626.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • Item restricted to the Contiguous United States ground shipment only.




The PAG PAGlink PL96T Time Battery has a capacity of 96 watt-hours, making it unrestricted in quantity for air transportation. Linking two doubles the capacity to 192Wh; three batteries provide 288Wh. No other system offers as much power. The PL96t incorporates a numeric Run-time & Capacity indicator which shows remaining camera run-time in hours and minutes. When the batteries are linked, run-time is shown for the total of all connected batteries, while capacity is shown for each individual battery. Battery state-of-charge is displayed as a percentage and when batteries are linked, the display provides run-time for the total of all the batteries, and capacity for the individual packs. The different battery versions can be mixed, enabling you to link a Time Battery to an e-series battery, such as the PL96e, and benefit from the numeric run-time display.

PAGlink is the only system that allows you to link multiple batteries, in any state of charge. Up to 8 batteries can be linked for charge or discharge. Linking enables you to keep the camera running at vital moments, it allows capacities to be combined, greatly extending run-time, and provides a high-current draw of up to 12A, ideal for powering a camera and multiple accessories simultaneously. PAGlink batteries incorporate heavy duty contacts, engineered for high-load applications.

Linked batteries form a network that enables them to communicate with each other, managing the output safely, and preventing the transfer of charge between batteries. Unlike other systems the linked batteries can be in any state of charge. PAGlink also allows batteries to be hot-swapped for continuous, uninterrupted power.

As well as being more intelligent, PAGlink batteries are smaller and lighter, with a higher energy density than any V-Mount system marketed to date. PAGlink batteries feature long-life, premier-quality Li-Ion cells, which have no memory effect, and are completely recyclable. In keeping with PAG's total battery design philosophy they are constructed to provide the longest possible working life.

PAGlink batteries support four different camera data systems that display capacity in the viewfinder: Sony, IDX, Red and Anton-Bauer. The battery recognizes the system's data protocol and adapts automatically when connected. The battery can be configured easily for compatibility with the Red camera data system by the user (see instruction booklet).

The battery case is manufactured from high-impact, injection-moulded polycarbonate which is inherently very strong and also used for motorcycle crash helmets. The internal case design also protects the cell-pack against damaging impact.

The PL96T has been tested to UN standards by an independent authority and certified to comply with air transport safety regulations. It has a capacity below 100 Watt-hours and is therefore suitable for air transport on passenger aircraft, in hand-luggage, without quantity restriction.

PLEASE NOTE: Since this product is a Lithium Ion Battery and due to FAA regulation, this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.


  • Features

    • 96 Watt-hours, 14.8V 6.5Ah
    • Rechargeable V-Mount Li-Ion battery
    • Batteries in any state of charge can be linked to combine capacities (2 = 192Wh, 3 = 288Wh)
    • Current draw capability of 12A when linked (8A individually)
    • Hot-swap for continuous power

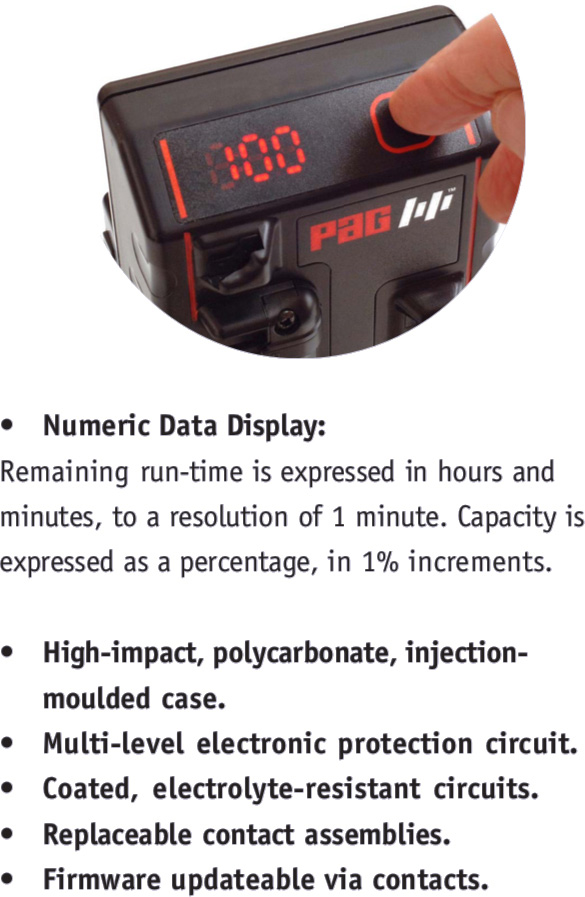

    • Numeric Run-Time & Capacity Display
    • Smaller and lighter with a higher energy density than any other V-Mount Li-Ion battery of equivalent capacity
    • Intelligent batteries that communicate and manage their own charge and discharge safely

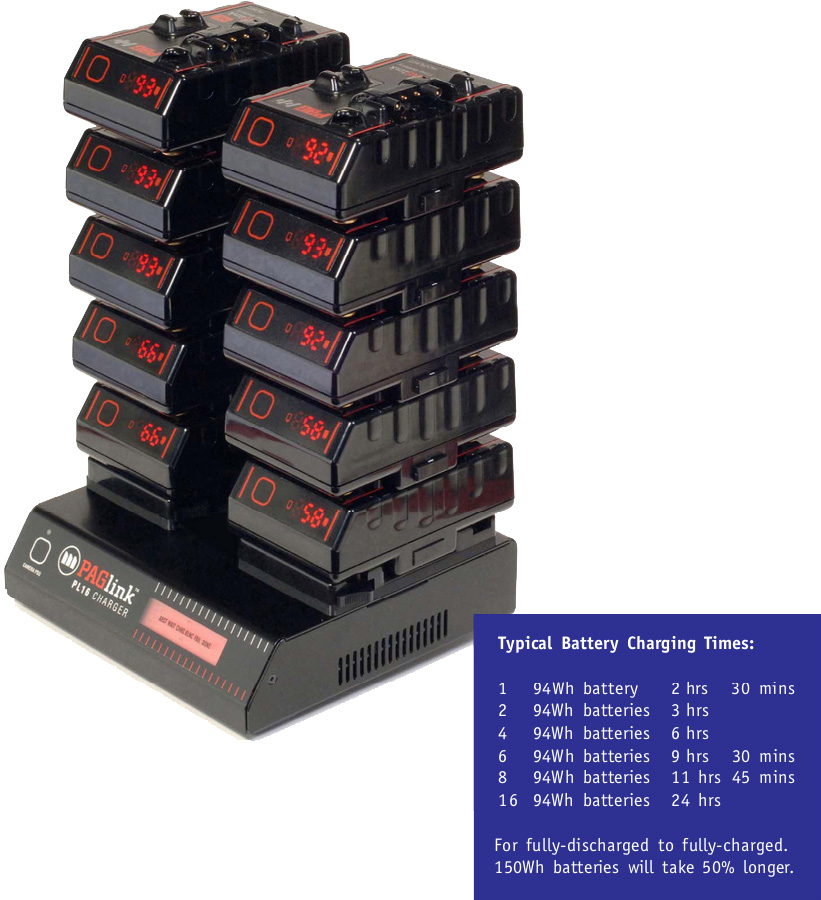

    • Charge batteries individually or linked using PAGlink chargers or other reputable V-Mount Li-Ion chargers
    • Auto-compatible with the multiple camera data system and in-viewfinder capacity displays
    • Battery firmware can be updated externally
    • UN tested by an independent authority for air transport.

  • Specifications

    • Cells: Premium-grade rechargeable Lithium-Ion
    • Capacity: 96 Watt-hours (6.5 Ampere-hours)
    • Voltage: 14.8V nominal
    • Output Current: Rated maximum continuous 8 Amperes (12 Amperes for two or more linked batteries)
    • Run-Time & Capacity Display: Numeric display that shows a run-time prediction on-load, expressed in hours and minutes, to a resolution of 1 minute
    • Capacity/state of charge is displayed as a percentage, in 1% increments
    • Protection: multi-layered electronic protection system that guards against over-current, over-voltage, under-voltage, over-temperature and under-temperature
    • The circuit is conformally-coated to ensure operation of the safety systems in the event of severe damage to the battery
    • Temperature Range: Charging: +32°F to +113°F (Optimum +50°F to +104°F)
    • Discharging: -4°F to +122°F (Optimum +50°F to +104°F)
    • Storage: +14°F to +104°F (Optimum +32°F to +68°F).

  • Warranty

    • 3 years with no restrictive conditions

  • GTIN:

    0854166007041
