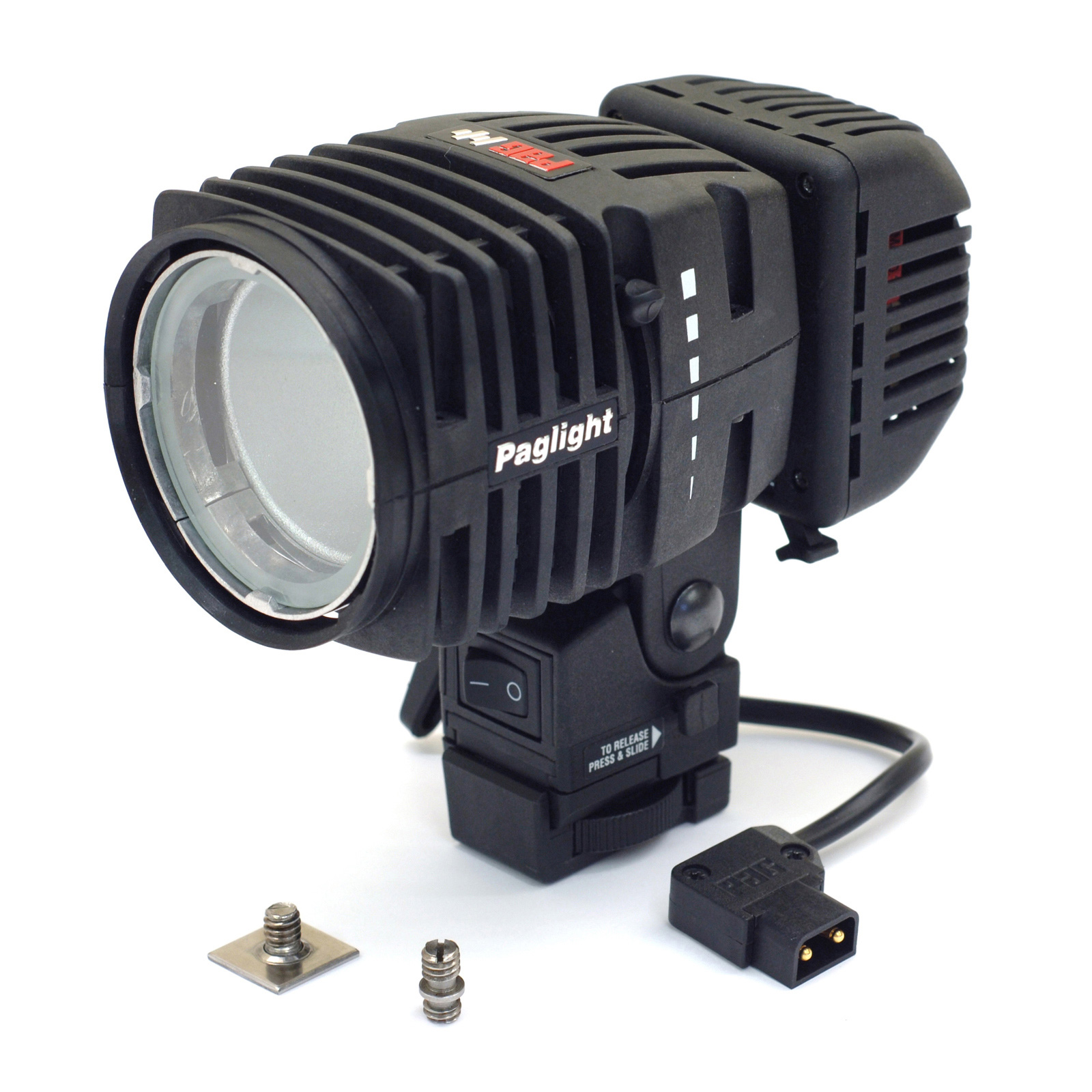

Introducing the Paglight - the world's most versatile camera top light, designed to ensure you will have the correct lighting situation for every professional situation! The Paglight 9966LD features the latest LED technology and dimmer unit, more than 12,000 hours of LED life, a choice of D-Tap, XLR4 or PP90 power connections, and a revolutionary patented design which allows for a range of professional lighting technologies to be used with one lamp head.
PAG's LED Dimmer unit uses the latest LED technology to produce an impressive light intensity over distance in comparison with other LED camera lights. PAG has achieved this by focusing the output of the emitters using an integrated lens, and by positioning the LED module within the Paglight reflector. The results are a testament to the Paglight's superior optical design. The LED unit produces a clean and even, daylight balanced output of 900 lux at 2m, equivalent to 50W halogen. It offers a highly energy efficient power consumption of only 11W that greatly extends battery runtime.
A dimming facility is incorporated to control light intensity, in combination with the Paglight's integral spot and flood focusing mechanism. The colour temperature of the LED output can be corrected for use with incandescent light, using the LED conversion filter Model 9998.
Interchangeable Lighting Modules
Interchangeable LED, tungsten halogen and HMI Arc lighting modules plug into the back of the reflector housing. They can be hot-swapped quickly and safely, in a matter of seconds. Paglight is the only broadcast light with this feature, providing you with the correct lighting technology for any professional situation.
Superior LED Optical Performance
The Paglight LED has an impressive light intensity over distance in comparison to other LED lights. PAG has achieved this by focusing the output of the emitters using an integrated lens, and by positioning the LED module within the Paglight reflector. The results are a testament to Paglight's superior optical design: a clean and even, daylight balanced output of 900 lux at 2m, for a power consumption of only 11W.
The colour temperature of the output is a perfect blend with daylight, and can be converted to match halogen light by using LED Conversion Filter Model 9998, also incorporated in the LED Rotatable Accessory Kit Model 9959D, which can be fitted to the front of the Paglight.
Power consumption of this ultra-efficient unit is a mere 11W. A single PAGlink PL96e battery will provide almost 9 hours of run-time for this unit alone.
Low-profile, hot-shoe Power Bases enable the Paglight to be easily and quickly mounted to the camera, or removed after shooting. Power Bases are available with either a D-Tap, PP90 or XLR4 connector, and various lead lengths suitable for use with a range of 12V to 14.8V DC power sources. The Power Base features a 1/4" bush that allows the Paglight to be mounted to the camera using a variety of options.

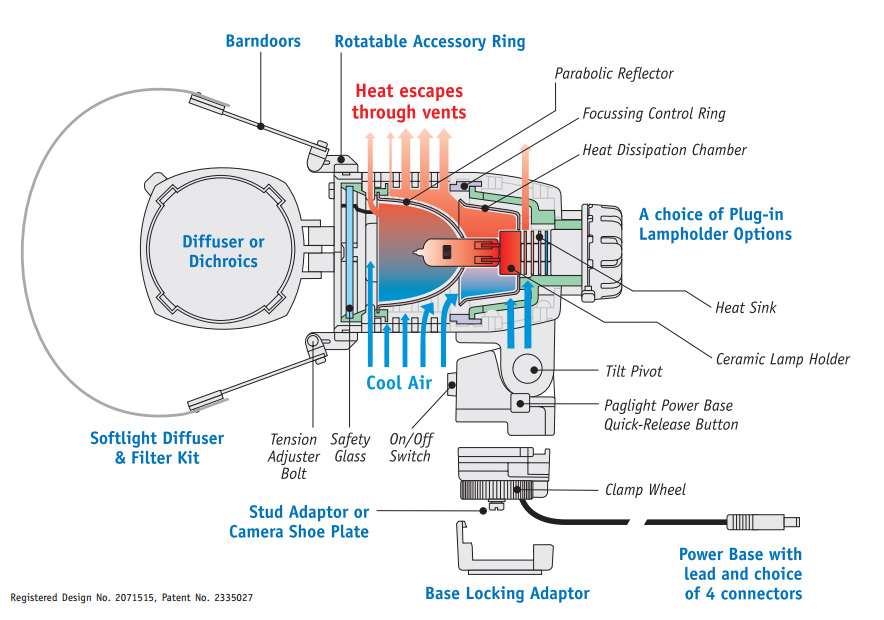

The unit is designed to dissipate heat from the finned emitter probe using heat transfer chambers, a patented system embodied in the Paglight design. It means that heavy aluminium heat sinks, commonly used in other LED lights, are not required. Even after prolonged use the Paglight lamp head and the LED unit can be handled comfortably.
