PAGlink MPL99G 99W 14.8V 6.7AH Lithium-Ion Battery (Gold Mount)

ITEM #: PAG-MPL99G MFG #: MPL99G

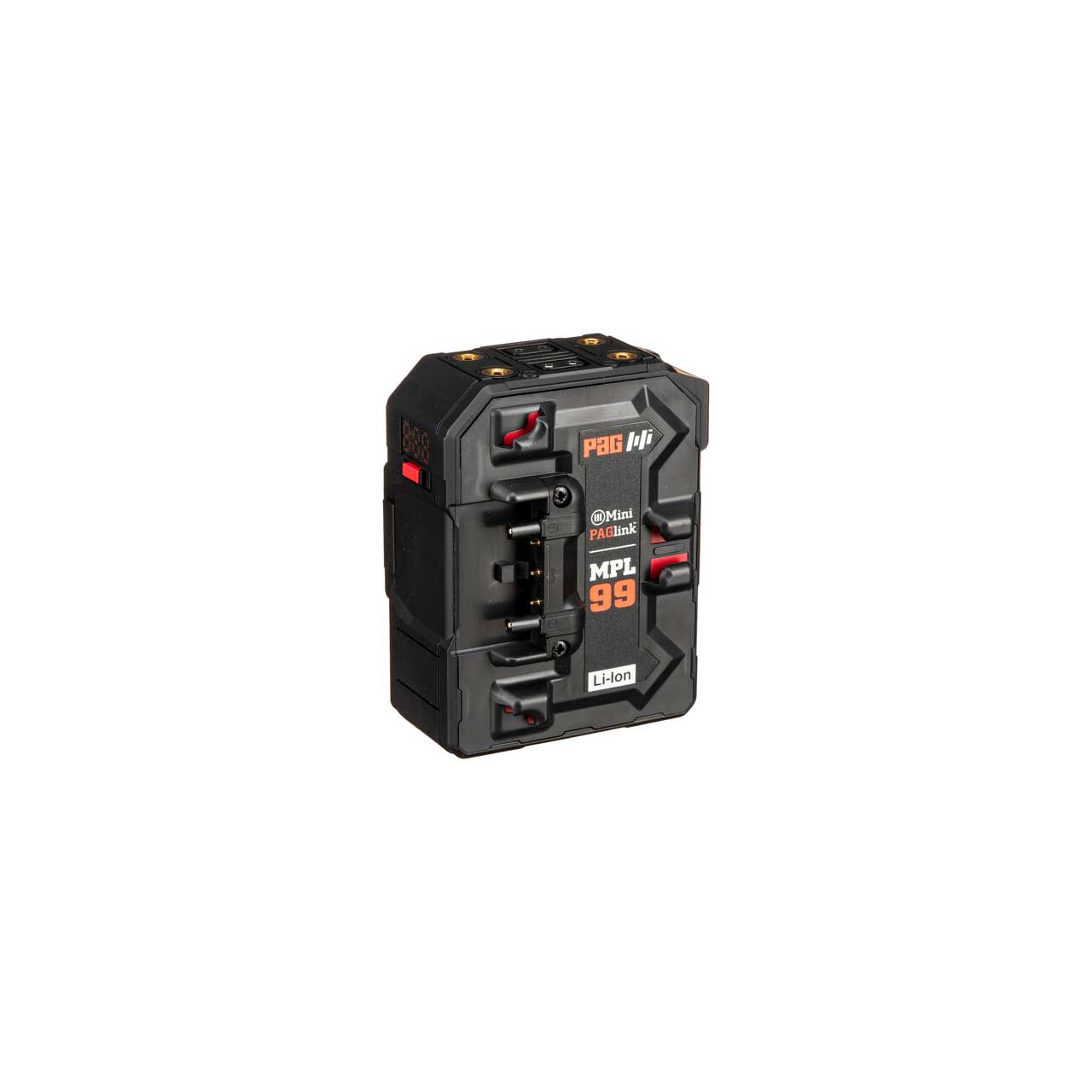

Primary Image

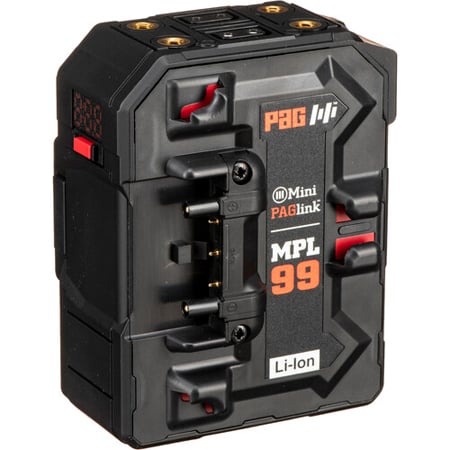

  • Product Image Thumbnail 1 of 4

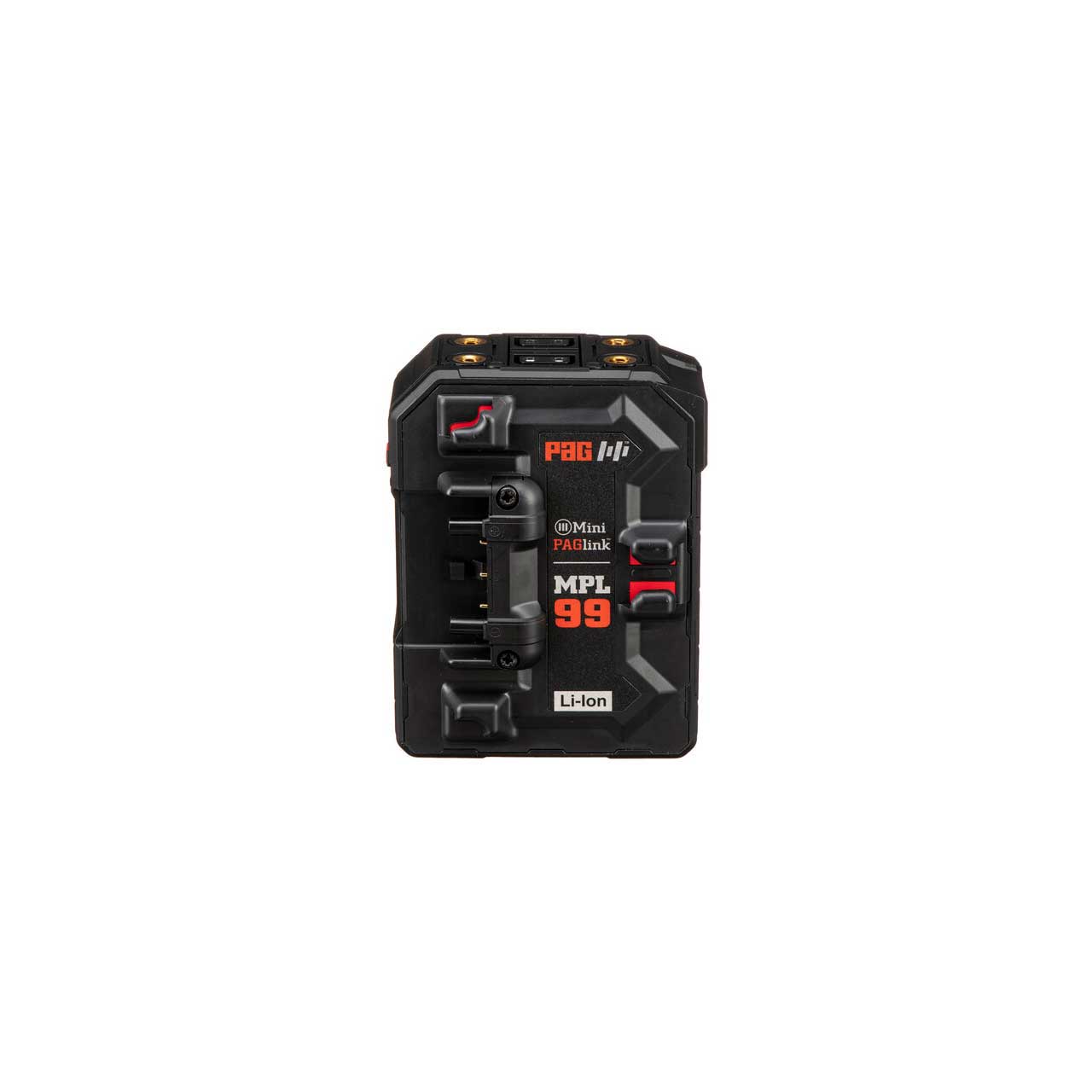

  • Product Image Thumbnail 2 of 4

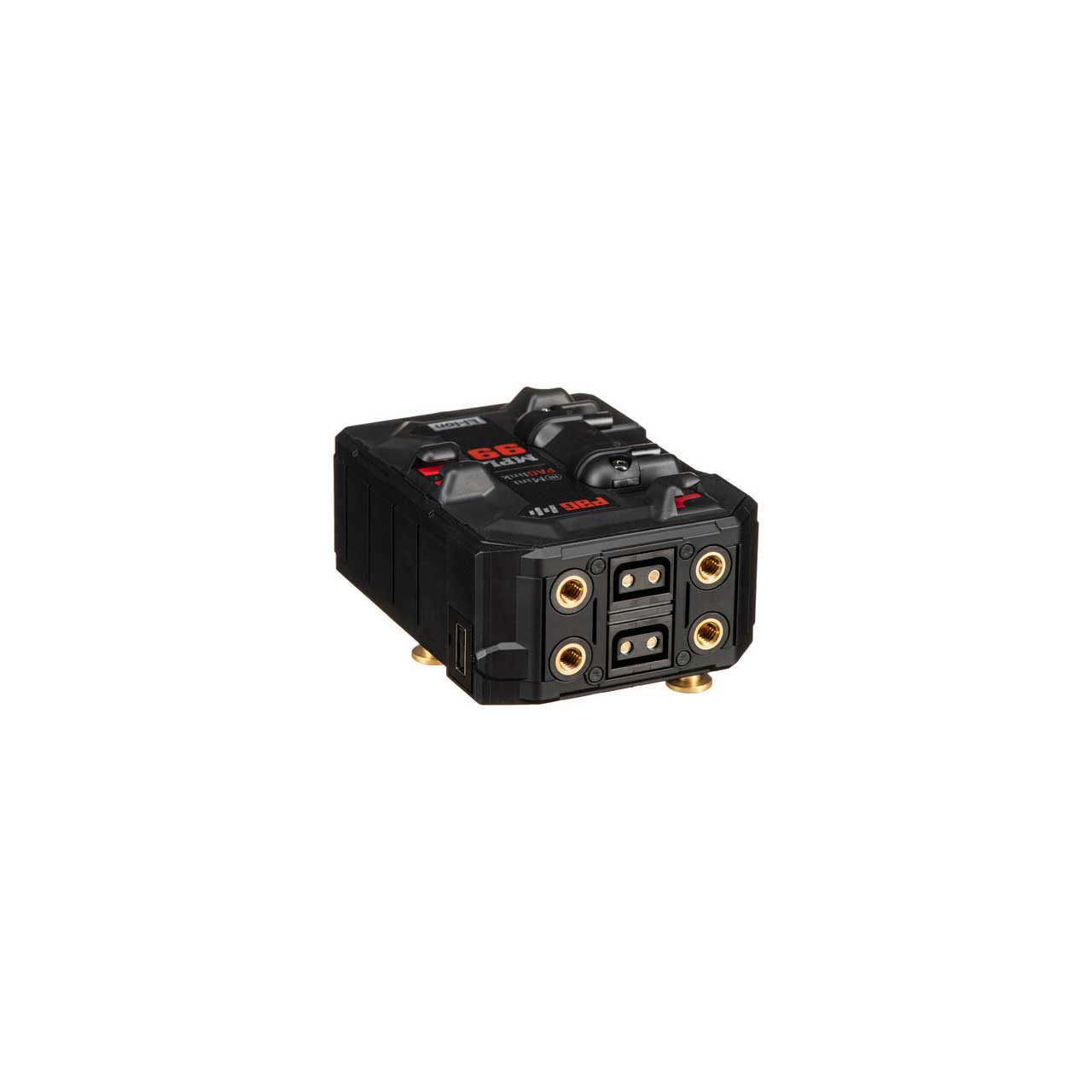

  • Product Image Thumbnail 3 of 4

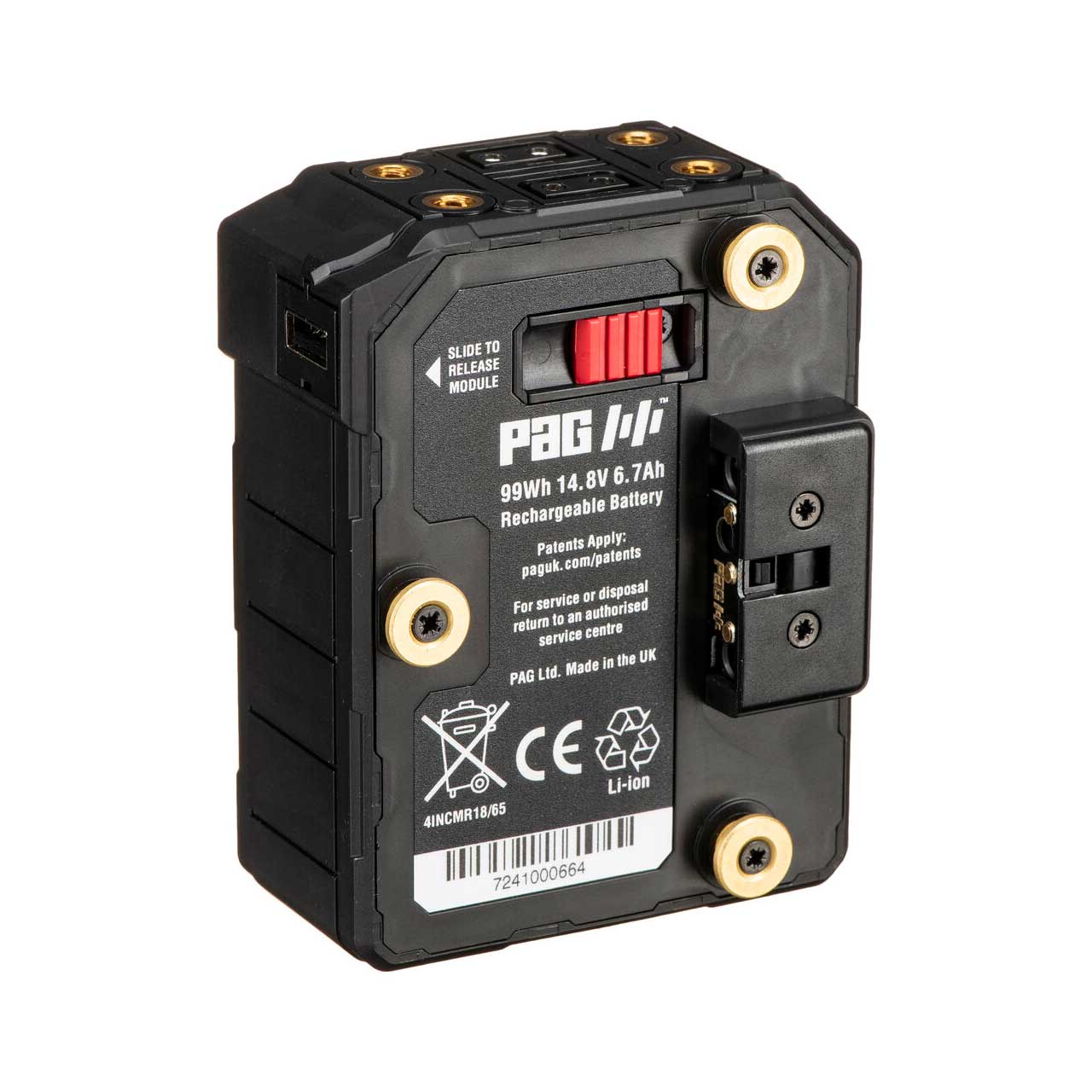

  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$525.00

Our Price:

$473.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


MPL99G - Overview

The Mini PAGlink MPL99G Battery from PAG is a lithium-ion Gold mount battery featuring a linking design that allows multiple units to be attached and used together for extended runtimes and increased power draw. The small size of the MPL99G is ideal for use with smaller 4K cameras, keeping size and weight down. A single unit supports a total draw of 10A between camera and accessory power ports, while two units combine to support a 12A draw. The Gold mount MiniPAGlink batteries can be linked with both Gold mount MiniPAGlink and standard Gold mount PAGlink batteries in any combination.

The battery features an ABS body, and it has a modular design making it easy to have the battery re-celled by an authorized service facility. The front and rear contact assembles can also be replaced if damaged, helping to protect your investment. The ABS body features a soft outer band for a good grip and improved handling. The battery passes information to cameras that support displaying battery information in the viewfinder. Two integrated D-Taps supply power for accessories, and the battery ships with a replaceable 2A USB port that can be swapped for a variety of other output ports. Four 1/4"-20 threaded mounting holes allow you to mount accessories directly onto the battery.
PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 14.8V, 99Wh Gold mount lithium-ion battery
    • You can swap out the USB output port for optional 4-pin Hirose, 4-pin LEMO, D-Tap, and coax output ports
    • Multiple units can be linked together for higher current draw and longer runtimes
    • A single unit supports 10A draw; two units combine to support 12A draw
    • Numeric runtime (hh/mm or %) and capacity display with accuracy maintenance feature
    • When multiple units are linked, the runtime is displayed for the entire group
    • Capable of sending capacity data to all supporting cameras
    • No memory effect
    • High-impact, injection-molded polycarbonate case
    • Case interior designed to protect the cells from damaging impact
    • Fail-safe electronic system
    • Replaceable contact assemblies
    • Capable of working in temperatures as low as -4°F

  • Specifications:

    • Mount / Series Type: Gold Mount
    • Chemistry: Lithium-Ion
    • Capacity (Wh): 99 Wh
    • Amp-Hours: 6.7 Ah
    • Output Voltage: 14.8 VDC
    • Maximum Load: 10 A
    • Accessory Port: 2 x D-Tap Output
    • USB Output: 1 V, 2 A
    • Charging Voltage: 16.8 VDC
    • Accessory Mounting Thread: 4 x 1/4"-20 Female
    • Operating Temperature: 41 to 104°F / 5 to 40°C (Recommended), -4 to 122°F / -20 to 50°C
    • Storage Temperature: 32 to 68°F / 0 to 20°C (Recommended), 14 to 104°F / -10 to 40°C
    • Charging Temperature: 50 to 86°F / 10 to 30°C (Recommended), 32 to 104°F / 0 to 40°C
    • Dimensions (W x H x D): 4.3 x 3.4 x 2.4" / 109 x 87 x 60 mm
    • Weight: 20.8 oz / 590 g

  • Warranty:

    • 2 Year Warranty
