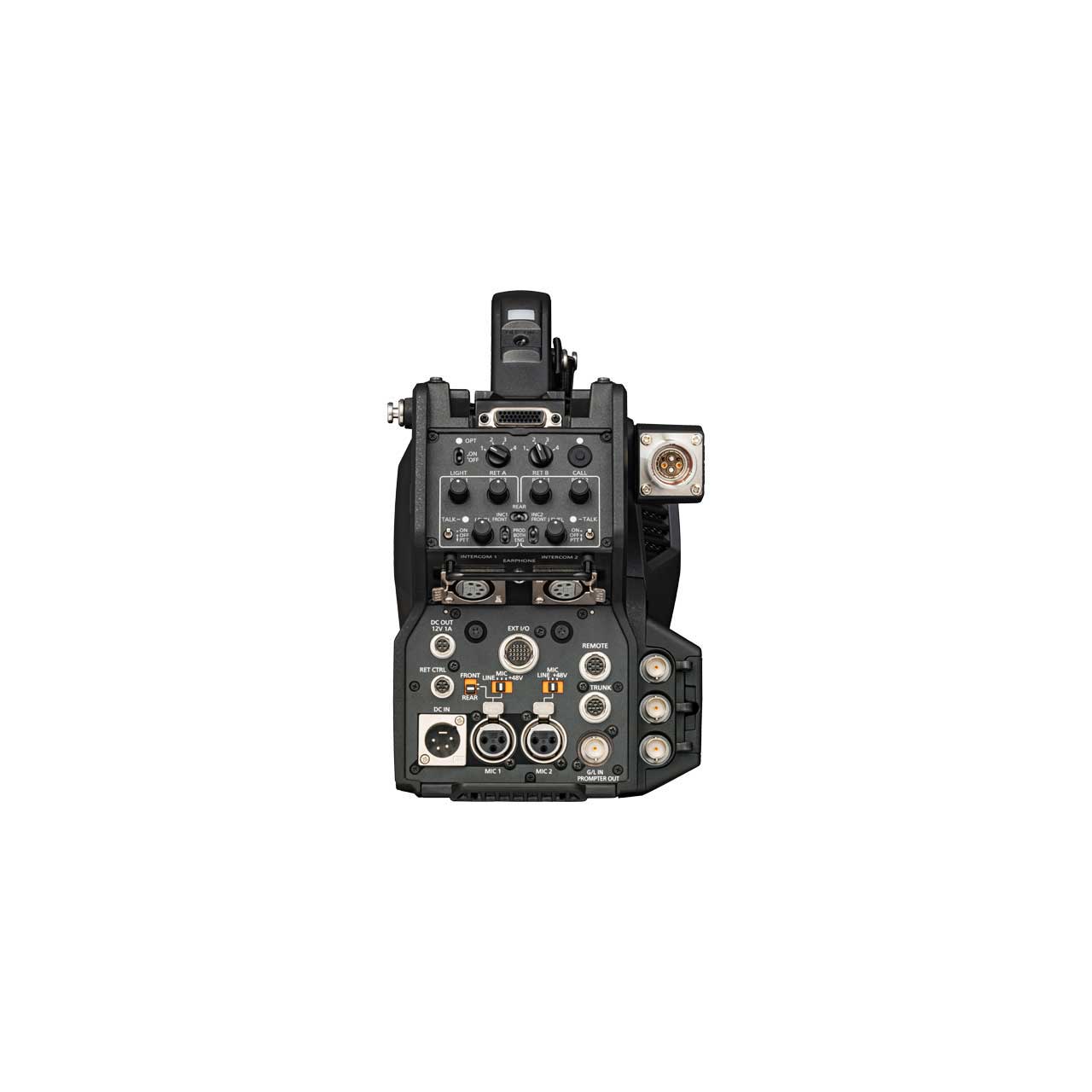

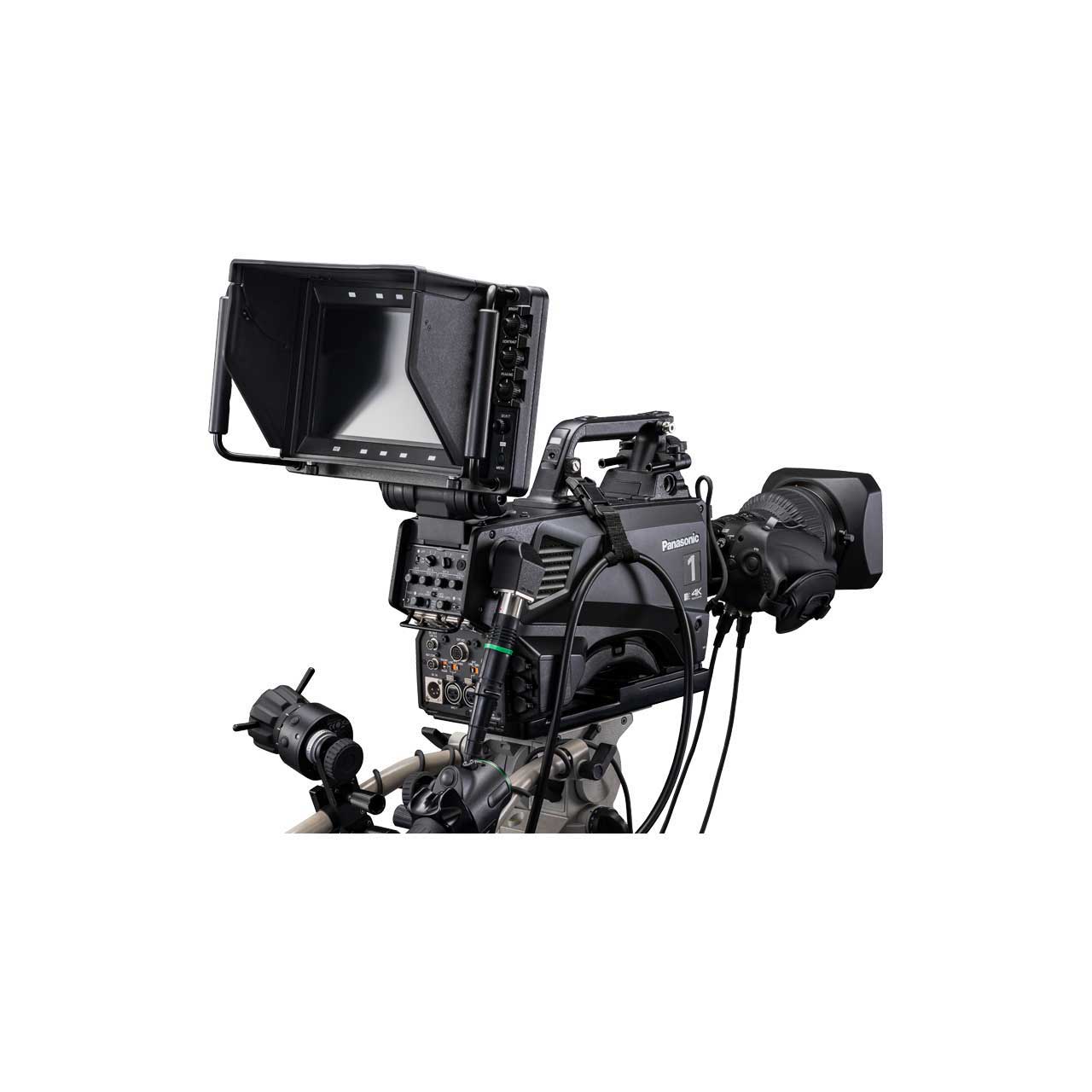

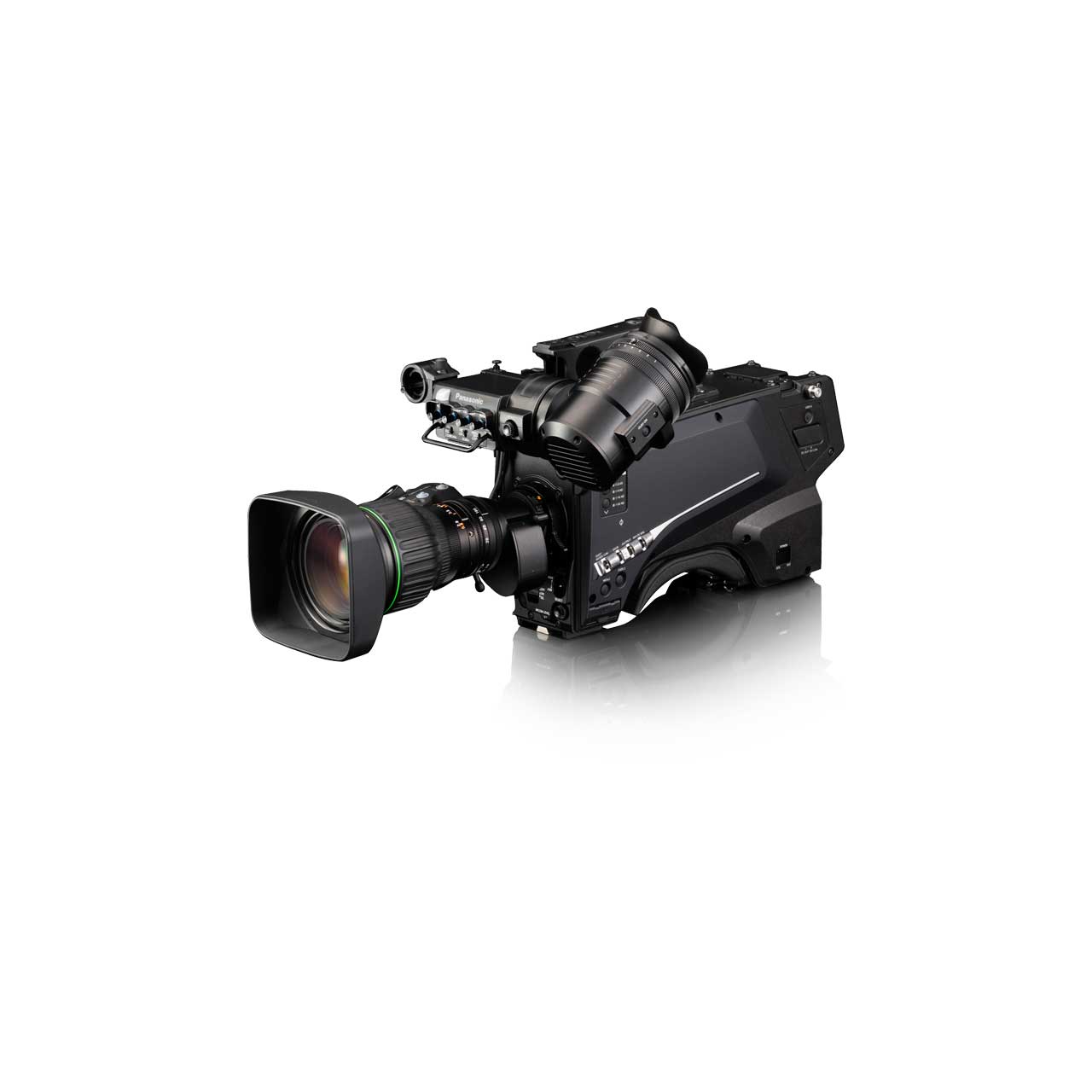

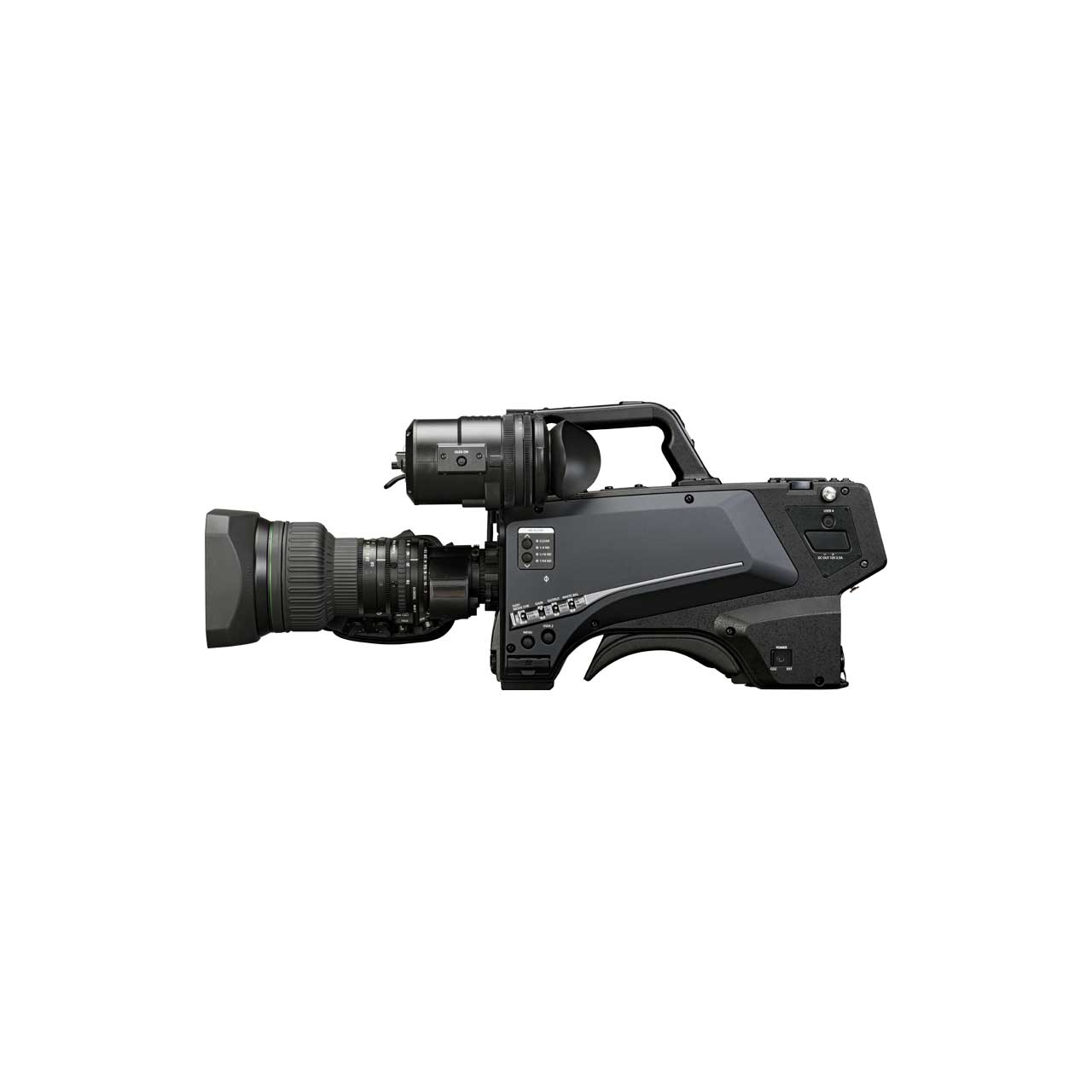

Panasonic AK-HC3900GSJ HD HDR Studio Camera - LEMO Connector Model with Built-in Optical Filter

ITEM #: PAN-AK-HC3900GSJ MFG #: AK-HC3900GSJ

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Panasonic
Free Shipping with $49 Minimum Order

List Price:

$23,100.00

Our Price:

$22,159.17

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AK-HC3900GSJ - Overview

    Large 11.14-megapixel image sensor for high sensitivity, low noise video

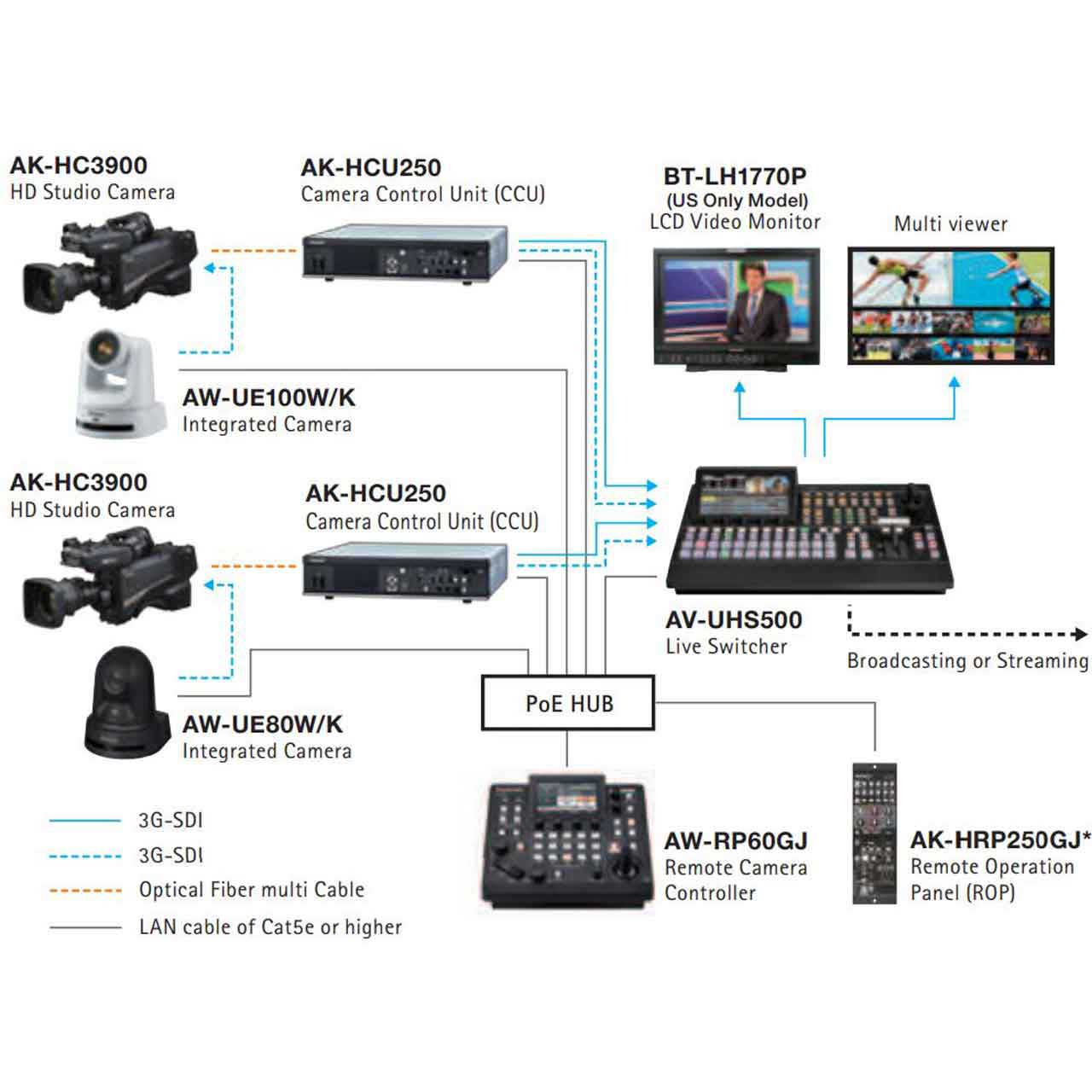

    The CCU and ROP have also been completely updated to create a Full HD camera system that is easy to use as a total system. A highly operational system can be built at low cost for live events and sports as well as studio program production. A wide range of scalability is provided, which can be selected according to the type of operation.

    Multi-format Support
    Video formats such as 1080/59.94p, 50p, 59.94i, 50i and 23.98PsF are supported for use according to the operation application.

    B4 Mount
    The 2/3 lens can be used without an external adapter, and the internal lens is specially designed for large sensors, ensuring high video quality. This new acquisition method maximizes the effectiveness of incident light.

    Focus Assist Functions
    Quick and accurate focusing is supported with focus assist functions such as Focus Bar (indicates focus level), Focus-in-Red (uses color to indicate areas in focus), MAG (magnifies central portion), and Square (shows focus status of screen as a whole). Lenses with auto focus and focus assist capabilities are also supported*. The Remote Operation Panel (ROP) can also be used to focus and zoom while using the digital lens.

    Please note! Lens and viewfinder are optional accessories and are sold separately!

    • Features:

      • High-Quality Full-HD Pictures
      • Large 11.14-megapixel Image Sensor
      • Multi-format Support
      • B4 Mount
      • Built-in Optical Filter
      • HDR (High Dynamic Range)
      • Various Functions and Versatile Interfaces
      • High-speed Scanning for Low-skew Shooting
      • Digital Extender (2x)
      • Chromatic Aberration Compensation (CAC)
      • Focus Assist Functions
      • Flash Band Correction
      • Diverse Color Correction Functions
      • Skin Tone Detail Correction
      • Shockless Gain
      • Camera Standalone Output Formats
      • Long-distance Transmission
      • Detailed Functions Optimized for Operability
      • Video Transmission (TRUNK) Functions
      • 4K Upgrade Support
      • ITU-R BT.2020


    • Specifications:

      • General
      • Power Supply:
        - DC 12 V (when using an external power supply)
        - DC 190 V (when AK-HCU250PJ/HCU250PSJ/HCU250EJ/ HCU250ESJ is connected)
      • Power Consumption:
        - 82 W (maximum, when connecting to an external 12 V and including supply to an externally connected devices)
        - 92 W (maximum, when AK-HCU250PJ/HCU250PSJ/HCU250EJ/ HCU250ESJ is conncected and including supply to an externally connected devices)
      • Operating Temperature: 14 °F to 113 °F (Preheating required under a temperature 32 °F or below)
      • Storage Temperature: -4 °F to 140 °F
      • Operating Humidity: 85% or less (relative humidity)
      • Weight: Approx. 4.0 kg (8.80 lbs.) (body only, excluding the accessories)
      • Dimensions (W x H x D): Body only 5-31/32 x 10-17/32 x 14-17/32 inches (excluding protrusions)
      • Camera Unit
      • Pickup Device: 11.14 million pixels, MOS Sensor
      • Optical Filter: ND: Clear, 1/4, 1/16, 1/64
      • Lens Mount: 2/3-type bayonet
      • Sensitivity:
        - wo shooting modes
        - [HIGH SENS]: F10 (59.94 Hz)/F11 (50 Hz)
        - [NORMAL]: F6 (59.94 Hz)/F7 (50 Hz) 2000 lx, 3200 K, when white reflectivity is 89.9%
      • Horizontal Modulation: 50% or above (27.5 MHz)
      • S/N: 62 dB or above
      • Horizontal Resolution:
        - HD: 1000 TV lines or above (center)
        - 4K: 2000 TV lines or above (center, when using AK-HUC01)
      • Gain Switching:
        - [NORMAL] -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36
        - [HIGH SENS] -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36
      • Shutter Speed:
        - [59.94i]/[59.94p] mode 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [29.97p] mode 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [23.98p] mode 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [50i]/[50p] mode 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
        - [25p] mode 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
      • System Format: 1920 x 1080/59.94p/50p/29.97p/25p/23.98p
      • Video Input/Output
      • [HD-SDI1] terminal: BNC x 1 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
      • [HD-SDI2] terminal: BNC x 1 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
      • [AUX] terminal:
        - BNC x 1
        - Functions as [HD TRUNK] terminal/[PROMPTER] terminal by switching the setting in the menu
        - [HD TRUNK]: 3G/1.5G-SDI: 0.8 V [p-p], 75 ω
        - [PROMPTER]: VBS signal 1 V [p-p], 75 ω
      • Audio Input/Output
      • [MIC 2] terminal:
        - XLR x 1, 3-pin (female type) [LINE>][MIC]/[+48V] switchable
        - [LINE]: 0 dBu
        - [MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selected
      • [MIC] terminal (front):
        - XLR x 1, 3-pin (female type) [LINE]/[MIC]/[+48V] switchable
        - [LINE]: 0 dBu
        - [MIC]: -60 dBu, -40 dBu, or -20 dBu menu can be selected
      • Intercom
      • [INTERCOM1] terminal: XLR x 1, 5-pin, female type
