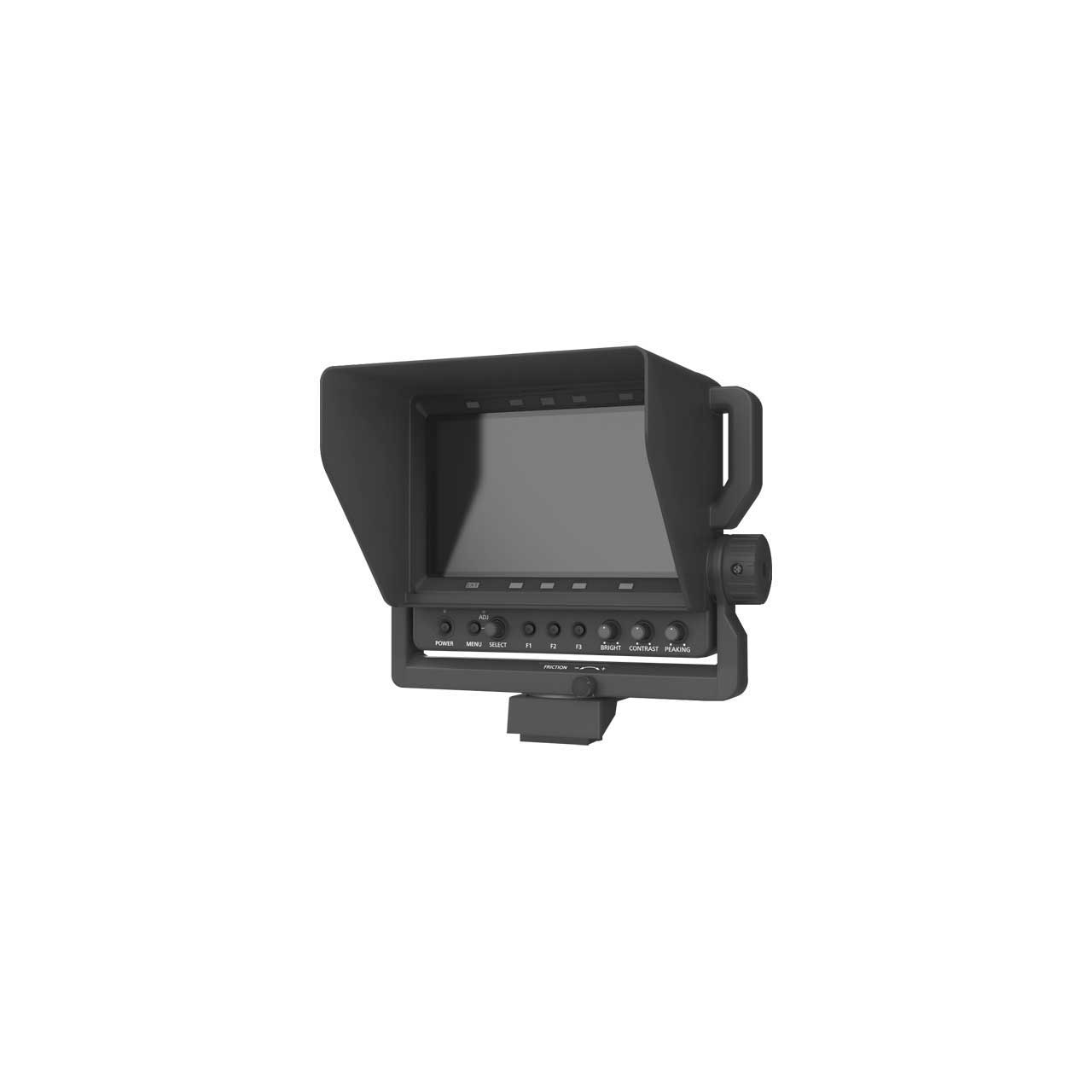

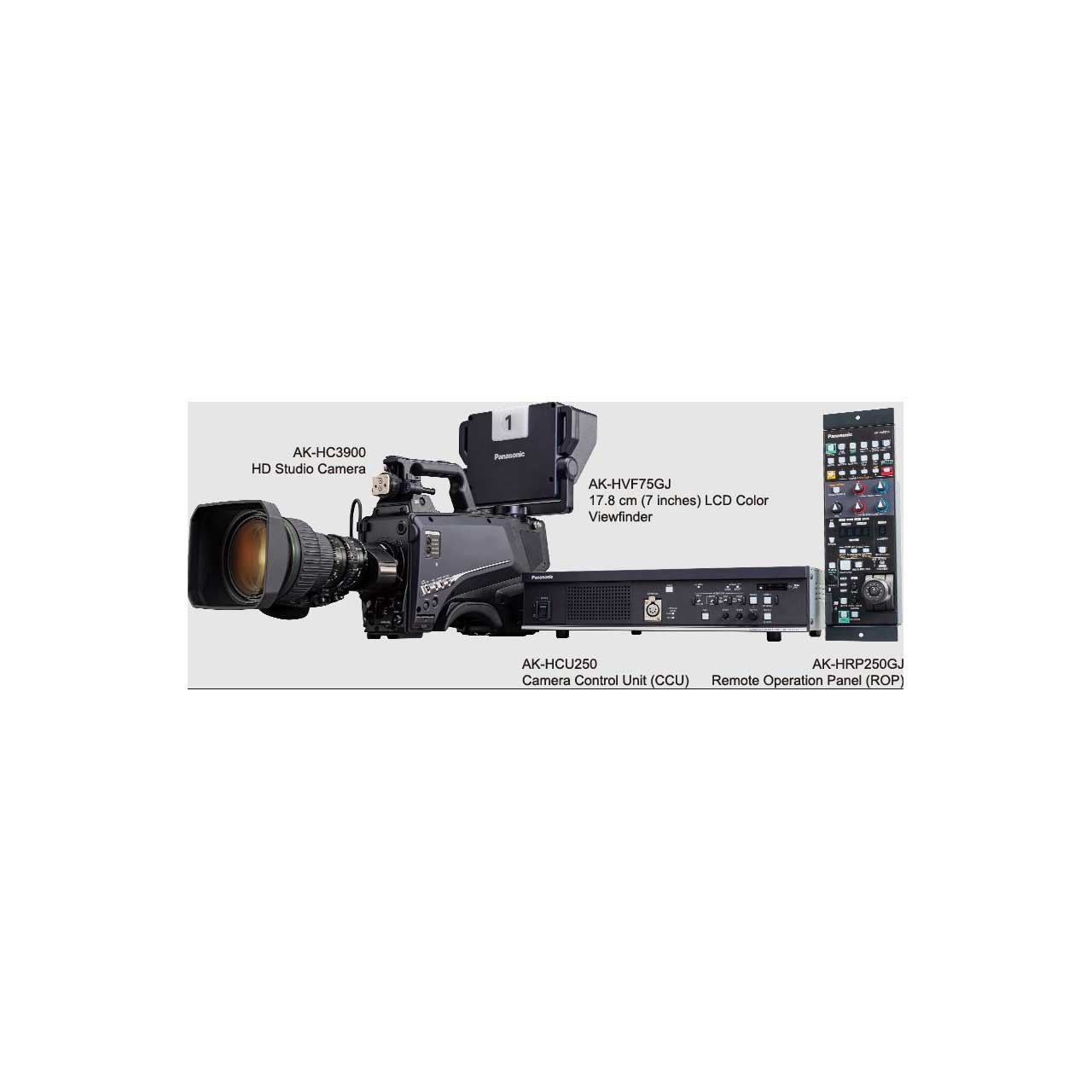

Panasonic AK-HVF75GJ 7-Inch 1280 x 800 (WXGA) Studio LCD Viewfinder for AK-HC3900 / AK-UC3000 / AK-HC5000 & AK-UC4000

AK-HVF75GJ - Overview

• Features:

  • Equipped with 1280 x 800 (WXGA) resolution 7 inches color LCD panel.
  • Wide horizontal/vertical viewing angle of 176°, screen brightness of 400 nits and contrast of 800:1.
  • Equipped with focus assist functions (Focus in Red, Pixel to Pixel).
  • Direct camera menu control is possible.
  • Equipped with three assignable function switches.
  • Contrast, brightness, and peaking can be adjusted.
  • Tilting (90° up, 60° down) and panning (90° left and right) is possible.


• Specifications:

  • General
  • Power: DC 12 V (supplied from camera)
  • Power Consumption: 11 W
  • Operating Temperature: 32 °F to 113 °F
  • Storage Temperature: -4 °F to 140 °F
  • Operating Humidity: 10% to 85% (no condensation)
  • Weight: Approx. 3.53 lbs. (not including hood)
  • Dimensions (W x H x D): 9-19/32 inches x 8-11/32 inches x 3-11/32 inches (not including hood) / 9-19/32 inches x 8-11/32 inches x 6-25/32 inches (including hood)

    Display Panel
  • Dimensions: 7.0 inches
  • Number of Pixels: 1280 x 800 (WXGA)
  • Display Color: Approx. 16.77 million colors

    Switch Function/Connector

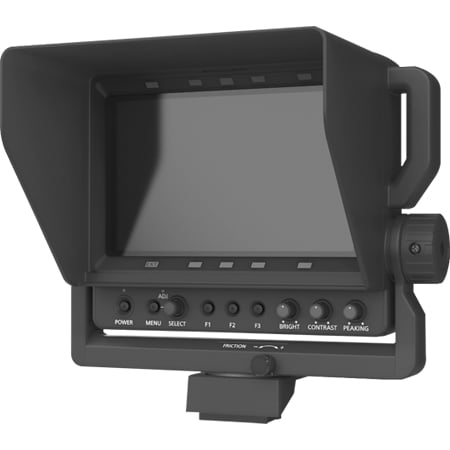

  • Operation: (POWER) switch, (MENU) button, (SELECT) dial button, (F1)/ (F2)/ (F3) buttons, (BRIGHT) knob, (CONTRAST) knob, (PEAKING) knob

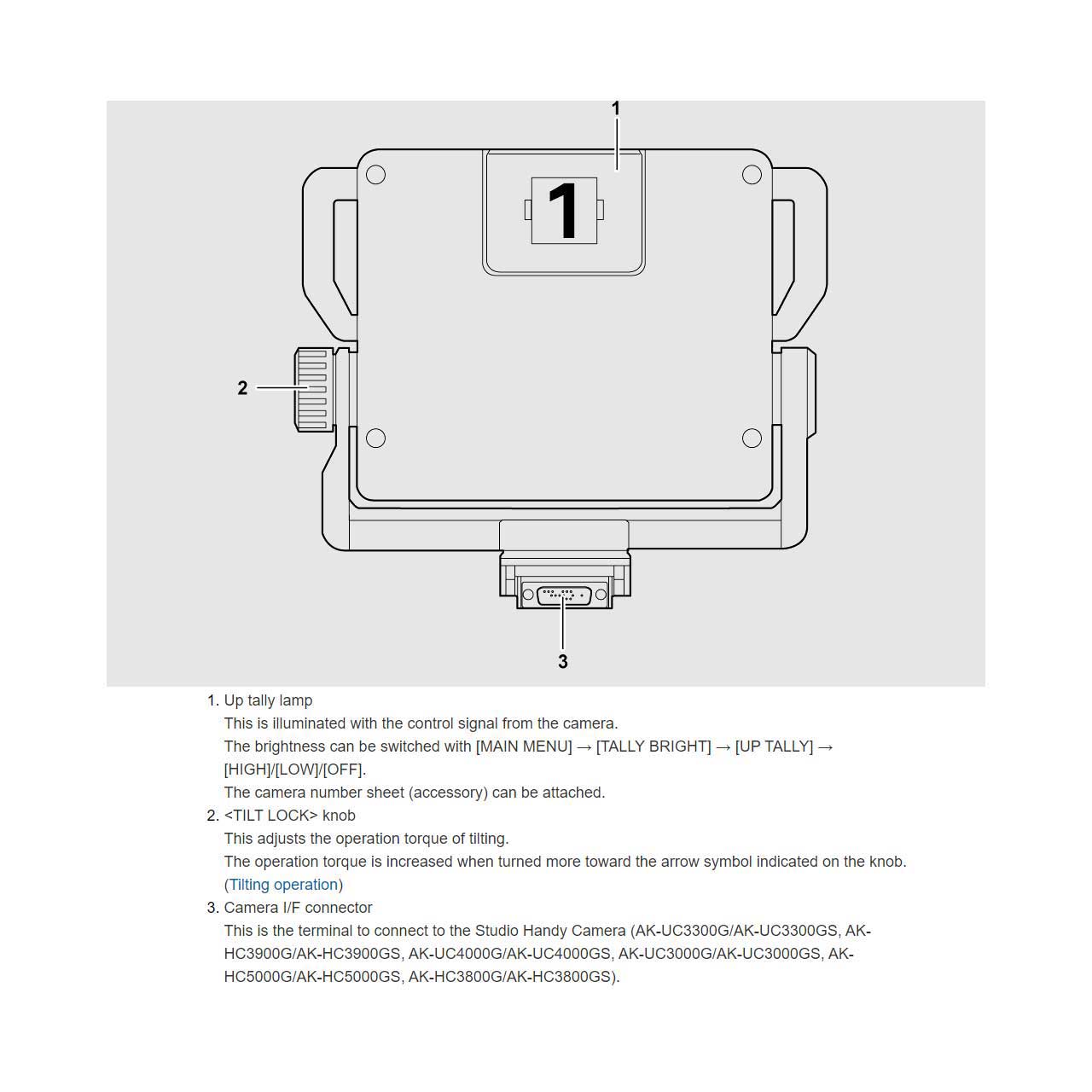

  • Connector: Camera I/F connector (D-sub 29 pins x 1)
  • CAM: 1080/59.94i, 1080/50i


• Item Includes:

  • 1x Panasonic AK-HVF75GJ 7-Inch 1280 x 800 (WXGA) Studio LCD Viewfinder for AK-HC3900 / AK-UC3000 / AK-HC5000 & AK-UC4000
  • 1x Hood
  • 1x Camera number sheet (1 to 12)


• Warranty:

  • One Year Limited
