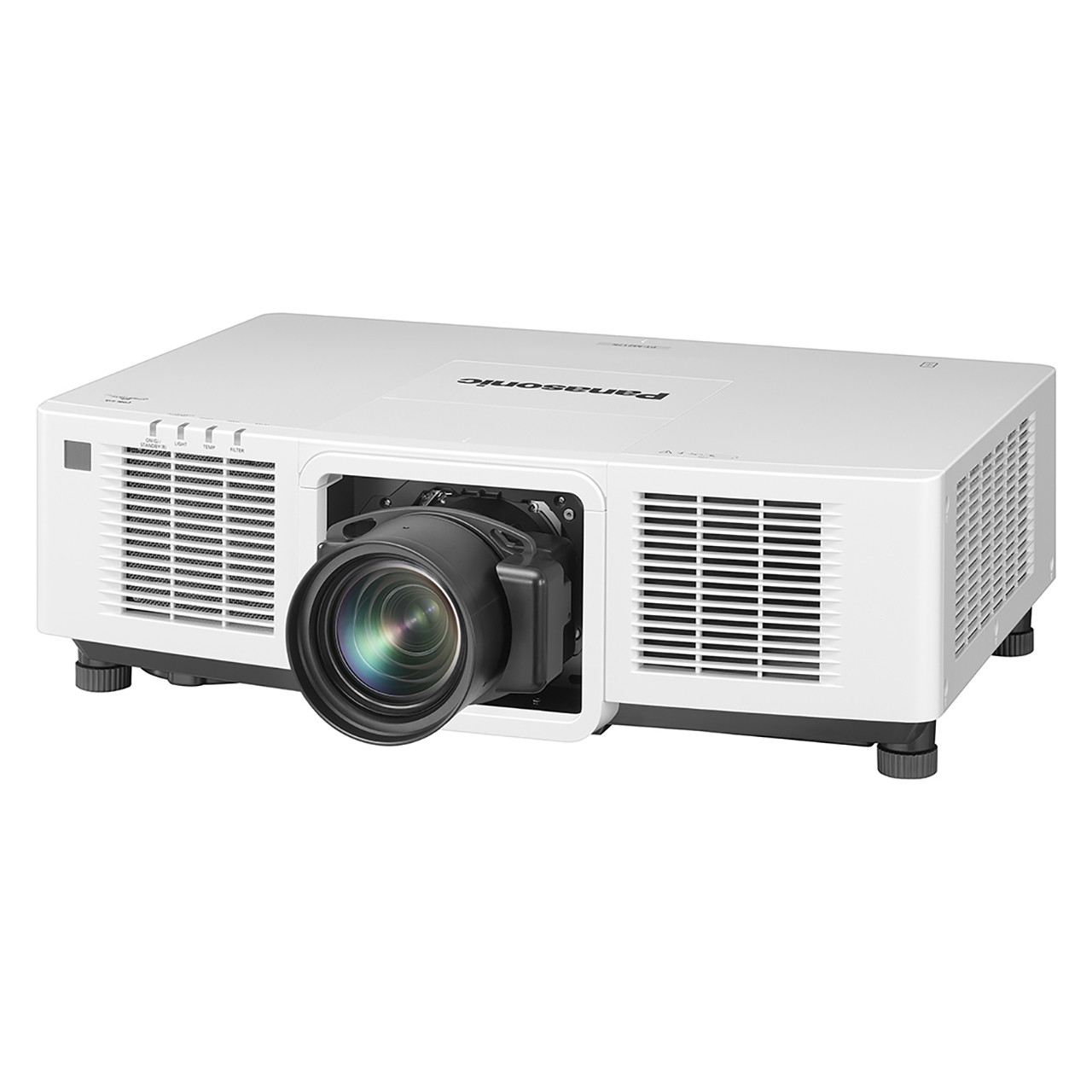

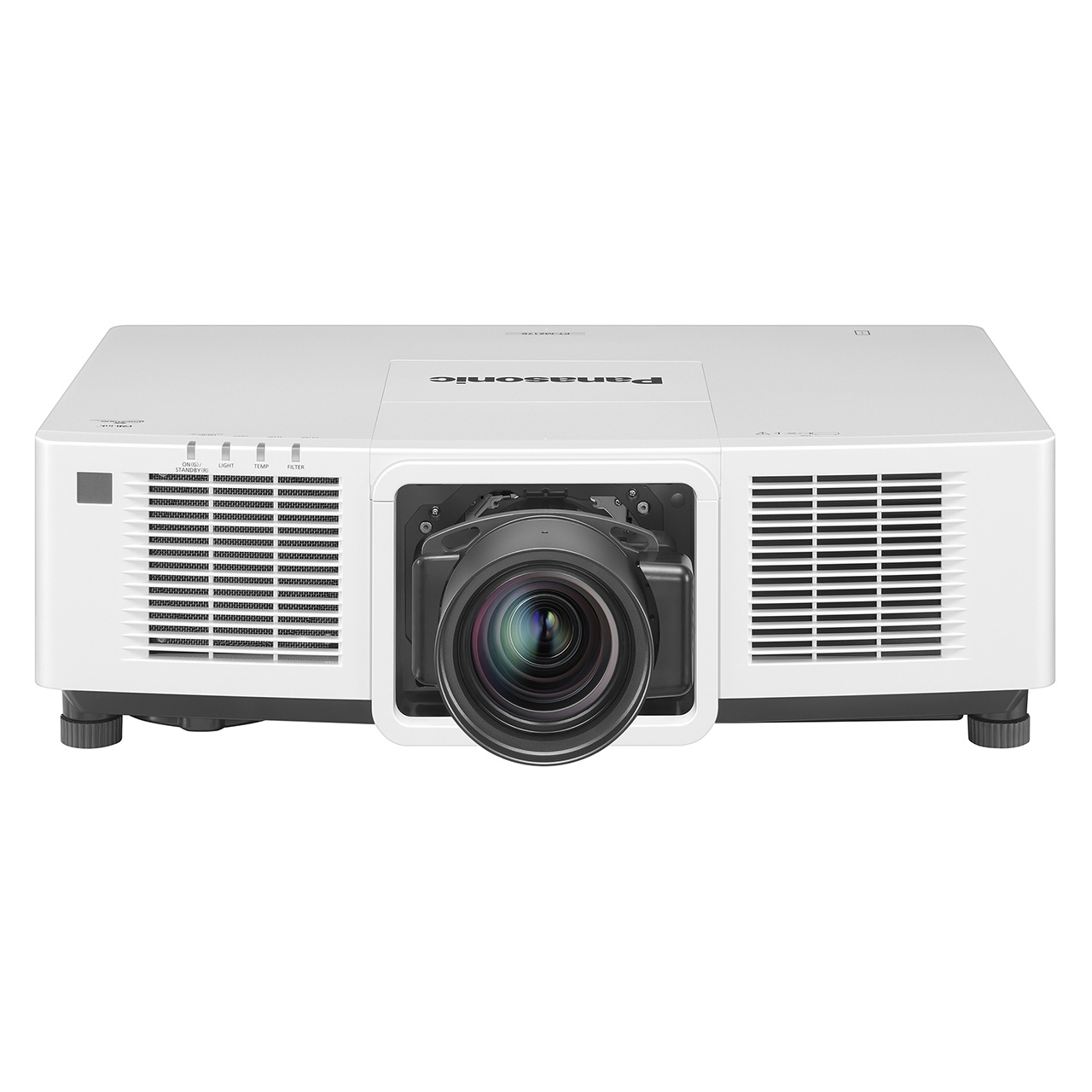

Panasonic PT-MZ20KLWU7 20000-Lumen WUXGA Laser DLP Projector without Lens - White

PT-MZ20KLWU7 - Overview

• Specifications:

  Main Unit
  Display
  • Projector Type: LCD projectors
  • Display Method: 3x Transparent LCD panel (R/G/B)
  • Display Device:
    - Panel Size: 1" (25.4mm) diagonal (16:10 aspect ratio)
    - Drive Method: Active matrix method
    - Number of Pixels: 2,304,000 (1920 x 1200 pixels)
  • Light Source: Laser diode
  • Light Output (ANSI): 20,000lm
  • Time Until Light Output Declines to 50%:
    - Normal Mode: 20,000 hours
    - Quiet Mode: 20,000 hours
  • Resolution: WUXGA (1920x1200)
  • Contrast Ratio:
    - When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] set to [3]: 3,000,000:1 (Full On/Full Off)
  • Screen Size (diagonal):
    - 80" - 600" (2030mm - 15.240mm)
    - 100" - 400" (2540mm - 10160mm) with ET-EMU100
    - 80" - 500" (2030mm - 12700mm) with ET-EMT800
    - 16:10 aspect ratio
  • Center-to-Corner Zone Ratio: 85%
  • Lens: No lens included with this model
  • Lens Shift:
    - Vertical (from center of screen): ±60% (+50%, -20% with ET-EMU100, ±40% with ET-EMW200, ±50% with ET-EMW300)(powered)
    - Horizontal (from center of screen): ±20% (±19% with ET-EMW200)(powered)
  • Keystone correction range:
    - Vertical: ±45° (±5° with ET-EMU100, ±14° with ET-EMW200/ET-EMW300, ±22° with ETEMW400/ET-EMW500)
    - Horizontal: ±40° (±0° with ET-EMU100, ±8° with ET-EMW200/ET-EMW300, ±15° with ETEMW400/ET-EMW500)
    - When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55°.

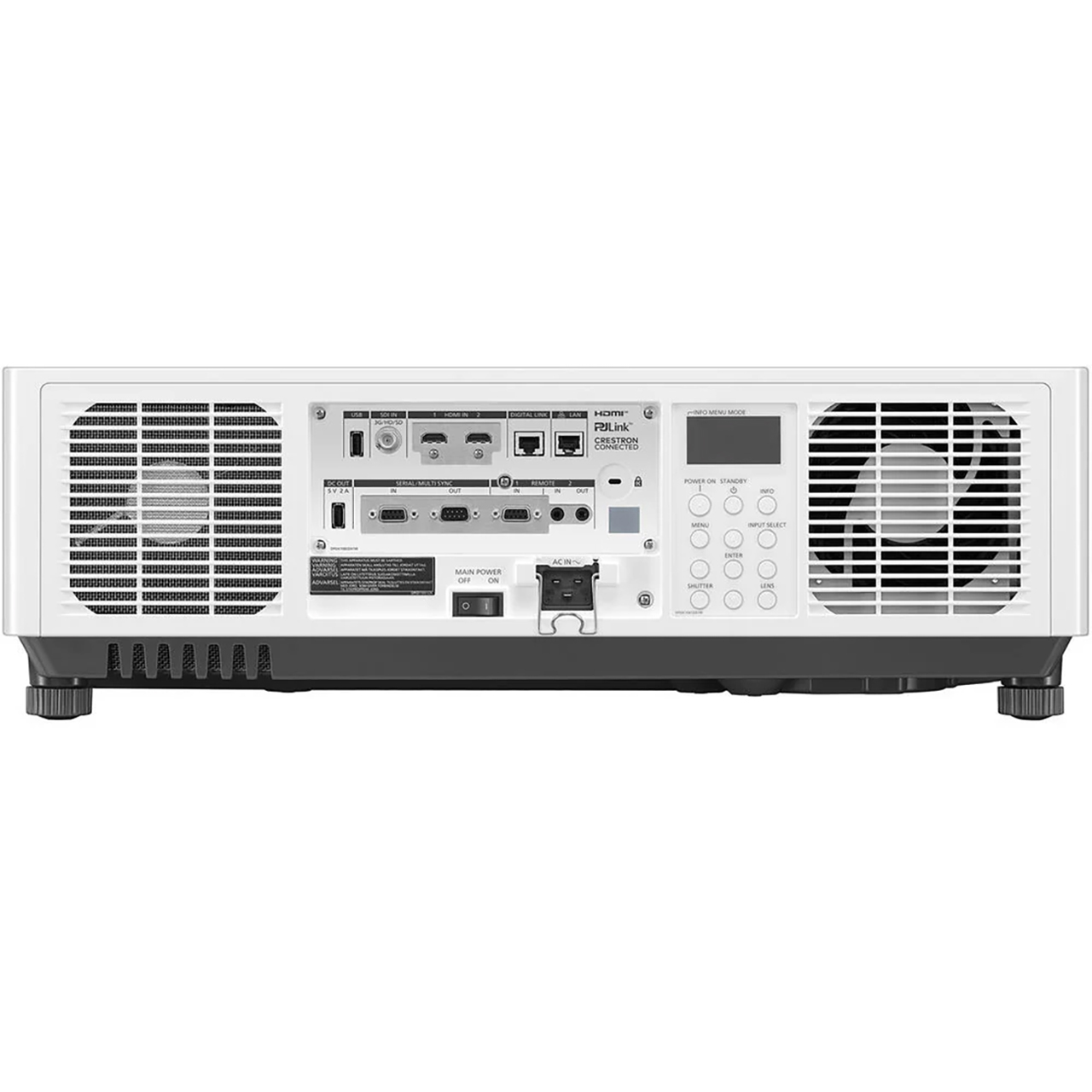

    Input/Output
  • Input:
    - 1x BNC - (3G/HD-SDI)
    - 2x HDMI 19-pin (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported
    - 1x SERIAL/MULTIPROJECTOR SYNC IN D-sub 9-pin (female), for external control (RS-232C compliant)
    - 1x 9-pin D-sub (female), for external control (parallel)
    - 1x M3, for wired remote control
    - 1x LAN RJ-45, for network and digital link connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input)
    - 1x USB-A connector, for optional AJ-WM50 Series Wireless Module, for USB memory
    - 1x LAN RJ-45, for network connection, 10Base-T, 100Base-TX (Compatible with PJLink [Class 2], Art-Net)
  • Output:
    - 1x 9-pin D-sub (male), for link control (RS-232C compliant)
    - 1x M3, for link control (for wired remote control)
    - 1x 5V/2A USB-A connector, for power supply

    Power
  • Power Supply: AC 100V - 240V, 50/60Hz
  • Maximum Power Consumption: 950 W (9.6A - 4.0A)(960VA)
  • Operating Modes:
    - On-Mode Power Consumption (Normal): 880W (AC 100V - 120V), 850W (AC 200V - 240V)
    - On-Mode Power Consumption (Quiet): 580W (AC 100V - 120V), 560W (AC 200V - 240V)

    Physical
  • Approx. Dimensions (WxHxD):
    - Excluding Feet and Protrusions: 25.59" x 7.28" x 17.31" (650mm x 185mm x 440mm)
    - Excluding Protrusions, with Feet at Shortest Position: 25.59" x 8.31" x 17 5.31" (650mm x 211mm x 440mm)
  • Approx. Weight: 49.6lbs (22.5kg)
  • Operation Noise:
    - Normal: 38dB
    - Quiet: 32dB
  • Operating Environment:
    - Operating Temperature: 32°F - 113°F (0°C - 45°C)
    - Operating Humidity (No condensation): 10% - 80%
  • Estimated Filter Maintenance Cycle: approx. 20,000 hours
  • Cabinet Materials: Molded plastic
  • Color: White


  • Applicable Software:
    - Logo Transfer Software
    - Multi Monitoring & Control Software
    - Early Warning Software
    - Geometry Manager Pro
    - Projector Network Setup Software
    - Smart Projector Control for iOS/Android

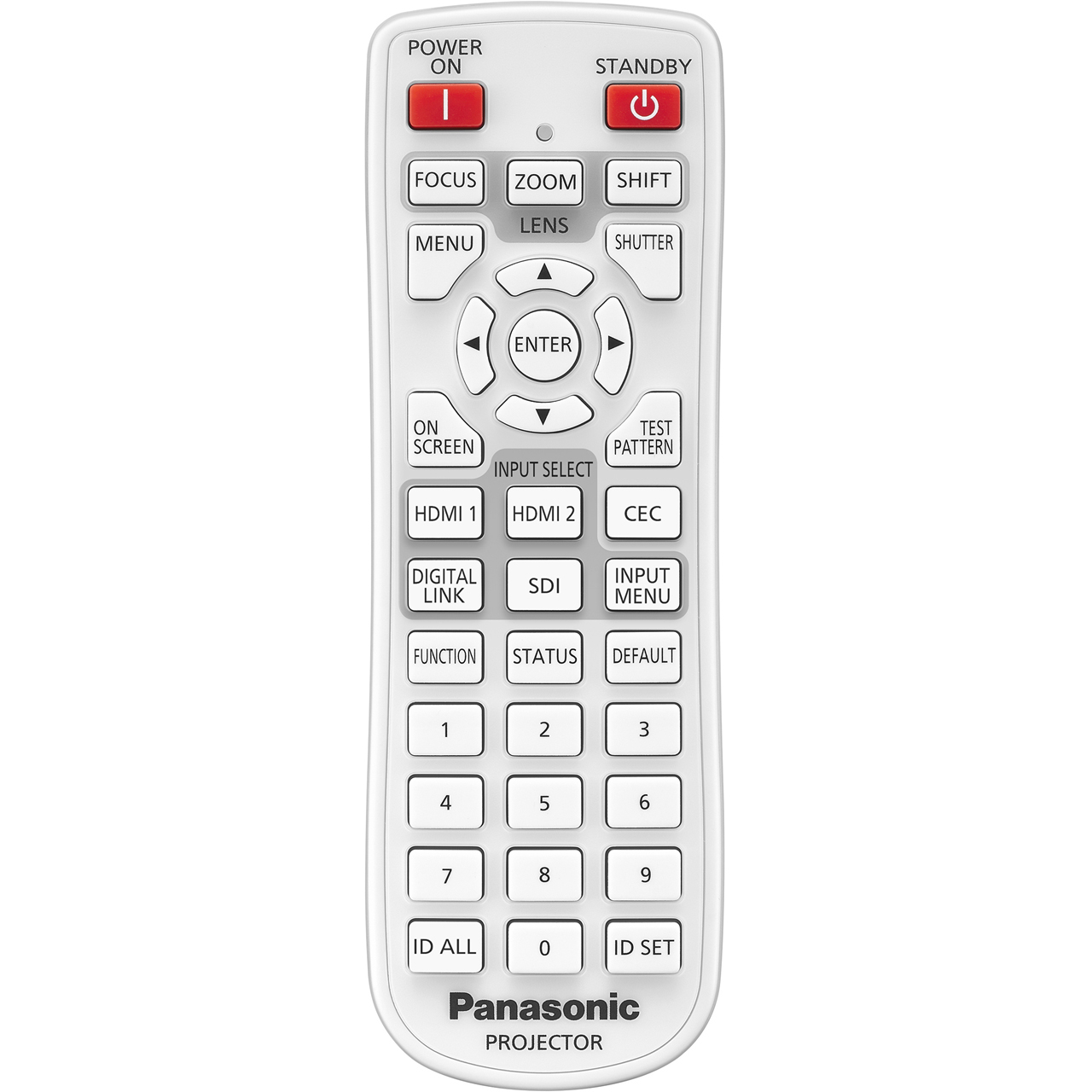

    Remote Control
  • Power Requirements: DC 3V (2x AAA/R03/LR03 battery)
  • Operating Range (when operated direct in front of signal reciever): With approx. 98'5" (30m)
  • Weight (including batteries): 0.2lbs (0.102kg)
  • Outside Dimensions (WxHxD): 1.875" x 5.72" x 1.06" (48mm x 145mm x 27mm)


• Item Includes:

  • 1x PT-MZ20KLWU7 Projector
  • 1x Remote control unit
  • 1x Power cord
  • 2x AAA Batteries
  • 1x Lens fixing screw


• Warranty:

  • 3 Year Limited Warranty
