Panasonic TY-SB01QS-12G 12G-SDI Terminal Board for Intel SDM Slot

ITEM #: PAN-TY-SB01QS12G MFG #: TY-SB01QS-12G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Panasonic
Free Shipping with $49 Minimum Order

List Price:

$2,266.46

Our Price:

$1,347.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

TY-SB01QS-12G - Overview

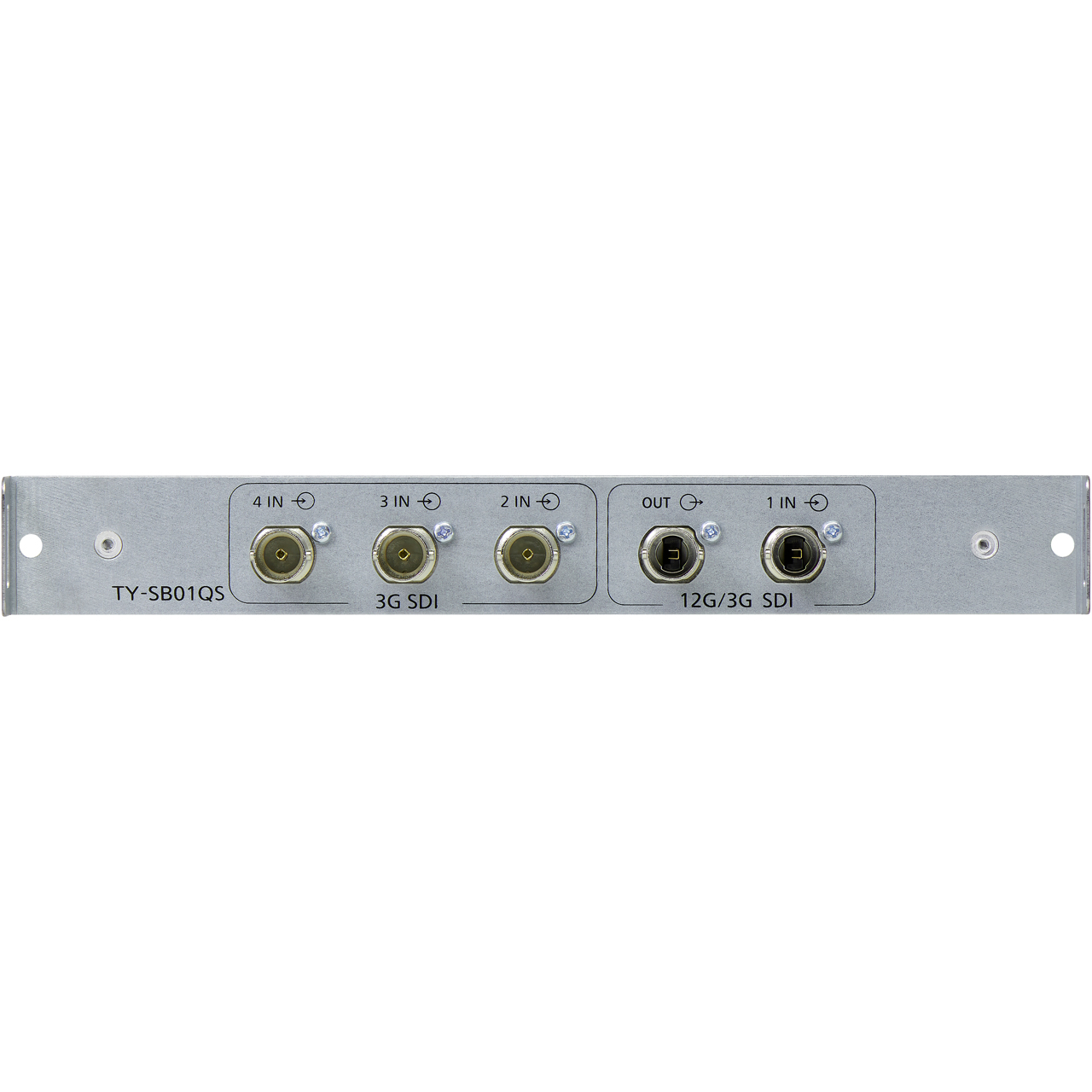

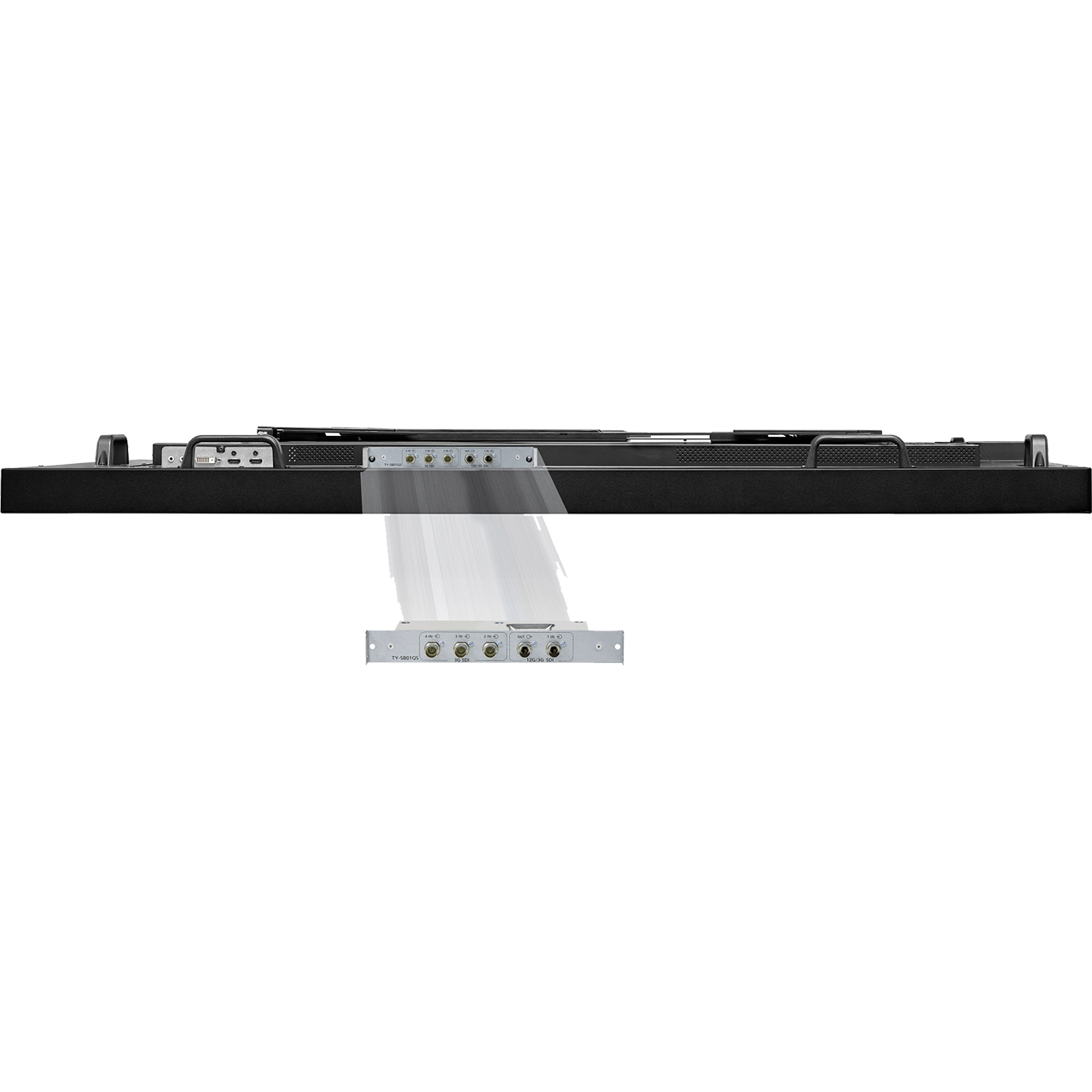

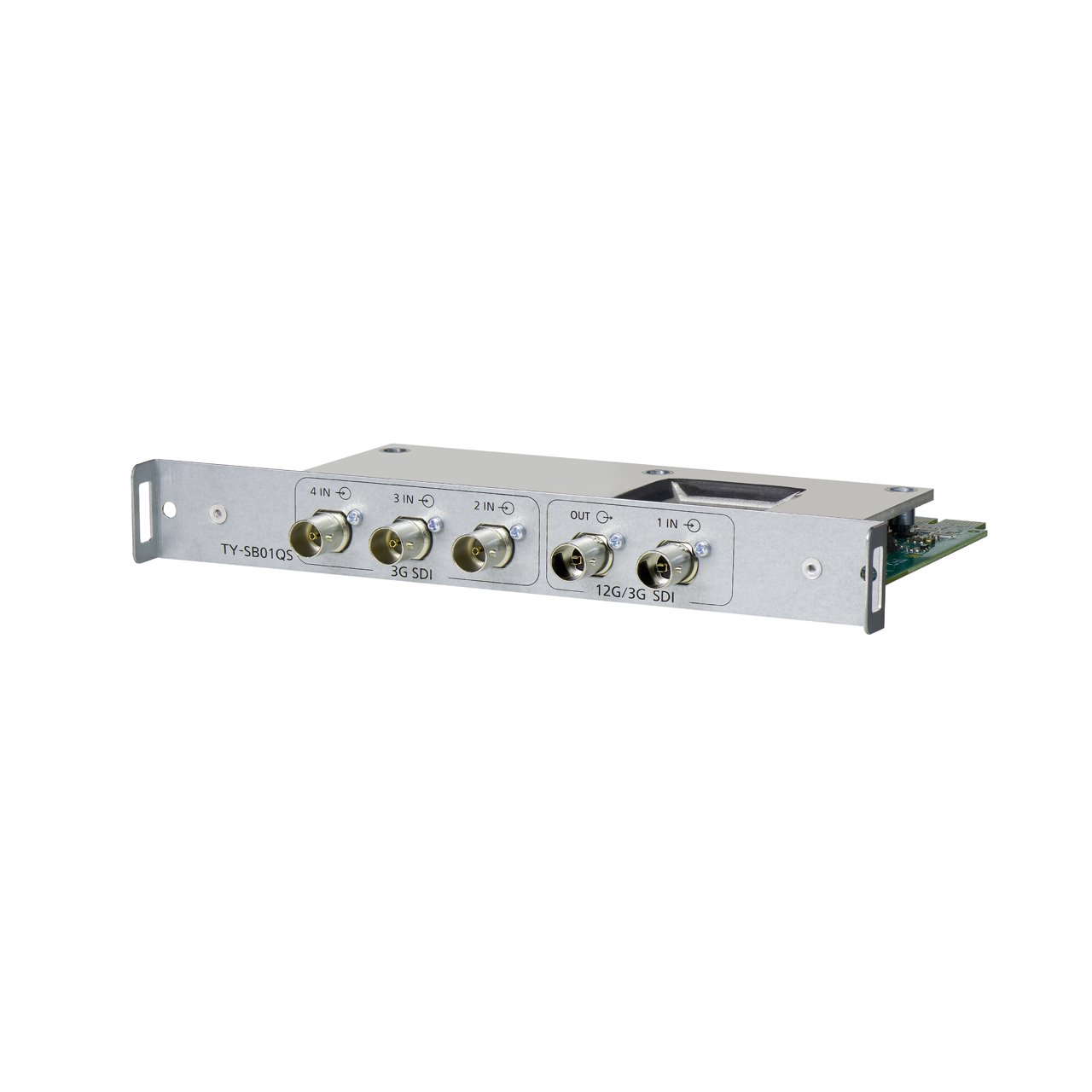

This Panasonic TY-SB01QS-12G is a 12G-SDI terminal board for use with Panasonic displays with an Intel SDM Slot. There is no need for wiring such as power cables and video cables, allowing for a neat layout with just the display.

What is Intel SDM?
4K compatible next-generation slot standard provided by Intel "Intelr Smart Display Module (Intel SDM)".
There are two standards, Intel SDM Small (Intel SDM-S) and Intel SDM Large (Intel SDM-L), and their supported models are compatible with both types.

  • Features:

    • No external signage player or signal conversion device is required
    • There is no need for wiring such as power cables and video cables, allowing for a neat layout with just the display
    • System flexibility: Different functions can be added by replacing the function board depending on the application
    • HDMI transmissions from function boards made by other companies can be used


  • Specifications:

    • Type: SG-SDI input signal board
    • Terminals:
      - 1x 12G/3D SDI input
      - 1x 12/3G SDI output
      - 3x 3G SDI inputs (only for Quad Link connection)
    • SLOT Compatibility: Intel® SMD slot specification
    • Compatible Devices: TL-137AD15AW, TL-165AD19AW, TL-110AD12AW, PT-RQ7L, PT-REZ15, PT-REQ15, PT-REZ80, PT-REZ10, PT-REZ12, PT-REQ80, PT-REQ12, PT-REQ10, PT-RQ25K, PT-RZ24K, PT-RQ18K, PT-RZ17K

      Compatible Video Format
    • Video 12G-SDI:
      - 3840/60p,50p,30p,25p,24p
      - 4096/60p,50p,30p,25p,24p
    • Video 3G-SDI:
      - 1080/60p, 50p, 30p, 25p, 24p, 60i, 50i
      - 2048/60p,50p,30p,25p,24p
    • Video HD-SDI: 1080/30p, 25p, 24p, 60i, 50i

      Compatible Audio Format
    • Audio 12G-SDI: 48KHz, 20/24bit, 16CH, Synchronized video
    • Audio 3G-SDI: 48KHz, 20/24bit, 16CH, Synchronized video
    • Audio HD-SDI: 48KHz, 20/24bit, 8CH, Synchronized video

    • Weight: 0.7lbs (300g)
    • Dimensions (WxHxD): 7.69" x 0.99" x 4.90" (195mm x 25mm x 125mm)


  • Item Includes:

    • 1x Panasonic TY-SB01QS-12G terminal board
