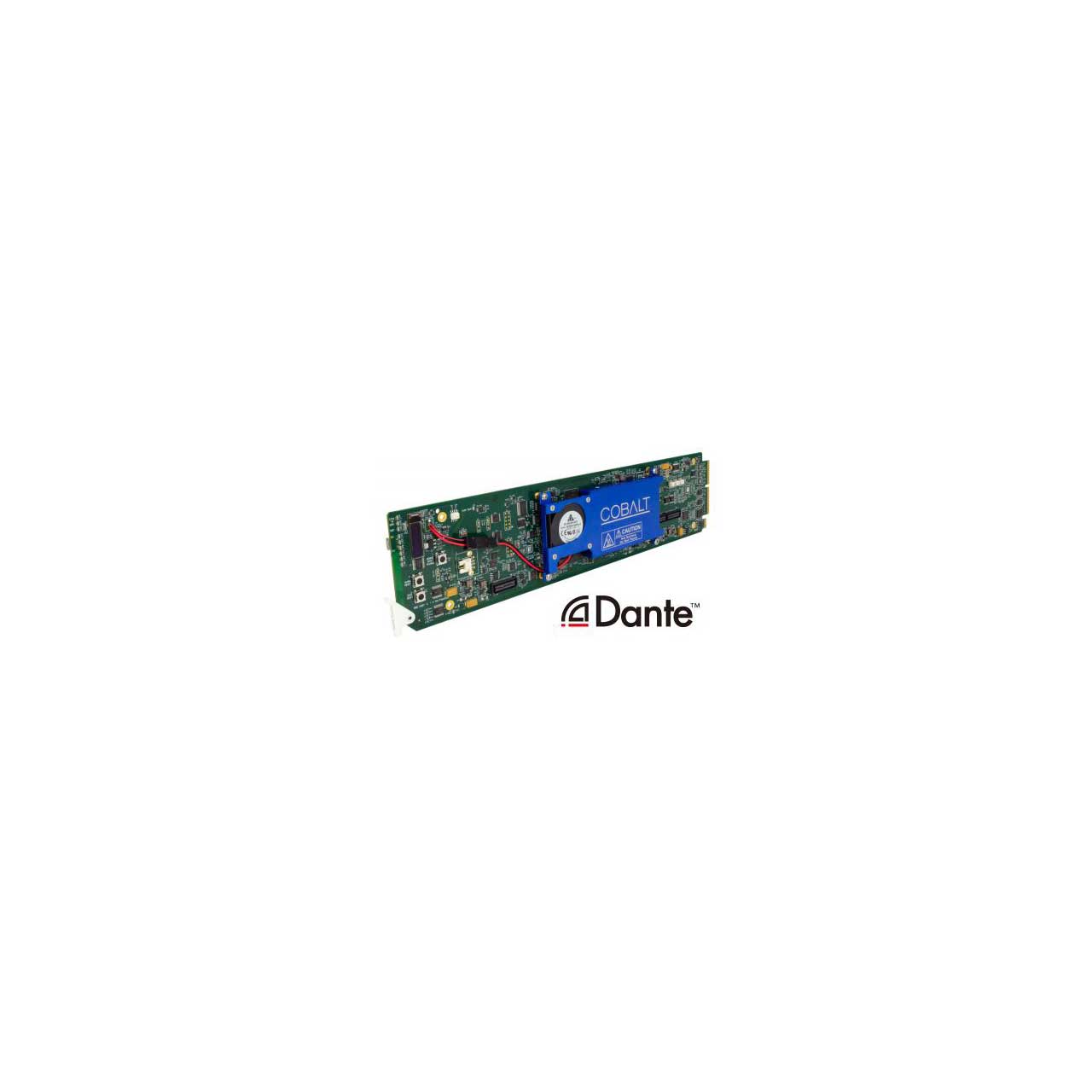

Cobalt 9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter Advanced Scaler/Frame Synchronizer for the openGear Platform

ITEM #: CB-9905-MPX MFG #: 9905-MPX

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$8,995.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    9905-MPX - Overview

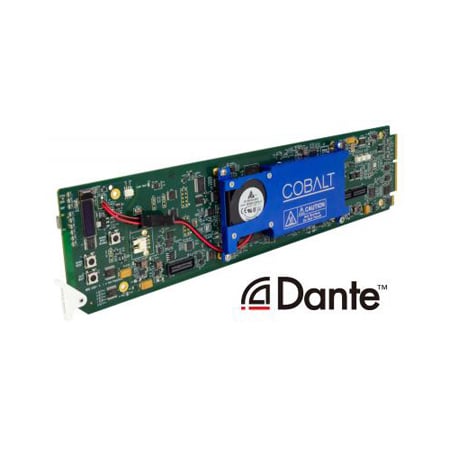

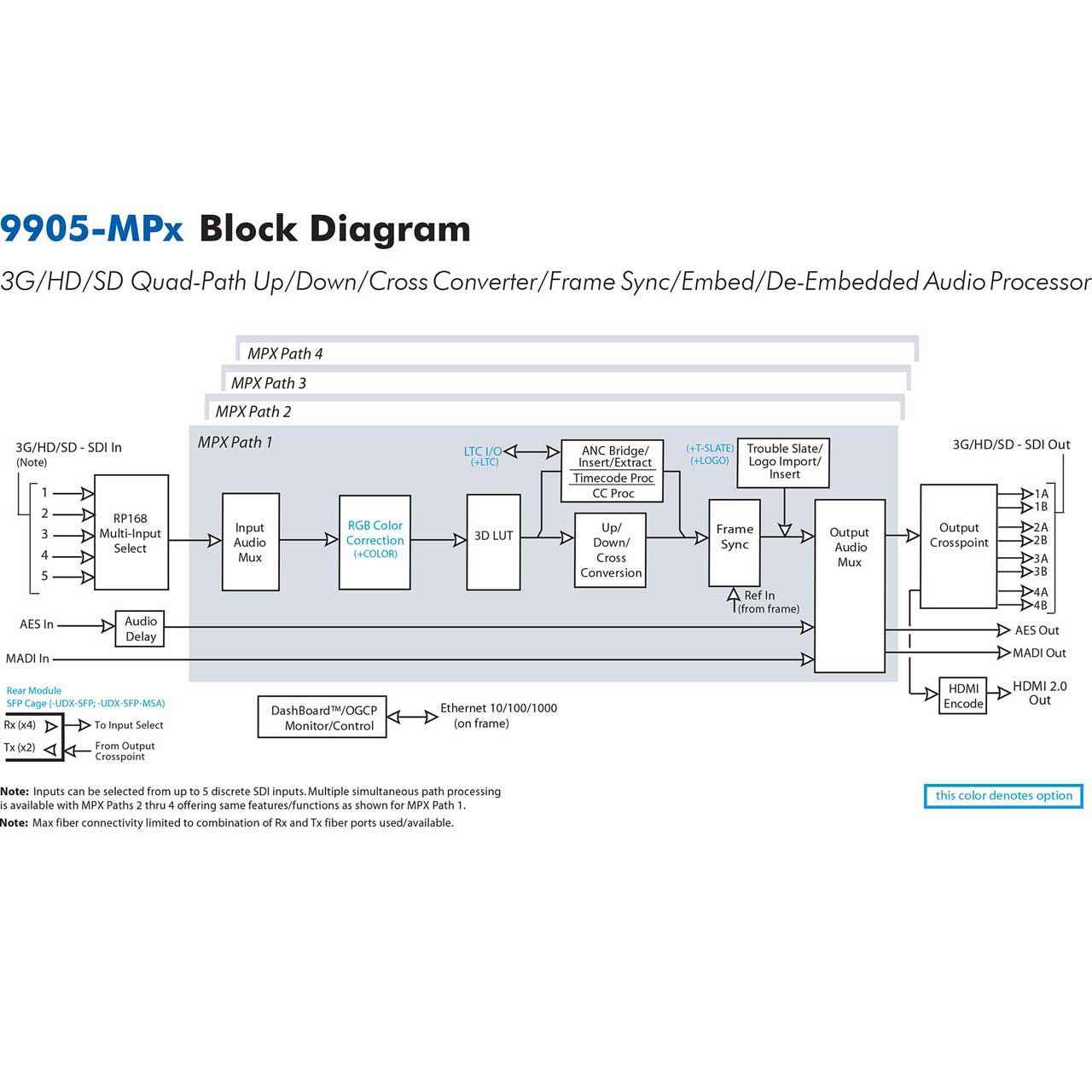

    The Cobalt Digital Multi-Path 9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor is a Cobaltr next-generation advanced scaler/frame synchronizer for the openGearr platform. The 9905-MPx provides four independent signal paths of UDX / frame sync / audio embedding and de-embedding on a single open-Gearr card. Using our HPF-9000 20-slot frame, this provides up to 24 channels (6 cards) of processing in a single frame. The 9905-MPx represents a new level of openGear packaging density!

    The 9905-MPx provides high-density that offers unprecedented multi-input support and flexibility. Independent up/down/cross convert scalers are specifically designed for broadcast video formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. Discrete AES and MADI audio audio embedding/routing/mixing/de-embedding to any of four processing paths is supported. Standard 3D LUT feature and available color correction provide accommodation of SDR and HDR processing for downstream HDR systems.

    Card control/monitoring is available via DashBoard user interface or Cobalt's RESTful-based Reflex protocol. The 9905-MPx can be software-converted to a 4K Quad-Link Input SDM/2SI 4K UDX/Frame Sync card with an option software license.

    • Features:

      • Multi-Path design offers four independent UDX / frame sync paths (channels) per card
      • Flexible AES and MADI embed/de-embed for each path
      • Multi-input RP168 clean switch, with manual selection or GPI controlled input selection. Path inputs can also be sourced from alternate path outputs with no external patching.
      • Up/Down/Cross Conversion with user ARC control. 3D-LUT is standard feature for all paths.
      • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
      • Independent four-path ANC bridging, including timecode and closed-captioning processing
      • Noise Reduction and Detail Enhancement provide image quality optimization
      • Remote control/monitoring via DashboardT software, OGCP-9000 remote control panels or Cobalt's RESTful-based Reflex protocol

    • Specifications:

      • 3G/HD/SD-SDI Input/Outputs:
      • (4) 75Ω inputs (max); (4) inputs can be simultaneously routed to the four UDX/FS paths.
      • (2x4) 75Ω outputs (max)
      • SDI Formats Supported: SMPTE 424M, 292M, SMPTE 259M
      • Return Loss: > 15 dB up to 1.485 GHz, > 10 dB up to 3 GHz
      • Input Cable Length:
        120m Belden 1694A cable at 2.97 Gbps
        240m Belden 1694A cable at 1.485 Gbps
        400m Belden 1694A cable at 270 Mbps
      • Output Signal Level: 800 mV +/-10%
      • DC Offset: 0 V +/- 50 mV
      • Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI

        Frame Sync Audio/VIdeo Delay
      • Max offset: 20 frames
      • Latency (min): 1 frame

        User Audio Delay Offset from Video
      • Bulk delay control: -33 msec to +3000 msec.
      • Per-channel delay controls: -800 msec to +800 msec

        AES Audio Inputs/Outputs
      • (8) AES-3id 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.

        MADI Audio Inputs/Outputs
      • (2) 75Ω coaxial ports (max)
      • Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module Used. See Rear Module illustrations for specific information.

        HDMI Output
      • HDMI 2.0 Output; type A standard connector

        GPIO
      • 6 GPI (max); 2 GPO (max)
      • Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.

        Frame Reference Input
      • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"

    • Warranty:

      • 5 Year Warranty
