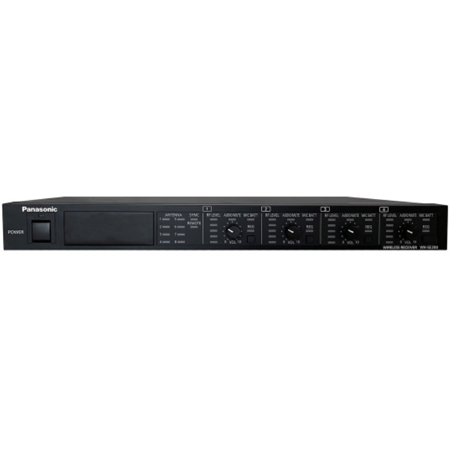

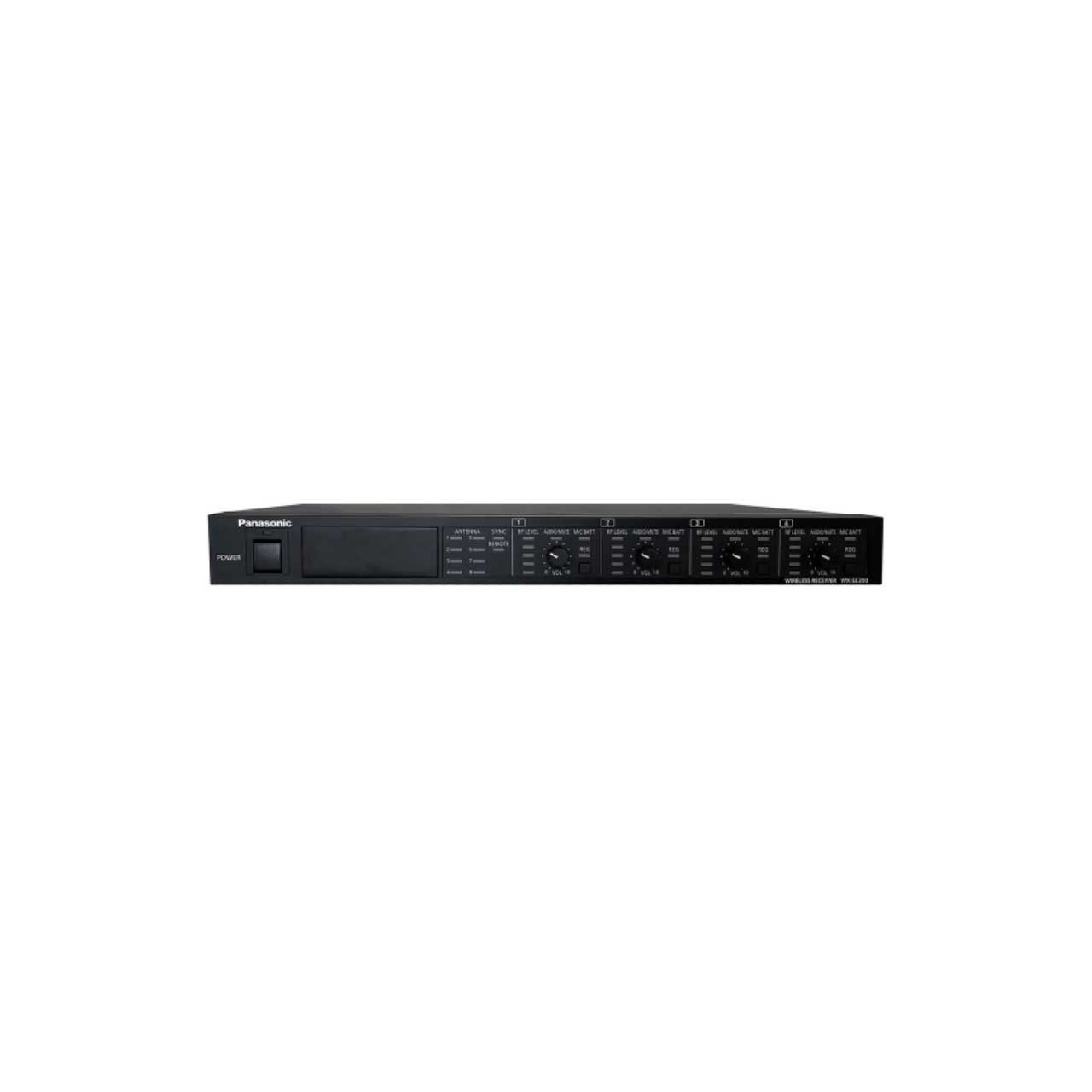

Panasonic WX-SE200 Analog Expansion Receiver for WX-SR204 - up to 4 additional Wireless Mic Channels

ITEM #: PAN-WX-SE200 MFG #: WX-SE200

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,014.69

Our Price:

$963.95

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    WX-SE200 - Overview

    Designed to be used with Panasonic's WX-SR204 4-channel wireless receiver, the WX-SE200 expansion receiver allows you to add up to 4 additional wireless microphone channels an existing Panasonic 4-channel system without the need to add an additional antenna to the system*.

    Choose between Panasonic's WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks) for microphone options. Perfect for classrooms, conference rooms, auditoriums, museums, or even bars/ restaurants, the WX-SE200 features a RJ45 (CAT5 / CAT5e / CAT6) connection to the Panasonic WX-SR204 4-channel wireless receiver, and secure Euroblock connectors for independent channel outputs, external audio input and a mix output. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Ships with rack ears for easy rack mount installation.*Depends on room side and desired coverage.

    • Features:

      • Add up to 4 additional wireless mic channels to an existing 4-channel system (WX-SR204 required) without the need to install additional antennas. *
      • Supports external audio input and mixing with mic channels.
      • Easy to setup - no need for planning / allocation of wireless channels; Secure pairing with Panasonic microphones
      • Rack mountable (1u high, rack ears included)

    • Specifications:

      • Weight: 6.17 lbs.
      • Power consumption: AC 120 V 60 Hz / 39 Watts
      • Display Information: Power, Sync, Main, Remote, RF Level (5-level display), Audio level / mute, Mic battery, Register
      • Dimensions (W x H x D) (inch): 16-17/32 x 1-47/64 x 9-27/32
      • Channel Output Circuits: 4
      • Channel Output Connectors: EuroBlock
      • Channel Output Characteristics: -10dBV balanced 600 Ohms
      • Channel Output Signal to Noise Ratio: 70 dB or greater
      • Channel Output Distortion: Less than 3%
      • Audio Input Characteristics: -10 dBV balanced 600 Ohms
      • Audio Input Frequency Response: 50 Hz to 15 kHz
      • Audio Input Distortion: Less than 3%
      • Mix Output Connectors: EuroBlock
      • Mix Output Characteristics: -10 dBV Balanced 600 Ohms
      • Mix Output Signal to Noise Ratio: 64 dB or greater
      • Mix Output Frequency Response: 50 Hz to 15 kHz
      • Mix Output Distortion: Less than 3%
      • Extension Connector: 1 x RJ45 (WX-SR204 4-channel receiver required and sold separately)

    • Item Includes:

      • 1x Rack Ears

    • Warranty:

      • 3 Years

    • GTIN:

      0885170382404


    WX-SE200 - Required Accessories
