Panasonic WX-SR204 4-Channel 1.9 GHz Digital Wireless Mic Receiver

ITEM #: PAN-WX-SR204 MFG #: WX-SR204

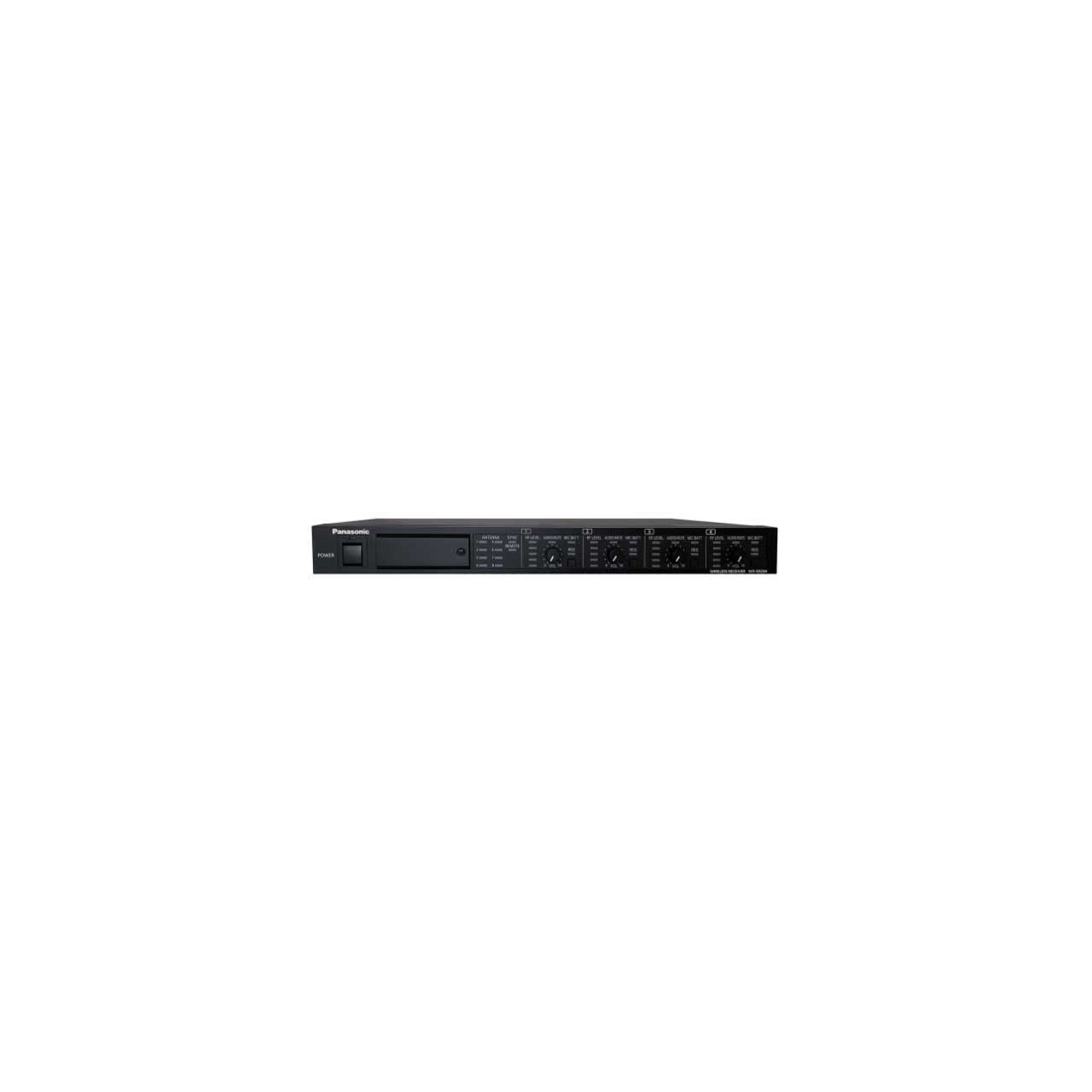

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,403.40

Our Price:

$1,333.23

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    WX-SR204 - Overview

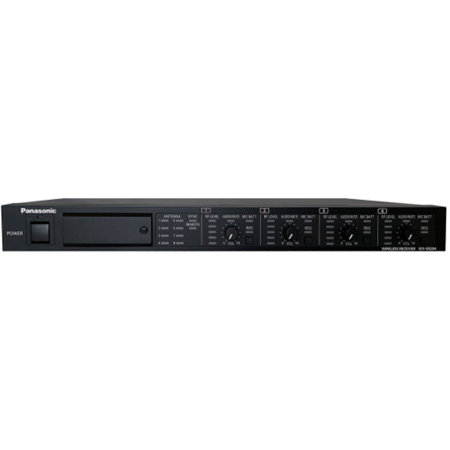

    The core of Panasonic's SR200P 1.9 GHz Digital Wireless Microphone system, the WX-SR204 digital wireless receiver supports four wireless microphone channels (choose between Panasonic's WXST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks). Perfect for classrooms, conference rooms, auditoriums, museums, or even bars/ restaurants, the WX-SR204 features RJ45 (CAT5 / CAT5e / CAT6) connections up to eight (8) external antennas (WX-SA250), an RJ45 connection for an optional expansion receiver, and an ethernet network connection for easy integration with third party control systems such as Crestron, Extron, Q-SYS and others. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Secure Euroblock connectors for independent channel outputs, external audio input and a mix output provide peace of mind that they will not detach easily in any type of installation. Ships with rack ears for easy rack mount installation.

    • Features:

      • Easy to setup four channel digital wireless mic receiver with no need for planning / allocation of channels, plus secure pairing with Panasonic microphones
      • Supports nearly any room size, up to 8 antennas can be connected,external audio input and mixing with mix channels
      • Ethernet networking enables additional confirmation from Panasonic settings support software and easy integration with 3rd party control systems (Crestron, Extron & Q-SYS modules available).
      • Connection for optional Expansion Receiver (sold separately)
      • Rack mountable (1RU high, rack ears included)

    • Specifications:

      • Weight: 6.17 lbs
      • Dimensions (W x H x D): 16-17/32" x 1-47/64" x 9-27/32"
      • Power consumption: AC 120 V 60 Hz / 39 Watts
      • Operating Ambient Temperature: 32 deg. F to 113 deg. F
      • Channel Output Circuits: 4
      • Channel Output Connectors: EuroBlock
      • Channel Output Characteristics: -10dBV balanced 600 Ohms
      • Channel Output Signal to Noise Ratio: 70 dB or greater
      • Channel Output Frequency Response: 50 Hz to 15 kHz
      • Audio Input Distortion: Less than 3%
      • Mix Output Connectors: Euroblock
      • Mix Output Characteristics: -10 dBV Balanced 600 Ohms
      • Mix Output Signal to Noise Ratio: 64 dB or greater
      • Mix Output Frequency Response: 50 Hz to 15 kHz
      • Mix Output Distortion: Less than 3%
      • Antenna Connectors: 8 x RJ45 (compatible cables: CAT5 / CAT5e / CAT6 straight), wiring distance up to 656 feet

    • Item Includes:

      • 1x 1RU high, rack ears

    • Warranty:

      • 3 Years

    • GTIN:

      0885170382398
