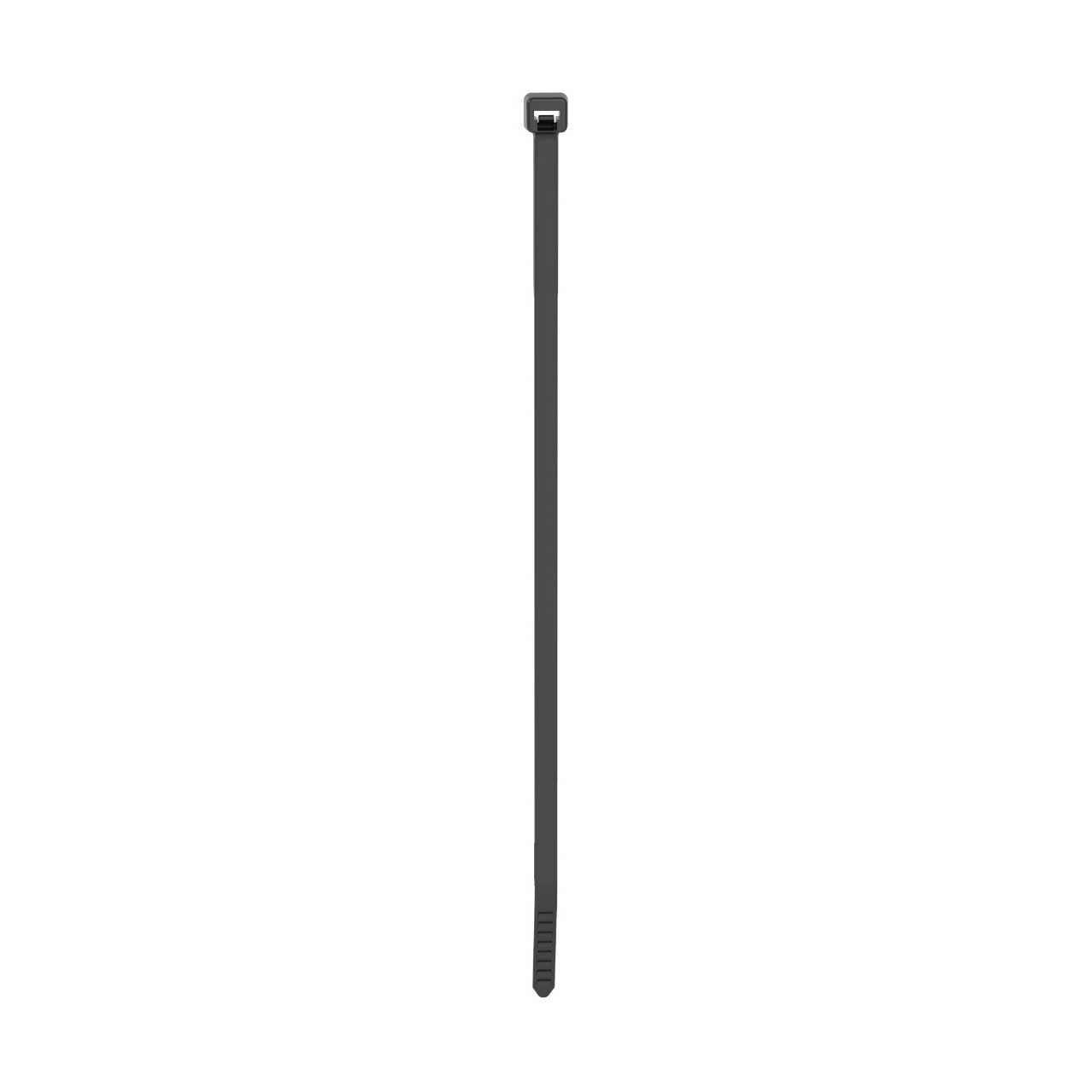

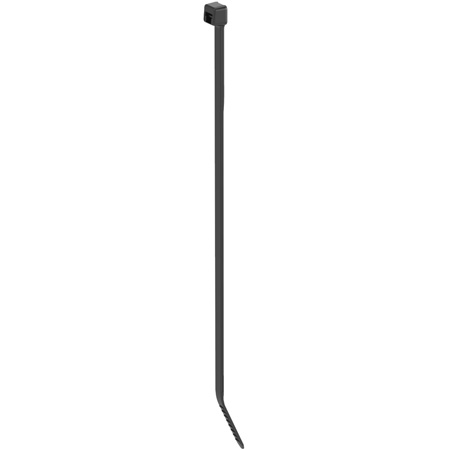

Panduit PLT1.5I-M100 5.6 Inch Weather Resistant Polypropylene Cable Tie - Black - 1000 Pack

ITEM #: PAND-PLT15I-M100 MFG #: PADPLT1.5IM100

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PAND-PLT15I-M100

PADPLT1.5IM100 - Overview

Panduit PLT1.5I-M100 Locking Cable Ties are designed to satisfy the needs of chemical resistance applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 5.6" (142mm) length. Made of Weather Resistant Polypropylene with high resistance to ultraviolet light, are black in color and come in packages of 1000.

  • Features:

    • One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.


  • Specifications:

    • Product Type: Cable Ties
    • Color: Black
    • Environment: Indoor/Outdoor
    • Sub Brand: Pan-Ty®
    • For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
    • Material: Weather Resistant Polypropylene
    • Resistance Properties: Chemical and UV Resistant
    • Maximum Bundle Diameter (In.): 1.38
    • Maximum Bundle Diameter (mm): 35
    • Maximum Installation Temperature (°F): 32
    • Maximum Operating Temperature (°C): 115
    • Maximum Operating Temperature (°F): 239
    • Minimum Bundle Diameter (In.): 0.06
    • Minimum Bundle Diameter (mm): 1.5
    • Minimum Installation Temperature (°C): -20
    • Minimum Installation Temperature (°F): -4
    • Minimum Loop Tensile Strength (N): 80
    • Minimum Loop Tensile Strength (lb): 18
    • Minimum Operating Temperature (°C): -60
    • Minimum Operating Temperature (°F): -76
    • Overall Length (In.): 5.6
    • Overall Length (mm): 142
    • Body Width (In.): 0.142
    • Body Width (mm): 3.6
    • Body Thickness (In.): 0.045
    • Body Thickness (mm): 1.1
    • Standards Met: RoHS Compliant


  • Item Includes:

    • 1x Panduit PLT1.5I-M100 5.6 Inch Weather Resistant Polypropylene Cable Tie - Black - 1000 Pack
