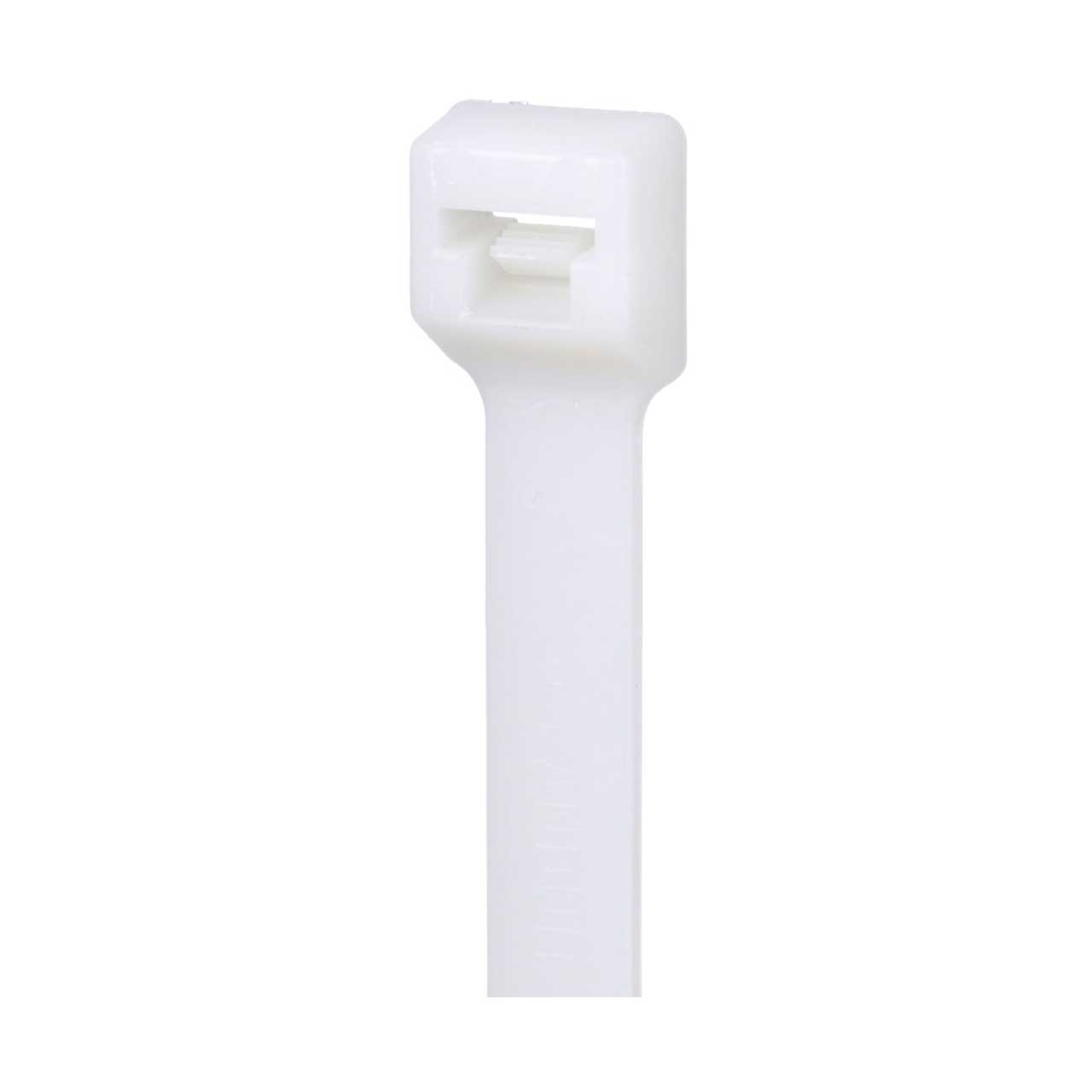

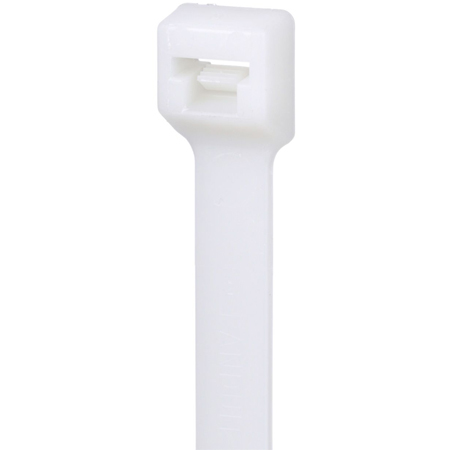

Panduit PLT3S-M Pan-Ty Nylon Locking Cable Tie - 11.5 Inch - Natural - 1000 Pack

ITEM #: PAND-PLT3S-M MFG #: PLT3S-M

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PAND-PLT3S-M

PLT3S-M - Overview

Panduit PLT3S-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 11.5" (292mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.

  • Features:

    • For indoor use
    • One-piece locking wedge for consistent performance and reliability
    • Lowest threading force of any one-piece cable tie in the industry
    • Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation


  • Specifications:

    • Color: Natural
    • Environment: Indoor
    • Sub Brand: Pan-Ty
    • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
    • Material: Nylon 6.6
    • Resistance Properties: NA
    • Maximum Bundle Diameter (In.): 3
    • Maximum Bundle Diameter (mm): 76
    • Maximum Installation Temperature (°F): 32
    • Maximum Operating Temperature (°C): 85
    • Maximum Operating Temperature (°F): 185
    • Minimum Bundle Diameter (In.): 0.06
    • Minimum Bundle Diameter (mm): 1.5
    • Minimum Installation Temperature (°C): -20
    • Minimum Installation Temperature (°F): -4
    • Minimum Loop Tensile Strength (N): 222
    • Minimum Loop Tensile Strength (lb): 50
    • Minimum Operating Temperature (°C): -60
    • Minimum Operating Temperature (°F): -76
    • Overall Length (In.): 11.5
    • Overall Length (mm): 292
    • Body Width (In.): 0.19
    • Body Width (mm): 4.8
    • Body Thickness (In.): 0.052
    • Body Thickness (mm): 1.3
    • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint
    • Military Cross Reference Number: MS3367-7-9


  • Item Includes:

    • 1x Panduit PLT3S-M Nylon Locking Cable Tie - 11.5 Inch - 1000 Pack
