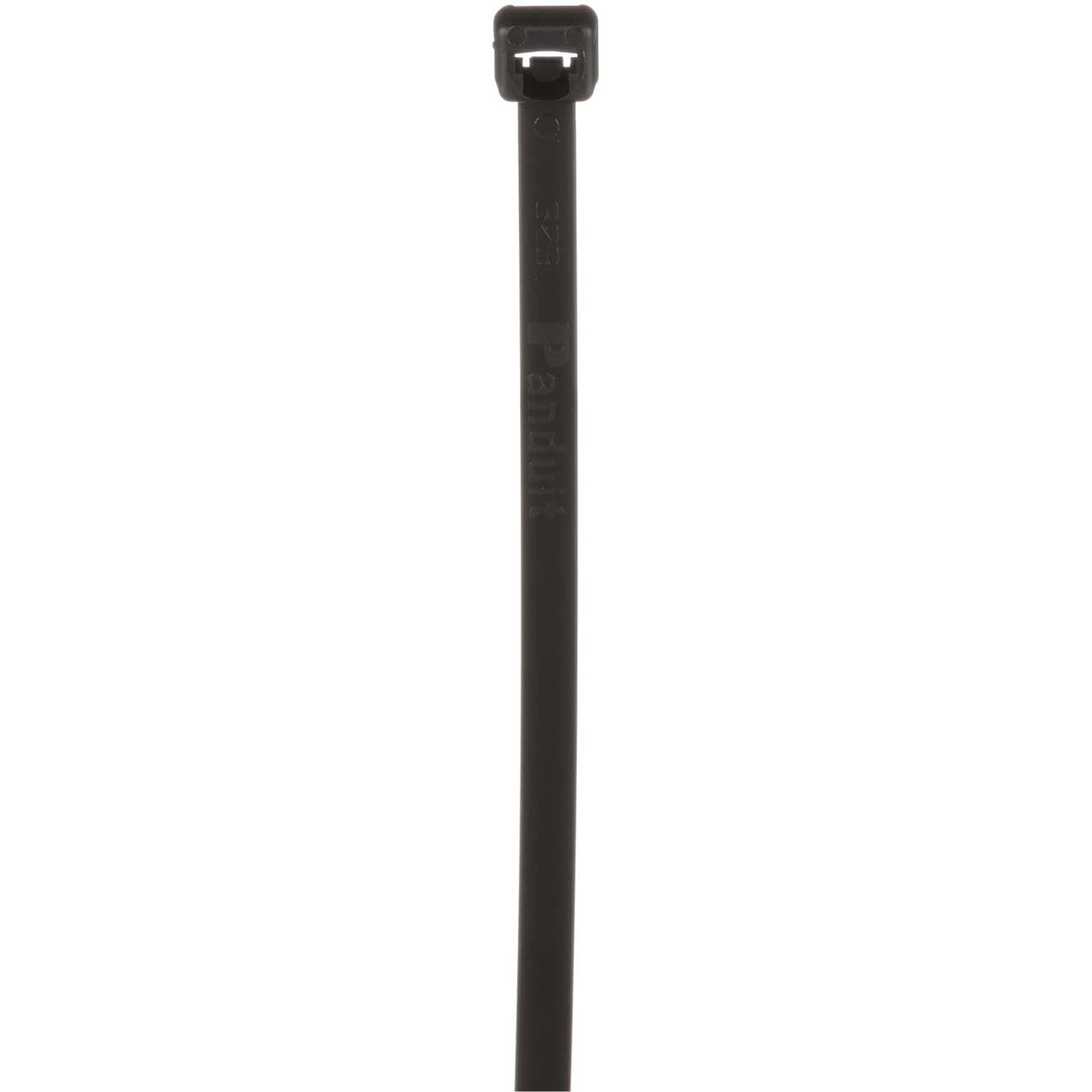

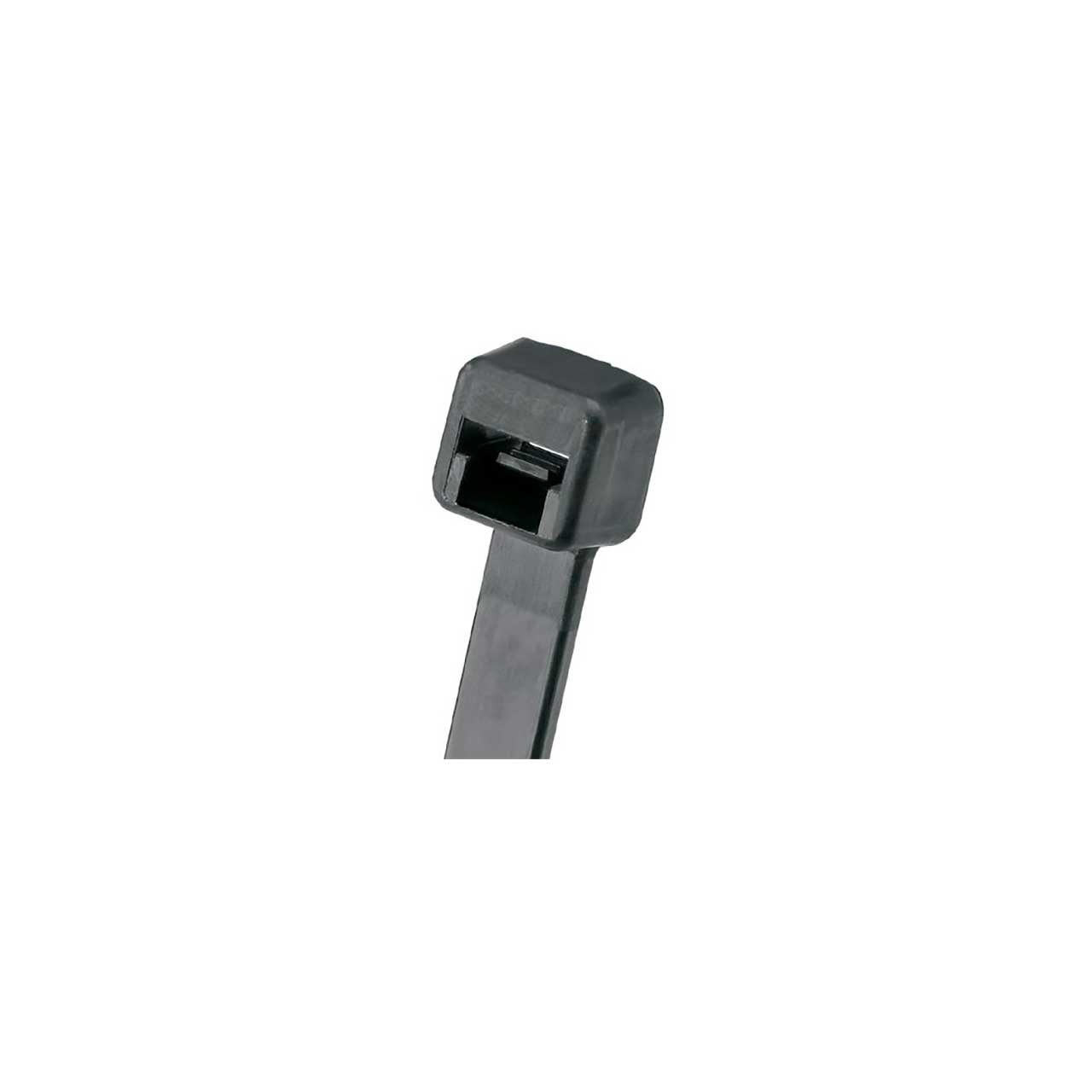

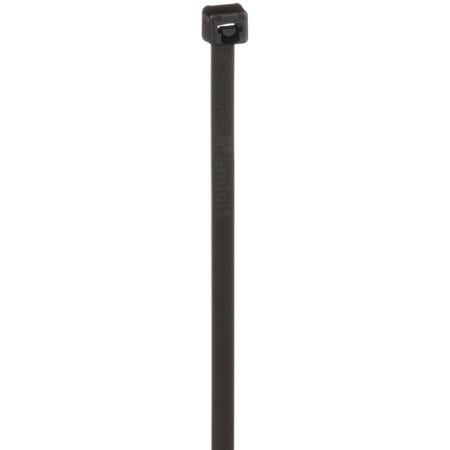

Panduit PLT3S-M100 11.5 Inch Weather Resistant Polypropylene Cable Tie - Black - 1000 Pack

ITEM #: PAND-PLT3S-M100 MFG #: PADPLT3SM100

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PAND-PLT3S-M100

PADPLT3SM100 - Overview

Panduit PLT3S-M100 Locking Cable Ties are designed to satisfy the needs of chemical and weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 11.5" (292mm) length. Made of Weather Resistant Polypropylene, are black in color and come in packages of 1000.

  • Features:

    • One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.


  • Specifications:

    • Color: Black
    • Environment: Indoor/Outdoor
    • Sub Brand: Pan-Ty
    • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
    • Material: Weather Resistant Polypropylene
    • Resistance Properties: Chemical and UV Resistant
    • Maximum Bundle Diameter (In.): 3
    • Maximum Bundle Diameter (mm): 76
    • Maximum Installation Temperature (°F): 32
    • Maximum Operating Temperature (°C): 115
    • Maximum Operating Temperature (°F): 239
    • Minimum Bundle Diameter (In.): 0.06
    • Minimum Bundle Diameter (mm): 1.5
    • Minimum Installation Temperature (°C): -20
    • Minimum Installation Temperature (°F): -4
    • Minimum Loop Tensile Strength (N): 133
    • Minimum Loop Tensile Strength (lb): 30
    • Minimum Operating Temperature (°C): -60
    • Minimum Operating Temperature (°F): -76
    • Overall Length (In.): 11.5
    • Overall Length (mm): 292
    • Body Width (In.): 0.19
    • Body Width (mm): 4.8
    • Body Thickness (In.): 0.052
    • Body Thickness (mm): 1.3
    • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint


  • Item Includes:

    • 1x Panduit PLT3S-M100 11.5 Inch Weather Resistant Polypropylene Cable Tie - Black - 1000 Pack
