Vaddio PCC MatrixMIX Live Production Controller - HDMI

ITEM #: PCC-MATRIX-MIX MFG #: 999-5755-000

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    999-5755-000 - Overview

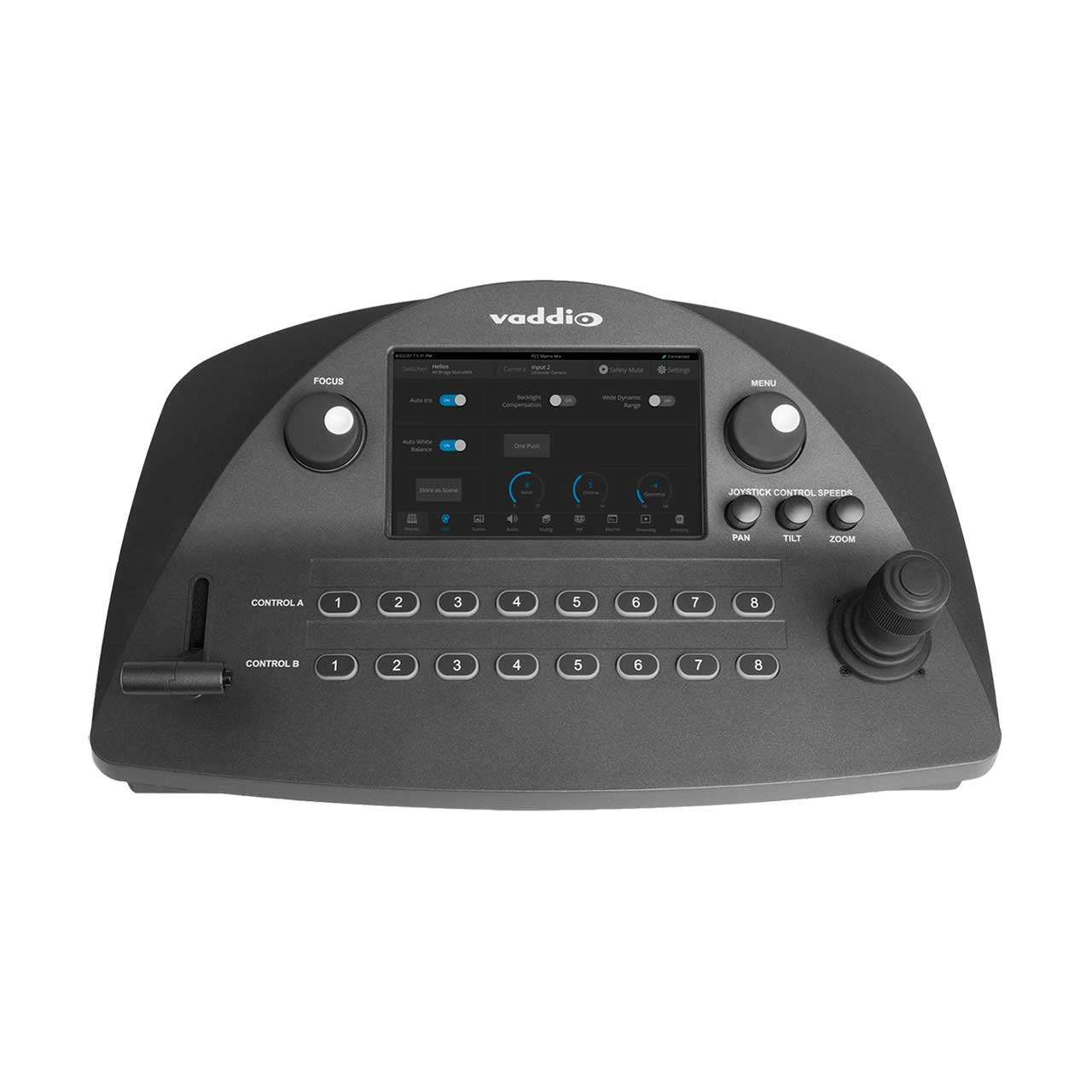

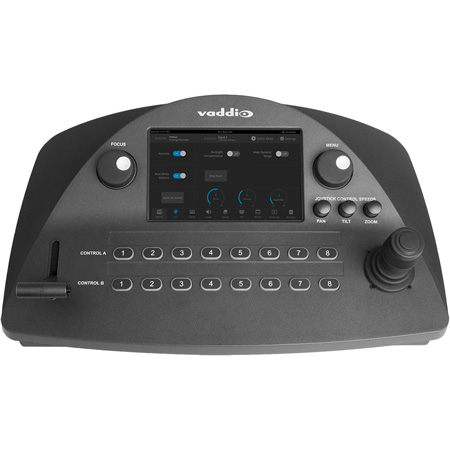

    The Vaddio PCC MatrixMix Live production Controller is designed to work with the AV Bridge MatrixMix Switcher. The PCC MatrixMix comes equipped with precision, browser based controls with an embedded web server to give you plenty of camera control options. Integrating switching, camera control and graphics into an ergonomic interface you have a full color touchscreen, illuminated push buttons for camera selection and a 3 axis hall effect joystick.

    The broadcast quality joystick controller comes with full preset store and recall, CCU functionality and IP management. Seemless control is yours with a large focus knob for fine adjustments and pan, tilt and zoom speed control knobs. The PCC MatrixMix Live Production Controller is your solution to ultimate camera control.

    • Features:

      • MADE THE USA!
      • Easy-to-find camera functions, pan, tilt and zoom speed control knobs
      • Illuminated push buttons for camera selection
      • Large focus knob for fine control with auto/manual toggle and three-axis Hall-effect joystick
      • Browser-based user interface for control anywhere
    • Specifications:

      • Control via IP Network: Up to 8 cameras via connected AV Bridge MatrixMIX switcher; Directory of up to 10 connected AV Bridge MatrixMIX switchers
      • Local Program Output: HDMI at resolutions up to full HD (1080p/60)
      • IP Streaming Decoder and Protocol: H.264, RTSP
      • Streaming Resolution: Up to full HD (1080p/60)
      • Power Requirements PoE+ (Power over Ethernet)
      • Power Consumption < 25W
      • Dimensions (H x W x D): 5.125" x 17" x 11"
      • Weight: 7.2 lbs
      • Operation Temperature: 0° to +40°C (32° to 104°F)
      • Storage Temperature: -5° to +60° C (23° to 140°F)
      • Humidity: 20% to 80% RH
    • Item Includes:

      • PCC MatrixMIX
      • Mid-span PoE+ power injector with AC cord set(s)
      • 10' (3m) cat-5e patch cable, black
      • Quick Start Guide
    • GTIN:
