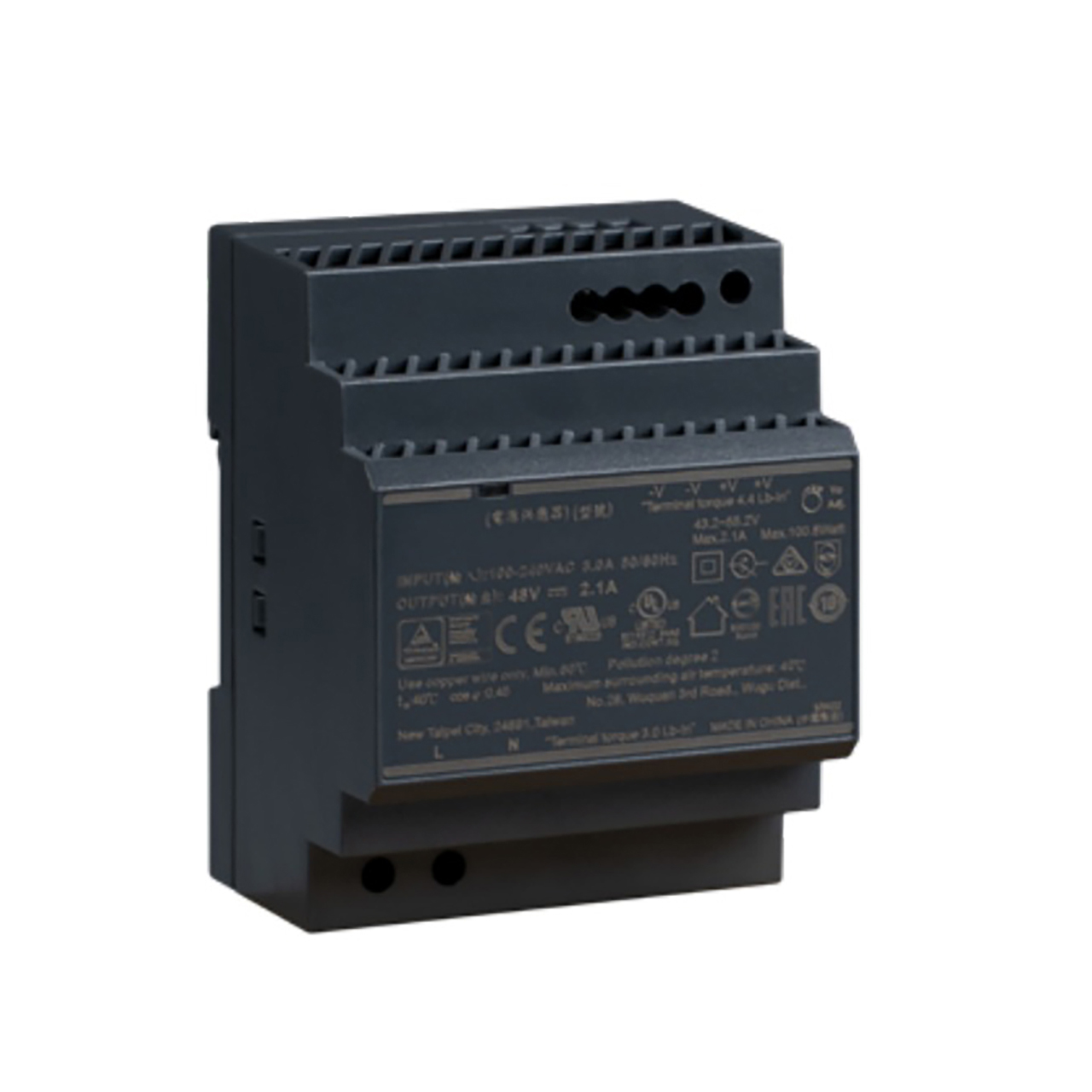

Pathway Connectivity PWPWR DIN TERM 100W 48VDC Power Supply with DIN-Mount Compression Fit Terminal - 100W 48V DC

PWPWR DIN TERM 100W 48VDC - Overview

• Features:

  • 48VDC and 24VDC output options
  • 30W, 50W, and 100W wattages available in 24VDC
  • 60W and 100W wattages available in 48VDC
  • Designed for installation in NEMA1 enclosures (PWENC)
  • Mounts to standard 35mm DIN rail


• Specifications:

  • Series: PWPWR Pathway Power Supply
  • Form Factor: DIN-mount
  • Output Connector Type: Compression-fit Terminal
  • Wattage: 100W
  • Voltage: 48V DC
  • Input Rating: 85V - 264VAC, 47 - 63Hz
  • Output Rating: 48VDC @ 100.8W maximum
  • Regulatory Compliance: CE, UL-listed.

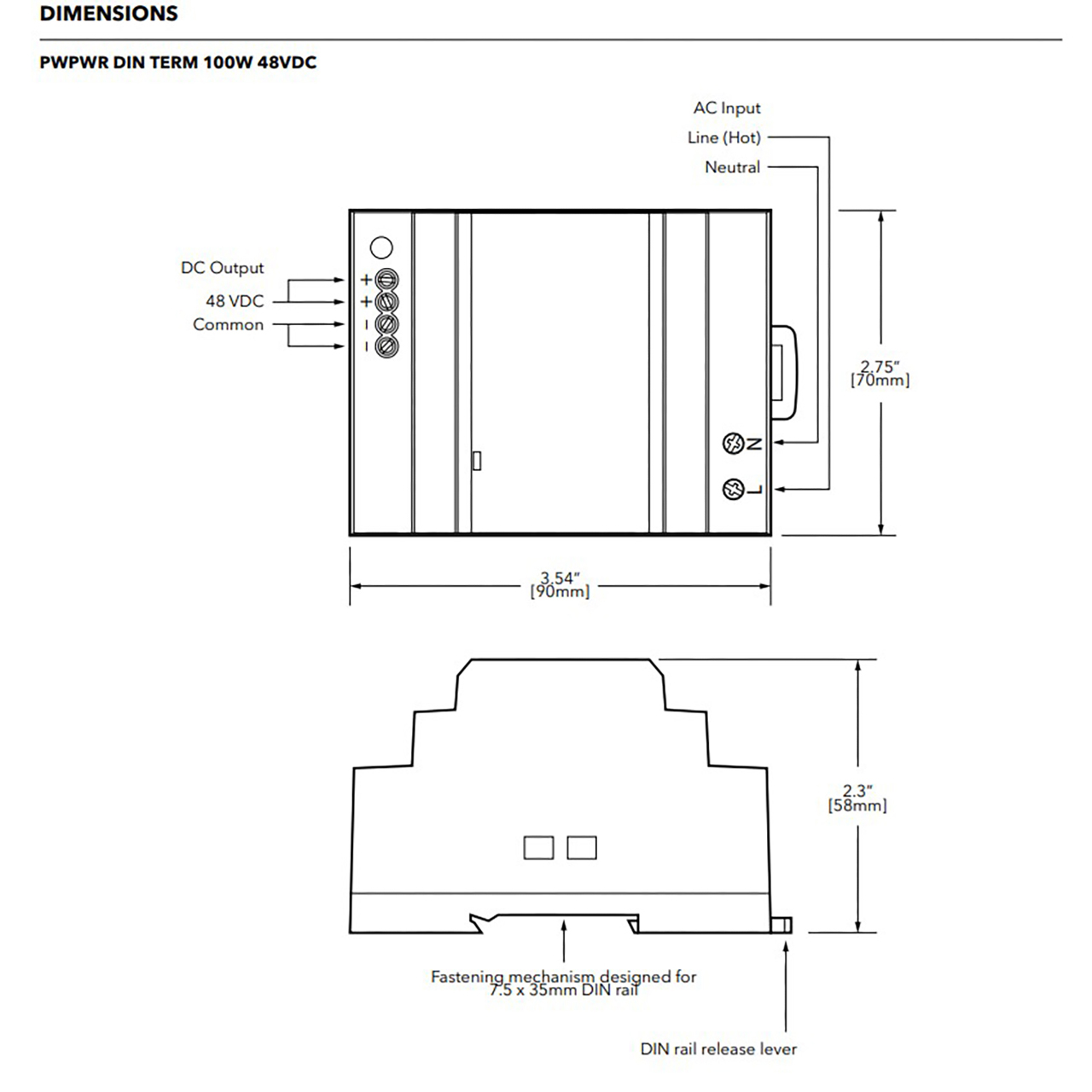

  • Dimensions (HxWxD): 2.75" x 3.54" x 2.3"
  • Weight: 8.7oz
  • Operating Temperature: -22°F - 185°F
  • Relative Humidity: 20% - 90%, non-condensing
