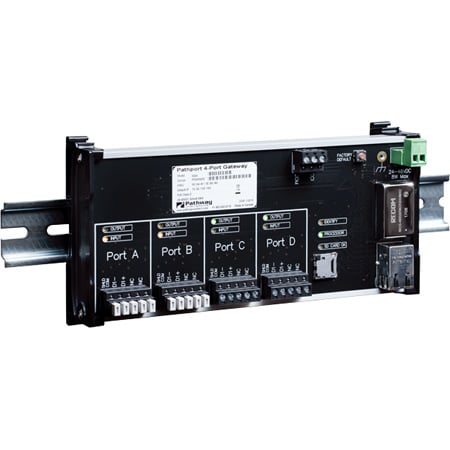

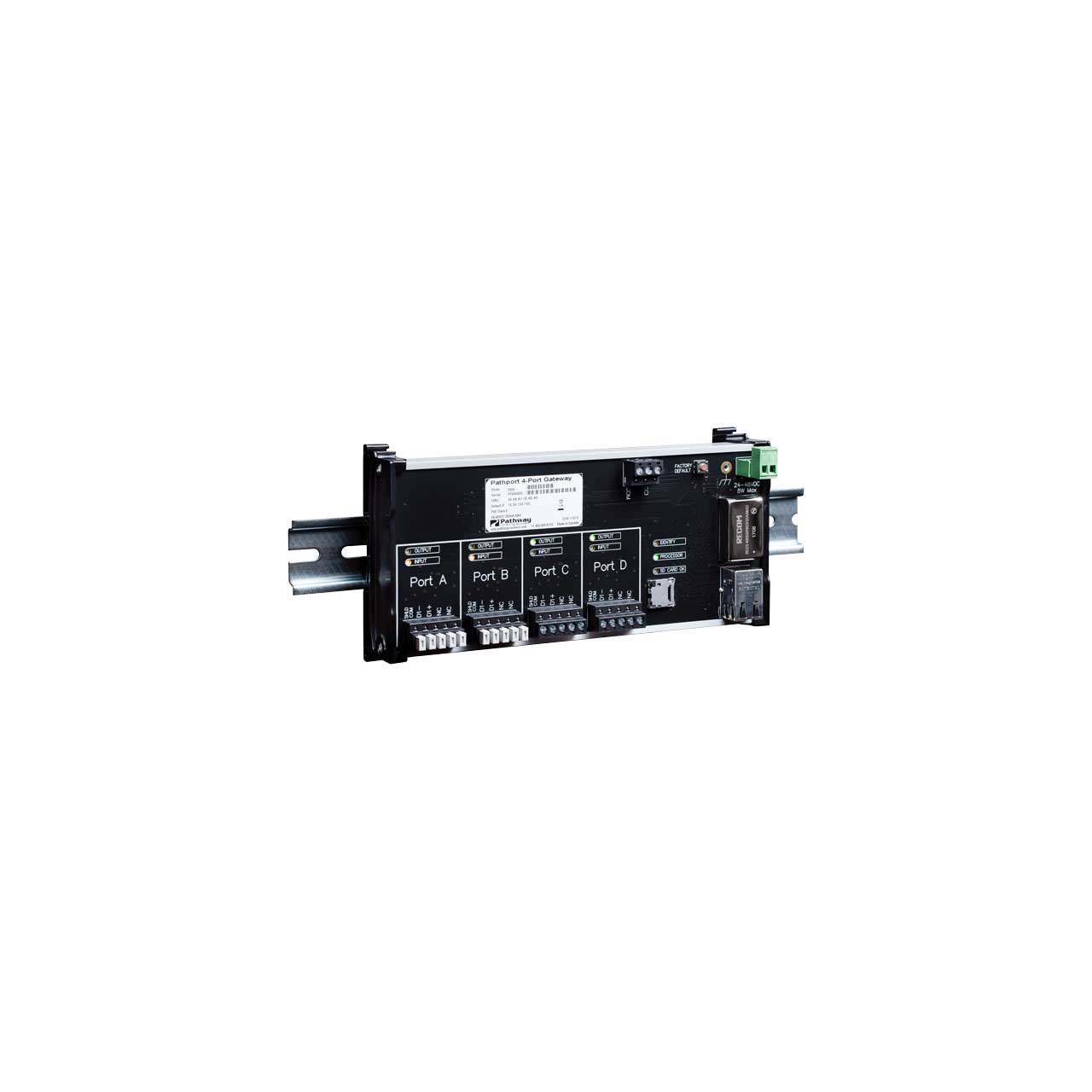

Pathway Connectivity PWPP DIN P4 Pathport with DIN-mount and 4-Ports

PWPP DIN P4 - Overview

• Features:

  • Four DMX512 ports - user configurable as inputs or outputs
  • E1.11 DMX512A and E1.20 Remote Device Management (RDM) compliant
  • LED indicators for port direction, power, Ethernet link activity and identify
  • Operates on 802.3af Power-over-Ethernet or on an 18-48V wide-range DC input
  • Fully compatible with all Pathport gateways and eDIN interfaces
  • Configuration is set using freely available Pathscape software
  • Soft patch allows mix-and-match of different protocols
  • Route DMX according to universe or channel-by-channel
  • Multiple sources may be merged and/or prioritized
  • Fully customize your DMX output universes
  • MicroSD card allows configuration to be kept with interface card


• Specifications:

  • General
  • Class 2 PoE powered device
  • Auxiliary input voltage 18-48VDC
  • 6W power consumption
  • 60V protection on each port
  • 10/100Mb TCP/IP connection
  • Operating conditions: -10° to 48°C (14° to 118°F), 5%-95% relative humidity, non-condensing


• Item Includes:

  • 1x Pathway P6824 Pathport 4-Port Gateway with eDIN - 8 Inch
