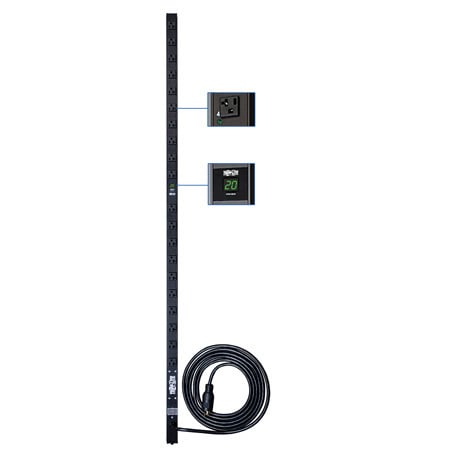

Tripplite PDUMV20 Metered PDU / Power Distribution Unit


free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.

PDUMV20 - Overview

Tripp Lite's PDUMV20 metered power distribution unit offers 20 amp, 120V multi-outlet AC power distribution in a convenient 60 inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Tooless installation supports fast installation in button-mount compatible equipment racks. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 20 NEMA 5-15/20R output receptacles, 15 ft. AC line cord, lighted power switch with locking transparent cover to prevent accidental shutoff, and 20 amp circuit breaker in rugged metal case design.

  • Features:

    • Corded AC power distribution unit with 20 amp capacity and 20 AC receptacles
    • Digital current meter display
    • Sturdy 60 inch aluminum housing
    • Tooless installation supports fast installation in button-mount compatible equipment racks
    • Included hardware allows for Zero-U configurations in rack enclosures
    • Ideal for horizontal or vertical raceway style power distribution in office, workbench, industrial, network, and telecom applications
    • Lighted power swith with locking transparent safety cover prevents accidental shutoff
    • 20 amp electrical capacity
    • 120V AC, 50/60Hz electrical compatibility
    • 15 ft. power cord
    • Lifetime warranty
  • Specifications:

    • PLUG/OUTLETS-Input: NEMA L5-20P/Output: 20 NEMA 5-15/20R
    • ELECTRICAL- 120V AC, 50/60Hz, 20A [Requires NEMA L5-20R or 5-20R(using included adapter) wall receptacle]
    • FORMAT- 60 inch mountable strip format
    • Voltage compatibility 120V
    • Frequency compatibility 50 / 60 Hz
    • Output VA 20A
    • Output watts 2400 watts
    • Output nominal voltage 120V
    • Outlet quantity / type 20 NEMA 5-15/20R
    • Overload protection 20A
    • Maximum input amps 20A
    • Input connection type NEMA L5-20P with NEMA 5-20P plug adapter
    • Input cord length 15 feet
    • Recommended Electrical Service 120V
  • Item Includes:

    • PDUMV20 Metered Vertical PDU
    • (1) L5-20P to 5-20P plug adapter
    • Mounting hardware
    • Six protective outlet covers
    • Instruction manual with warranty information
  • Applications


    • Offers vertical or horizontal multi-outlet power distribution in rack enclosures, raceways, desktops and more. Ideal for distribution of alternate, sinewave UPS and generator power, or commercially derived AC power to connected equipment.
  • GTIN:
