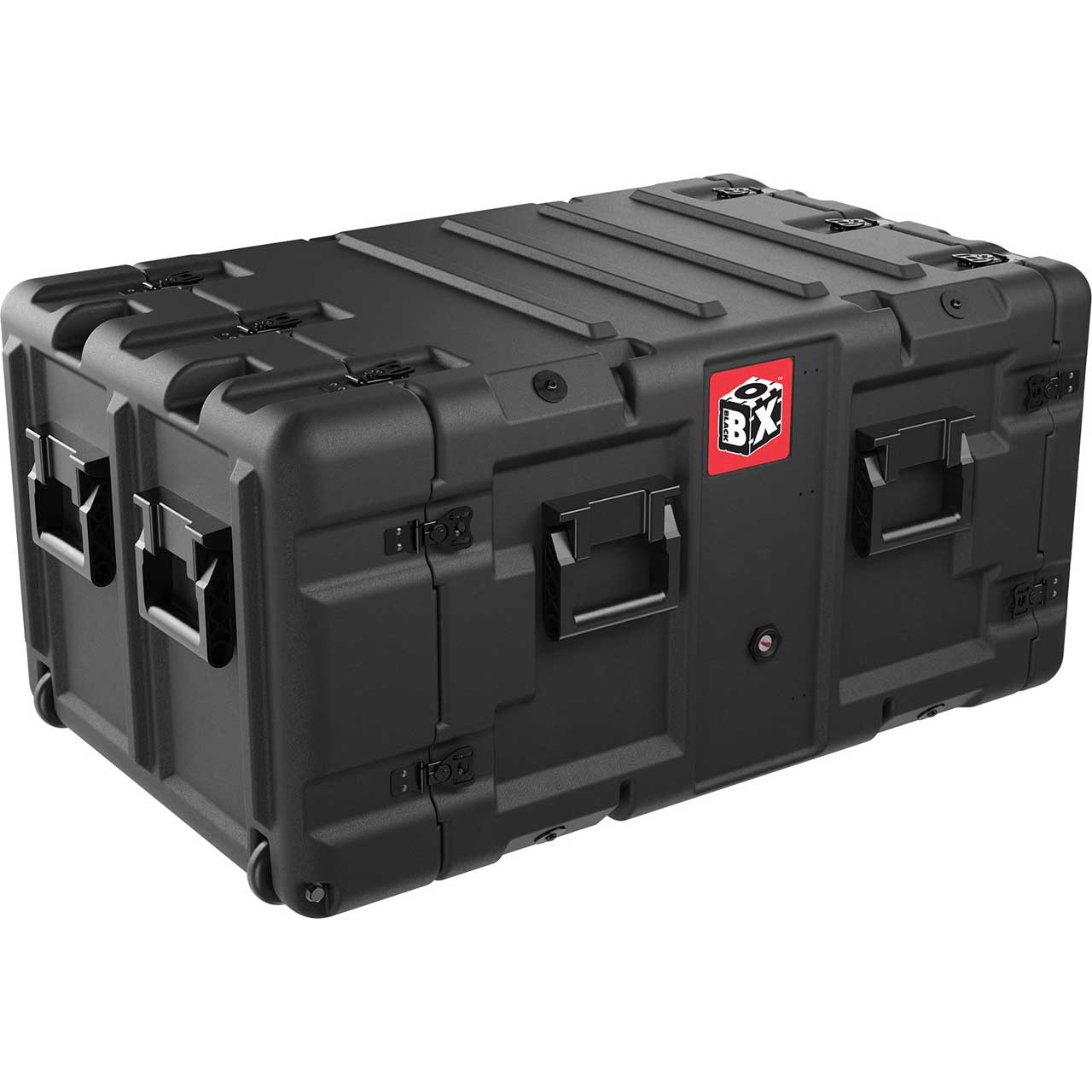

Pelican BlackBox 7U Rackmount Case with 30 Inch Depth for Lightweight Equipment- Roto Molded/SAE/10-32 Hardware - Black

ITEM #: PEL-BKBOX307USAE MFG #: BLACKBOX30-7U-SAE

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$2,006.50

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


BLACKBOX30-7U-SAE - Overview

Pelican-Hardigg™ BlackBox Case - Used for transport of rugged, lightweight equipment

The Pelican-Hardigg™ BlackBox 7U is an off-the-shelf preconfigured, textured roto molded 7U Rackmount Case used for transport of light to medium duty equipment. Pelican BlackBox rack mount cases offer a rack depth of 30" and a shock weight protection of up to 100 lbs. This lightweight, compact, and double ended case offers light duty protection and boasts significantly better light duty shock performance than the competition. The use of a rugged steel frame offers great value while upholding Pelican-Hardigg's industry-leading standard.

A BlackBox case is ideal when you need immediate access to an Off-the-Shelf case and need to be cost conscious without sacrifice performance but this case is not intended for high-end sensitive electronics. Made from recycled plastic materials as part of Pelican-Hardigg's commitment to reduce waste and protect the environment.

Applications Include:
Audio/Video Recording and Processing Systems
Satellite Communication Systems
Radio Communication Systems
Seismic Data Recording Instrumentation
Climate Data Collection
Field-Deployed Amplifiers and Electronics
Medical or Testing Equipment Components

BlackBox Rack Cases come with these standard options:
Black (463) Color
Spring Loaded Stainless Steel Black Handle (SSB)
Nickel Black Non-Locking Catch-and-Strike Hardware
Plastic Comfort Grip Handles
Pressure Relief Valve
Closed Loop Gasket
Steel Rack Frame
Right and Left Side Lid Hangers
Mold-In Edge Casters

  • Features:

    • BLACKBOX comes standard with rugged steel frame
    • Durable Molded-in color
    • Molded-in, tongue-in-groove gasketed parting lines seal tight and remain so after impacts
    • Patented, molded-in metal inserts for catch and hinge attachment points provide strength and spread loads to the container wall for maximum integrity
    • Molded-in male/female stacking ribs for secure stacking
    • Patented, positive anti-shear locks prevent case lids from separating from mid-section even after impact - and minimise stress on hardware
    • Shock mounts provide excellent shock and vibration cushion for delicate equipment
    • Molded-in ribs provide extra columnar strength
    • One-piece rotoMolded body and lids
    • Pelican-Hardigg's patented, wide-design, and Comfort Grip Handles™
    • Interference fit spiral spring pins in each corner for maximized structural integrity
    • Designed to meet ANSI/EIA-310-C for universal rack mounting hole pattern
    • Aircraft-quality, precision-tempered 6061-T6 aluminum provides a high strength-to-weight ratio
    • Fully recessed hardware protected from external impact damage
    • Exceeds Air Transport Association (ATA) Specification 300, Category I requirements
    • Reinforced corners and edges (high-stress areas) with 15 to 20% more material
    • Splash and rain resistant

  • Specifications:

    • BlackBox30-7U Dimensions
    • U Size: 7RU
    • Rack Depth: 30.00" (76.2 cm)
    • Lid Depth: 2.20" (5.6 cm)
    • Back Lid Depth: 5.20" (13.2 cm)
    • Weight: 56 lbs
    • Length: 44.50
    • Width: 24.60
    • Height: 18.40

    • General Info
    • Sway Space: 1"
    • Frame: Steel Threaded Rack
    • Case Sizes: 3U, 4U, 5U, 7U, 9U, 11U, 14U
    • Payload: 20 - 200 lbs
    • G-Rating: 40 - 80 G
    • Shock Protection: Light Duty - Basic transport and protection from the elements.
    • Shock Mounts: Cylindrical shock mounts isolate equipment from vibration and the shock from impact forces
    • Shock & Vibration Protection: Offers a preconfigured case made of recycled materials in 7 sizes.
    • Uses: Radios and Amplifiers, Solid State Equipment, Field Testing Equipment
    • Configuration: Off-the-Shelf (In stock and ready to ship at manufacturer in most instances)

  • Item Includes:

    • 1x Pelican BLACKBOX-7U-SAE BlackBox7U Rackmount Case

  • Warranty:

    • Limited 1-Year Manufacturer Warranty

  • GTIN:

    0825494042226
