Palmer Audio MONICON M G2 Passive Studio Monitor Volume Controller with XLR/TRS/3.5mm - Black

ITEM #: PLM-MONICON-M-G2 MFG #: MONICON M G2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$145.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MONICON M G2 - Overview

Pure Sound - Perfect Control

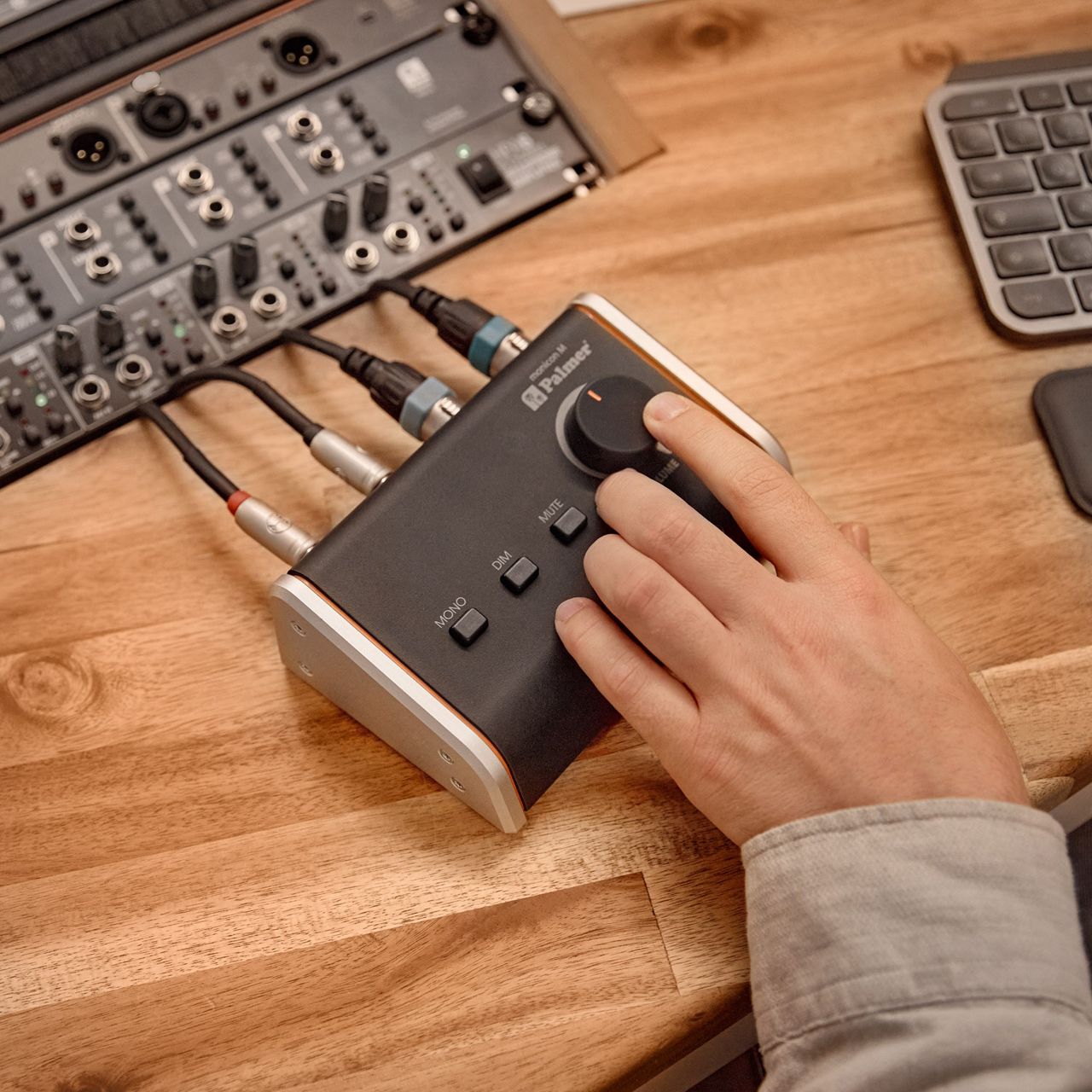

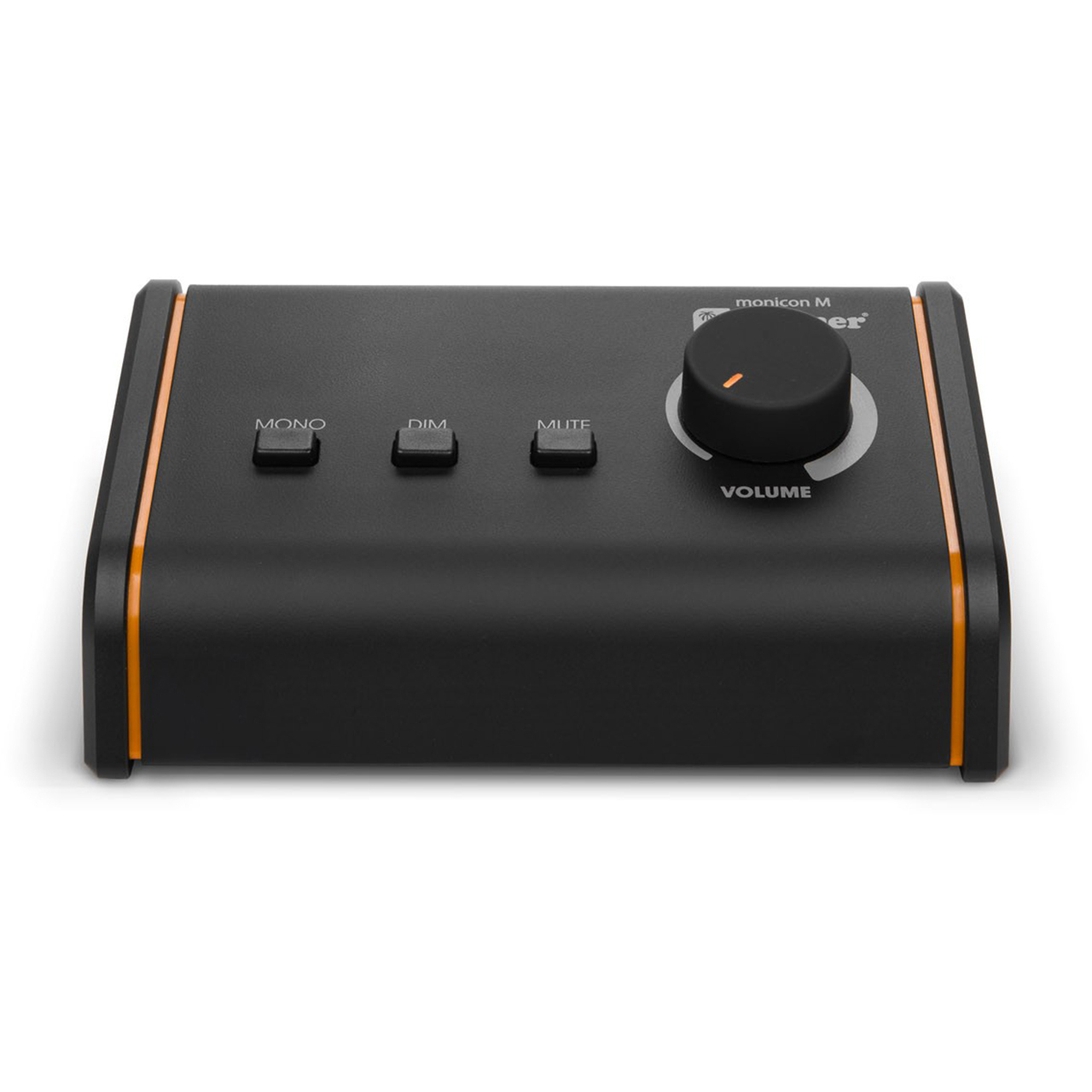

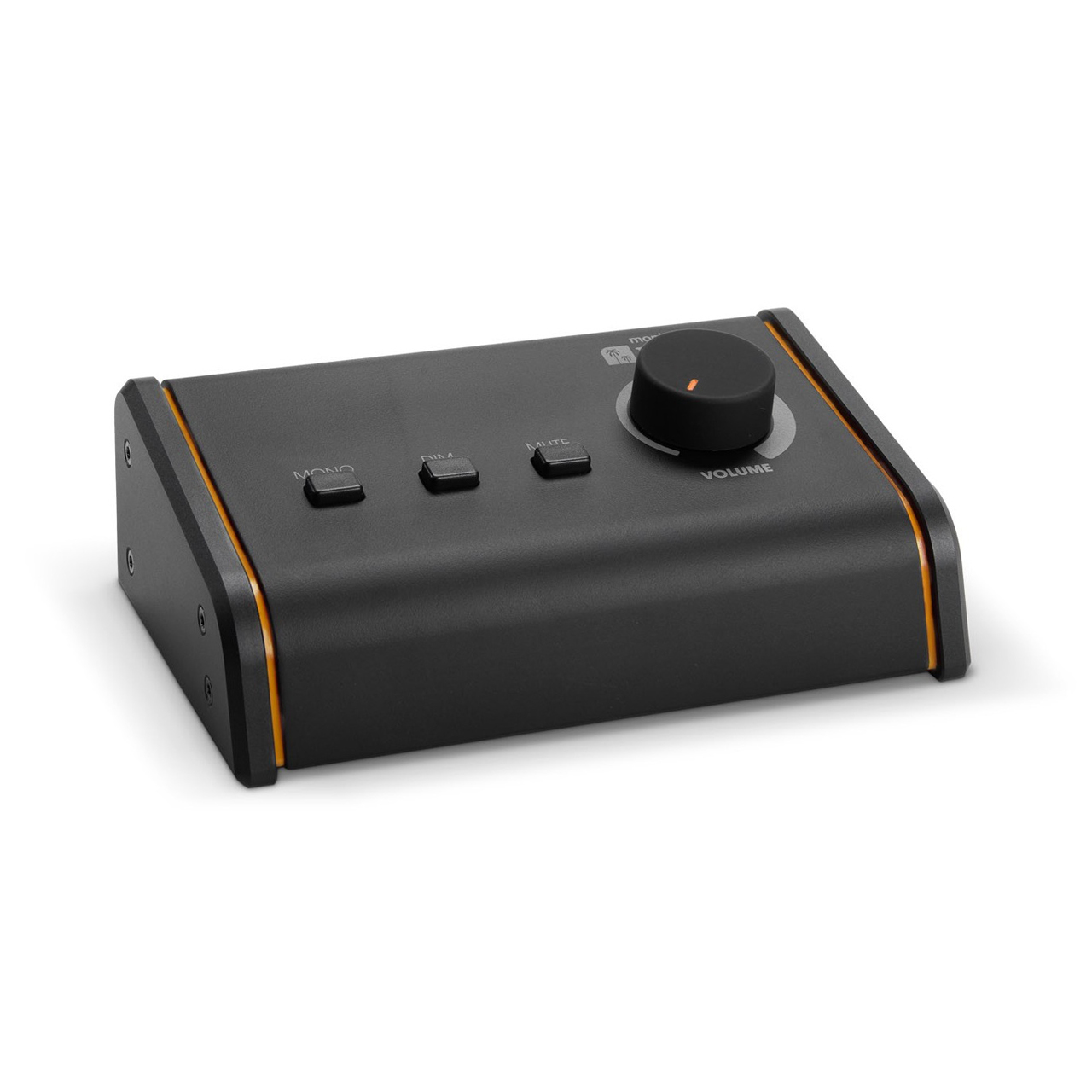

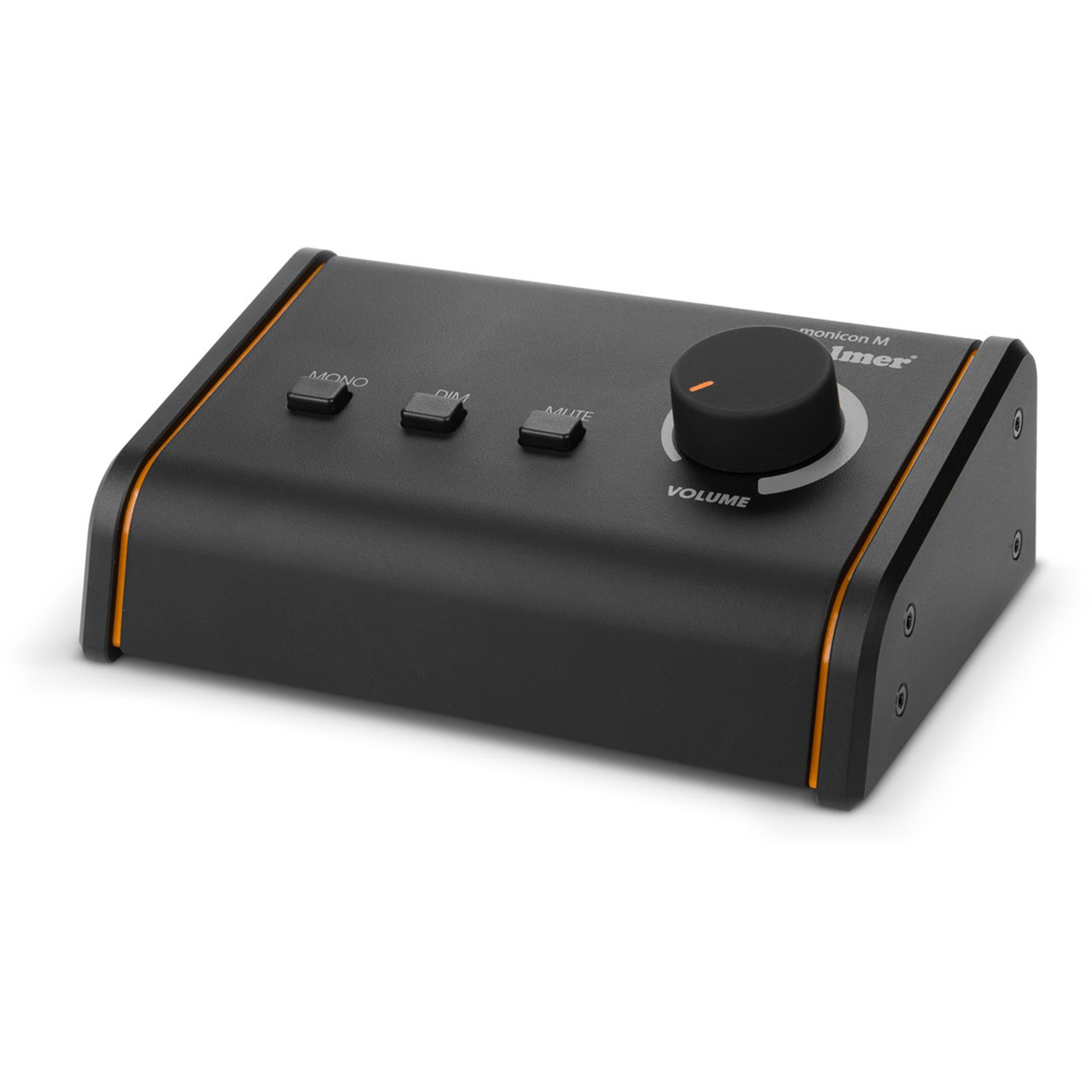

The Palmer MONICON M G2 is a compact passive volume controller for flexible studio set-ups. It can be easily connected to audio interfaces, computers, or mobile devices, either via balanced XLR/TRS combo sockets or a 3.5mm jack input. The output, which is either balanced via XLR or 3.5mm jack sockets, helps supports both professional studio monitors and compact loudspeaker systems.

The large analog volume control makes it possible to precisely control the level of volume without any loss in quality. The signal flow and monitoring situation can be adjusted quickly and intuitively using the "Mono," "Dim," and "Mute" buttons.

Thanks to the completely analog signal path, the sound remains unaltered and latency-free. The MONICON M is the perfect control centre for project studios, editing suites, and multimedia workstations - wherever direct access and precise control are required.

  • Features:

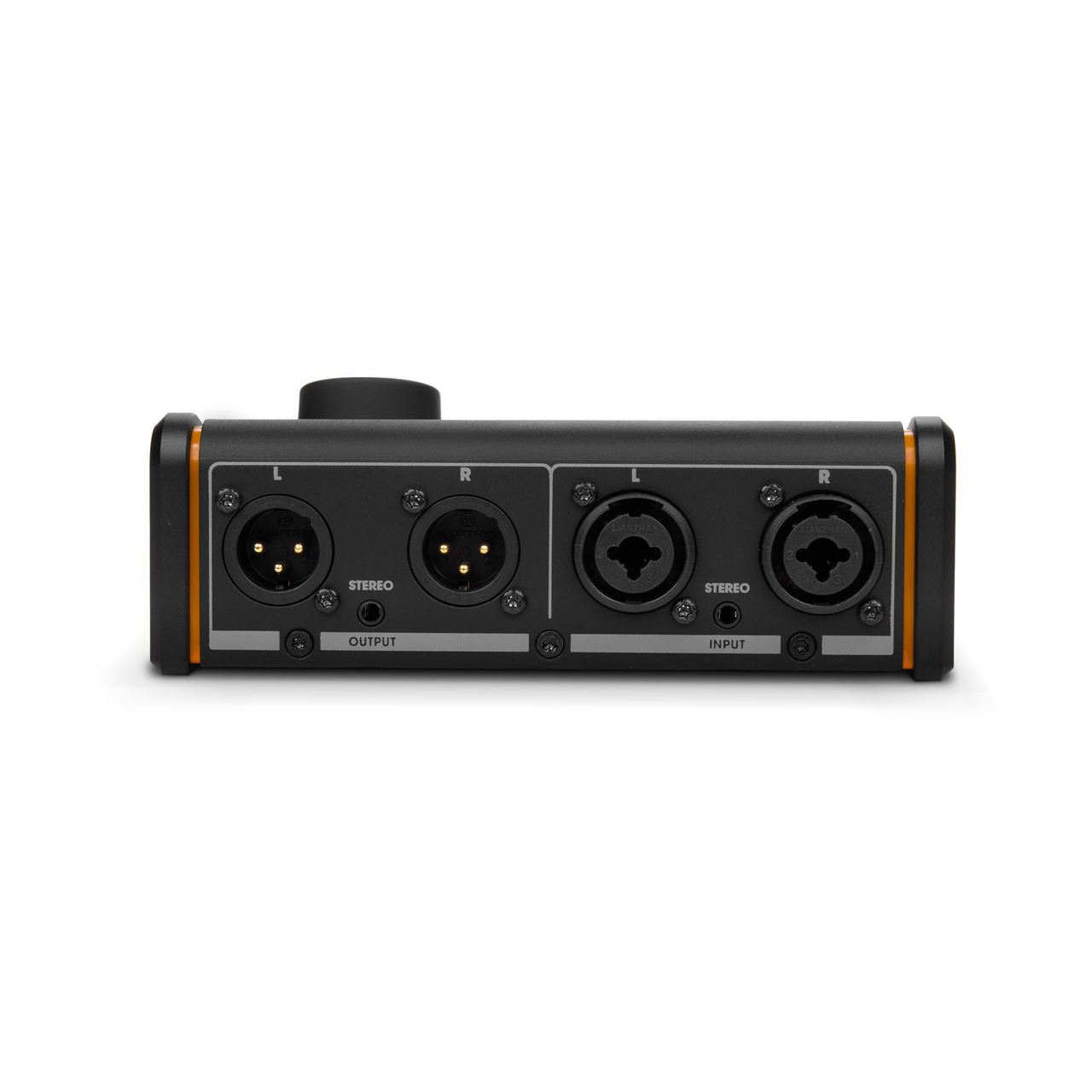

    • Input: 1x Stereo (balanced XLR/TRS Combo and 3.5mm jack)
    • Output: 1x Stereo (balanced XLR and 3.5mm jack)
    • Large precision volume control
    • Dedicated switches for MONO, DIM and MUTE
    • Compact format for project studios and multimedia setups
    • Latency-free analogue audio signal path
    • Engineered in Germany

  • Specifications:

      General
    • Type: Passive
    • Frequency Response (±0.2dB, rel. Avg): 20Hz - 20kHz

      Inputs
    • Number of Balanced Line Inputs: 2x
    • Balanced Line-In Connector Type: XLR combo socket
    • Number of Unbalanced Line Inputs: 1x
    • Unbalanced Line-In Connector Type: 3.5mm Jack TRS

      Line Input Performance
    • Input Impedance (balanced): 20kΩ
    • Input Impedance (unbalanced): 10kΩ
    • Min. SNR (<1% THD, 1kHz, unity, A-weighted): 112dB

      Outputs
    • Number of Unbalanced Line Outputs: 1x
    • Unbalanced Line Outputs Connector Type: 3.5mm Jack TRS female
    • Number of Balanced Line Outputs: 2x
    • Balanced Line Outputs Connector Type: XLR 3-pole male

      Line Output Performance
    • Max. Output Level (<1 % THD, 20Hz - 20kHz): 20dBu
    • Dynamic Range (AES17): > 115dB

      Physical
    • Color: Black
    • Material: Aluminium, Steel sheet
    • Dimensions: 4.17" x 6.28" x 2.44" (160mm x 62mm x 106mm)
    • Weight: 1.6lbs (480g)
    • Crosstalk: -79dB
    • Ambient Temperature: 32°F - 104°F (0°C - 40°C)
    • Maximum Air Humidity: 80% (non-condensing)

  • Item Includes:

    • 1x MONICON M G2 monitor controller
    • 1x Safety and compliance

  • GTIN:

    4049521980466
