Palmer Audio PGA04 Speaker Simulator with Loadbox 8 Ohms
  • Palmer Audio PGA04 Speaker Simulator with Loadbox 8 Ohms
  • Palmer Audio PGA04 Speaker Simulator with Loadbox 8 Ohms

Questions? Ask a Markertek Expert:
800-522-2025 Email

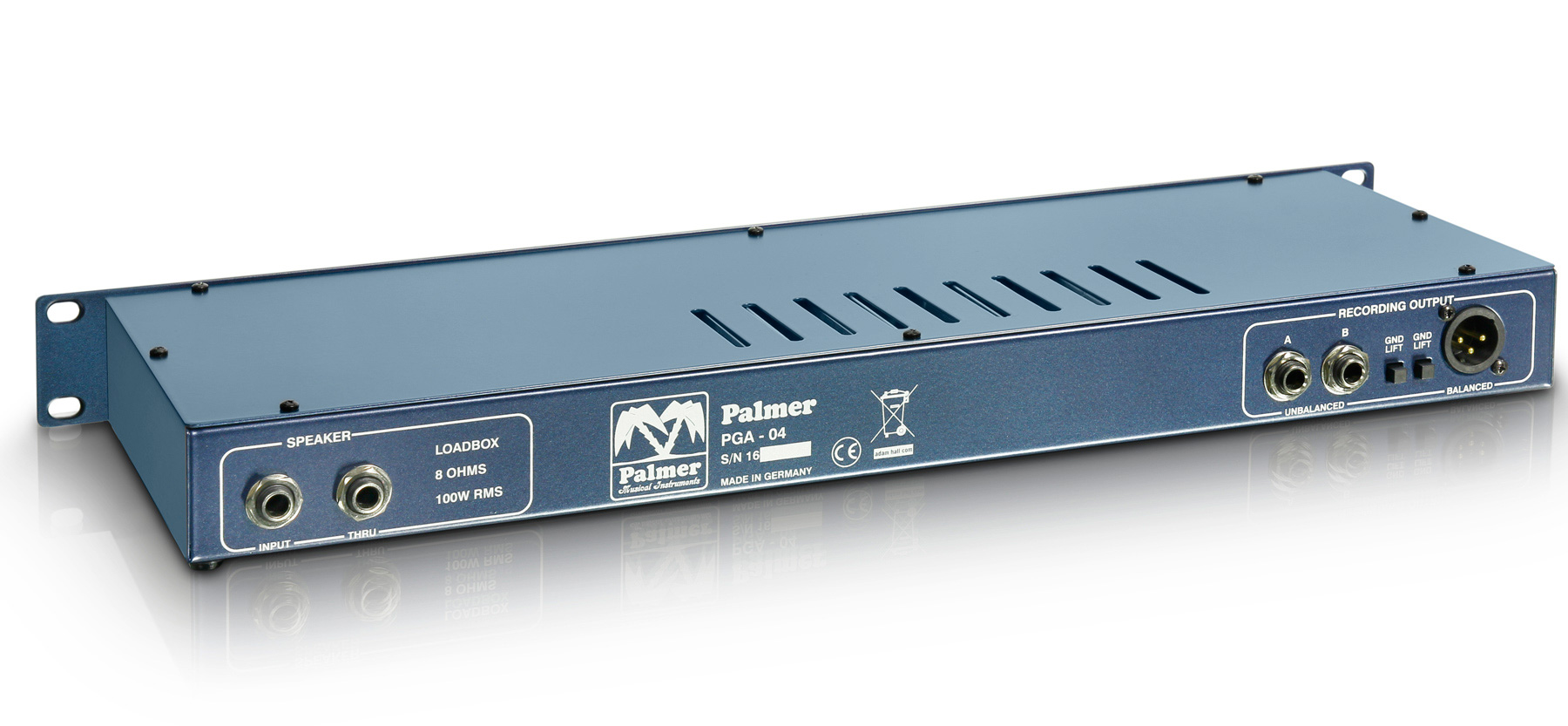

Palmer Audio PGA04 Speaker Simulator with Loadbox 8 Ohms

Manufacturer: Palmer Audio

Item #: PLM-PGA04   •   MFG #: PGA04




Share!





Special DI box with loadbox for guitars. The integrated load resistor permits tube amplifiers up to approximately 120 W to be connected to the PGA04, bypassing a loudspeaker. A jack socket (unbalanced) and balanced XLR connector are available for direct pickup of the signal. The extensive filter section provides for a realistic simulation of classic guitar loudspeaker sounds.


  • Features

    • Speaker Simulator + 8 Ohm Loadbox + Made in Germany + DI Box

  • Specifications

    • Product type: speaker simulator
    • Type: passive
    • Channels: 1
    • input type: unbalanced
    • Inputs: 1
    • input connectors: 6.3 mm Jack
    • output type: balanced, unbalanced
    • Outputs: 2
    • output connectors: 6.3 mm Jack, XLR
    • output impedance: 600 (XLR), 10 k (6.3 mm Jack) Ohm(s)
    • controls: volume, low, ground lift, high cut, high, fullrange volume, filter volume, colour
    • Display: max. load
    • dummy load: yes
    • dummy load impedance: 8 Ohm(s)
    • max. load: 100 W
    • voicing filter: yes
    • power attenuator: no
    • transformer isolated outputs: yes
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated
