Palmer Audio PMS02 Dual Channel Microphone Splitter
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

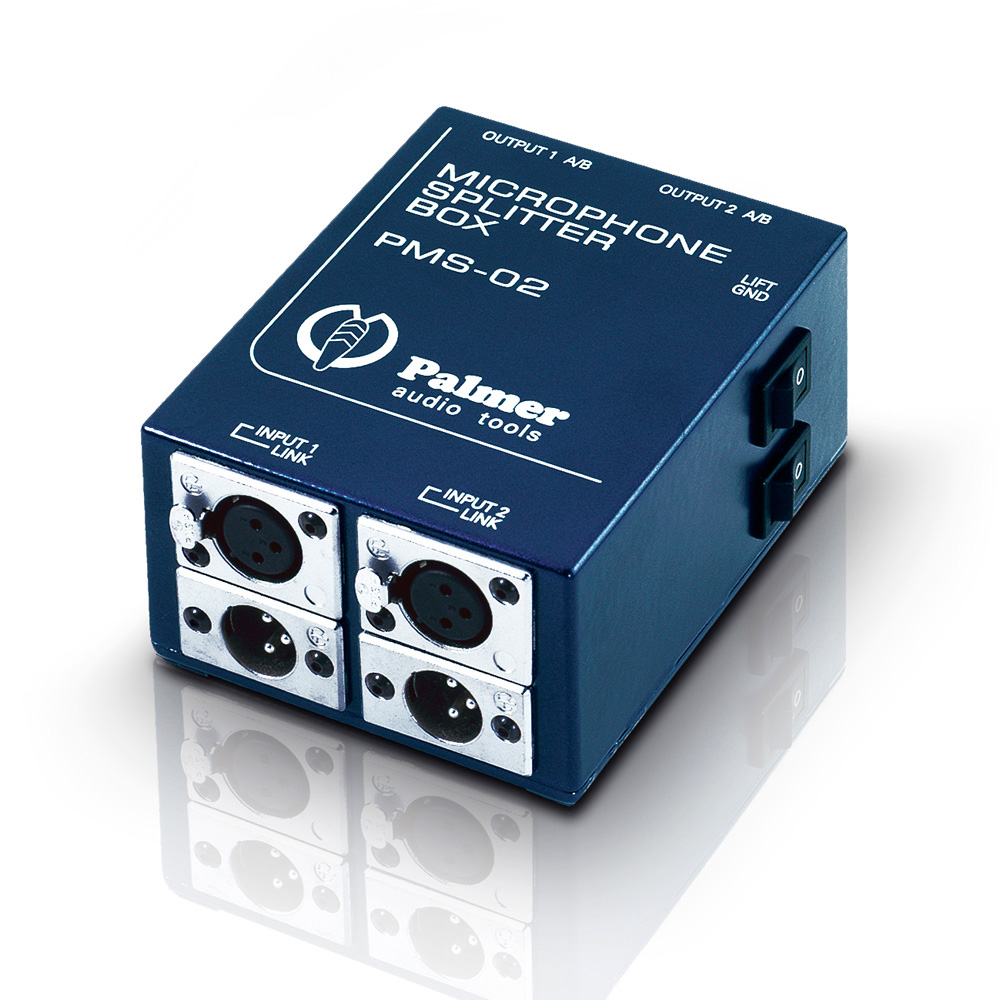

    Palmer Audio PMS02 Dual Channel Microphone Splitter

    Manufacturer: Palmer Audio

    Item #: PLM-PMS02   •   MFG #: PMS02




    Palmer splitter boxes are used when a source signal must be sent to multiple inputs. For example, if the microphone signal is to be sent simultaneously to the front of house mixing desk for the house sound system, the monitor mixing desk onstage, and - since the event is being broadcast live - to the outside broadcast van. This requires a "1 in 3" microphone splitter. In another application, a mixing desk output is supposed to drive multiple power amplifiers in different rooms. This requires a line splitter. A differentiation is made between line and microphone splitters to ensure optimal matching of the various levels and impedances. Passive dual channel microphone splitter. It is used primarily to facilitate the sending of one microphone source signal to multiple inputs. For example, this makes it possible to send the L/R master outputs of a mixing desk to multiple power amps without problems. Thanks to the use of generously dimensioned audio frequency transformers, the sound is not influenced, but ground loop hum is prevented. The PMS02 can also be used to convert unbalanced signals into balanced signals and vice versa.

    • Features

      • Passive 2 channel mic splitter + Converts unbalanced signals into balanced signals and vice versa + Sends mic input to multiple sources
    • Specifications

      • Product type: splitter
      • Type: mic split
      • split type: 1 in 2 +1
      • Channels: 2
      • Inputs: 2
      • input connectors: XLR
      • max. input level: + 20 dB
      • number of split-outputs per canal: 2
      • THRU outputs/channel: 1
      • max. output level: + 20 dB
      • output connectors: XLR
      • transformer isolated outputs: yes
      • controls: ground lift
      • cabinet material: die-cast aluminium
      • Cabinet / Housing surface: powder coated


    by PowerReviews
    Palmer Audio PMS02 Dual Channel Microphone Splitter

    (based on 1 review)

    Ratings Distribution

    • 5 Stars



    • 4 Stars



    • 3 Stars



    • 2 Stars



    • 1 Stars



    Reviewed by 1 customer

    Displaying review 1

    Back to top


    Wonderful Audio Tool

    By Jeffrey Davis

    from San Diego, CA

    About Me Experienced


    • Accurate Controls
    • Compact
    • Easy To Use
    • Excellent Sound
    • Versatile


      Best Uses

      • Performances

      Comments about Palmer Audio PMS02 Dual Channel Microphone Splitter:

      Great for sending an audio signal to two different sources. Easy to use. Great sound quality.
