Palmer Audio STUDIMON5 Powered 5 Inch Nearfield Studio Monitor - Each

ITEM #: PLM-PSTUDIMON5 MFG #: PAL-PSTUDIMON5

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$199.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PAL-PSTUDIMON5 - Overview

    Compact yet powerful, the Palmer STUDIOMON 5 is a bi-amped reference class nearfield studio monitor that looks the part, too. It features a magnetically shielded 5” low frequency driver with rubber surround, a 0.75” silk-dome tweeter and a rear reflex port for extended low frequency response. Driven by 30 watt class AB amplifiers each, the transducers deliver your mixes accurately with excellent dynamics and transient response. The STUDIOMON 5 provides balanced XLR and 6.35 mm TRS inputs to maintain signal integrity and a convenient volume control. What’s more, the speaker’s looks match those of the Palmer MONICON series monitor controllers.

    Sold Individually!

    • Features:

      • 5" woofer and 0.75" soft-dome tweeter
      • Bass reflex design
      • Bi-amped, 2 x 30 watts RMS
      • Frequency response 70 Hz - 20 kHz
      • Balanced XLR and 6.35 mm TRS inputs
      • Compact dimensions
      • Elegant and rigid enclosure construction

    • Specifications:

      • Product type: Reference Nearfield Studio Monitor
      • Type: active
      • Configuration: 2 Way Bassreflex
      • Woofer Diameter: 1x 5" Polypropylen with rubbersurround, magnetic shielding,vented magnetic motor
      • Tweeter Diameter: 0,75" Softdome
      • Amplifier Class: Class A/B
      • Directivity: 120 x 120 °
      • Output Power: 2 x 30 Watt RMS (Woofer Amp 30 Watt/Tweeter AMP 30 Watt)
      • Frequency Response: 70 - 20 000 Hz(-3dB)
      • Cut off frequency: 2500 Hz
      • Filter: Analog 24dB Linkwitz Riley filter (with 2 stage Gyrator EQ)
      • Input Impedance: 10 kOhm
      • Max. SPL: 110 dbU bei 1 Khz
      • Signal to Noise Ratio: 85dB
      • Protection Circuits: Short Cut, thermal shutdown

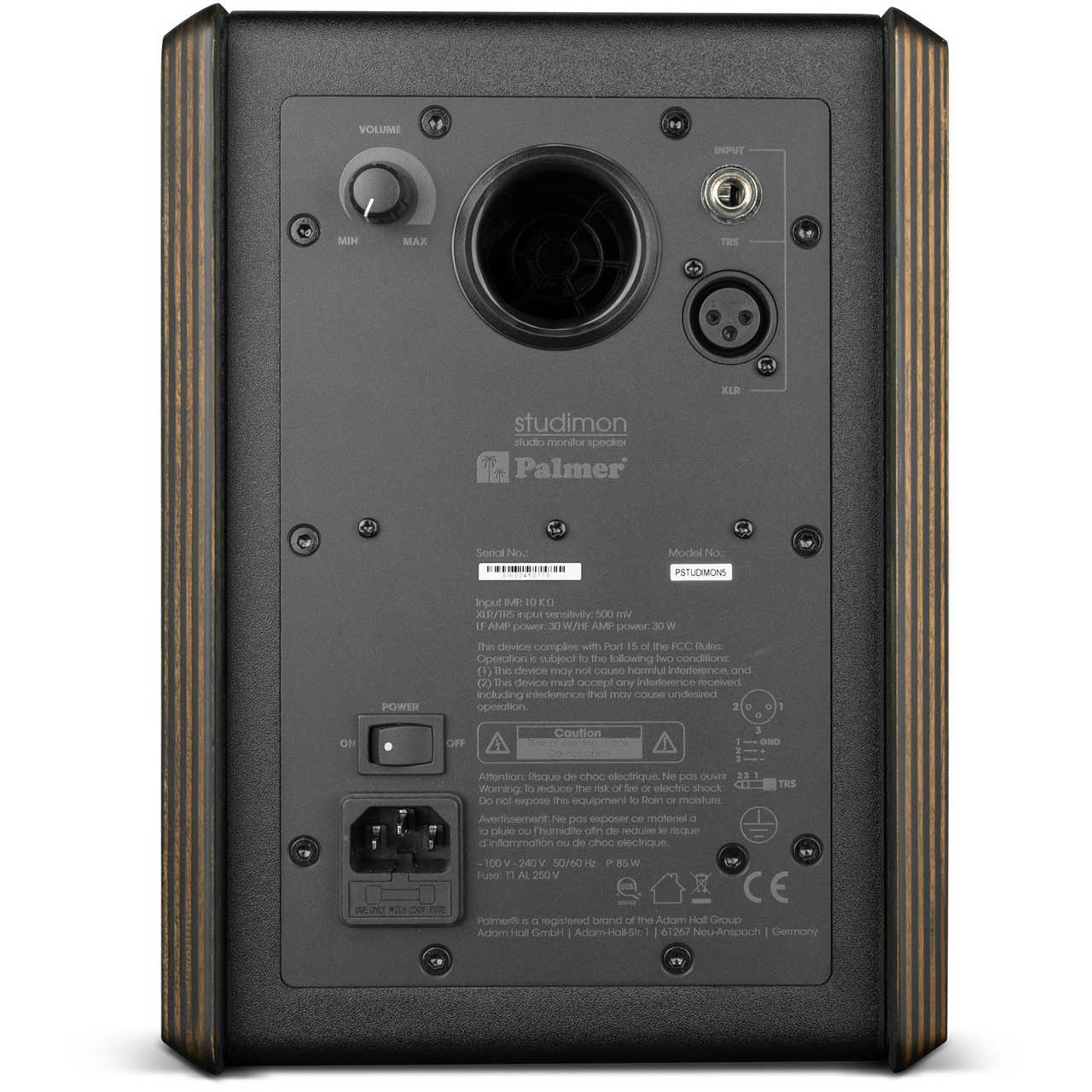

      • Operating Controls: Volume control, Power Switch(On/Off)
      • Line Inputs: 6,3 mm TRS , XLR
      • Power Supply: SPSU, 100 V AC - 240 V AC, 50 - 60 Hz
      • Power Consumption: 85 W
      • Enclosure Construction: 15 mm Plywood stained / MDF/ Black Vinyl Wrap
      • Dimensions (W x H x D): 190 x 268 x 215 mm
      • Weight: 3.84 kg

    • Warranty:

      • 5 Years

    • GTIN:

      4049521402890
