Yamaha MS101-4 Powered Monitor Speaker with 30 Watts and Two Band EQ

ITEM #: YMH-MS101-4 MFG #: MS101-4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Yamaha Corporation
Free Shipping with $49 Minimum Order

List Price:

$199.00

Our Price:

$169.99

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    MS101-4 - Overview

    The MS101-4 is a desktop utility powered monitor that offers portability in a compact design and simple, comprehensive functions to cover a wide range of applications. Multiple inputs can be accomdated, from XLR to 1/4" and 1/8" stereo connectors, the MS101-4 offers front mounted controls for power, volume and EQ. The internal amplifier provides 30-Watts of power, providing up to 115dB SPL.

    • Features:

      • 30 Watts of amplifier power provides clean, high output sound
      • Four inch high output driver with a 1 inch voice coil
      • Front mounted controls provide easy access
      • Two band EQ for quick tone adjustments
      • Redesigned enclosure for an even lower profile
      • Smooth frequency response form 77hZ to 20kHz
      • Compatible with a wide range of optional brackets
      • Directly mountable on Euro microphone stands


    • Specifications:

      • General::
      • System Type: Full range powered Speaker, Bass-reflex Type
      • Frequency Range (-10dB): 77Hz - 20kHz
      • Measured Maximum SPL(Peak) Pink noise (1m): 115 dB SPL

        Transducer:
      • Diameter: 4" Cone
      • Voice coil: 1"
      • Magnet: Ferrite

        Enclosure:
      • Material,Color: Plastic (PP), Black
      • Dimensions (WxHxD, without rubber feet): 142 x 196 x1 87 mm (5 5/8" x 7 3/4" x 7 3/8")
      • Net Weight: 2.1kg (4.6 lbs)
      • Handles: Side x 2

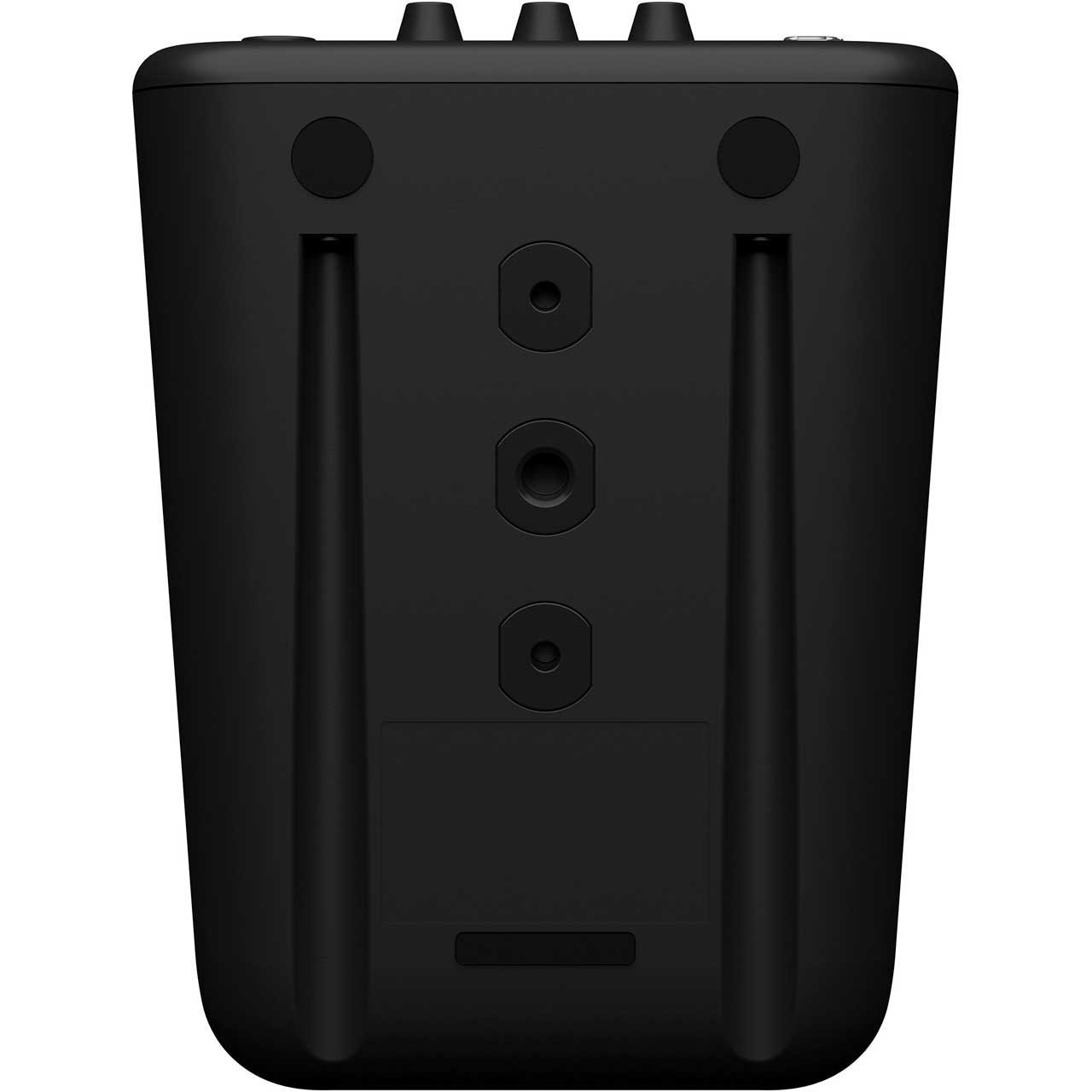

      • Screw Threads (bottom): 2 x M5; depth 11mm; spaced 60 mm apart, 1 x 3/8-16; depth 12mm (.47")
      • Optional Speaker Brackets: BMS-10A, BAS-10, BWS20-190, BCS20-210, BCS20-150

        Amplifier::
      • Amplifier Type: Class-D
      • Power Rating: Dynamic: 30 W, Continuous: 20 W
      • Cooling: Natural cooling (no fan)
      • Connectors: Input (Front): Combo, Line Input 1: Stereo mini, Line Input 2: Phone TRS
      • Output: Phone TRS (x1)
      • Power: IEC AC Inlet x1
      • Input Impedance: INPUT (Front): LINE: 5.4 kΩ, MIC: 5.4 kΩ, LINE INPUT 1, 2: 10 kΩ
      • Input Sensitivity (VOLUME: Maximum): INPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu
      • Nominal Input Level (VOLUME: Center): INPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu
      • Maximum Input Level: "INPUT (Front): LINE: +20 dBu, MIC: -10 dBu,
      • LINE INPUT 1, 2: +20 dBu"
      • Controls: VOLUME x 1, LOW CONTROL x 1, HIGH CONTROL x 1

        Power
      • Idle Power Consumption: 3W
      • 1/8 Power Consumption: 10W
      • Power Requirements: 100V-240V, 50/60 Hz


    • Item Includes:

      • 1x MS101-4 Unit
      • 1x Owners Manual


    • GTIN:

      0889025138727
