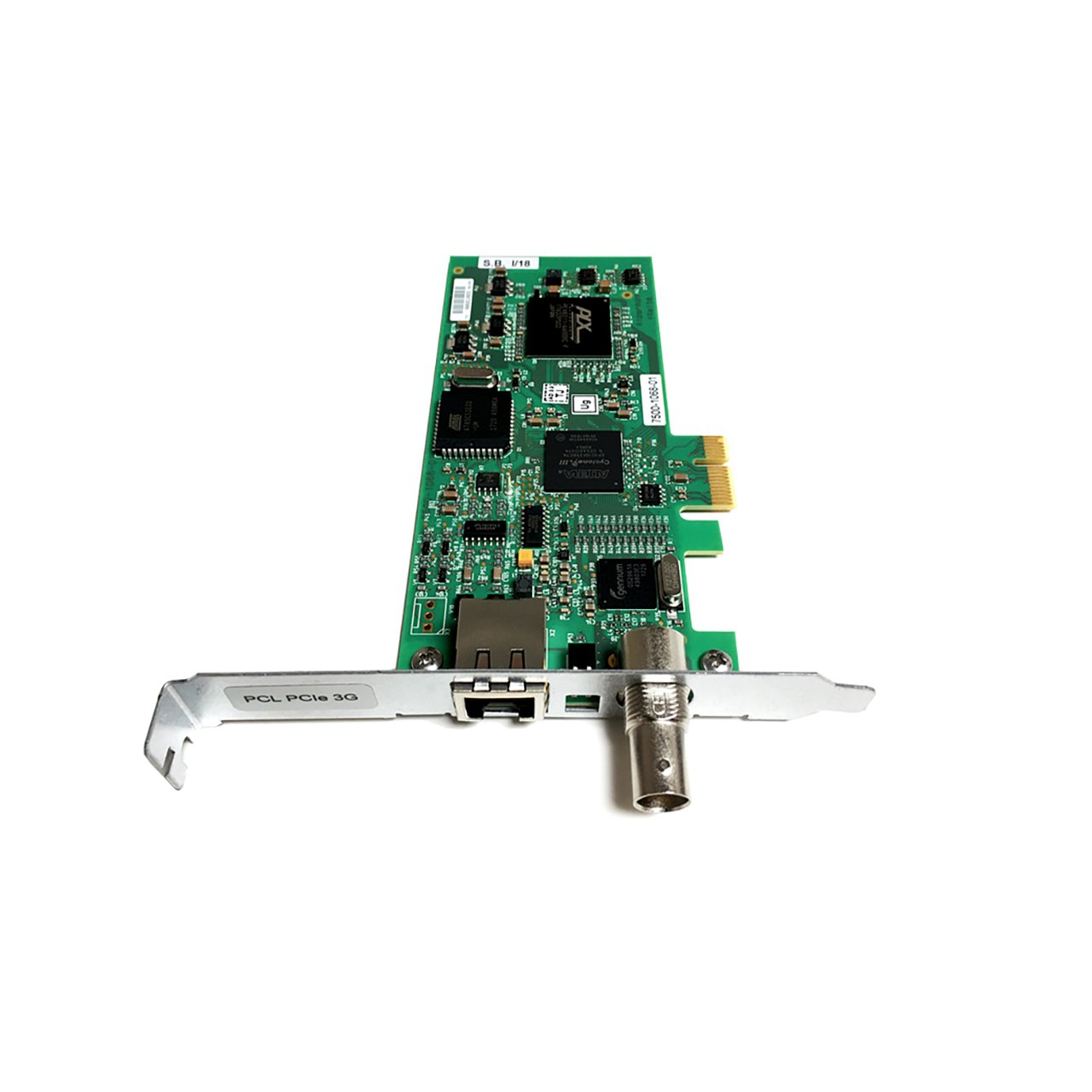

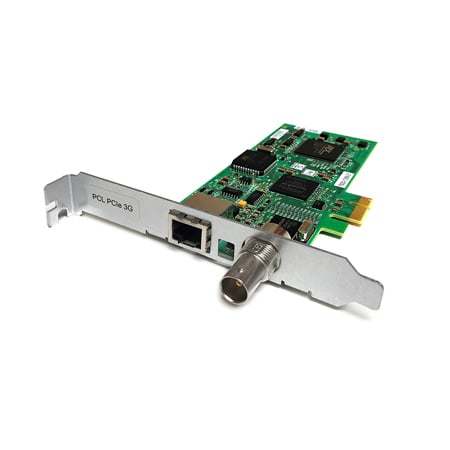

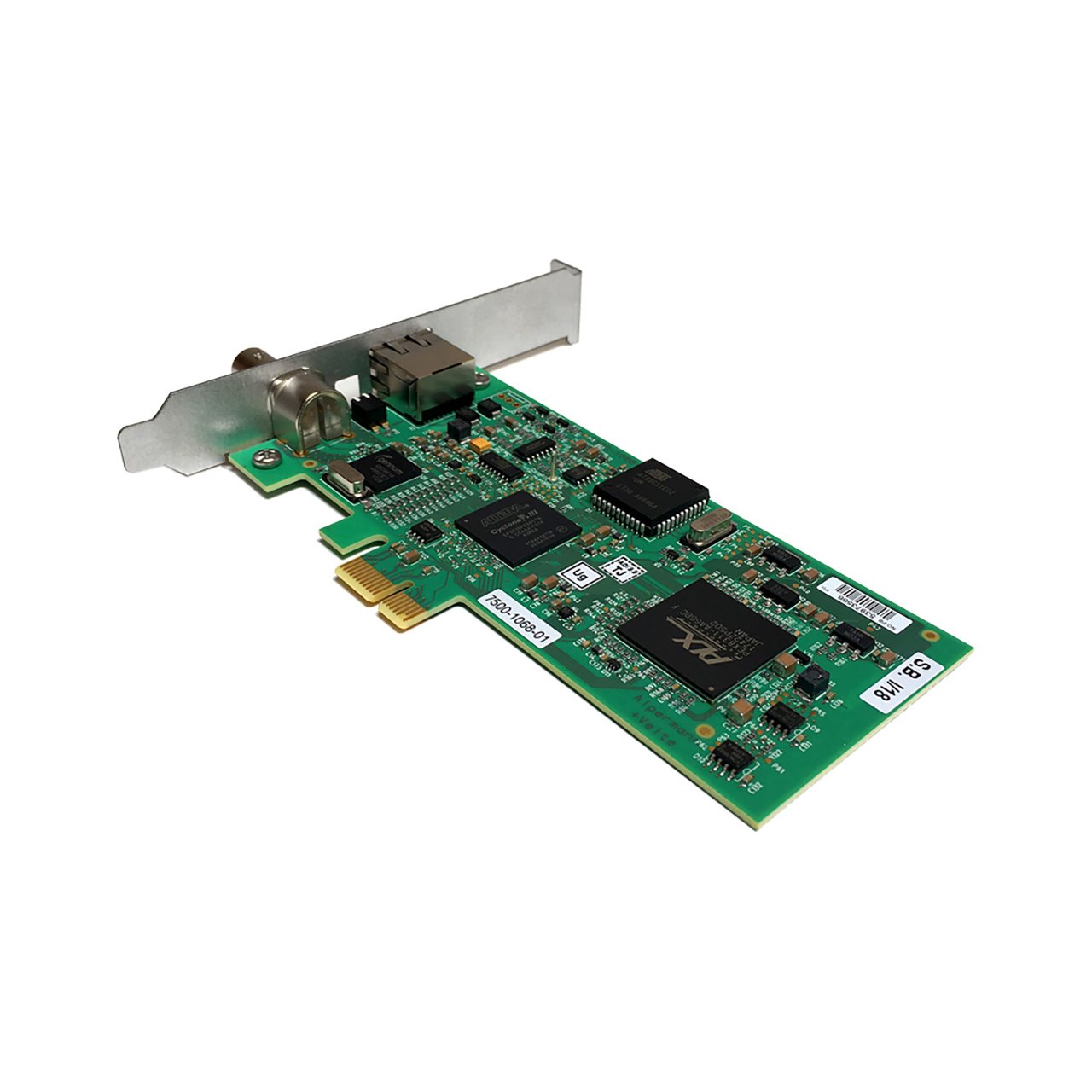

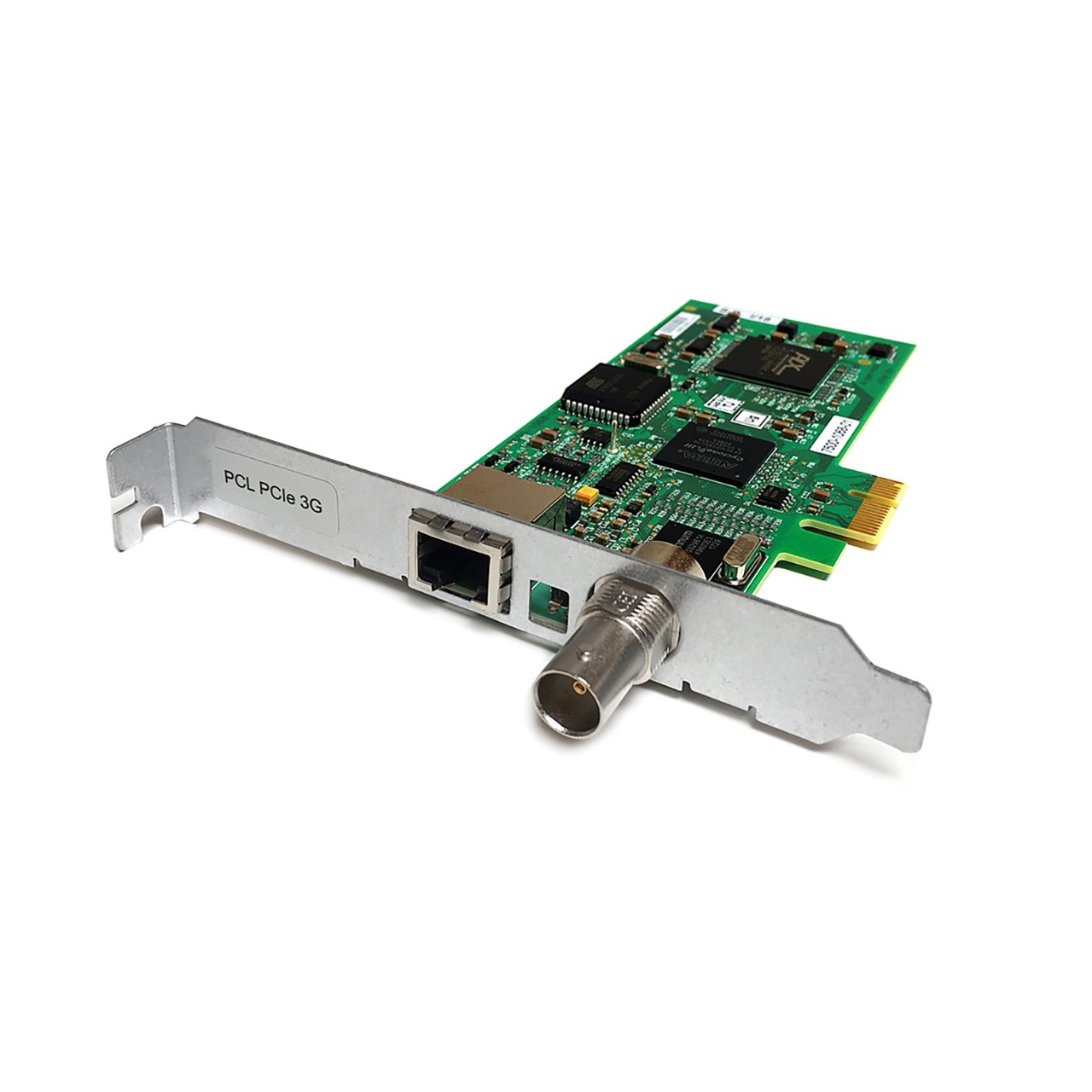

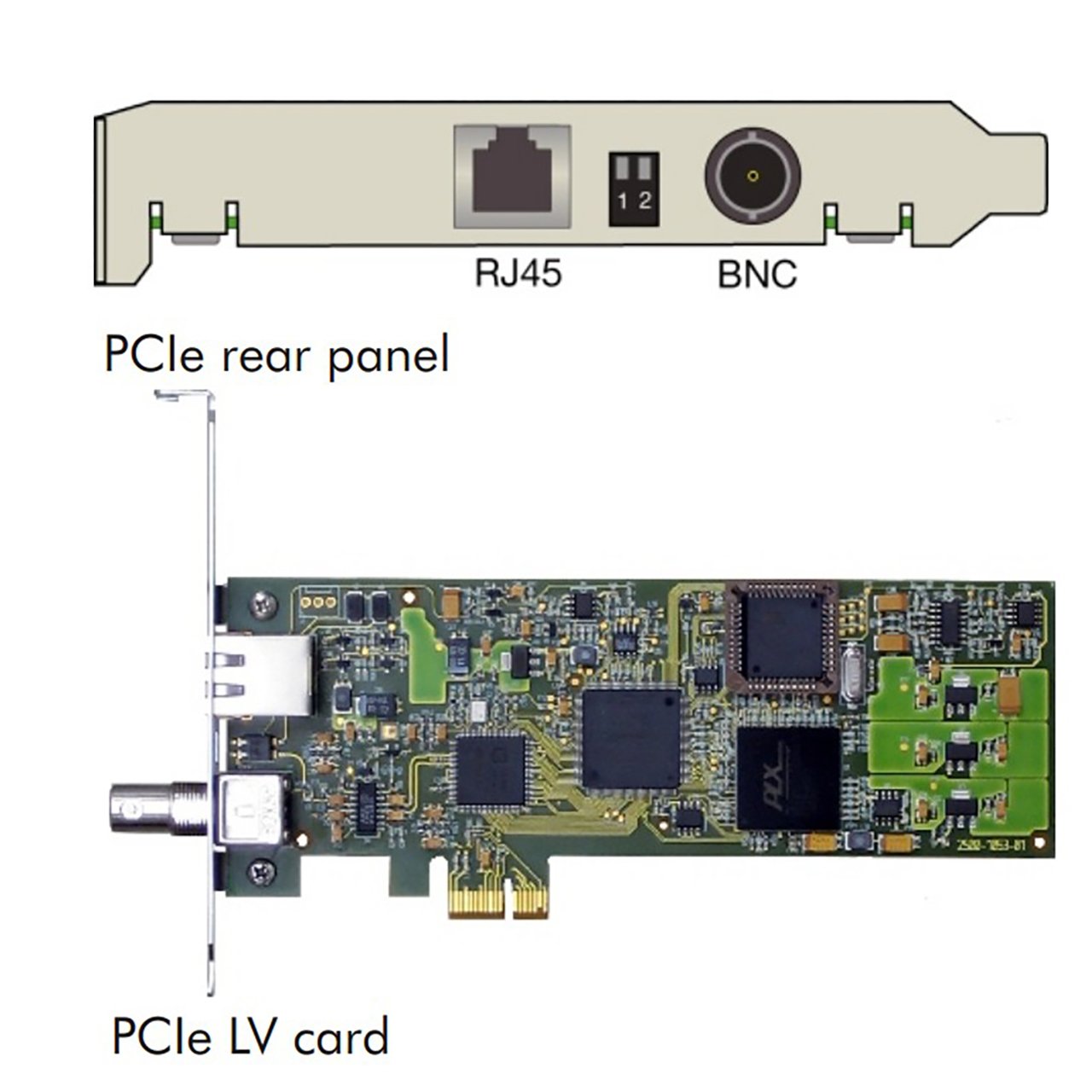

Plura PCIe 3G PCI Express Reader Card for LTC / DVITC / ATC from 3G SDI & HD or SD Video

PCIE3G - Overview

• Features:

  • PCIe 3G is a PCI Express reader card for LTC, DVITC and ATC, 3G SDI video.
  • The card has its own processor system with a register set for data transfer.
  • Critical time routines are completely decoupled from the PC's CPU, which enables extensive error checking.
  • An automatic frame rate detection (24, 25, 30, 30 DF) is supported.
  • Parallel operation of two or more PCIe-Cards is supported.
  • Windows 7-11/Server, 32/64 bit and Linux Drivers are available.
  • DLL functions for reading timecode and configuration are available.
  • C/C++, Visual Basic and Delphi are supported.
  • The "Monochrome Transfer" method of MPEG transfer is available with this card.
  • Standard and Low-Profile brackets are included.


• Specifications:

  • Weight: 0.17lbs (0.1 kg)
  • Dimensions: 5.9 x 3.14 x 0.86 in (149.9 x 79.8 x 21.8 mm)
  • Features: Reader
  • Reference Type: ATC, VITC, LTC
