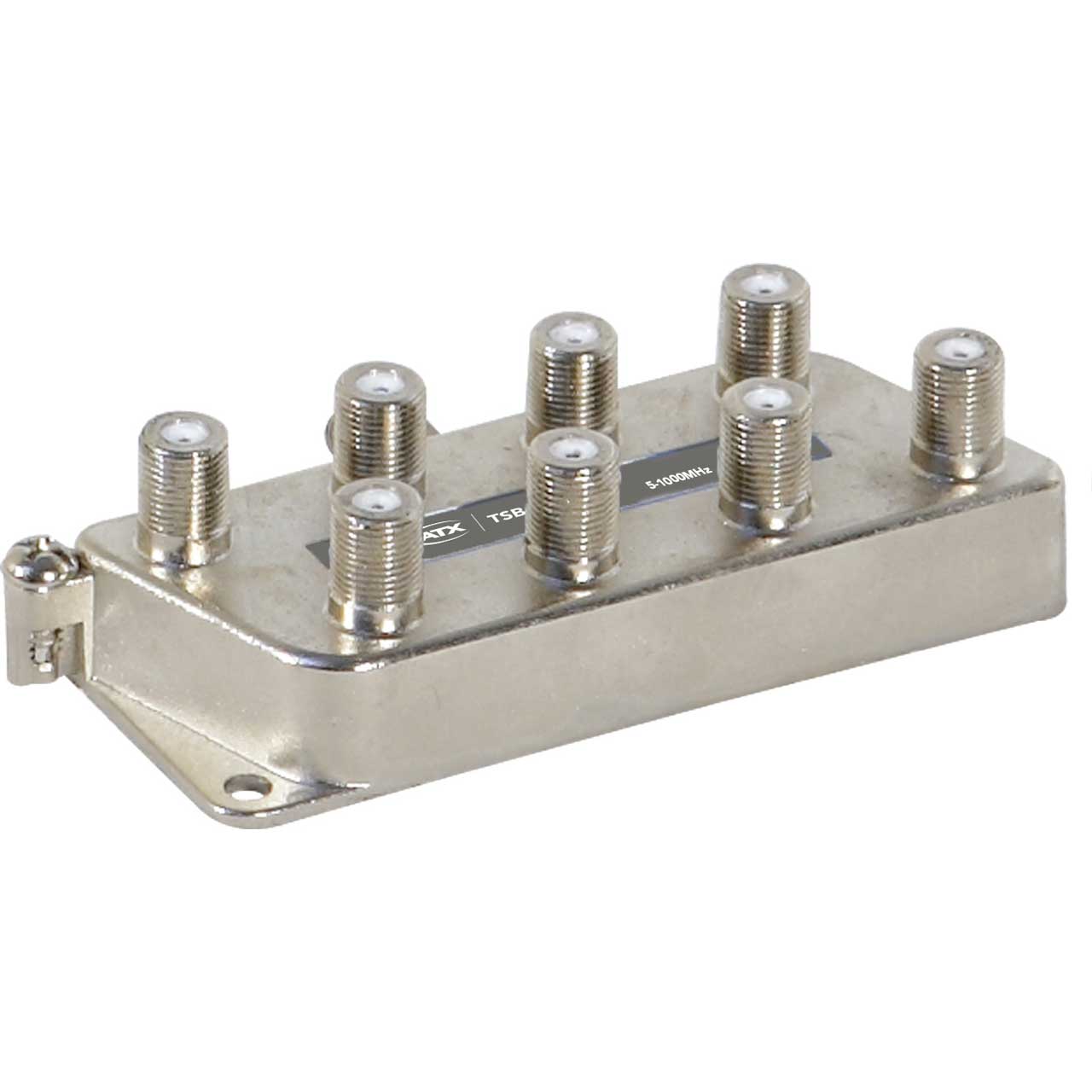

ATX Networks TSB-81G 8-Port F Splitter Soldered Back 1GHz

ITEM #: PM-TSB-81G MFG #: TSB-81G

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$7.95

Our Price:

$7.15

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    TSB-81G - Overview

    The ATX Network TSB-81G is an 8-port RF splitter with a digital-ready broadband frequency range of 5 MHz to 1000 MHz. A solder-back cover-plate provides maximum EMI-RFI shielding > - 130 dB, eliminating signal ingress to guarantee distortion-free pictures. TSB-G series splitters feature a capacitor coupling circuitry at all ports for effective DC voltage blocking.

    • Features:

      • Digital-Ready Broadband 5~1000MHz frequency range
      • Solder-back cover-plate provides maximum EMI-RFI shielding >-130dB, eliminating signal ingress to guarantee distortion-free pictures
      • High-performance printed board circuitry provides low intermodulation distortion >-100dB to ensure excellent digital performance
      • High isolation >-40dB at 5~45MHz sub-bands provides for high level upstream signals
      • TSB-1G series features capacitor coupling circuitry at all ports for effective DC voltage blocking. TSB-1GDC series provide DC power passage to one port while blocking DC power to all other ports, providing for remote powering applications and powering the antenna preamplifier directly from the headend
      • 1-inch centered 1/2? long precision machined F-connector threads ensure improved port-to-connector interface and accommodate external security devices
      • High retention seizing pins provide improved connectivity to connector center lead
