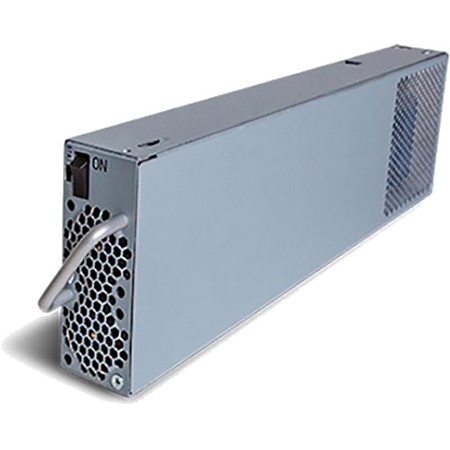

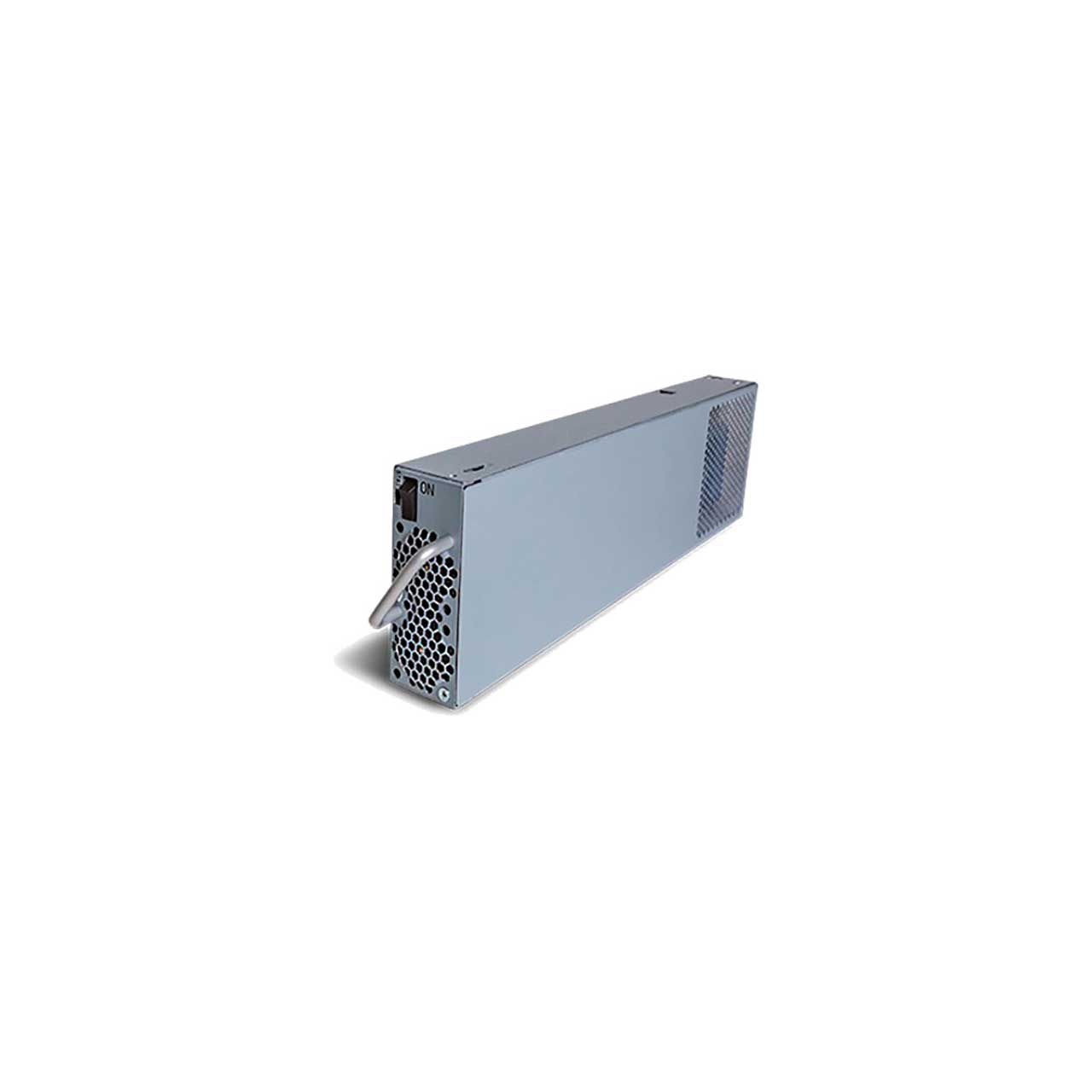

MultiDyne PS-OGX Redundant Power Supply for openGear OGX Frame


free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    PS-OGX - Overview

    The OGX-FR comes standard with one power supply with an optional power supply (PS-OGX) available for redundancy. For redundancy, and in applications where the equipment is used in a critical signal path, we recommend that two power supplies be used in the OGX-FR. One A/C power cable has been provided with each PS-OGX power supply ordered.

    • Features:

      • Two independent looping reference inputs feed all card slots
      • Can house any mix of analog, digital, video and audio cards in the same frame
      • Available with individual card specific modules for connector flexibility
      • Optional redundant power supply is hot-swappable for 24/7 operation
      • Power switch is accessible from front of the rack frame
      • Power supplies are replaceable from the front of the frame without requiring rear-frame access
      • Separate power cords to each supply for power feed redundancy
      • PowerLock cord retainer mechanism guards against accidental power loss
      • Durable powder-coat paint finish
      • Removable hinged front door for easy card insertion and removal, and flexibility in servicing the cooling fans
      • Aluminum and steel construction to reduce weight and increase strength
      • 2RU frame houses up to 20 cards
      • Robust 500W power supply with two integral cooling fans per power supply
      • Comes standard with the Cooling Fan Module for increased ventilation and enhanced reliability
      • Supports Gigabit ethernet connectivity to each openGear card in the frame (requires the MFC-OG3-N Network
        Controller Card)
      • Provides a system alarm LED on the frame front door
      • Provides an LCD Diagnostic Panel on frame front that reports the frame name, and IP address; provides the
      • ability to scroll through these reported error conditions
      • Removable door with durable powder-coat paint finish
      • 5-year transferable warranty
    • Specifications:

      • Item Specifications
      • Number of RU: 2
      • Height: 3.5" (8.89cm)
      • Width: 19" (48.26cm)
      • Depth: 17.7" (45cm)
      • Weight: (two PS-OGX installed) 20lb (9.07kg)

      • Input: 6.3A (650W)
      • Output 1: 12V 41.6A, 500W maximum
      • Output 2: -7.5V 5A, 37.5W maximum
      • Total Sum of both outputs not to exceed 500W

        Card Slots
      • Number of Slots: 20
      • Total Power Available: 450W

        Frame Controller and Fans
      • Max. Power: +12V Rail 4A, 48W
      • Max. Power: -7.5V Rail 0.2A (1.5W)
      • Total 50W Maximum

      • Max. Power: +12V Rail 0.2A (2.4W)
      • Max. Power: -7.5V Rail 0.2A (1.5W)
      • Total 3.9W Maximum

        Reference Inputs
      • Number of Inputs: 2 looping
      • Level 1: VPP nominal
      • Impedance: 75ohm terminating
      • Return Loss: >30dB to 30MHz
      • Maximum DC on REF Input: +/-1V

      • Maximum Ambient Temperature: 0°C to 40°C (32°F to 104°F)
      • Humidity, non-condensing: <95%"
    • Warranty:

      • 5-Year Transferable Warranty
