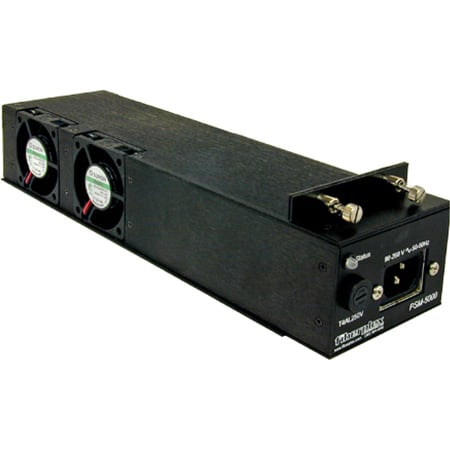

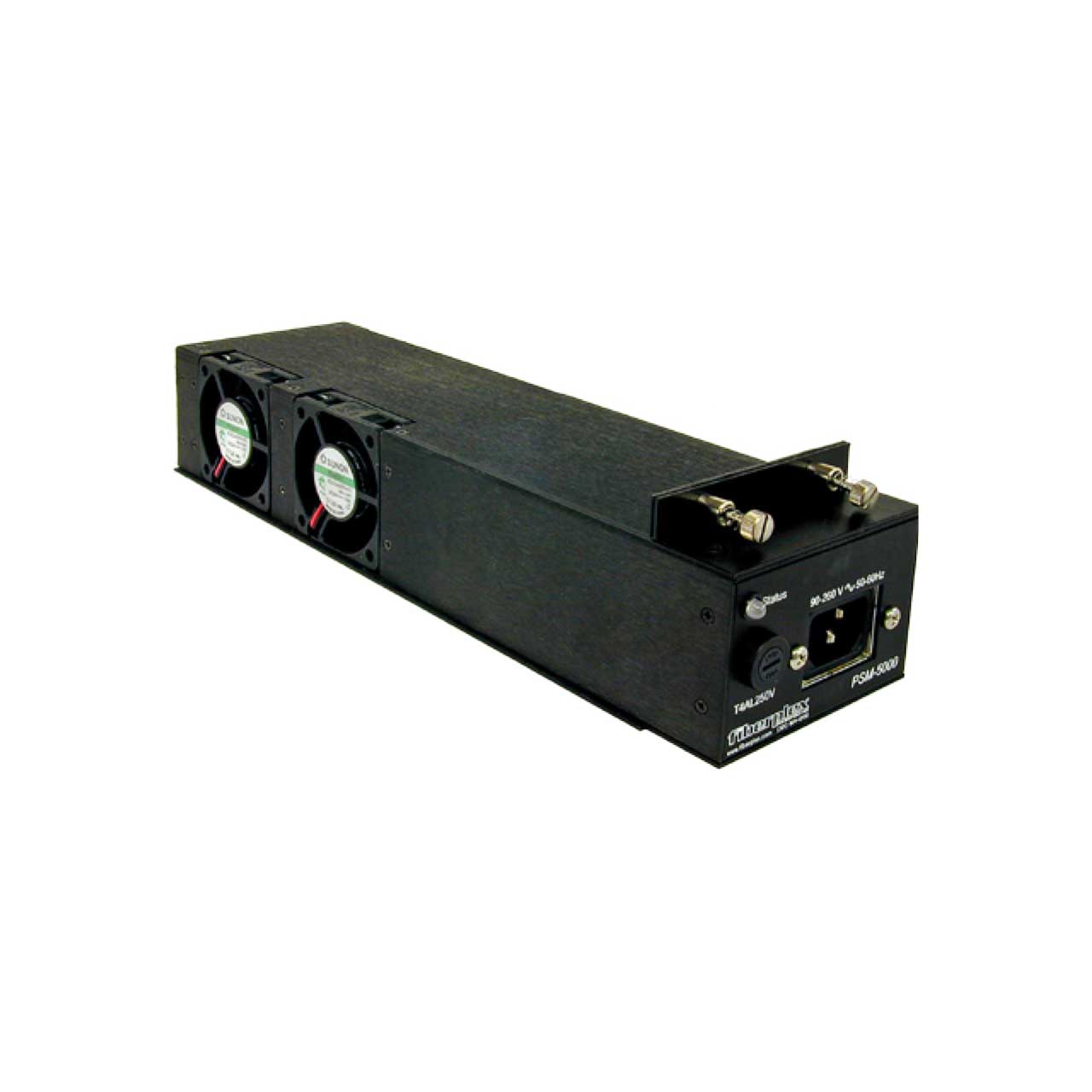

Fiberplex PSM-5000 Redundant Power Supply

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Fiberplex PSM-5000 Redundant Power Supply

    Item #: PSM-5000   •   MFG #: PSM-5000



    List Price:$599.00
    Our Price:$459.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Fiberplex PSM-5000 power supply module is designed to be inserted into the RMC- 5000 rack mount chassis. The module provides an operating voltage through the chassis backplane to power up to sixteen fiber optic module cards. Each rack mount chassis is shipped with one power supply module. For additional reliabilty and security, a second PSM-5000 may also be added for power redundancy. If the first PSM-5000 fails, the second PSM-5000 will take over the entire load and carry on normally. Additionally, if one PSM fails, an onboard alarm will sound. An PWR LED indicates that the +24VDC output voltage is present, and that the module is operating properly.


    • Features

      • Provides power to up to 16 FOM module cards in a RMC-5000 chassis
      • Power redundancy is available with a second power module
      • Hot swappable
      • AC and DC input versions available

    • Specifications

      • Power Requirements
      • Input Voltage: 90 - 250VAC
      • Input Frequency: 50 - 60Hz
      • Input Power: 240 W
      • Output Voltage: 24VDC
      • Supply Current: 10A
      • Output Power: 240W

        Environmental
      • Storage Temperature: -40° to 185°F (-40° to 85°C)
      • Operating Temperature: 32° to 122°F (0° to 50°C)
      • Dimensions (LxWxH): 11.12 x 3.12 x 2" (283 x 79 x 51mm)
      • Weight: 3Lbs (1.4kg)
