AIDA Imaging PTZ4KWP-NDI3-X30 NDI HX3 / IP / SRT Tally & IR Night Vision Outdoor IP66 4K60 PTZ Camera - 30x Zoom - White

ITEM #: PTZ4KWP-NDI3-X30 MFG #: PTZ4KWP-NDI3-X30

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,295.00

Availability: Preorder - Expected Availability Nov 2026.
iAvailability Description Popup


PTZ4KWP-NDI3-X30 - Overview

Designed to deliver reliable 4K performance in environments where conditions are anything but predictable!

The Storm Watcher
With full IP output support including NDI® HX2/3, SRT, RTMP, and RTSP - alongside a rugged IP66-rated housing, the AIDA Imaging PTZ4KWP-NDI3-X30 is built for outdoor deployment without compromise. From long-range visibility to auxiliary environmental controls like heating and cooling, this camera is a complete solution for capturing clear, controlled video in the real world.

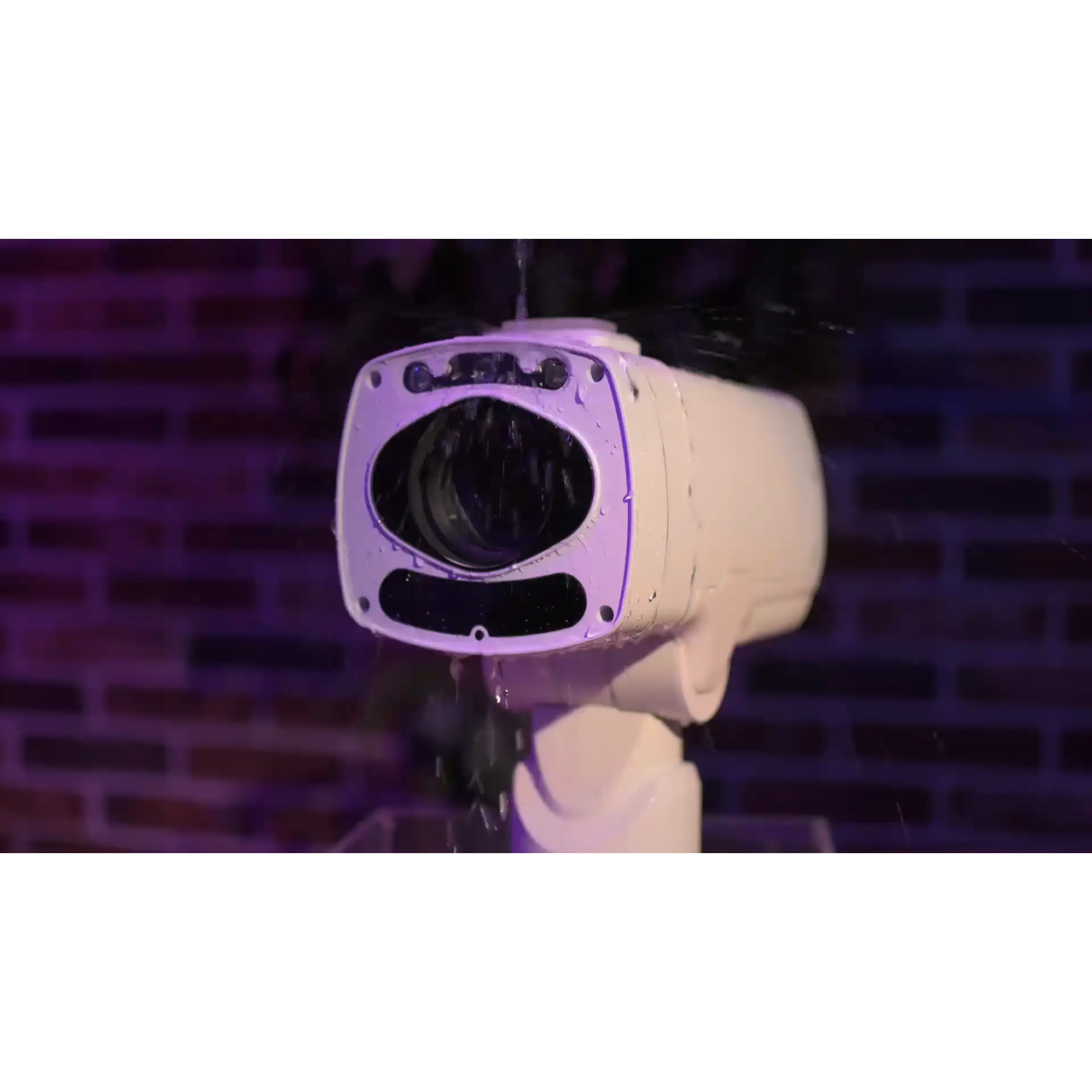

Weatherproof IP66 Design
Built for outdoor environments, the rugged housing protects against dust, heavy rain, and challenging weather conditions for reliable deployment anywhere.

4K UHD Output (60p)
Capture sharp, detailed video with support for multiple broadcast and ProAV resolutions up to 2160p60.

Full-IP PoE++ PTZ Support
Stream via NDI® HX2/HX3, SRT, RTMP, and RTSP for flexible integration across new and existing modern IP and broadcast systems. Using PoE++, you can establish those satisfying 1 cable runs to power the camera!

UHD 30x Optical Zoom with Sony CMOS
AIDA's powerful 30x UHD optical zoom can capture up to 120ft with detail! Paired with a Sony 1/1.8" CMOS, the dynamic duo is unparalleled when it comes to long-range clarity in low-light performance and depth.

On-Air Tally/Low Light Capture
With a On-Air Tally controlled by NDI® commands, your talent knows exactly where to look during showtime. If thats not enough, during low-light scenarios the IR filter can be toggled, or white LED lights triggered to brighten the scene.

Applications:
• Outdoor events
• Hospitality
• Surveillance
• Traffic control
• Government

  • Features:

    • Stream pristine UHD (3840x2160) video at 60fps across universal IP protocols, including NDI HX3, NDI HX2, and SRT!
    • Contains a 1/1.8" 4K SONY CMOS sensor guarantees flawless imaging across extreme lighting-from glaring sunlight to near-total darkness.
    • A switchable IR cut filter instantly unlocks true infrared sensitivity for enhanced night vision.
    • An integrated, variable-intensity white LED provides tailored, on-demand illumination for low-light environments.
    • Built-in auxiliary climate controls (heating and cooling) ensure reliable operation across extreme ambient temperatures.
    • Native PoE++ support for streamlined setups.
    • A powerful 4K 30x optical zoom module captures crisp, detailed close-ups from 120 - 140 feet away.
    • A dedicated 3.5mm Line-in ensures perfectly synchronized, zero-latency audio and video across all IP streams.
    • An exceptionally cost-effective 4K PTZ, delivering uncompromised UHD broadcast quality for entry-level studios.
    • Full Setting parameter control over the webUI, HTTP or VISCA over IP.
    • Securely wall-mount via AIDA's WM-PTZ-JTYPE, seamlessly integrating with the JBOX-PTZWP junction box to fully weatherproof your wiring (sold separately).

  • Specifications:

      Video
    • Image Sensor Size: 1/1.8" Progressive CMOS
    • Effective Pixels:
      - Horizontal: 1920
      - Vertical: 1080
    • Pixel Size: 2.0µm (H) x 2.0µm (V)
    • Resolutions: 1080p, 1080i, 720p
    • Resolution Rates:
      - 2160 60p/59.94/50p/30p/29.97p/25p
      - 1080 60p/59.94/50p/30p/29.97p/25p/24p/23.98
      - 720 60p/59.94p/50p/30p/29.97p/25p
    • Output: IP (NDI HX/SRT/RTMP/RTSP)
    • Color Space: 4:2:2 (YcbCr) 10bit
    • Min Illumination: 0.2Lux (day), 0.1Lux (night)

      Pan-Tilt Motor
    • Pan Rotation Angle: +167° - -167° (334° range)
    • Tilt Rotation Angle: +49.5° - -59.5° (109° range)
    • Pan Rotation Speed: 0.5°/s - 60°/s (24 steps)
    • Tilt Rotation Speed: 0.2°/s - 34.2°/s (24 steps)

      Optics & Audio
    • Lens: 30x UHD Optical Zoom
    • Lens F-Stop: F1.35 - F4.6
    • Lens HFOV (angle): 60° Wide, 2° Tele
    • Audio Input: 3.5mm TRS Stereo Audio Input
    • Audio Embed: Over All IP Streams
    • Sample Rate: 16/24/32 Bits

      Other
    • Control: WebUI (UDP/NDI®)
    • Dimensions (home position): 10.1" x 5.92" x 12.1" (25.5cm x 12.5cm x 30.5cm)
    • Dimensions (needed for full movement): 10.1" x 9.5" x 14.0" (25.5cm x 24.0cm x 35.5cm)
    • Operation Temp,: 14°F - 131°F (-10°C - 55°C) ±10%
    • Auxiliary Controls: Heating up to 104°F (40°C) and Cooling Fan
    • Weight: 11lbs (4.8kg)
    • Power: 12VDC (+9 - +15VDC) or PoE++ (IEEE 802.3bt)
    • White LED Count: 3
    • LED Lumen Count: 180 (540 lumen total for 3 LED)
    • Power Draw LED: 680mA

  • Item Includes:

    • 1x AIDA Imaging PTZ4KWP-NDI3-X30 NDI HX3/IP/SRT Tally & IR Night Vision Outdoor IP66 4K60 PTZ Camera - 30x Zoom - White

  • GTIN:

    0792671146971
