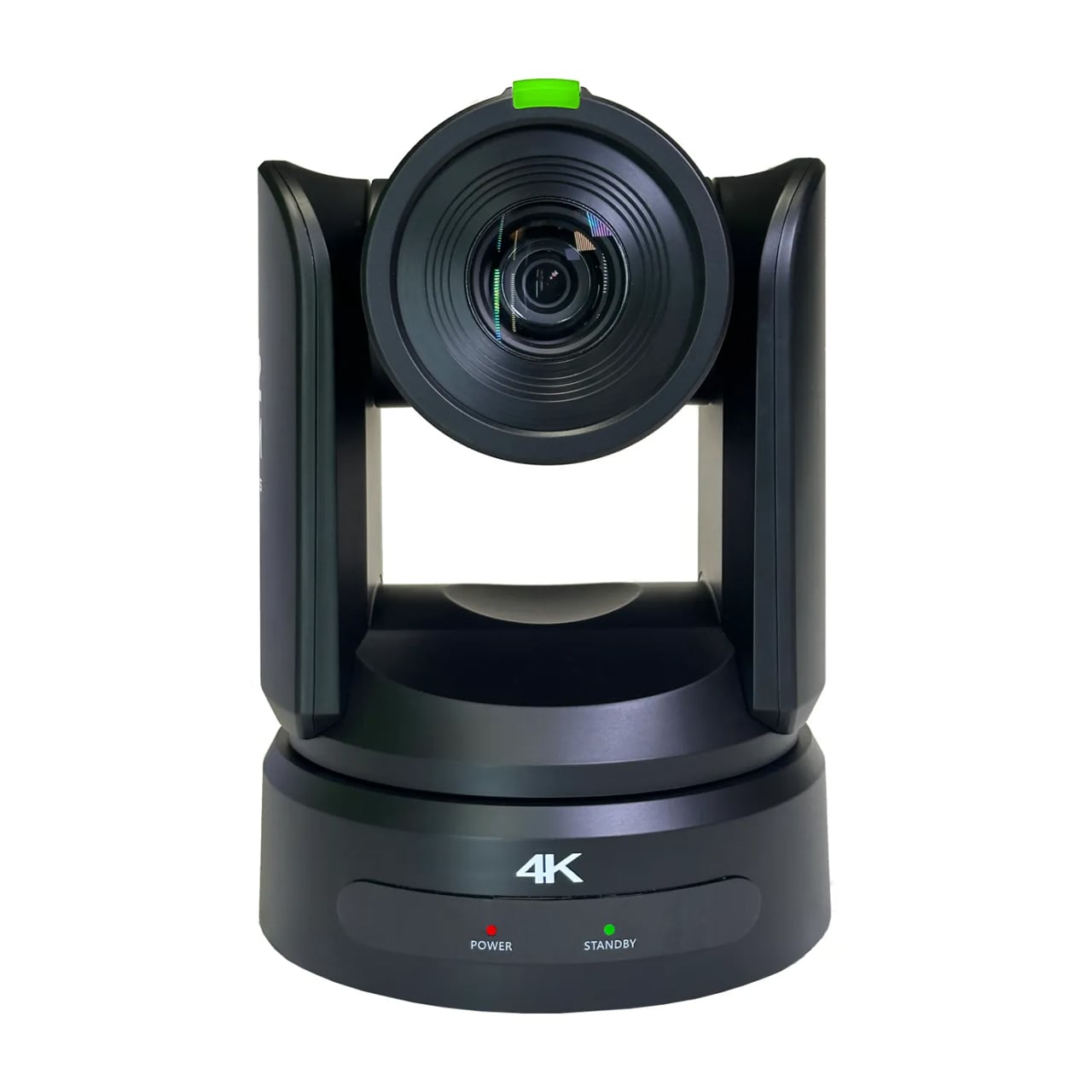

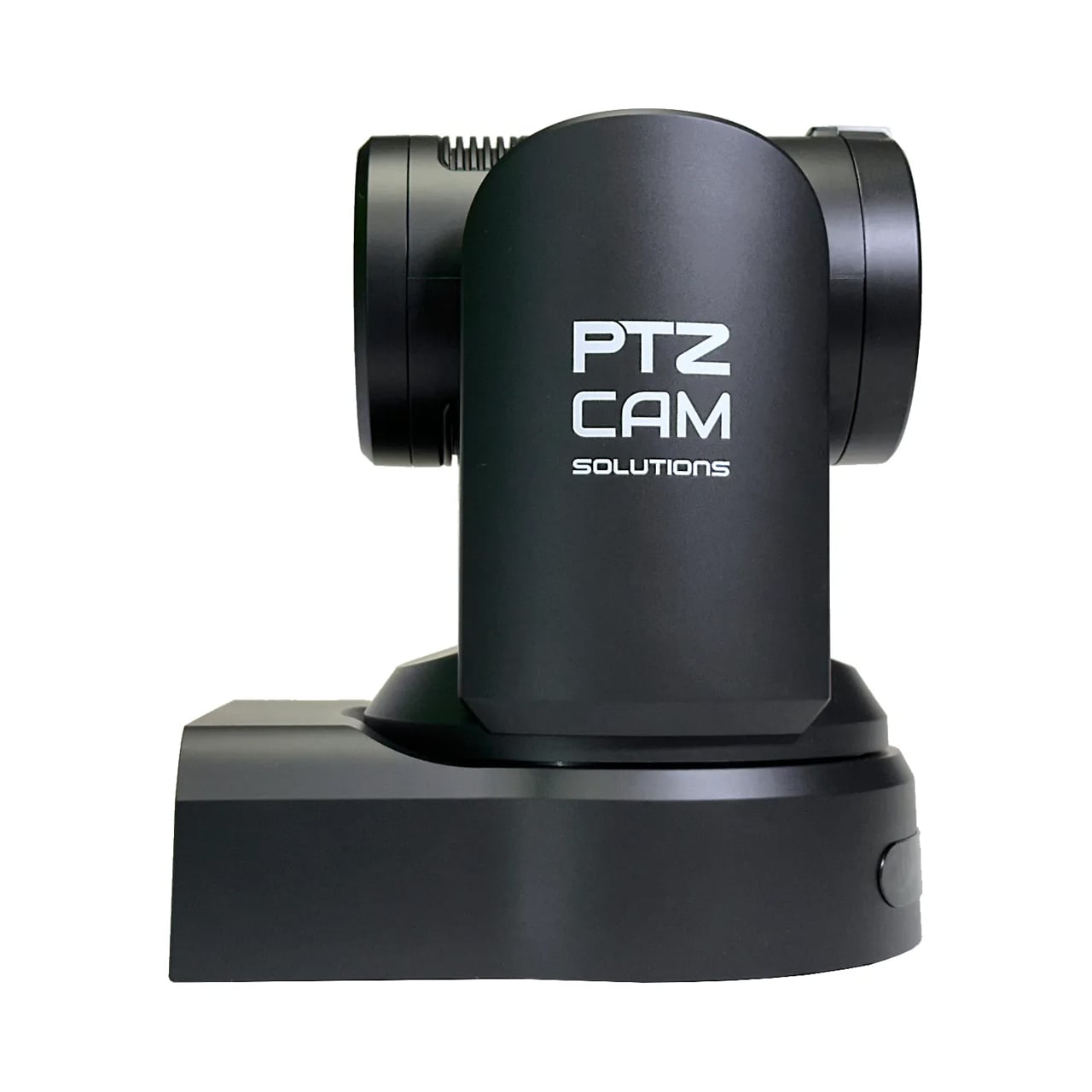

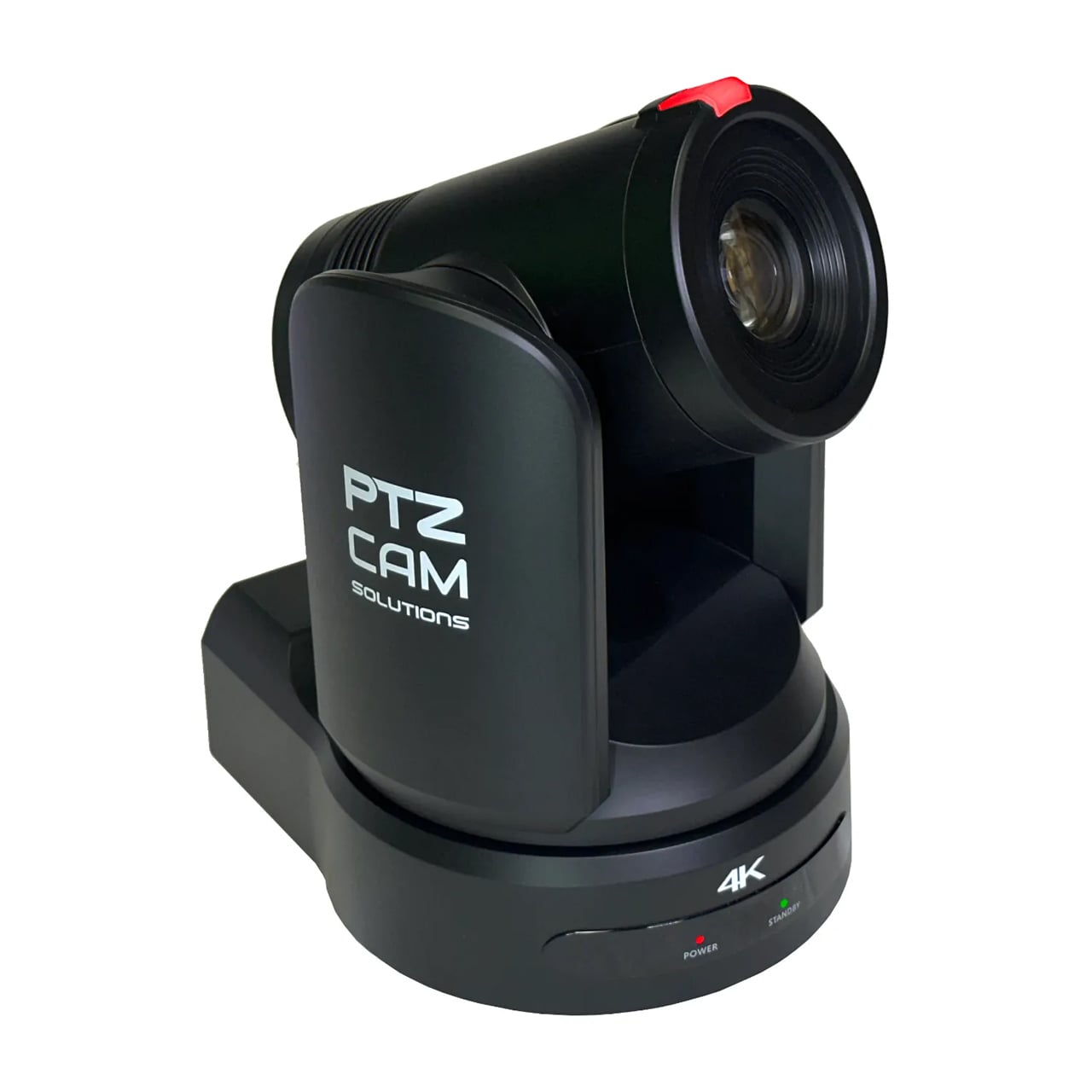

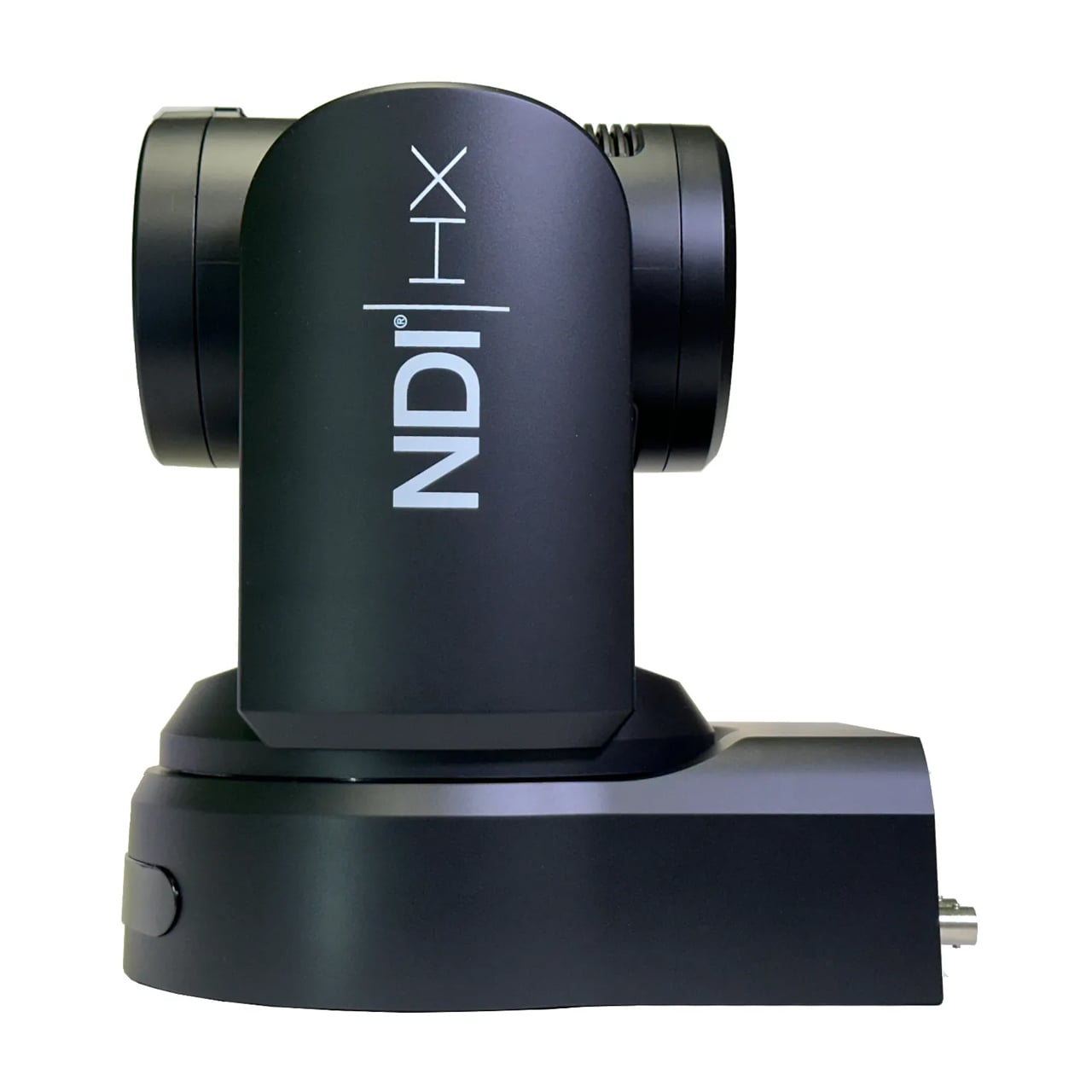

PTZCam PTZC-RAPTORX30 UHD 4K60 30x Zoom PTZ Camera with Dual 12G-SDI Outputs and NDI HX3 / FreeD Support

PTZC-RAPTORX30 - Overview

• Features:

  • 3840x2160 (UHD) resolution up to 60fps - Meets standard 4K television and streaming requirements
  • 30x optical zoom allows for close-up image capture in large spaces
  • Dual simultaneous 12G-SDI outputs and HDMI 2.0 output allow for integration with professional broadcast gear
  • NDI|HX3 - High-quality, low-bitrate encoding and integration with the vast NDI ecosystem
  • IP streaming - Built-in H.265 encoding and streaming to multiple network video formats, including RTMP, RTSP, SRT, and ONVIF
  • FreeD - Send precise camera positioning and lens data to virtual production software such as Aximmetry, Unreal Engine, and others
  • Flexible control - Support for most common PTZ protocols, such as VISCA, PELCO-P/D, ONVIF, and NDI
  • Tally light - Stay in control of your on-air talent with the two-color tally


• Specifications:

  Optical
  • CMOS Sensor: 1/1.8" CMOS
  • Zoom: 30x
  • Effective Pixels: 8.3 Megapixels
  • Video Format: 2160p60/59.94 2160p50, 2160p30/29.97, 2160p/25, 1080p60/59.94, 1080p50, 1080p30/29.97, 1080p25, 1080i60/59.94, 1080i50, 720p60/59.94, 720p50
  • Optical Zoom:
    - 30x Optical Zoom
    - 12x Digital Zoom
  • HFOV: 2.5° (T) - 59.2° (W)
  • Iris: F 1.61 - F 5.19
  • Min Illumination: 0.05 lux (F 1.61)
  • Digital Noise Reduction: 2D & 3D Noise Reduction
  • White Balance: Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW
  • Focus Mode: Manual/Auto/Z - Trigger
  • Iris Mode: Manual/Auto
  • BLC: 1-8/OFF
  • Picture Adjustment: Brightness, Hue, Saturation, Contrast, Sharpness

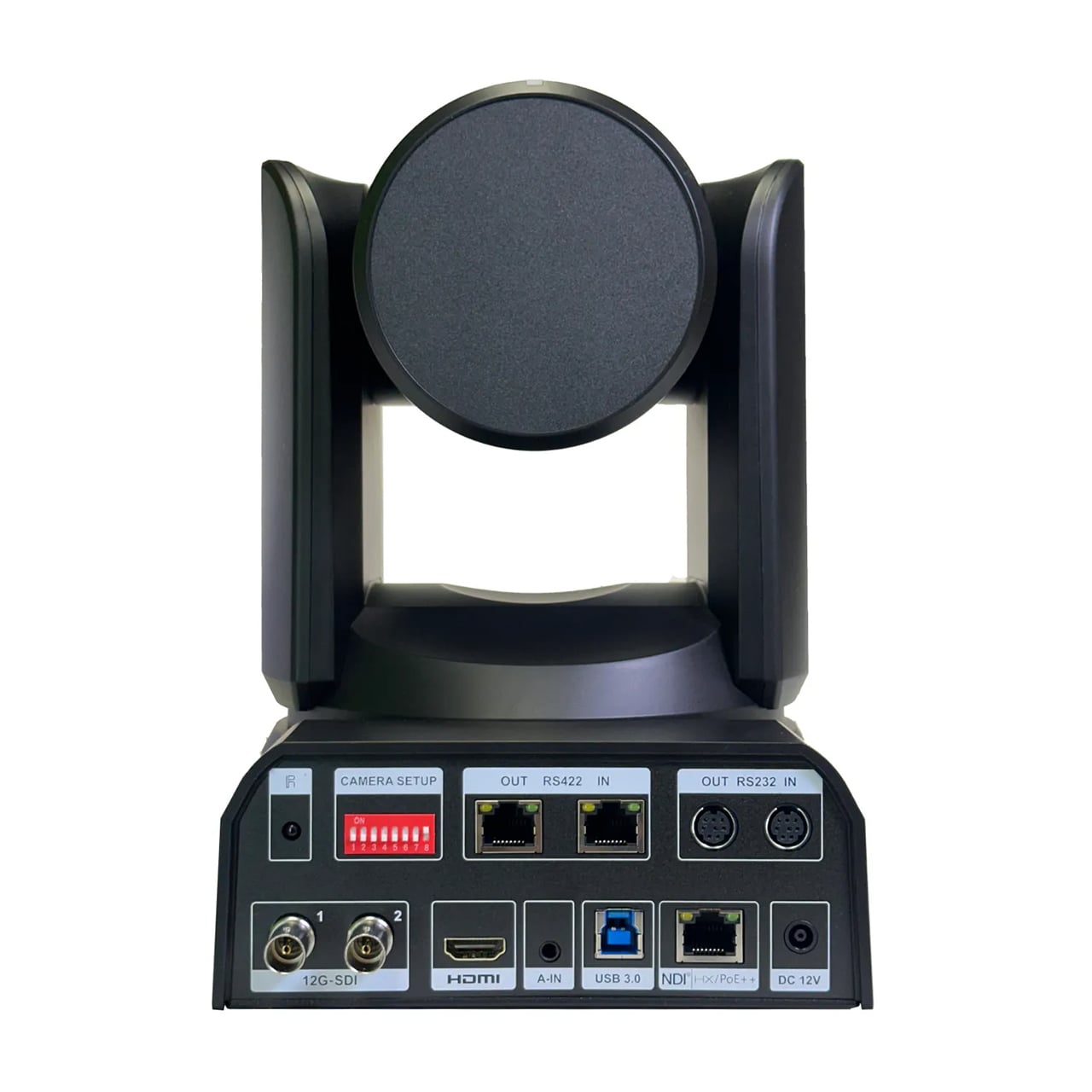

    Inputs & Outputs
  • Video Output Interface:
    - HDMI 2.0
    - 2x 3G-SDI or 2x 12G-SDI
    - RJ45
    - USB 3.0
  • Video Compression Format: H.264, H.265, MJPEG
  • Control Interface:
    - 1x RS232 In
    - 1x RS232 Out
    - 1x RS422 In
    - 1x RS422 Out
    - 1x RJ45
  • Control Protocol: VISCA/PELCO-D/PELCO-P, VISCA OVER IP, ONVIF, UVC (only for USB interface?
  • Baud Rate: 2400/4800/9600/19200/38400bps
  • Audio Input: Dual Channel 3.5mm line input
  • Audio Compression: ACC, G711A, G711U
  • Network Interface: 1000m Internet Access (10/100BASE-TX)
  • Network Protocol: RTSP, RTMP, ONVIF, NDI|HX, SRT, GB28181, VPN
  • Power Interface: DC-038 Outlet (DC12V)

    Pan/Tilt Mechanical Parameters
  • Pan Rotation Angle: -173° - +173°
  • Tilt Rotation Angle: -30° - +90°
  • Horizontal Rotation Speed Range: 0.1 - 100°/s
  • Vertical Rotation Speed Range: 0.1 - 80°/s
  • Presets: Max Support for 255 Presets

    General
  • Power Adapter: AC100V - AC240V Input, DC12V/2A Output
  • Input Voltage: DV12V
  • Power Consumption: 15W (Max)


• Item Includes:

  • 1x RAPTOR X30 PTZ Camera
  • 1x IR Remote
  • 1x Power Adapter


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0601961419728
