    PWB-100-WHT - Overview

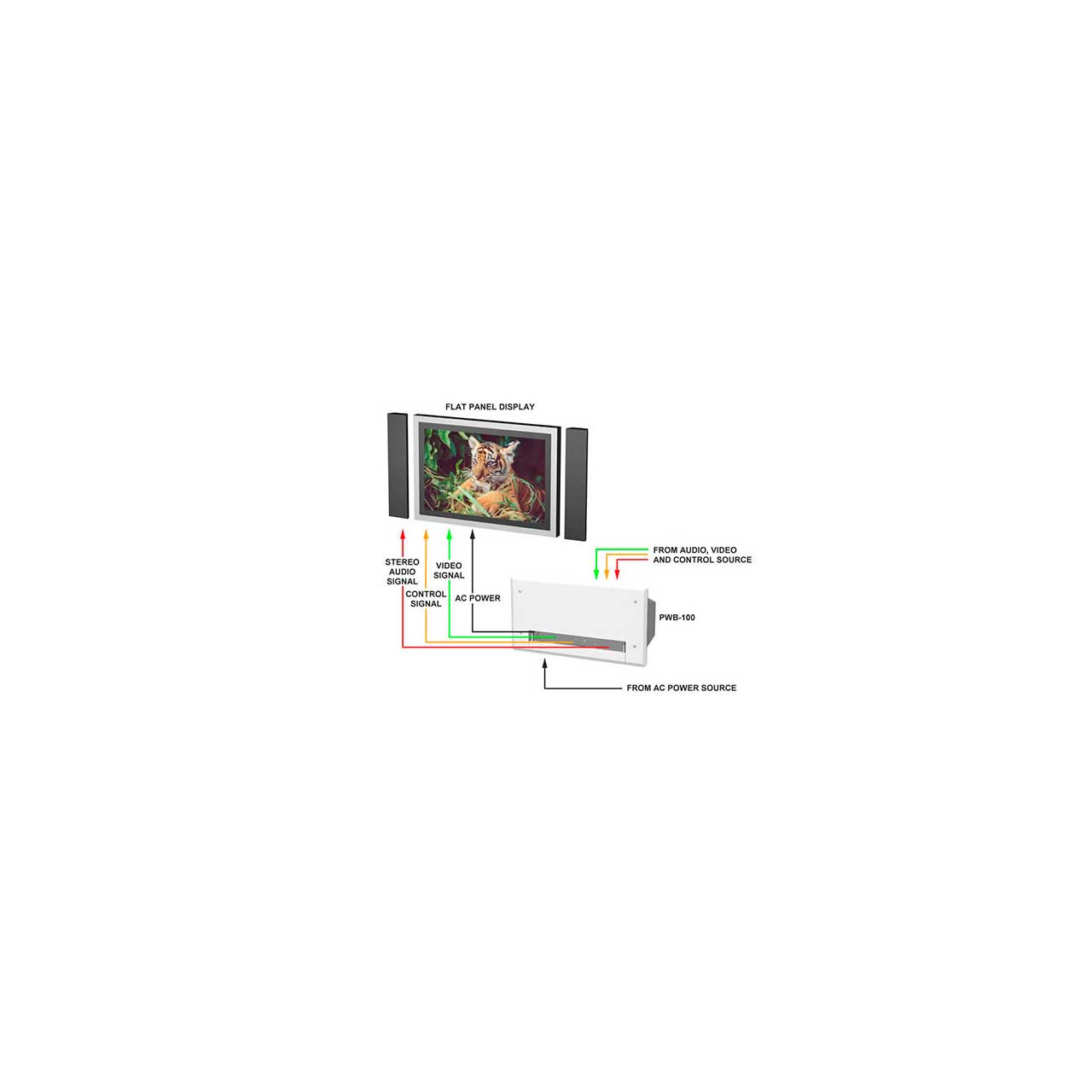

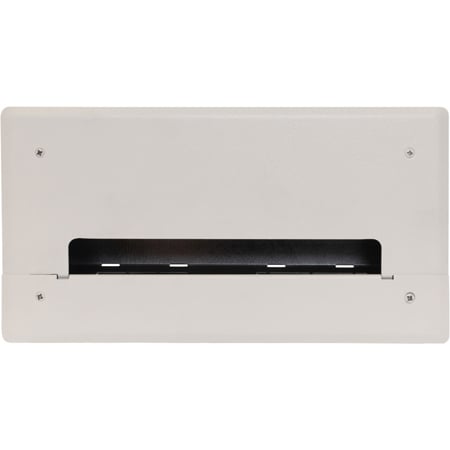

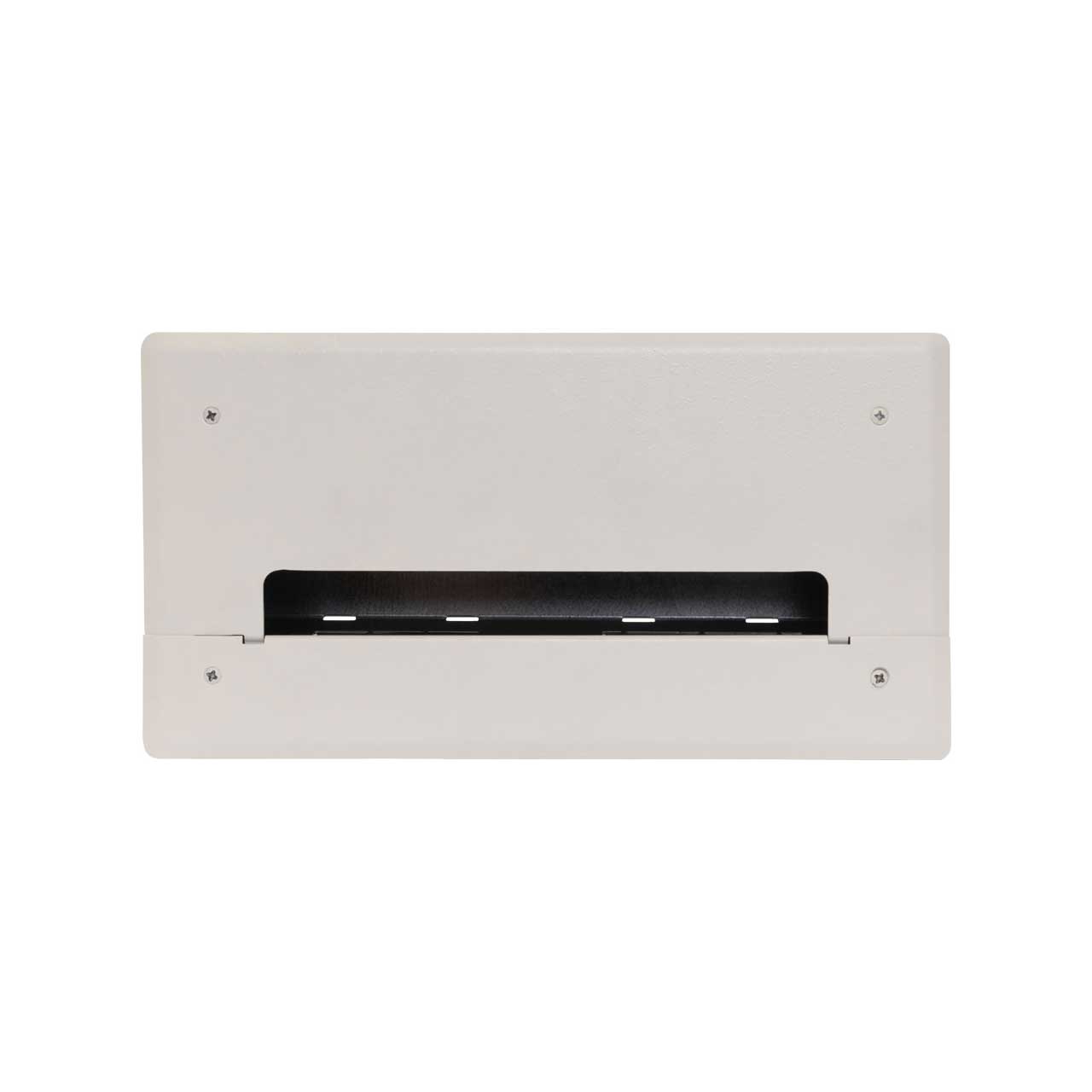

    The FSR PWB-100-WHT is a steel back project wall box that provides a neat and secure environment for audio, video and power connections. It contains a black cover and back box, and is the essential installation accessory for any flat panel display. The backbox now has the ability to mount 1 decora device, 1 low voltage device, or 1 provided Gem box and is compatible with FSR's 4 and 6 IPS inserts. This project wall box installs easily between any two standard studs, allowing your screen to sit flush against the wall.

    Connections and cable entry can be on the top or the bottom depending on installation preference. Designed to mount along the bottom edge behind a flat panel display, the PWB-100 provides a single point for all your connections. The unit accommodates up to six single space Intelligent Plate Solution plates and a UL listed single gang gem box for AC power.

    The PWB is available in white or black and is suitable for painting or other finishing, matching any d‚cor. It has a cable exit slot for the display connections and the excess cable can easily be hidden inside of the box making the entire installation as clean as possible.

    The cover screws onto the front of the box once all connections are in place. FSR designed this unit for new and existing construction. Brackets are included for mounting to studs in new construction as well as surface mount clips for mounting to sheet rock or plywood in existing construction.

    • Features:

      • Triple Play Mounting Solution
      • Rugged 14 gauge steel back box with 1/16" front cover
      • Compatible with FSR's IPS inserts
      • Can be installed in new or old work (mounting adapters included)
      • AC and low voltage back box included
      • Connectors are hidden behind an attractive cover
      • Multiple knockouts in a variety of sizes
      • UL listed AC back box provides
    • Specifications:

      • Package Weight: 7.065 lb
      • Box Dimensions: 13 x 9.75 x 6.75"
    • Item Includes:

      • 1x Low Voltage Black Box
      • 2x Surface Mount Clips
      • 1x Pass Through Grommet
      • 1x UL Listed Gem Box
      • 2x Custom Madison Clips
      • 2x Stud Mount Bracket
