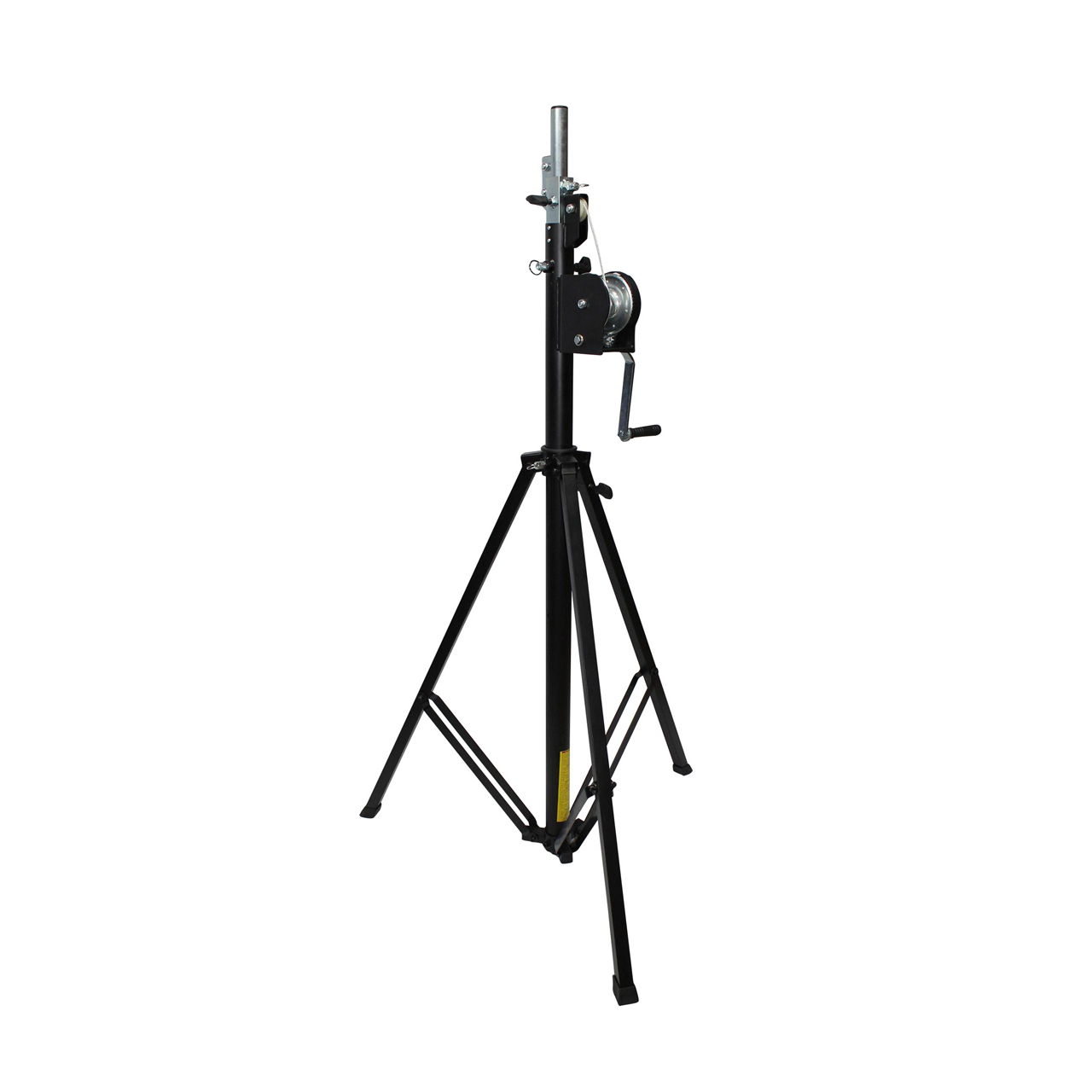

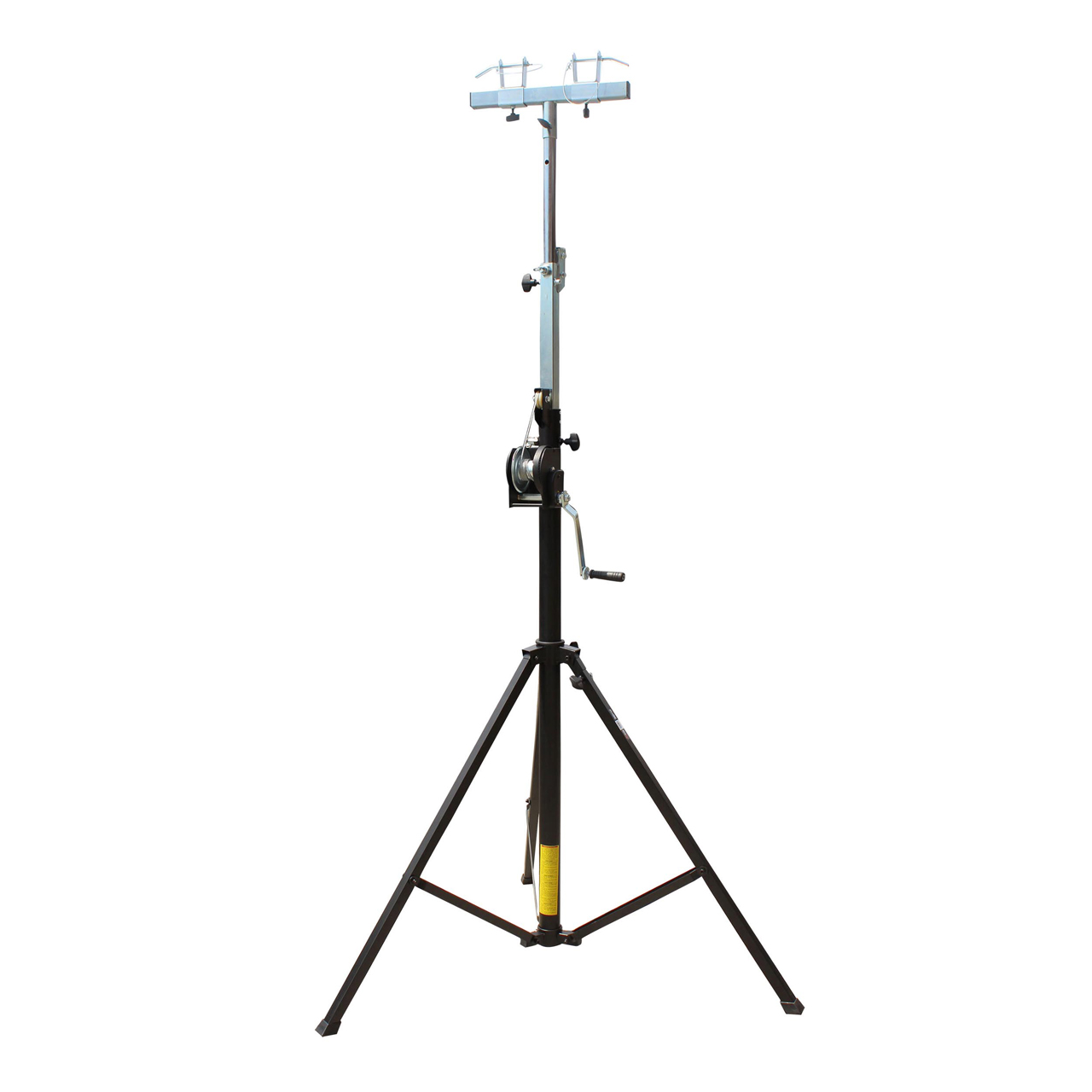

The ProX XT-LS132 14ft Heavy-duty Lighting Crank Truss Stage Stand Includes T-Adapter Truss Mount 200lbs Capacity. This a 14ft heavy-duty lighting crank truss stage stand that includes a T-adapter truss mount, boasting a remarkable 200lbs capacity. This stand serves as an essential component of the Truss SQ System, designed for the temporary mounting of lights at various events, especially suited for small to medium-sized DJ lighting setups.
Crafted with heavy-duty, all-metal components and a robust steel/aluminum construction, each ProX XT-LS132 stand ensures durability and reliability. It effectively eliminates the need for direct lifting and lowering of heavy loads, making it a practical choice for various applications, including live band performances and mobile DJ setups.

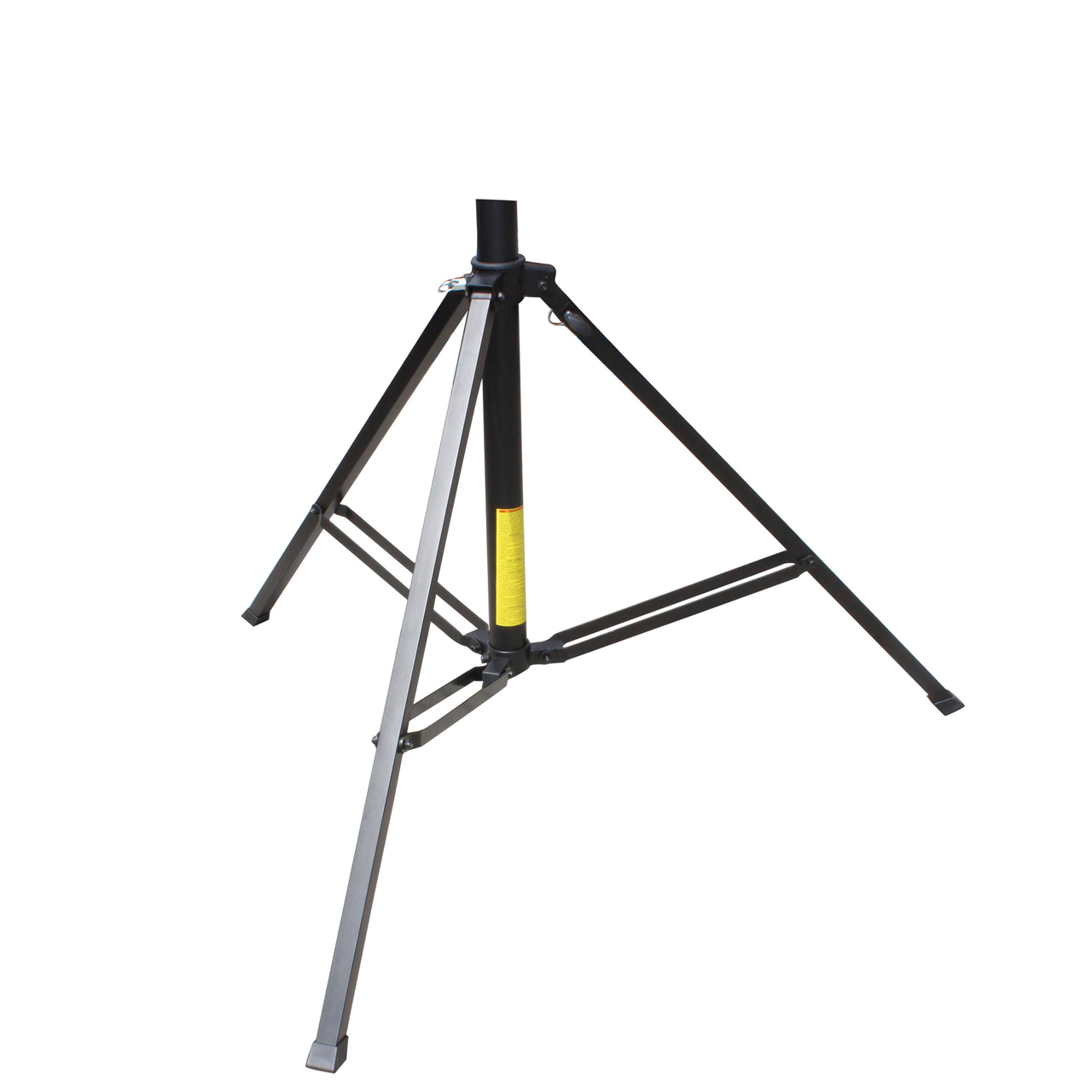

Additionally, this stand offers easy folding, enabling convenient transport and storage. Equipped with a smooth and dependable heavy-duty cranking mechanism, it simplifies the task of adjusting lighting setups.

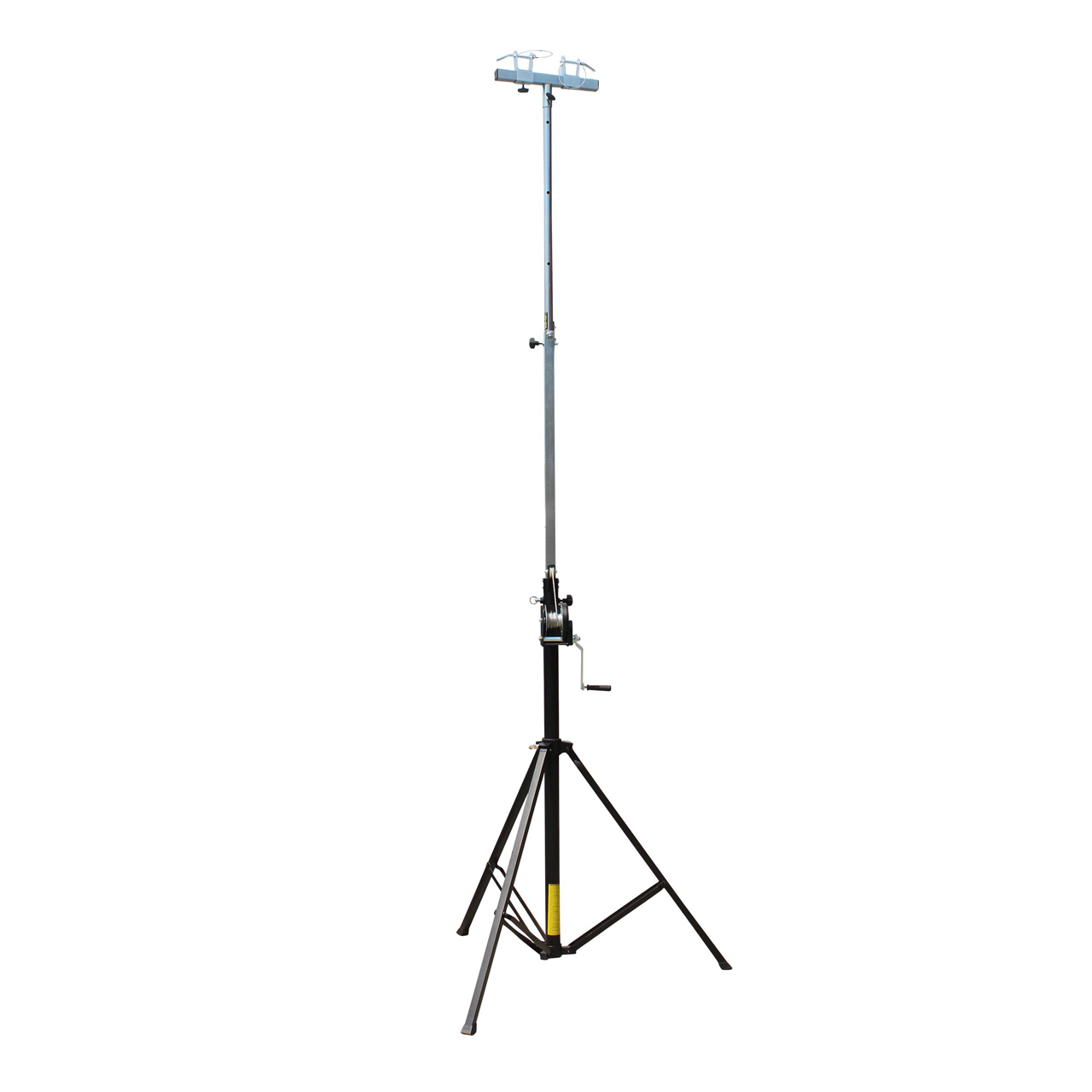

When collapsed, the ProX XT-LS132 stands at a height of 65", and it can be raised to an impressive 14ft, making it an ideal choice for versatile and dynamic lighting arrangements.
Basic Usage
Ensure that the stand is positioned on a hard stable surface, in a suitable location, on firm ground, and clear of overhead obstacles.
Stabilize legs before lifting the tower or any load. When outdoors, secure the tower with braces or cables, in case of wind. Check the cable, it should not show damaged or flattened areas or broken strands.

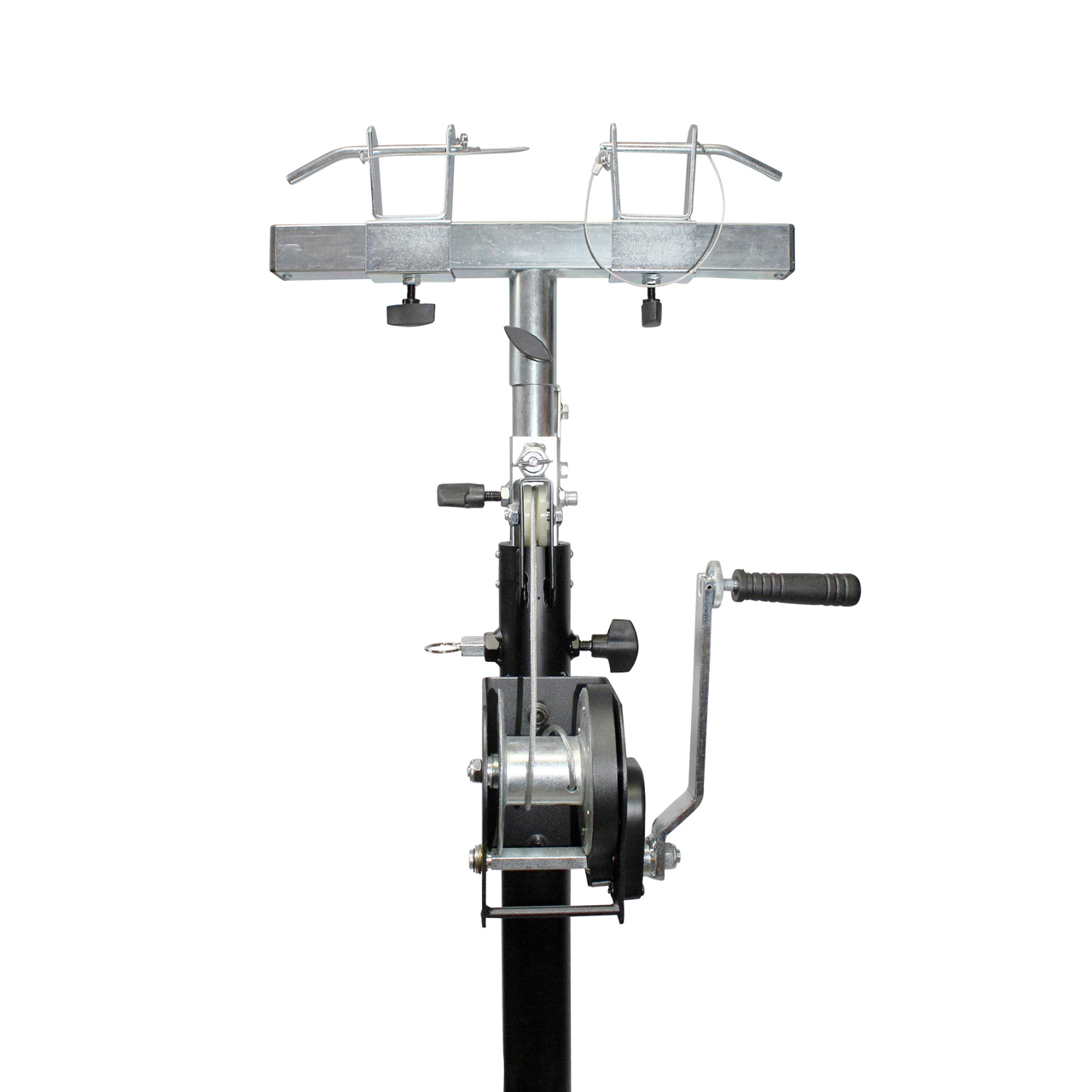

Using the Winch
For Lifting the tower, turn the winch handle clockwise. To lower the tower, turn the winch handle counter-clockwise.
Safety Notes:
• Loading on trusses and stands should comply with rated weights.
• Lock all the safety mechanisms (safety pins, knobs).
• Loads must be centered & balanced on each lifting unit.
• Safety chains must be installed on each item attached to the unit.
• Leave a safety perimeter with a radius 5ft greater than the maximum height of the stands during lifting and lowering of loads.
• During transport, close all the sections and lock the lifting carriage.
• Do not attempt to move the stand when loaded or in the extended position
Service Notes:
• Servicing and repairs must be made by qualified persons.
• Cable, pulleys, and telescopic masts must be inspected before each use. Any damaged cable must be replaced immediately.
• An annual inspection by an authorized technician is suggested.
