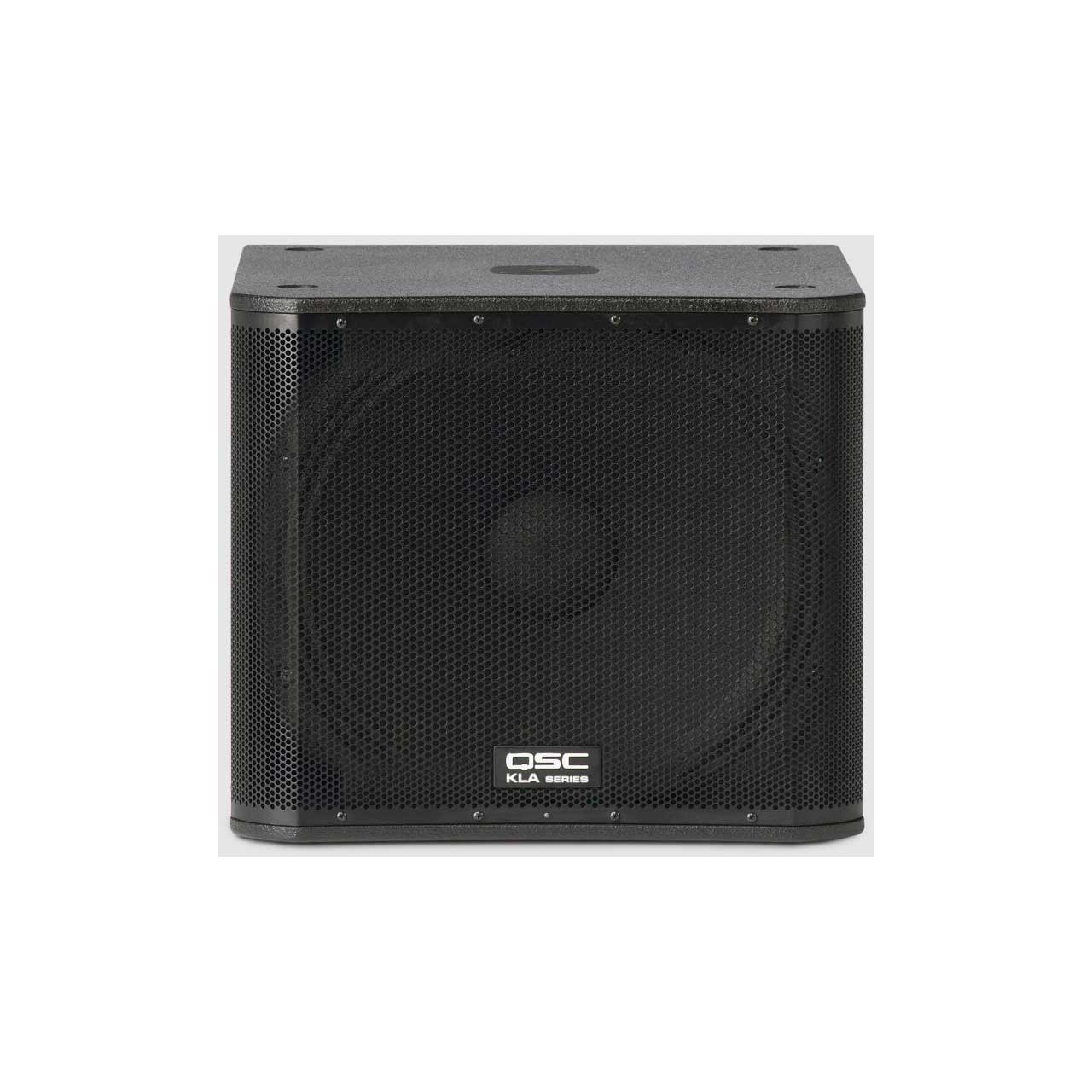

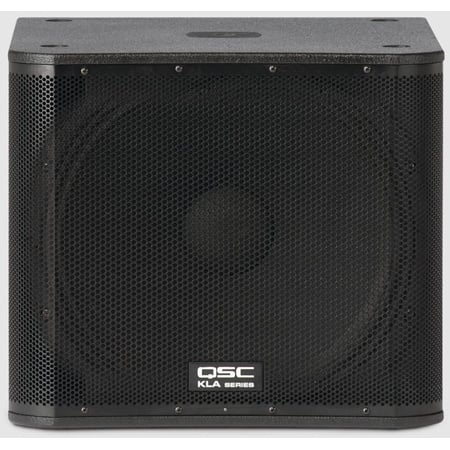

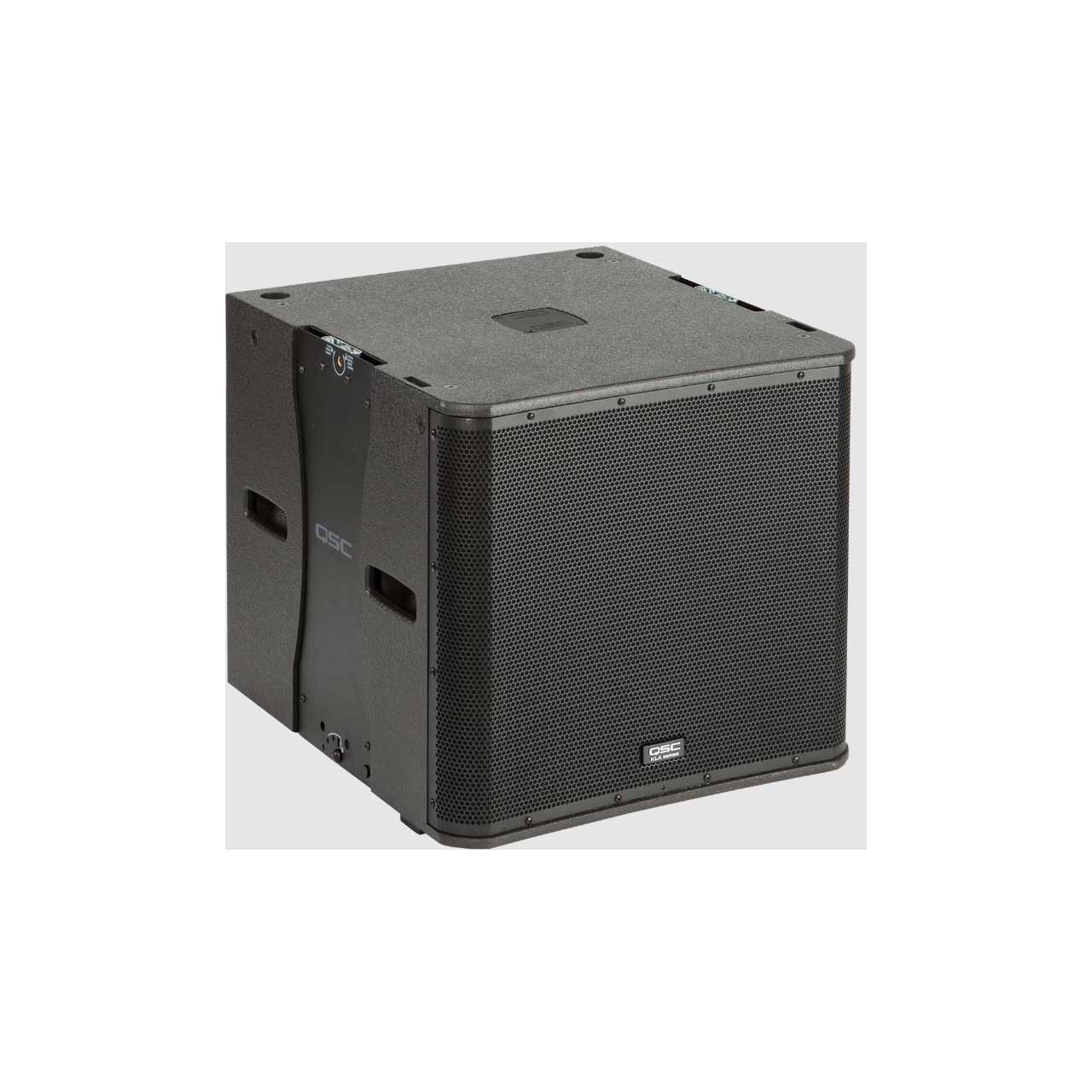

QSC KLA181-BK 18 Inch Ported 1000W Subwoofer - Black

ITEM #: QSC-KLA181-BK MFG #: KLA181-BK

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,437.49

Our Price:

$2,749.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


KLA181-BK - Overview

18 Inch Ported 1000W Subwoofer - Black

The black KLA181 1,000-Watt Subwoofer from QSC is designed to be used in the KLA series fixed line array system. It can reproduce frequencies down to 33Hz and produces up to 1,000-watts of output. The KLA181 has an integrated threaded pole-cup receptacle that allows you to pole-mount up to 2 KLA12 speakers on top of it for array setup. Its M10 fittings allow it to alternatively be suspension mounted.

  • Features:

    • 1,000W Output
    • 18" Subwoofer
    • 135dB SPL
    • Handles Frequencies Down to 33Hz
    • Threaded Pole-Cup Receptacle

  • Specifications:

    • Configuration: 18" ported subwoofer
    • Transducer: 18" cone transducer
    • Frequency Response: 38 Hz, -6 dB
    • Frequency Range: 33 Hz, -10 dB
    • Maximum SPL: 135 dB @ 1 m
    • Power Output: 1,000 W power module
    • Input Impedance: XLR: 40k Ω balanced, 20k Ω unbalanced

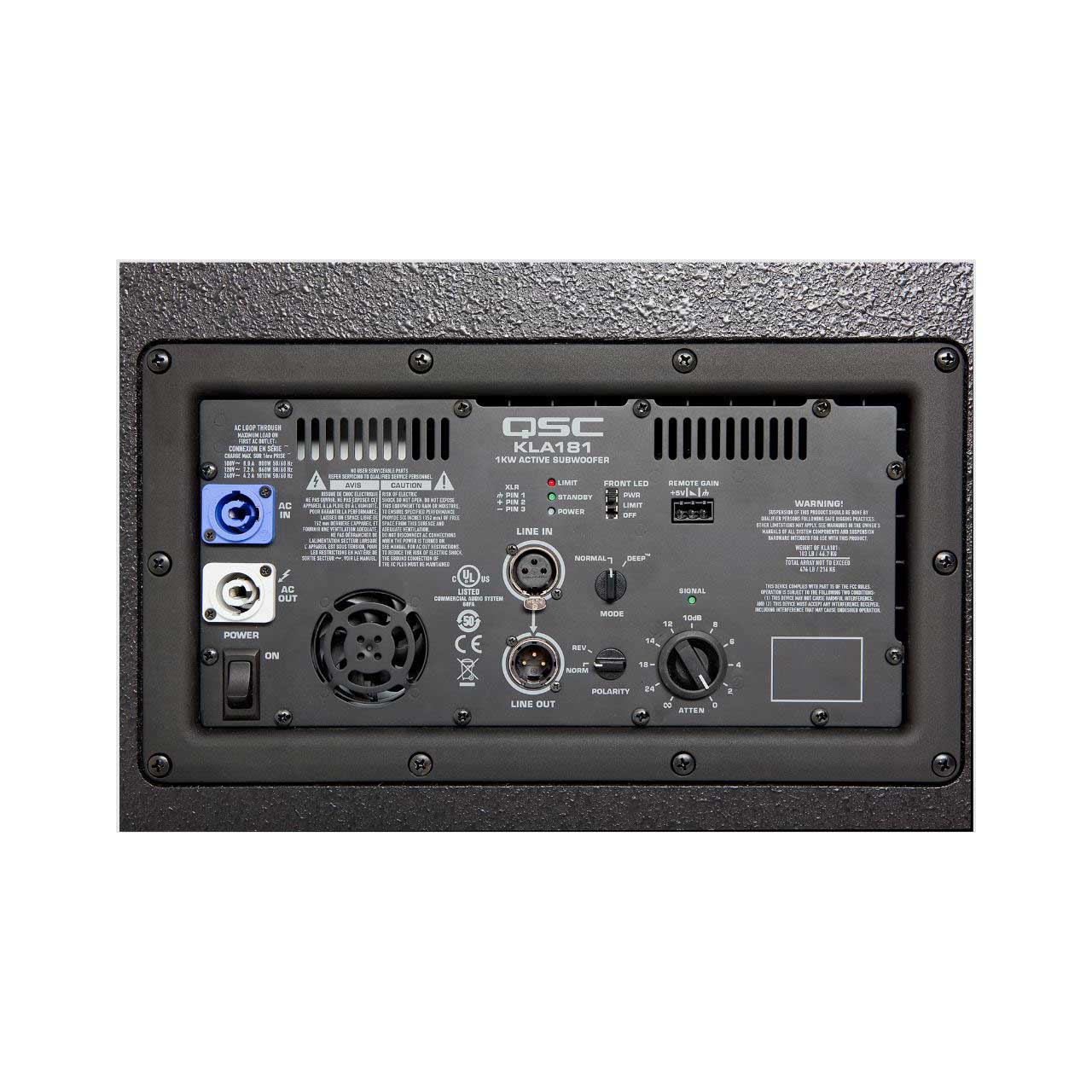

    • Controls: Power, attenuation, LF Mode (normal/DEEP), polarity (normal/reverse), front LED (power, limit, off)
    • Connectors: 1x balanced XLRF line level in, 1x balanced XLRM line level out, 1x locking powerCON power connector AC in, 1x locking powerCON power connector AC out
    • Cooling: On demand, 1.9" fan
    • Protection: Amp: Thermal limiting, output overcurrent, over-temperature muting, GuardRail, Transducer: Thermal limiting, excursion limiting
    • AC Power: Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
    • Consumption: 100 VAC, 2.3 A: 120 VAC, 2.01 A: 230 VAC, 1.13 A, 1/8 power
    • Dimensions (HxWxD): 21.6 x 23.4 x 25.7"
    • Weight: 104 lb

  • Item Includes:

    • Quick-Start Guide
    • Warning Information Sheet
    • KLA181 Subwoofer Assembly
    • AC powerCON Power Cord (CEE 7/7), 3.6 Meter
    • AC powerCON Power Cord (NEMA 5-15 - USA style), 12 Foot
    • XLR Audio Loop-thru Cable, 3 Foot
    • powerCON Loop-thru Power Cord, 3 Foot
    • Hex Key, 6 mm
    • 9Euro-style Connector Plug, 3-pin

  • GTIN:

    0684284058775
